Ground | References | ArcGIS Maps SDK for JavaScript

import Ground from "@arcgis/core/Ground.js";

Inheritance:: Ground→Accessor

Since: ArcGIS Maps SDK for JavaScript 4.0

The Ground class contains properties that specify how the ground surface is displayed in a SceneView. It contains a layers property, which is a collection of ElevationLayer that defines the elevation or terrain of the map's surface.

On a Map instance, a default ground surface using the World Elevation Service can conveniently be initialized through the Map.ground property:

let map = new Map({
  basemap: "topo-vector",
  ground: "world-elevation"
});

When terrain and bathymetry values are needed, the TopoBathy 3D Service can be used:

let map = new Map({
  basemap: "topo-vector",
  ground: "world-topobathymetry"
});

When no basemap is available, the Ground displays a grid by default:

ground-grid

That can be changed by setting a color on the surfaceColor property:

map.ground.surfaceColor = '#004c73';

ground-color

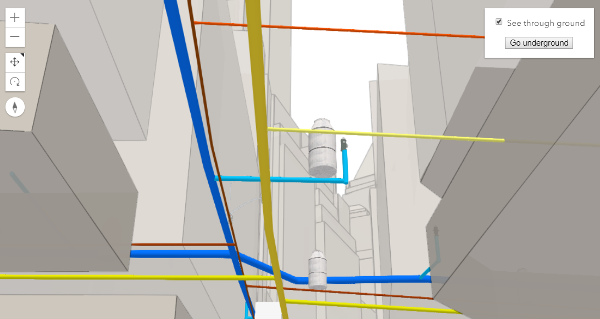

If the scene contains underground data, reduce the opacity of the ground to be able to see through the ground:

map.ground.opacity = 0.4;

See also

Constructors

Constructor

Parameters

Parameter	Type	Description	Required
properties	`GroundProperties`

See the properties table for a list of all the properties that may be passed into the constructor.

Properties

Any properties can be set, retrieved or listened to. See the Watch for changes topic.

Property	Type	Class
`declaredClass` readonly inherited	`string`	Accessor
`layers`	`Collection<ElevationLayerUnion>`
`loaded` readonly	`boolean`
`loadError` readonly inherited	`EsriError \| null \| undefined`	LoadableMixin
`loadStatus` readonly inherited	`"not-loaded" \| "loading" \| "failed" \| "loaded"`	LoadableMixin
`loadWarnings` readonly inherited	`any[]`	LoadableMixin
`navigationConstraint`	`NavigationConstraint \| null \| undefined`
`opacity`	`number`
`surfaceColor`	`Color \| null \| undefined`

declaredClass

readonlyinherited Property

Type: string

Inherited from: Accessor

Since: ArcGIS Maps SDK for JavaScript 4.7

The name of the class. The declared class name is formatted as esri.folder.className.

layers

autocast Property

Type: Collection<ElevationLayerUnion>

A collection of ElevationLayers that define the elevation or terrain that makes up the ground surface. When elevation layers are added to the ground, the topographical variations of the surface are rendered in 3D as they would appear in the real world.

elev-default

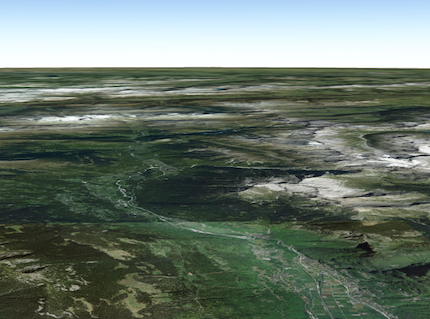

When the layers collection is empty, the ground surface is flat.

no-elev

Example

// Adds the esri world elevation service to the ground
let layer = new ElevationLayer({
  url: "//elevation3d.arcgis.com/arcgis/rest/services/WorldElevation3D/Terrain3D/ImageServer"
});
map.ground.layers.add(layer);

loaded

readonly Property

Type: boolean

Indicates whether the instance has loaded. When true, the properties of the object can be accessed. A Ground is considered loaded when its layers are fully created, but not yet loaded.

Default value: false

loadError

readonlyinherited Property

Type: EsriError | null | undefined

Inherited from: LoadableMixin

The Error object returned if an error occurred while loading.

loadStatus

readonlyinherited Property

Type: "not-loaded" | "loading" | "failed" | "loaded"

Inherited from: LoadableMixin

Represents the status of a load() operation.

Value	Description
not-loaded	The object's resources have not loaded.
loading	The object's resources are currently loading.
loaded	The object's resources have loaded without errors.
failed	The object's resources failed to load. See loadError for more details.

Default value: "not-loaded"

loadWarnings

readonlyinherited Property

Type: any[]

Inherited from: LoadableMixin

A list of warnings which occurred while loading.

navigationConstraint

autocast Property

Type: NavigationConstraint | null | undefined

Since: ArcGIS Maps SDK for JavaScript 4.8

Specifies the user navigation constraints relative to the ground surface.

opacity

Property

Type: number

Since: ArcGIS Maps SDK for JavaScript 4.8

Opacity of the ground, including surface default color and the basemap (without reference layers). This property can be used for a see-through ground effect.

Default value: 1

surfaceColor

autocast Property

Type: Color | null | undefined

Since: ArcGIS Maps SDK for JavaScript 4.8

The color of the ground surface, displayed underneath the basemap. If this is null, a grid is displayed instead. The alpha value in the color is ignored. Use the opacity property to control the opacity of the ground.

Methods

Method	Signature	Class
`fromJSON` inherited static	`fromJSON(json: any): any`	JSONSupportMixin
`cancelLoad` inherited	`cancelLoad(): this`	LoadableMixin
`clone`	`clone(): Ground`
`createElevationSampler`	`createElevationSampler(extent: Extent, options?: CreateElevationSamplerOptions): Promise<ElevationSampler>`
`destroy`	`destroy(): void`
`isFulfilled` inherited	`isFulfilled(): boolean`	EsriPromiseMixin
`isRejected` inherited	`isRejected(): boolean`	EsriPromiseMixin
`isResolved` inherited	`isResolved(): boolean`	EsriPromiseMixin
`load` inherited	`load(options?: AbortOptions \| null \| undefined): Promise<this>`	LoadableMixin
`loadAll`	`loadAll(): Promise<this>`
`queryElevation`	`queryElevation(geometry: Point, options?: ElevationQueryOptions): Promise<ElevationQueryResult<Point>>`
`queryElevation`	`queryElevation(geometry: Multipoint, options?: ElevationQueryOptions): Promise<ElevationQueryResult<Multipoint>>`
`queryElevation`	`queryElevation(geometry: Polyline, options?: ElevationQueryOptions): Promise<ElevationQueryResult<Polyline>>`
`queryElevation`	`queryElevation(geometry: ElevationQueryGeometry, options?: ElevationQueryOptions): Promise<ElevationQueryResult<ElevationQueryGeometry>>`
`toJSON` inherited	`toJSON(): any`	JSONSupportMixin
`when` inherited	`when<TResult1 = this, TResult2 = never>(onFulfilled?: OnFulfilledCallback<this, TResult1> \| null \| undefined, onRejected?: OnRejectedCallback<TResult2> \| null \| undefined): Promise<TResult1 \| TResult2>`	EsriPromiseMixin

fromJSON

inheritedstatic Method

Signature: fromJSON (json: any): any

Inherited from: JSONSupportMixin

Creates a new instance of this class and initializes it with values from a JSON object generated from an ArcGIS product. The object passed into the input json parameter often comes from a response to a query operation in the REST API or a toJSON() method from another ArcGIS product. See the Using fromJSON() topic in the Guide for details and examples of when and how to use this function.

Parameters

Parameter	Type	Description	Required
json	`any`	A JSON representation of the instance in the ArcGIS format. See the ArcGIS REST API documentation for examples of the structure of various input JSON objects.

Returns: any
Returns a new instance of this class.

cancelLoad

inherited Method

Signature: cancelLoad (): this

Inherited from: LoadableMixin

Cancels a load() operation if it is already in progress.

Returns: this

clone

Method

Signature: clone (): Ground

Creates a deep clone of this object.

Returns: Ground
A deep clone of the Ground instance that invoked this method.

createElevationSampler

Method

Signature: createElevationSampler (extent: Extent, options?: CreateElevationSamplerOptions): Promise<ElevationSampler>

Since: ArcGIS Maps SDK for JavaScript 4.7

Creates an elevation sampler for the given extent by querying the ground layers for elevation data and caching it so values may be sampled quickly afterwards. The sampler uses the elevation data from the first layer that has data available. For getting elevation data from a specific layer use ElevationLayer.createElevationSampler().

Parameters

Parameter	Type	Description	Required
extent	`Extent`	The extent for which to create the sampler.
options	`CreateElevationSamplerOptions`	Additional sampler options.

Returns: Promise<ElevationSampler>
An elevation sampler.

destroy

Method

Signature: destroy (): void

Since: ArcGIS Maps SDK for JavaScript 4.17

Destroys the ground and its layers. These can no longer be used once the ground has been destroyed. To prevent the layers from being destroyed, remove them from the ground before calling destroy().

// prevent the layers from being destroyed by removing them from the ground
const layers = ground.layers.removeAll();

// destroy the ground and any remaining associated resources
ground.destroy();

See also

Returns: void

isFulfilled

inherited Method

Signature: isFulfilled (): boolean

Inherited from: EsriPromiseMixin

isFulfilled() may be used to verify if creating an instance of the class is fulfilled (either resolved or rejected). If it is fulfilled, true will be returned.

Returns: boolean
Indicates whether creating an instance of the class has been fulfilled (either resolved or rejected).

isRejected

inherited Method

Signature: isRejected (): boolean

Inherited from: EsriPromiseMixin

isRejected() may be used to verify if creating an instance of the class is rejected. If it is rejected, true will be returned.

Returns: boolean
Indicates whether creating an instance of the class has been rejected.

isResolved

inherited Method

Signature: isResolved (): boolean

Inherited from: EsriPromiseMixin

isResolved() may be used to verify if creating an instance of the class is resolved. If it is resolved, true will be returned.

Returns: boolean
Indicates whether creating an instance of the class has been resolved.

load

inherited Method

Signature: load (options?: AbortOptions | null | undefined): Promise<this>

Inherited from: LoadableMixin

Loads the resources referenced by this class. This method automatically executes for a View and all of the resources it references in Map if the view is constructed with a map instance.

This method must be called by the developer when accessing a resource that will not be loaded in a View.

The load() method only triggers the loading of the resource the first time it is called. The subsequent calls return the same promise.

It's possible to provide a signal to stop being interested into a Loadable instance load status. When the signal is aborted, the instance does not stop its loading process, only cancelLoad() can abort it.

Parameters

Parameter	Type	Description	Required
options	`AbortOptions \| null \| undefined`	Additional options.

Returns: Promise<this>
Resolves when the resources have loaded.

loadAll

Method

Signature: loadAll (): Promise<this>

Since: ArcGIS Maps SDK for JavaScript 4.9

Loads all the externally loadable resources associated with the ground. For the ground this will load all the layers.

See also

load()

Returns: Promise<this>
Resolves when all the loadable resources have been loaded. Rejects if at least one of the loadable resources failed to load.

Example

// Load all resources but ignore if one or more of them failed to load
ground.loadAll()
  .catch(function(error) {
    // Ignore any failed resources
  })
  .then(function() {
    console.log("All loaded");
  });

queryElevation

Method

Signature: queryElevation (geometry: Point, options?: ElevationQueryOptions): Promise<ElevationQueryResult<Point>>

Parameters

Parameter	Type	Description	Required
geometry	`Point`
options	`ElevationQueryOptions`

Returns: Promise<ElevationQueryResult<Point>>

queryElevation

Method

Signature: queryElevation (geometry: Multipoint, options?: ElevationQueryOptions): Promise<ElevationQueryResult<Multipoint>>

Parameters

Parameter	Type	Description	Required
geometry	`Multipoint`
options	`ElevationQueryOptions`

Returns: Promise<ElevationQueryResult<Multipoint>>

queryElevation

Method

Signature: queryElevation (geometry: Polyline, options?: ElevationQueryOptions): Promise<ElevationQueryResult<Polyline>>

Parameters

Parameter	Type	Description	Required
geometry	`Polyline`
options	`ElevationQueryOptions`

Returns: Promise<ElevationQueryResult<Polyline>>

queryElevation

Method

Signature: queryElevation (geometry: ElevationQueryGeometry, options?: ElevationQueryOptions): Promise<ElevationQueryResult<ElevationQueryGeometry>>

Query the ground layer services for elevation values for the given geometry.

The returned result contains a copy of the geometry with z-values sampled from elevation data from the first layer that has data available. The resolution from which the elevation is queried can be set using the demResolution option. In many cases, auto demResolution can be used to get high quality elevation samples without the need to know exactly where the data in the service is located. This is particularly useful for services which combine elevation data from many sources (such as the world elevation service). If more control, or higher quality samples are required, use either finest-contiguous or a fixed {number} resolution.

Parameters

Parameter	Type	Description	Required
geometry	`ElevationQueryGeometry`	The geometry to sample.
options	`ElevationQueryOptions`	Additional query options.

Returns: Promise<ElevationQueryResult<ElevationQueryGeometry>>
Resolves to an object with the sampled geometry, resolution information, and no data value.

Example

const [Map, Multipoint] = await $arcgis.import(["@arcgis/core/Map.js", "@arcgis/core/geometry/Multipoint.js"]);
const map = new Map({
  ground: "world-elevation"
});

// Various points across a ridge of the mount everest
const points = [
   [ 86.9252, 27.9883 ],
   [ 86.9265, 27.9894 ],
   [ 86.9292, 27.9923 ],
   [ 86.9324, 27.9960 ],
   [ 86.9359, 27.9992 ]
];

map.ground.queryElevation(new Multipoint({ points }), { returnSampleInfo: true })

  // Successfully sampled all points
  .then(function(result) {
    // Print result of each sampled point to the console
    result.geometry.points.forEach(function(point, index) {
      const elevation = Math.round(point[2]);
      const resolution = result.sampleInfo[index].demResolution;

      const coordinateText = "(" + point[0] + ", " + point[1] + ")";
      const resolutionText = Math.round(resolution) + " meter resolution";

      console.log("Sampled " + coordinateText + ": " + elevation + " at " + resolutionText);
    });
  })

  // Failed to sample (e.g. service unavailable)
  .catch(function(error) {
    console.error("Failed to query elevation:", error);
  });

toJSON

inherited Method

Signature: toJSON (): any

Inherited from: JSONSupportMixin

Converts an instance of this class to its ArcGIS portal JSON representation. See the Using fromJSON() guide topic for more information.

Returns: any
The ArcGIS portal JSON representation of an instance of this class.

when

inherited Method

Signature: when <TResult1 = this, TResult2 = never>(onFulfilled?: OnFulfilledCallback<this, TResult1> | null | undefined, onRejected?: OnRejectedCallback<TResult2> | null | undefined): Promise<TResult1 | TResult2>

Type parameters: <TResult1 = this, TResult2 = never>

Inherited from: EsriPromiseMixin

Since: ArcGIS Maps SDK for JavaScript 4.6

when() may be leveraged once an instance of the class is created. This method takes two input parameters: an onFulfilled function and an onRejected function. The onFulfilled executes when the instance of the class loads. The onRejected executes if the instance of the class fails to load.

Parameters

Parameter	Type	Description	Required
onFulfilled	`OnFulfilledCallback<this, TResult1> \| null \| undefined`	The function to call when the promise resolves.
onRejected	`OnRejectedCallback \| null \| undefined`	The function to execute when the promise fails.

Returns: Promise<TResult1 | TResult2>
Returns a new promise for the result of onFulfilled that may be used to chain additional functions.

Example

// Although this example uses MapView, any class instance that is a promise may use when() in the same way
let view = new MapView();
view.when(function(){
  // This function will execute once the promise is resolved
}, function(error){
  // This function will execute if the promise is rejected due to an error
});
