WebScene | References | ArcGIS Maps SDK for JavaScript

import WebScene from "@arcgis/core/WebScene.js";

Inheritance:: WebScene→Map→Accessor

Since: ArcGIS Maps SDK for JavaScript 4.0

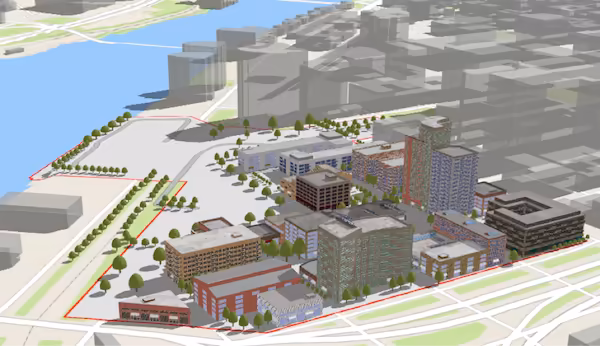

The web scene is the core element of 3D mapping across ArcGIS. It defines the content, style, environment, and slides of your scene and it can be shared across multiple ArcGIS web and desktop applications. Web scenes can be created, published, and consumed in ArcGIS Pro and ArcGIS Online with the Scene Viewer. The web scene is saved as a JSON document that can be consumed by the ArcGIS Maps SDK for JavaScript via the WebScene class to easily create compelling 3D applications. The JSON document is written according to the web scene specification.

Although you can easily create your own scenes, there are thousands of publicly available web scenes in ArcGIS Online that you can use to get started with the API. You may modify or add new content to these scenes.

To load a WebScene into a SceneView, you need to simply reference the ID of the web scene item in ArcGIS Online via the portalItem property of this class.

const scene = new WebScene({
  portalItem: { // autocasts as new PortalItem()
    id: "affa021c51944b5694132b2d61fe1057"  // ID of the WebScene on arcgis.com
  }
});

To load a WebScene from an on-premise portal, set the portal url in esriConfig.portalurl.

esriConfig.portalUrl = "https://myHostName.esri.com/arcgis";

const scene = new WebScene({
  portalItem: { // autocasts as new PortalItem()
    id: "0614ea1f9dd043e9ba157b9c20d3c538" // ID of the WebScene on the on-premise portal
  }
});

Then you must reference the WebScene instance in the SceneView.map property of a SceneView.

const view = new SceneView({
  map: scene,  // The WebScene instance created above
  container: "viewDiv"
});

This will start loading all layers and scene options into the 3D SceneView. The when() method on the WebScene instance can be called to execute processes that may only run after the WebScene is loaded.

scene.when(function() {
  // All layers and the basemap have been created
});
view.when(function() {
  // All layer and basemap resources have been loaded and are ready to be displayed
});

The WebScene defines the content of your scene and how the scene looks when it is loaded in your application. There are several common properties of a web scene that you will likely interact with when using this class:

layers: defines the content and styling of the web scene, as well as popups, labels, legend and other settings.
basemap: defines the basemap layers of the web scene.
ground: defines the elevation layers of the web scene.
presentation: contains the web scene slides.
initialViewProperties
- InitialViewProperties.environment: configures lighting, shadows and atmosphere of the scene.
- InitialViewProperties.viewpoint: configures the initial viewpoint.
- InitialViewProperties.viewingMode: defines if the web scene is global or local.

For more information on properties of a web scene, please consult the web scene specification.

There are two types of web scenes: global or local. Global scenes render the earth as a sphere while Local scenes render the earth on a flat plane. Global web scenes can be created with a WebMercator, WGS84, CGCS2000, Mars_2000_(Sphere), GCS_Mars_2000 and GCS_Moon_2000. Local web scenes can be created with WGS84, CGCS2000 or any projected coordinate system. Read the ArcGIS Online help to learn more about choosing global or local scenes.

Slides store a snapshot of a visualization state of the scene that can be re-applied to the scene at a later time. Slides contain properties for viewpoint, layer visibilities, basemap and environment (as well as a title and thumbnail) so that users of a 3D application can easily navigate the scene and accurately recreate a stored view of that scene.

Web scenes can be saved to ArcGIS Online or Portal using saveAs() or save(). Define the portal and once it is loaded, save the web scene.

const portal = new Portal({
  url: "https://myportal.arcgis.com/", // the url of the portal
  authMode: "immediate" // user authenticates by signing in when the Portal is loaded
});
// once the portal is loaded save the web scene to the portal as a new web scene
portal.load().then(function() {
  webscene.saveAs({
    title: "My Scene",
    portal: portal
  })
  .then(function() {
    console.log("Scene was saved");
  })
  .catch(function(err) {
    console.log(err);
  });
})

It's important to note that GraphicsLayer, ImageryLayer, MediaLayer and StreamLayer can't be saved to a web scene. A cached image service can be saved to a web scene, by declaring it as a TileLayer. An OpenStreetMapLayer can be saved as a baseLayer. For more information on types of layers that can be saved in a web scene, see the web scene specification.

See also

Constructors

Constructor

Parameters

Parameter	Type	Description	Required
properties	`WebSceneProperties`

See the properties table for a list of all the properties that may be passed into the constructor.

Examples

// Typical usage
const scene = new WebScene({
  portalItem: {
    id: "affa021c51944b5694132b2d61fe1057"
  }
});

// Typical usage
const map = new Map({
  basemap: "topo-vector"
});

Properties

Any properties can be set, retrieved or listened to. See the Watch for changes topic.

Property	Type	Class
`version` readonly static	`string`
`allLayers` readonly inherited	`ReadonlyCollection<Layer>`	Map
`allTables` readonly inherited	`ReadonlyCollection<Layer>`	Map
`applicationProperties`	`ApplicationProperties \| null \| undefined`
`authoringApp`	`string`
`authoringAppVersion`	`string`
`basemap` inherited	`Basemap \| null \| undefined`	Map
`clippingArea`	`Extent \| null \| undefined`
`clippingEnabled`	`boolean`
`declaredClass` readonly inherited	`string`	Accessor
`editableLayers` readonly inherited	`ReadonlyCollection<EditableLayerUnion>`	Map
`floorInfo`	`MapFloorInfo \| null \| undefined`
`focusAreas` inherited	`FocusAreas`	Map
`ground` inherited	`Ground`	Map
`heightModelInfo`	`HeightModelInfo \| null \| undefined`
`initialViewProperties`	`InitialViewProperties`
`layers` inherited	`Collection<Layer>`	LayersMixin
`loaded` readonly	`boolean`
`loadError` readonly inherited	`EsriError \| null \| undefined`	LoadableMixin
`loadStatus` readonly inherited	`"not-loaded" \| "loading" \| "failed" \| "loaded"`	LoadableMixin
`loadWarnings` readonly inherited	`any[]`	LoadableMixin
`portalItem`	`PortalItem \| null \| undefined`
`presentation`	`Presentation`
`sourceVersion` readonly	`Version \| null \| undefined`
`tables` inherited	`Collection<Layer>`	TablesMixin
`thumbnailUrl`	`string \| null`
`widgets`	`Widgets \| null \| undefined`

version

readonlystatic Property

Type: string

The latest supported webscene spec version.

allLayers

readonlyinherited Property

Type: ReadonlyCollection<Layer>

Inherited from: Map

A flattened collection of all layers in the map. This collection contains basemap layers, operational layers and ground layers. Group Layers and their children layers are also part of this collection. Reference layers in the basemap will always be included at the end of the collection.

Layers should not be added directly to this collection. They must only be added via the layers, basemap or ground properties.

To access a flattened collection of tables, use the allTables property instead.

Example

// Find a layer with title "US Counties"
const foundLayer = map.allLayers.find(function(layer) {
 return layer.title === "US Counties";
});

// Create a filtered collection of the non-group layers
const nonGroupLayers = map.allLayers.filter(function(layer) {
 return !foundLayer.layers;
});

// Listen for any layer being added or removed in the Map
map.allLayers.on("change", function(event) {
 console.log("Layer added: ", event.added);
 console.log("Layer removed: ", event.removed);
 console.log("Layer moved: ", event.moved);
});

// Watching for changes to the visible layers in the Map
reactiveUtils.watch(
  () => view.map.allLayers.filter((layer) => layer.visible),
  (newVisibleLayers, oldVisibleLayers) => {
    const added = newVisibleLayers.filter(
      (layer) => !oldVisibleLayers.includes(layer)
    );
    const removed = oldVisibleLayers.filter(
      (layer) => !newVisibleLayers.includes(layer)
    );
    added.forEach((layer) => console.log(layer.title, "is visible"));
    removed.forEach((layer) => console.log(layer.title, "is not visible"));
  }
);

allTables

readonlyinherited Property

Type: ReadonlyCollection<Layer>

Inherited from: Map

Since: ArcGIS Maps SDK for JavaScript 4.17

A flattened collection of tables anywhere in the map's hierarchy. This will contain individual tables within the map's tables, in addition to any group layer tables. In order for the table(s) to be recognized as such, the FeatureLayer.isTable property must return true.

Currently, only feature layer tables are recognized. To access spatial layers, use the allLayers property instead.

Example

// A feature layer where isTable = true.
const foundTable = map.allTables.find(function(table) {
  // Find a table with title "US Counties"
  return table.title === "US Counties";
});

applicationProperties

autocast Property

Type: ApplicationProperties | null | undefined

Since: ArcGIS Maps SDK for JavaScript 4.7

Configuration of application and UI elements.

authoringApp

Property

Type: string

Since: ArcGIS Maps SDK for JavaScript 4.14

The name of the application that authored the WebScene.

authoringAppVersion

Property

Type: string

Since: ArcGIS Maps SDK for JavaScript 4.14

The version of the application that authored the WebScene.

basemap

autocast inherited Property

Type: Basemap | null | undefined

Inherited from: Map

Specifies a basemap for the map. The basemap is a set of layers that give geographic context to the MapView or SceneView and the other operational layers in the map.

The basemap can be created in a variety of ways:

From the basemap styles service (v2)
From an instance of the Basemap class
From a basemap id

Use of these basemaps requires either an ArcGIS Location Platform account, ArcGIS Online organizational subscription, or an ArcGIS Enterprise license.

To authenticate basemap requests, you may need an access token. You can use an API key or OAuth 2.0. When using an API key, the key must have privileges to access the appropriate location service.

Basemap Id

3D

Since version 4.28

The 3D Basemaps can be accessed using the basemap id in the table below. They are designed to be used as basemaps in SceneView.

Value	Source
`topo-3d`	Topographic
`navigation-3d`	Navigation
`navigation-dark-3d`	Navigation (Dark)
`osm-3d`	OpenStreetMap
`gray-3d`	Light Gray Canvas
`dark-gray-3d`	Dark Gray Canvas
`streets-3d`	Streets
`streets-dark-3d`	Streets (Dark)

Known Limitations

3D Basemaps can only be used in SceneView.

2D (legacy)

Since version 4.0

The legacy basemaps can be accessed using the basemap id in the table below. These are references to enhanced basemap endpoints.

Value	Source
`satellite`	World Imagery
`hybrid`	Hybrid Reference Layer and World Imagery
`oceans`	World Ocean Reference and World Ocean Base
`osm`	OpenStreetMapLayer
`terrain`	World Reference Overlay and World Hillshade
`dark-gray` / `dark-gray-vector`	Dark Gray Canvas
`gray` / `gray-vector`	Light Gray Canvas
`streets` / `streets-vector`	World Street Map
`streets-night-vector`	World Street Map (Night)
`streets-navigation-vector`	World Navigation Map
`topo` / `topo-vector`	World Hillshade and World Topographic Map
`streets-relief-vector`	World Hillshade and World Street Map (with Relief)

Examples

// create the basemap from a string id representing the basemap style
const map = new Map({
  basemap: "arcgis/topographic"
});

// create the basemap from a BasemapStyle object
const map = new Map({
 basemap: {
  style: {
   id:  "arcgis/outdoor",
   language: "es" // place labels will be displayed in spanish
  }
 }
});

// Set the basemap from a string ID in the constructor
const map = new Map({
  basemap: "dark-gray-3d"
});

// Set the basemap after the map instance is created
map.basemap = "topo-3d";

// Create a VectorTileLayer from a style URL
const mapBaseLayer = new VectorTileLayer({
  url: "https://arcgis.com/sharing/rest/content/items/b5676525747f499687f12746441101ef/resources/styles/root.json"
});

// Create a Basemap with the VectorTileLayer
const customBasemap = new Basemap({
  baseLayers: [mapBaseLayer],
  title: "Terrain"
});

// Set the basemap to the customBasemap
const map = new Map({
  basemap: customBasemap
});

clippingArea

autocast Property

Type: Extent | null | undefined

This property only applies to local scenes. Represents an optional clipping area used to define the bounds or Extent of a local scene. If defined, only data (including the basemap) within the area will be displayed.

Set the clippingEnabled property to true to apply the specified clippingArea to the view.

See also

clippingEnabled

clippingEnabled

Property

Type: boolean

This property only applies to local scenes. Determines whether clipping using the clippingArea is enabled.

See also

clippingArea

Default value: false

declaredClass

readonlyinherited Property

Type: string

Inherited from: Accessor

Since: ArcGIS Maps SDK for JavaScript 4.7

The name of the class. The declared class name is formatted as esri.folder.className.

editableLayers

readonlyinherited Property

Type: ReadonlyCollection<EditableLayerUnion>

Inherited from: Map

Since: ArcGIS Maps SDK for JavaScript 4.20

A collection of editable layers. Layers are considered editable if they have editing capabilities, and if the authenticated user has the necessary privileges needed to edit the layers.

See also

floorInfo

autocast Property

Type: MapFloorInfo | null | undefined

Since: ArcGIS Maps SDK for JavaScript 4.19

When a web scene is configured as floor-aware, it has a floorInfo property defined. A floor-aware scene is a scene that contains indoor GIS data representing features that can be located on a specific floor of a building. The floor info must contain MapFloorInfo.levelLayer and MapFloorInfo.facilityLayer properties at a minimum. A MapFloorInfo.siteLayer property is optional.

focusAreas

autocast inherited Property

Type: FocusAreas

Inherited from: Map

A container of all focus areas present in the map.

Known Limitations

Focus areas are only supported in SceneView.

See also

ground

autocast inherited Property

Type: Ground

Inherited from: Map

Specifies the surface properties for the map. In MapView, this property is used by the ElevationProfileAnalysis when the profile contains an ElevationProfileLineGround. In 3D SceneView, it renders the terrain or topographical variations in the real world on the map's surface with a collection of ElevationLayers.

This value can be an instance of Ground, or one of the following strings:

world-elevation for a default instance of ground using the Terrain3D Service.
world-topobathymetry for an instance of ground that combines surface elevation and bathymetry using the TopoBathy3D Service.

The ground may not be set to null or undefined, it is guaranteed to always contain an instance of type Ground. The elevation can be removed from the ground by setting the ground property to a new empty Ground instance or by removing all the ground layers.

See also

Examples

// Use the world elevation service
const map = new Map({
  basemap: "topo-vector",
  ground: "world-elevation"
});

// Create a map with the world elevation layer overlaid by a custom elevation layer
const worldElevation = new ElevationLayer({
  url: "//elevation3d.arcgis.com/arcgis/rest/services/WorldElevation3D/Terrain3D/ImageServer"
});
const customElevation = new ElevationLayer({
  url: "https://my.server.com/arcgis/rest/service/MyElevationService/ImageServer"
});
const map = new Map({
  basemap: "topo-vector",
  ground: new Ground({
   layers: [ worldElevation, customElevation ]
  })
});

heightModelInfo

autocast Property

Type: HeightModelInfo | null | undefined

Since: ArcGIS Maps SDK for JavaScript 4.5

The height model info of the WebScene. This object defines the characteristics of the vertical coordinate system used by the scene. In a SceneView, the height model info is used to avoid combining layers that have incompatible vertical coordinate systems.

initialViewProperties

autocast Property

Type: InitialViewProperties

The initial view of the WebScene. This object may contain the following properties: InitialViewProperties.environment, InitialViewProperties.spatialReference, InitialViewProperties.viewingMode, and InitialViewProperties.viewpoint.

These properties will be applied to the SceneView when the scene loads.

layers

autocast inherited Property

Type: Collection<Layer>

Inherited from: LayersMixin

A collection of operational layers. This property contains the operational layers, such as FeatureLayers, WebTileLayers and GraphicsLayers that may be queried, assigned different renderers, analyzed, etc. It does not include basemaps.

A Layer is a collection of one or more features, or graphics, that represent real-world phenomena. Each feature contains a Symbol and geographic data that allows it to be rendered on the map as a graphic with spatial context. Features within the layer may also contain data attributes that provide additional information that may be viewed in popup windows and used for rendering the layer.

Layers may be added in the constructor, with the add() or addMany() methods, or directly to the layers collection using Collection.add() or Collection.addMany().

In 3D, for layers that are rendered on the terrain, the order of the layers also depends on the type of layer. Tiled layers (BaseTileLayer, ImageryTileLayer, OpenStreetMapLayer, TileLayer, VectorTileLayer, WCSLayer, WebTileLayer and WMTSLayer) are always drawn first in the same order as specified in the layer collection. Dynamic layers (MapImageLayer, ImageryLayer, WMSLayer, and feature based layers with elevation mode on-the-ground) are rendered on top using the order from the layer collection.

A Layer may only be added to one parent. Adding the same layer to multiple Maps or GroupLayers is not possible. If you attempt to do so, the layer will automatically be removed from its current parent and placed in the new parent.

let layer = new GraphicsLayer();
// The layer belongs to map1
map1.layers.add(layer);
// The layer now belongs to map2
// and implicitly does: map1.layers.remove(layer)
map2.layers.add(layer);

To access tables from feature layers, use the tables property in either Map.tables or WebMap.tables classes.

Example

// Add layers in the constructor of Map using an array
let fl = new FeatureLayer(url);
let gl = new GraphicsLayer();
let map = new Map({
  layers: [fl, gl]
});

// Add layers using add()
map.addMany([fl, gl]);

// Add layers using layers collection
map.layers.addMany([fl, gl]);

// Add layers using layers collection's push method
map.layers.push(fl, gl);

loaded

readonly Property

Type: boolean

Indicates whether the instance has loaded. When true, the properties of the object can be accessed. A WebScene is considered loaded when its layers and basemap are fully created, but not yet loaded.

Default value: false

loadError

readonlyinherited Property

Type: EsriError | null | undefined

Inherited from: LoadableMixin

The Error object returned if an error occurred while loading.

loadStatus

readonlyinherited Property

Type: "not-loaded" | "loading" | "failed" | "loaded"

Inherited from: LoadableMixin

Represents the status of a load() operation.

Value	Description
not-loaded	The object's resources have not loaded.
loading	The object's resources are currently loading.
loaded	The object's resources have loaded without errors.
failed	The object's resources failed to load. See loadError for more details.

Default value: "not-loaded"

loadWarnings

readonlyinherited Property

Type: any[]

Inherited from: LoadableMixin

A list of warnings which occurred while loading.

portalItem

autocast Property

Type: PortalItem | null | undefined

The portal item from which the WebScene is loaded.

presentation

autocast Property

Type: Presentation

Provides a Collection of slides that act as bookmarks for saving predefined viewpoints and visible layers.

See also

sourceVersion

readonly Property

Type: Version | null | undefined

Since: ArcGIS Maps SDK for JavaScript 4.1

The version of the source document from which the WebScene was read. The WebScene must be version 1.x to load into an app.

tables

autocast inherited Property

Type: Collection<Layer>

Inherited from: TablesMixin

A collection of Layer instances that are tables saved in a Map and/or a WebMap. In order for the table(s) to be recognized as such, the FeatureLayer's FeatureLayer.isTable property must return true. A table can be created via one of the options below:

Referencing the URL to a table in a feature service.
Create a feature layer using the Layer.fromArcGISServerUrl() method and confirm that it is a table using feature layer's FeatureLayer.isTable property. This can be either a feature service or feature collection.
Create a feature layer using the Layer.fromPortalItem() method and confirm that it is a table using feature layer's FeatureLayer.isTable property. This can be either a feature service or feature collection.
Create an in-memory, non-spatial, client-side feature layer.

Beginning with 4.17, it is possible to persist non-spatial, tables in a feature service to a WebMap, although in-memory (feature collection) tables are not yet supported.

Persisting tables within a GroupLayer.tables is not yet supported. If this is needed, add them to the Map.tables and/or WebMap.tables.

Currently, only feature service feature layers are recognized. To access spatial layers, use the layers property in either Map.layers or WebMap.layers classes

See also

Examples

// This snippet shows how to add a table to a map's table collection.

// FeatureLayer.isTable = false
const featureLayer = new FeatureLayer({
  url: "https://sampleserver6.arcgisonline.com/arcgis/rest/services/SF311/FeatureServer/0"
});
// Add featureLayer to the map
map.add(featureLayer);

// FeatureLayer.isTable = true
const table = new FeatureLayer({
  url: "https://sampleserver6.arcgisonline.com/arcgis/rest/services/SF311/FeatureServer/1"
});

// In order for the table to be stored within
// the map's table collection, load it and confirm it is the right type.

table.load().then(() => {
  // Add the table to the collection
  map.tables.add(table);
  console.log("Table is added to map's table collection");
});

// This snippet shows how to persist a table to an existing web map

// FeatureLayer.isTable = true
const table = new FeatureLayer({
  url: "https://services.arcgis.com/V6ZHFr6zdgNZuVG0/arcgis/rest/services/Crash_details_table/FeatureServer/0"
});

// Create Webmap instance
const webmap = new WebMap({
  portalItem: {
    id: webmapId
  }
});

// When web map is ready, load the table and add it to the web map
webmap.when(() => {
  table.load().then(() => {
    console.log("Adding table");
    // Add table to the webmap's table collection
    webmap.tables.add(table);
  });
});

// Call updateFrom on webmap and pass in the existing view
webmap.updateFrom(view).then(() => {
  // Call saveAs (or save) on the web map
  webmap.saveAs({
    // autocasts as new PortalItem()
    title: "New WebMap"
  });
});

// This snippet shows how to add an in-memory table to a map

// Create the array of objects containing field info
const fields = [{
  name: "ObjectID",
  alias: "ObjectID",
  type: "oid"
},
{
  name: "tree_type",
  alias: "Tree type",
  type: "string"
},
{
  name: "species",
  alias: "Species",
  type: "string"
}];

// Create the array of graphics holding attribute info
const graphics = [{
  attributes: {
    "tree_type": "deciduous",
    "species": "maple",
    "ObjectID": 2
  }
}, {
  attributes: {
    "tree_type": "coniferous",
    "species": "pine",
    "ObjectID": 3
  }
}];

// Create the feature layer (feature collection) table
const table = new FeatureLayer({
  fields: fields,
  objectIdField: "ObjectID",
  source: graphics
});

// Check when map is ready and load the table
map.when(() => {
  table.load().then(() => {
    console.log("Adding table");
    map.tables.add(table);
  });
});

thumbnailUrl

Property

Type: string | null

Since: ArcGIS Maps SDK for JavaScript 4.9

The URL to the thumbnail used for the web scene. The thumbnail will by default be the thumbnail URL from the portal item associated to the web scene. The thumbnail of the web scene may be updated by changing the thumbnail URL and saving the web scene. Use updateFrom() to update the thumbnail automatically from a specified view.

Example

scene.updateFrom(view)
  .then(function() {
    return scene.save();
  })
  .then(function(portalItem) {
    console.log("Saved to portal", portalItem.id);
  })
  .catch(function(error) {
    console.error("Error saving to portal", error);
  });

widgets

autocast Property

Type: Widgets | null | undefined

The widgets object contains widgets that are exposed to the user.

Methods

Method	Signature	Class
`fromJSON` static	`fromJSON(json: any): WebScene`
`add` inherited	`add(layer: Layer \| PromiseLike<Layer>, index?: number): void`	LayersMixin
`addMany` inherited	`addMany(layers: Layer[], index?: number): void`	LayersMixin
`cancelLoad` inherited	`cancelLoad(): this`	LoadableMixin
`destroy`	`destroy(): void`
`emit` inherited	`emit<Type extends EventNames<this>>(type: Type, event?: this["@eventTypes"][Type]): boolean`	EventedMixin
`findLayerById` inherited	`findLayerById(layerId: string): Layer \| null \| undefined`	LayersMixin
`findTableById` inherited	`findTableById(tableId: string): Layer \| null \| undefined`	TablesMixin
`hasEventListener` inherited	`hasEventListener<Type extends EventNames<this>>(type: Type): boolean`	EventedMixin
`isFulfilled` inherited	`isFulfilled(): boolean`	EsriPromiseMixin
`isRejected` inherited	`isRejected(): boolean`	EsriPromiseMixin
`isResolved` inherited	`isResolved(): boolean`	EsriPromiseMixin
`load`	`load(options?: AbortOptions \| null \| undefined): Promise<this>`
`loadAll`	`loadAll(): Promise<this>`
`on` inherited	`on<Type extends EventNames<this>>(type: Type, listener: EventedCallback<this["@eventTypes"][Type]>): ResourceHandle`	EventedMixin
`remove` inherited	`remove(layer: Layer): Layer \| null \| undefined`	LayersMixin
`removeAll` inherited	`removeAll(): Layer[]`	LayersMixin
`removeMany` inherited	`removeMany(layers: Layer[]): Layer[]`	LayersMixin
`reorder` inherited	`reorder(layer: Layer, index?: number): Layer \| null \| undefined`	LayersMixin
`save`	`save(options?: SaveOptions): Promise<PortalItem>`
`saveAs`	`saveAs(portalItem: PortalItemProperties, options?: SaveAsOptions): Promise<PortalItem>`
`toJSON`	`toJSON(): Record<string, any> \| null \| undefined`
`updateFrom`	`updateFrom(view: SceneView, options?: WebSceneUpdateFromOptions): Promise<void>`
`updateThumbnail`	`updateThumbnail(view: SceneView, options?: WebSceneUpdateThumbnailOptions): Promise<void>`
`when` inherited	`when<TResult1 = this, TResult2 = never>(onFulfilled?: OnFulfilledCallback<this, TResult1> \| null \| undefined, onRejected?: OnRejectedCallback<TResult2> \| null \| undefined): Promise<TResult1 \| TResult2>`	EsriPromiseMixin

fromJSON

static Method

Signature: fromJSON (json: any): WebScene

Creates a new instance of this class and initializes it with values from a JSON object generated from an ArcGIS product. The object passed into the input json parameter often comes from a response to a query operation in the REST API or a toJSON() method from another ArcGIS product. If the WebScene is used outside of a view, you must call load() explicitly to interact with its resources. See the Using fromJSON() topic in the Guide for details and examples of when and how to use this function.

Parameters

Parameter	Type	Description	Required
json	`any`	A JSON representation of the instance in the ArcGIS format. See the web scene specification for more detailed information on serializing web scenes to JSON.

Returns: WebScene
Returns a new instance of this class.

Example

// Retrieve a WebScene JSON by url and deserialize it into a WebScene API instance
const [esriRequest, WebScene] = await $arcgis.import("@arcgis/core/request.js", "@arcgis/ccore/WebScene.js");
esriRequest("http://domain/url/to/webscene.json").then(function(json) {
  const scene = WebScene.fromJSON(json);

  const view = new SceneView({
    map: scene,
    container: "viewDiv"
  });
});

add

inherited Method

Signature: add (layer: Layer | PromiseLike<Layer>, index?: number): void

Inherited from: LayersMixin

Adds a layer to the layers collection. The Collection.@before-changes, Collection.@before-add, Collection.@after-add, Collection.@after-changes and Collection.@change events will be emitted when this method is called.

See also

layer collection's push() method

Parameters

Parameter	Type	Description	Required
layer	`Layer \| PromiseLike<Layer>`	Layer or a promise that resolves to a layer to add to the layers collection.
index	`number`	A layer can be added at a specified index in the layers collection. If no index is specified or the index specified is greater than the current number of layers, the layer is automatically appended to the list of layers in the layers collection and the index is normalized.

Returns: void

Example

// add() and push methods can be used
// to add a layer to layers collection

// add a layer to layers collection using add
map.add(layer);

// add a layer at the end of layers collection
map.layers.push(layer);

addMany

inherited Method

Signature: addMany (layers: Layer[], index?: number): void

Inherited from: LayersMixin

Adds a layer or an array of layers to the layers collection. The Collection.@before-changes, Collection.@before-add, Collection.@after-add, Collection.@after-changes and Collection.@change events will be emitted when this method is called.

The Collection.push() method on the layers collection also can be used to add a layer or layers.

See also

layer collection's push() method

Parameters

Parameter	Type	Description	Required
layers	`Layer[]`	Layer(s) to be added to the layers collection.
index	`number`	A layer can be added at a specified index in the layers collection. If no index is specified or the index specified is greater than the current number of layers, the layer is automatically appended to the list of layers in the layers collection and the index is normalized.

Returns: void

Example

// addMany and push methods can be used
// to add layers to layers collection

// add an array of layers to layers collection using addMany
map.addMany([layer, layer2]);

// add layers to layers collection using push method
map.layers.push(layer, layer2);

cancelLoad

inherited Method

Signature: cancelLoad (): this

Inherited from: LoadableMixin

Cancels a load() operation if it is already in progress.

Returns: this

destroy

Method

Signature: destroy (): void

Since: ArcGIS Maps SDK for JavaScript 4.17

Destroys the webscene, and any associated resources, including its layers, basemap, ground, and portalItem. These can no longer be used once the map has been destroyed. To prevent these objects from being destroyed, remove them from the webscene before calling destroy().

// prevent the layers from being destroyed by removing them from the webscene
const layers = webscene.layers.removeAll();

// unset basemap from the webscene so that it is not destroyed
const basemap = webscene.basemap;
webscene.basemap = null;

// remove ground layers from the map so that they aren't destroyed
const groundLayers = map.ground.removeAll();

// unset portalItem from the webscene so that it is not destroyed
const portalItem = webscene.portalItem;
webscene.portalItem = null;

// destroy the webscene and any remaining associated resources
webscene.destroy();

See also

Returns: void

emit

inherited Method

Signature: emit <Type extends EventNames<this>>(type: Type, event?: this["@eventTypes"][Type]): boolean

Type parameters: <Type extends EventNames<this>>

Inherited from: EventedMixin

Since: ArcGIS Maps SDK for JavaScript 4.5

Emits an event on the instance. This method should only be used when creating subclasses of this class.

Parameters

Parameter	Type	Description	Required
type	`Type`	The name of the event.
event	`this["@eventTypes"][Type]`	The event payload.

Returns: boolean
true if a listener was notified

findLayerById

inherited Method

Signature: findLayerById (layerId: string): Layer | null | undefined

Inherited from: LayersMixin

Returns a layer based on the given layer ID.

Parameters

Parameter	Type	Description	Required
layerId	`string`	The ID assigned to the layer.

Returns: Layer | null | undefined
Returns the requested layer object.

findTableById

inherited Method

Signature: findTableById (tableId: string): Layer | null | undefined

Inherited from: TablesMixin

Since: ArcGIS Maps SDK for JavaScript 4.18

Returns a table based on the given table ID.

Parameters

Parameter	Type	Description	Required
tableId	`string`	The ID assigned to the table.

Returns: Layer | null | undefined
Returns the requested table object.

hasEventListener

inherited Method

Signature: hasEventListener <Type extends EventNames<this>>(type: Type): boolean

Type parameters: <Type extends EventNames<this>>

Inherited from: EventedMixin

Indicates whether there is an event listener on the instance that matches the provided event name.

Parameters

Parameter	Type	Description	Required
type	`Type`	The name of the event.

Returns: boolean
Returns true if the class supports the input event.

isFulfilled

inherited Method

Signature: isFulfilled (): boolean

Inherited from: EsriPromiseMixin

isFulfilled() may be used to verify if creating an instance of the class is fulfilled (either resolved or rejected). If it is fulfilled, true will be returned.

Returns: boolean
Indicates whether creating an instance of the class has been fulfilled (either resolved or rejected).

isRejected

inherited Method

Signature: isRejected (): boolean

Inherited from: EsriPromiseMixin

isRejected() may be used to verify if creating an instance of the class is rejected. If it is rejected, true will be returned.

Returns: boolean
Indicates whether creating an instance of the class has been rejected.

isResolved

inherited Method

Signature: isResolved (): boolean

Inherited from: EsriPromiseMixin

isResolved() may be used to verify if creating an instance of the class is resolved. If it is resolved, true will be returned.

Returns: boolean
Indicates whether creating an instance of the class has been resolved.

load

Method

Signature: load (options?: AbortOptions | null | undefined): Promise<this>

Triggers the loading of the WebScene instance.

A WebScene is considered loaded when its operational layers, basemap and ground are fully created. When created with a portalItem, load() will first fetch its data to create the content, otherwise it resolves immediately.

The SceneView automatically calls the load() method when a WebScene instance is added to its SceneView.map property so it can display in the view and load each individual layer. If the WebScene is used outside of a view, for example to preload it, you must call load() explicitly to interact with its resources.

See also

portalItem

Parameters

Parameter	Type	Description	Required
options	`AbortOptions \| null \| undefined`	Additional options.

Returns: Promise<this>
Resolves when the WebScene is loaded.

Example

// programmatically load all the layers
const WebScene = await $arcgis.import("@arcgis/core/WebScene.js");
const scene = new WebScene({
  portalItem: {
    id: "affa021c51944b5694132b2d61fe1057"
  }
});

scene.load()
  .then(function() {
    // load the basemap to get its layers created
    return scene.basemap.load();
  })
  .then(function() {
    // grab all the layers and load them
    const allLayers = scene.allLayers;
    const promises = allLayers.map(function(layer) {
      return layer.load();
    });
    return Promise.all(promises.toArray());
  })
  .then(function(layers) {
    // each layer load promise resolves with the layer
    console.log("all " + layers.length + " layers loaded");
  })
  .catch(function(error) {
    console.error(error);
  });

loadAll

Method

Signature: loadAll (): Promise<this>

Since: ArcGIS Maps SDK for JavaScript 4.9

Loads all the externally loadable resources associated with the webscene. For the webscene this will load the ground, basemap, layers and slide basemaps.

See also

load()

Returns: Promise<this>
Resolves when all the loadable resources have been loaded. Rejects if at least one of the loadable resources failed to load.

Example

// Load all resources but ignore if one or more of them failed to load
webscene.loadAll()
  .catch(function(error) {
    // Ignore any failed resources
  })
  .then(function() {
    console.log("All loaded");
  });

on

inherited Method

Signature: on <Type extends EventNames<this>>(type: Type, listener: EventedCallback<this["@eventTypes"][Type]>): ResourceHandle

Type parameters: <Type extends EventNames<this>>

Inherited from: EventedMixin

Registers an event handler on the instance. Call this method to hook an event with a listener.

Parameters

Parameter	Type	Description	Required
type	`Type`	An event or an array of events to listen for.
listener	`EventedCallback<this["@eventTypes"][Type]>`	The function to call when the event fires.

Returns

ResourceHandle

Returns an event handler with a remove() method that should be called to stop listening for the event(s).

Property	Type	Description
remove	Function	When called, removes the listener from the event.

Example

view.on("click", function(event){
  // event is the event handle returned after the event fires.
  console.log(event.mapPoint);
});

remove

inherited Method

Signature: remove (layer: Layer): Layer | null | undefined

Inherited from: LayersMixin

Removes the specified layer from the layers collection. The Collection.@before-changes, Collection.@before-remove, Collection.@after-remove, Collection.@after-changes and Collection.@change events will be emitted when this method is called.

Parameters

Parameter	Type	Description	Required
layer	`Layer`	Layer to remove from the layers collection.

Returns: Layer | null | undefined
Returns the layer removed from the layers collection.

removeAll

inherited Method

Signature: removeAll (): Layer[]

Inherited from: LayersMixin

Removes all layers. The Collection.@before-changes, Collection.@before-remove, Collection.@after-remove, Collection.@after-changes and Collection.@change events will be emitted when this method is called.

Returns: Layer[]
Returns the layers removed from the layers collection.

removeMany

inherited Method

Signature: removeMany (layers: Layer[]): Layer[]

Inherited from: LayersMixin

Removes the specified layers. The Collection.@before-changes, Collection.@before-remove, Collection.@after-remove, Collection.@after-changes and Collection.@change events will be emitted when this method is called.

Parameters

Parameter	Type	Description	Required
layers	`Layer[]`	Array of layers to remove from the layers collection.

Returns: Layer[]
Returns the layers removed from the layers collection.

reorder

inherited Method

Signature: reorder (layer: Layer, index?: number): Layer | null | undefined

Inherited from: LayersMixin

Changes the layer order. The first layer added is always the base layer, even if its order is changed. The Collection.@change event will be emitted when this method is called.

Parameters

Parameter	Type	Description	Required
layer	`Layer`	The layer to be moved.
index	`number`	The index location for placing the layer. The bottom-most layer has an index of `0`.

Returns: Layer | null | undefined
Returns the layer that was moved.

save

Method

Signature: save (options?: SaveOptions): Promise<PortalItem>

Since: ArcGIS Maps SDK for JavaScript 4.1

Saves the webscene to its associated portal item. The portal item to save to must already exist and be valid. This is a convenience method that will use PortalItem.update() to store the webscene in the item. The web scene is saved according to web scene specification standards.

If the scene is displayed in a view, use updateFrom() to store the current view properties in the webscene before saving it.

const scene = new WebScene({
  portalItem: {
    id: "3a9976baef9240ab8645ee25c7e9c096"
  }
});

const view = new SceneView({
  container: "viewDiv",
  map: scene
});

scene.updateFrom(view).then(function() {
  scene.save();
});

Note that this saves the webscene to its existing item. Depending on how the scene is shared, users that do not own the scene may modify it. To save an existing scene as a new item owned by the user signed into the portal instance, use saveAs().

Wait until each save() operation has resolved before starting a new save() operation to avoid a potential abort-error.

The webscene will be automatically loaded if it is not already before saving.

See also

Parameters

Parameter	Type	Description	Required
options	`SaveOptions`	Additional options.

Returns: Promise<PortalItem>
A promise that resolves with the PortalItem instance when the item has successfully been saved, or rejects otherwise.

saveAs

Method

Signature: saveAs (portalItem: PortalItemProperties, options?: SaveAsOptions): Promise<PortalItem>

Since: ArcGIS Maps SDK for JavaScript 4.1

Saves the webscene to a new portal item. If saving has completed successfully, then the saved portal item will be set in the portalItem property of the WebScene. This is a convenience method that will create a new PortalItem and use PortalUser.addItem() to store the webscene in a Portal.

Use updateFrom() to store the current view properties in the webscene before saving it.

Note that this always saves the webscene as a new portal item owned by the user performing the edits and executing the saveAs() method. If you want to modify the existing item without changing its ownership use save().

Wait until each saveAs() operation has resolved before starting a new saveAs() operation to avoid a potential abort-error.

The webscene will be automatically loaded if it is not already before saving.

See also

Parameters

Parameter	Type	Description	Required
portalItem	`PortalItemProperties`	The new portal item to which the scene will be saved. Portal item properties such as the title or description need to be explicitly set on the item and will not be automatically copied from the current associated scene portal item (if any).
options	`SaveAsOptions`	additional save options.

Returns: Promise<PortalItem>
a promise that resolves with the PortalItem instance when the item has successfully been saved, or rejects otherwise.

Examples

const scene = new WebScene();
scene.saveAs({
  // autocasts as new PortalItem()
  title: "New WebScene"
});

const scene = new WebScene({
  basemap: "topo-vector"
});

const view = new SceneView({
  container: "viewDiv",
  map: scene
});

// use updateFrom in case the webscene is displayed in a view
// to store the current view properties in the scene
scene.updateFrom(view).then(function() {
  scene.saveAs({
    // autocasts as new PortalItem()
    title: "New WebScene"
  });
});

toJSON

Method

Signature: toJSON (): Record<string, any> | null | undefined

Converts an instance of this class to its ArcGIS portal JSON representation. See the Using fromJSON() topic in the Guide and the web scene specification for more information.

Returns: Record<string, any> | null | undefined
The ArcGIS portal JSON representation of an instance of this class.

updateFrom

Method

Signature: updateFrom (view: SceneView, options?: WebSceneUpdateFromOptions): Promise<void>

Update properties of the WebScene related to the view.

This should usually be called just before saving a scene. The following properties are updated from the view:

initialViewProperties.spatialReference
initialViewProperties.viewingMode
initialViewProperties.timeExtent
initialViewProperties.analyses
clippingArea
heightModelInfo

Depending on the provided options, the following properties are also updated:

initialViewProperties.environment
initialViewProperties.viewpoint
thumbnail
widgets

See also

Parameters

Parameter	Type	Description	Required
view	`SceneView`	The view to update from.
options	`WebSceneUpdateFromOptions`	Update options.

Returns: Promise<void>
Resolves when the update has completed.

updateThumbnail

Method

Signature: updateThumbnail (view: SceneView, options?: WebSceneUpdateThumbnailOptions): Promise<void>

Update the thumbnail of the WebScene by taking a screenshot of the view. Note that this is automatically called from updateFrom() unless explicitly disabled. Updating the thumbnail separate can be useful if you want to show a screenshot from a different viewpoint than what is stored in the webscene initial state.

See also

Parameters

Parameter	Type	Description	Required
view	`SceneView`	The view to update from.
options	`WebSceneUpdateThumbnailOptions`	Update options.

Returns: Promise<void>
Resolves when the update has completed.

when

inherited Method

Signature: when <TResult1 = this, TResult2 = never>(onFulfilled?: OnFulfilledCallback<this, TResult1> | null | undefined, onRejected?: OnRejectedCallback<TResult2> | null | undefined): Promise<TResult1 | TResult2>

Type parameters: <TResult1 = this, TResult2 = never>

Inherited from: EsriPromiseMixin

Since: ArcGIS Maps SDK for JavaScript 4.6

when() may be leveraged once an instance of the class is created. This method takes two input parameters: an onFulfilled function and an onRejected function. The onFulfilled executes when the instance of the class loads. The onRejected executes if the instance of the class fails to load.

Parameters

Parameter	Type	Description	Required
onFulfilled	`OnFulfilledCallback<this, TResult1> \| null \| undefined`	The function to call when the promise resolves.
onRejected	`OnRejectedCallback \| null \| undefined`	The function to execute when the promise fails.

Returns: Promise<TResult1 | TResult2>
Returns a new promise for the result of onFulfilled that may be used to chain additional functions.

Example

// Although this example uses MapView, any class instance that is a promise may use when() in the same way
let view = new MapView();
view.when(function(){
  // This function will execute once the promise is resolved
}, function(error){
  // This function will execute if the promise is rejected due to an error
});

Type definitions

SaveOptions

Type definition

ignoreUnsupported

Property

Type: boolean | undefined

allow the scene to be saved even in the case it contains unsupported content (layers, renderers, symbols). Any content that is not supported will not be saved and the scene may appear different when reloaded from its portal item.

SaveAsOptions

Type definition

Supertypes: SaveOptions

folder

Property

Type: PortalFolder | undefined

the folder in which to save the item.
