RelationshipContent | References | ArcGIS Maps SDK for JavaScript

import RelationshipContent from "@arcgis/core/popup/content/RelationshipContent.js";

Inheritance:: RelationshipContent→Content→Accessor

Since: ArcGIS Maps SDK for JavaScript 4.25

A RelationshipContent popup element represents a relationship element associated with a feature. This can only be configured if the related layer or table is added to the map.

RelationshipContent provides a way to browse related records of the current selected feature within its popup, as shown in the images below. The Origin Feature image shows a popup template configured with RelationshipContent. When selecting one of the related features in the list, the popup template for the chosen related destination feature displays. The Related Destination Feature image shows the destination popup template content with FieldsContent and RelationshipContent configured. When exploring a related feature's RelationshipContent, one could navigate into that feature's related records or exit the origin feature's related record exploration with the arrow button.

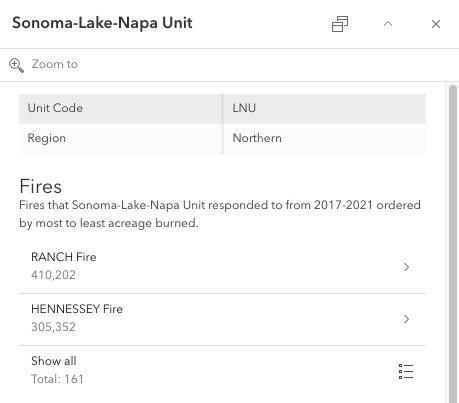

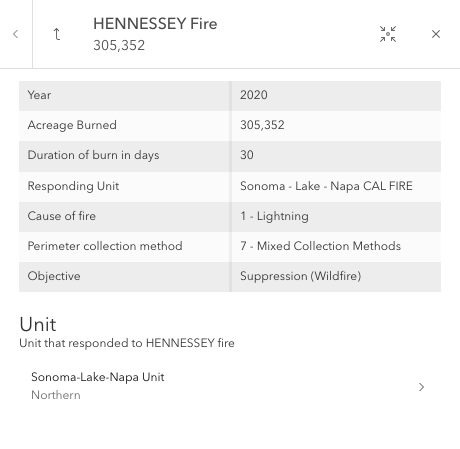

Origin Feature	Related Destination Feature

Note The related layer or table must also be added to the map to be able to configure RelationshipContent. For feature services, viewing related records is only supported for ArcGIS Online and ArcGIS Enterprise version 11.2 or higher. For map services, viewing related records is only supported for ArcGIS Online and ArcGIS Enterprise version 11.3 or higher. Starting at version 4.32, RelationshipContent can be configured on SubtypeSublayer popup templates when both the origin and destination features belong to a SubtypeGroupLayer.

See also

Examples

// Create the RelationshipContent popup element
const relationshipContent = new RelationshipContent({
  relationshipId: 3,
  title: "Cities in {COUNTY_NAME}",
  description: "All the cities that reside in {COUNTY_NAME}.",
  displayCount: 3,
  // Autocasts as new array of RelatedRecordsInfoFieldOrder objects
  orderByFields: [{
    field: "CITY",
    order: "asc"
  }]
});

// Create the RelationshipContent popup element
// and add it to the popup template content for the layer.
layer.popupTemplate.content = [{
  // Autocasts as new RelationshipContent object
  type: "relationship",
  relationshipId: 1,
  title: "Hydrant Maintenance Inspections",
  description: "Hydrant maintenance inspections for {expression/asset}",
  displayCount: 5,
  // Autocasts as new array of RelatedRecordsInfoFieldOrder objects
  orderByFields: [{
    field: "INSTALLDATE",
    order: "desc"
  }]
}];

Constructors

Constructor

Parameters

Parameter	Type	Description	Required
properties	`RelationshipContentProperties`

See the properties table for a list of all the properties that may be passed into the constructor.

Properties

Any properties can be set, retrieved or listened to. See the Watch for changes topic.

Property	Type	Class
`declaredClass` readonly inherited	`string`	Accessor
`description`	`string \| null \| undefined`
`displayCount`	`number`
`displayType`	`"list"`
`orderByFields`	`RelatedRecordsInfoFieldOrder[] \| null \| undefined`
`relationshipId`	`number`
`title`	`string \| null \| undefined`
`type` readonly	`"relationship"`

declaredClass

readonlyinherited Property

Type: string

Inherited from: Accessor

The name of the class. The declared class name is formatted as esri.folder.className.

description

Property

Type: string | null | undefined

Describes the relationship's content in detail. Starting at version 4.30, the description supports rendering HTML.

displayCount

Property

Type: number

A numeric value indicating the maximum number of related features to display in the list of related records. The maximum number of related records to display in the list of related records is 10. If no value is specified, the Show all button will be available to display all related records.

displayType

Property

Type: "list"

A string value indicating how to display related records within the relationship content.

Value	Description
list	Shows a list of related records from the specified relationship.

Default value: "list"

orderByFields

autocast Property

Type: RelatedRecordsInfoFieldOrder[] | null | undefined

An array of RelatedRecordsInfoFieldOrder indicating the display order for the related records, and whether they should be sorted in ascending asc or descending desc order.

relationshipId

Property

Type: number

The numeric id value for the defined relationship. This value can be found on the service itself or on the service's relationships resource if supportsRelationshipResource is true.

title

Property

Type: string | null | undefined

A heading indicating what the relationship's content represents. Starting at version 4.30, the title supports rendering HTML.

type

readonly Property

Type: "relationship"

The type of popup element displayed.

See also

Methods

Method	Signature	Class
`fromJSON` inherited static	`fromJSON(json: any): any`	JSONSupportMixin
`clone` inherited	`clone(): this`	ClonableMixin
`toJSON` inherited	`toJSON(): any`	JSONSupportMixin

fromJSON

inheritedstatic Method

Signature: fromJSON (json: any): any

Inherited from: JSONSupportMixin

Creates a new instance of this class and initializes it with values from a JSON object generated from an ArcGIS product. The object passed into the input json parameter often comes from a response to a query operation in the REST API or a toJSON() method from another ArcGIS product. See the Using fromJSON() topic in the Guide for details and examples of when and how to use this function.

Parameters

Parameter	Type	Description	Required
json	`any`	A JSON representation of the instance in the ArcGIS format. See the ArcGIS REST API documentation for examples of the structure of various input JSON objects.

Returns: any
Returns a new instance of this class.

clone

inherited Method

Signature: clone (): this

Inherited from: ClonableMixin

Creates a deep clone of this object. Any properties that store values by reference will be assigned copies of the referenced values on the cloned instance.

Returns: this
A deep clone of the class instance that invoked this method.

toJSON

inherited Method

Signature: toJSON (): any

Inherited from: JSONSupportMixin

Converts an instance of this class to its ArcGIS portal JSON representation. See the Using fromJSON() guide topic for more information.

Returns: any
The ArcGIS portal JSON representation of an instance of this class.
