import { getLabelSchemes } from "@arcgis/core/smartMapping/labels/clusters.js";

Since: ArcGIS Maps SDK for JavaScript 4.16

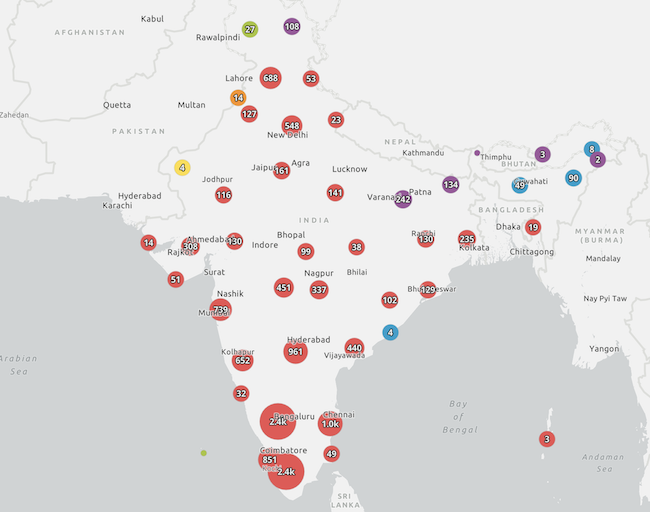

This object contains a helper method for generating default labels to be set on a layer's cluster configuration. The default label is based on the layer's renderer. In most cases the default label configuration will be the total number of features in the cluster. This value will be rounded and formatted (e.g. instead of 2385, the cluster label will display 2.4k). In some cases, such as renderers with a SizeVariable, the default label will display the average value of the attribute represented by the size variable.

This includes secondary labeling schemes you can experiment with in your clusters. This module only applies to layers with a point geometry type.

See also

Functions

Name	Return Type	Object
`getLabelSchemes`	`Promise<Schemes \| null \| undefined>`
`SchemeParameters`
`Scheme`
`Schemes`

getLabelSchemes

Function

Generates default FeatureReductionCluster.labelingInfo schemes to be set on a FeatureLayer's FeatureLayer.featureReduction configuration. Returns one or more suggested LabelClasses for a given layer based on its renderer. It also returns a suggested FeatureReductionCluster.clusterMinSize to ensure labels fit inside clusters.

If a renderer has a non-scale dependent SizeVariable, then the average value of the field or expression used to determine the cluster size will be suggested as the default label value. In all other scenarios, the suggested label will display the cluster count in the center of the label.

Signature: getLabelSchemes (parameters: SchemeParameters): Promise<Schemes | null | undefined>

Parameters

Parameter	Type	Description	Required
parameters	`SchemeParameters`	The function parameters.

Returns: Promise<Schemes | null | undefined>
Returns an object containing suggested primary and secondary labeling schemes to be set on the layer's featureReduction property.

Example

// Sets suggested labels on the clusters based on the underlying renderer
clusterLabelCreator.getLabelSchemes({
  layer: featureLayer,
  view: view
}).then(function(labelSchemes){
  const featureReduction = featureLayer.featureReduction.clone();
  const { labelingInfo, clusterMinSize } = labelSchemes.primaryScheme;
  featureReduction.labelingInfo = labelingInfo;
  featureReduction.clusterMinSize = clusterMinSize;

  featureLayer.featureReduction = featureReduction;
}).catch(function(error){
  console.error(error);
});

Type definitions

SchemeParameters

Type definition

field

Property

Type: string | undefined

The name of the AggregateField.name to use in the primary label scheme. If not specified, then the label will be based on the data used to vary cluster size.

renderer

Property

Type: ClusterableRenderer | undefined

The renderer to set on the input layer when clustering is enabled. Specify this parameter if the layer's renderer does not match the renderer that will be used when clustering is enabled. This cannot be a HeatmapRenderer.
