import IconSymbol3DLayer from "@arcgis/core/symbols/IconSymbol3DLayer.js";

Inheritance:: IconSymbol3DLayer→Symbol3DLayer→Accessor

Since: ArcGIS Maps SDK for JavaScript 4.0

IconSymbol3DLayer is used to render Point geometries using a flat 2D icon (e.g. a circle) with a PointSymbol3D in a SceneView. MapView does not support 3D symbols. Polygon features may also be rendered with IconSymbol3DLayers, but the icon symbol layer must be contained within a PolygonSymbol3D, not a PointSymbol3D in that scenario.

The shape of the icon is set in the resource property and the color is set in the material property. Size may be defined in points or pixels with the size property. The angle property allows to rotate the icons clockwise by specifying a number in degree.

Icon color, angle and size can also be data-driven by adding color visual variables, rotation visual variables and/or size visual variables to any Renderer that uses this symbol layer.

IconSymbol3DLayers must be added to the symbolLayers property of either the PointSymbol3D.symbolLayers or PolygonSymbol3D.symbolLayers symbols. Multiple symbol layers may be used in a single symbol.

Because icon symbol layers are defined in screen space (pixels/points), they can either be draped on the terrain, or billboarded in the view. Billboarded icons allow the symbol to face the user at all times as long as it is visible in to the SceneView.camera. This is particularly apparent with tilted views. Draped icons drape the symbols on the surface of the terrain.

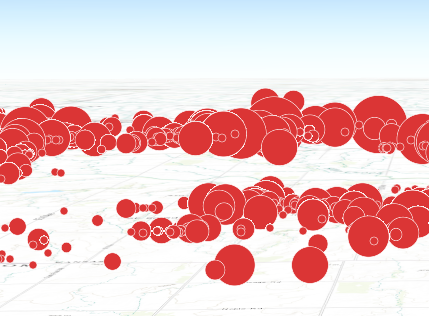

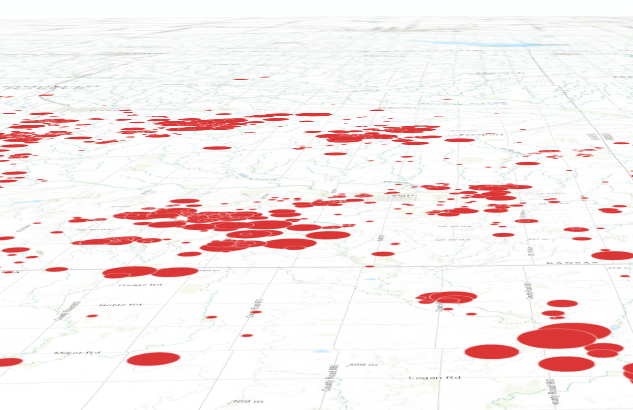

Draped icons	Billboarded icons

The ability to drape and billboard icons is controlled in the FeatureLayer.elevationInfo property of the FeatureLayer. Setting the mode to on-the-ground drapes the icons, whereas setting it to relative-to-ground billboards them.

See Symbol3DLayer and Symbol3D to read more general information about 3D symbols, symbol layers and how they relate to one another.

See also

Example

let symbol = {
  type: "point-3d",  // autocasts as new PointSymbol3D()
  symbolLayers: [{
    type: "icon",  // autocasts as new IconSymbol3DLayer()
    angle: 90, // degree
    size: 8,  // points
    resource: { primitive: "circle" },
    material: { color: "red" }
  }]
};

Constructors

Constructor

Parameters

Parameter	Type	Description	Required
properties	`IconSymbol3DLayerProperties`

See the properties table for a list of all the properties that may be passed into the constructor.

Properties

Any properties can be set, retrieved or listened to. See the Watch for changes topic.

Property	Type	Class
`anchor`	`IconSymbol3DLayerAnchor`
`anchorPosition`	`Symbol3DAnchorPosition2D`
`angle`	`number`
`declaredClass` readonly inherited	`string`	Accessor
`material`	`Symbol3DMaterial \| null \| undefined`
`occludedVisibility`	`OccludedVisibility \| null \| undefined`
`outline`	`Symbol3DIconOutline \| null \| undefined`
`resource`	`IconSymbol3DLayerResource \| null \| undefined`
`size`	`number`
`type` readonly	`"icon"`

anchor

Property

Type: IconSymbol3DLayerAnchor

The positioning of the icon relative to the geometry.

The anchor is also the centre of rotation when using angle to rotate the icon.

Default value: "center"

anchorPosition

autocast Property

Type: Symbol3DAnchorPosition2D

Since: ArcGIS Maps SDK for JavaScript 4.11

Defines the anchor relative to the center of the icon. It is specified as a ratio of the icon's dimensions. For example, a value of { x: 0, y: 0 } designates the center of the icon, while a value of { x: -0.5, y: -0.5 } causes the top-left corner of the icon to coincide with the feature geometry.

This property only applies when anchor is set to relative.

Examples

symbolLayer.anchor = "relative";
symbolLayer.anchorPosition = { x: 0, y: 0.5 }; // equivalent to `anchor: "bottom"`

symbolLayer.anchor = "relative";
symbolLayer.anchorPosition = { x: 1.5, y: 1 }; // the anchor can be placed outside of the icon

angle

Property

Type: number

Since: ArcGIS Maps SDK for JavaScript 4.31

The clockwise rotation angle of the icon in degrees.

In a SceneView, icon rotation can be either screen-aligned (icons maintain a constant orientation relative to the screen, regardless of map movements) or map-aligned (icons rotate in conjunction with the map). For example, a map-aligned arrow icon placed on a road will consistently point along the road's direction, even as the map is rotated or tilted.

This behavior depends on the mode property within the FeatureLayer.elevationInfo. When set to on-the-ground, icons are draped onto the terrain, resulting in map-aligned rotation. Otherwise, icons are billboarded, maintaining a screen-aligned rotation.

Default value: 0

Example

// rotation angle in degree
symbolLayer.angle = 45;

declaredClass

readonlyinherited Property

Type: string

Inherited from: Accessor

Since: ArcGIS Maps SDK for JavaScript 4.7

The name of the class. The declared class name is formatted as esri.folder.className.

material

autocast Property

Type: Symbol3DMaterial | null | undefined

The material used to shade the icon. This property defines the icon's color.

Examples

// CSS color string
symbolLayer.material = {
  color: "dodgerblue"
};

// HEX string
symbolLayer.material = {
  color: "#33cc33";
}

// array of RGBA values
symbolLayer.material = {
  color: [51, 204, 51, 0.3];
}

// object with rgba properties
symbolLayer.material = {
  color: {
    r: 51,
    g: 51,
    b: 204,
    a: 0.7
  }
};

occludedVisibility

autocast Property

Type: OccludedVisibility | null | undefined

Since: ArcGIS Maps SDK for JavaScript 5.0

Defines the occluded visibility mode of the icon.

outline

autocast Property

Type: Symbol3DIconOutline | null | undefined

The outline of the icon. The color property of this object directly modifies the overall color of IconSymbol3DLayer defined with the cross or x primitive.

Example

symbolLayer.outline = {
  color: "blue",
  size: "0.5px"
};

resource

autocast Property

Type: IconSymbol3DLayerResource | null | undefined

The shape (primitive) or image URL (href) used to visualize the features. If both properties are present, href takes precedence and primitive is ignored.

Default value: { primitive: "circle" }

Example

symbolLayer.resource = {
  primitive: "triangle"
};

size

autocast Property

Type: number

The size of the icon in points. This value may be autocast with a string expressing size in points or pixels (e.g. 12px).

Default value: 12

Examples

// size in points
symbolLayer.size = 14;

// size in pixels
symbolLayer.size = "20px"; // autocasts to number

// size in points
symbolLayer.size = "14pt"; // autocasts to number

type

readonly Property

Type: "icon"

The symbol type.

Methods

Method	Signature	Class
`fromJSON` inherited static	`fromJSON(json: any): any`	JSONSupportMixin
`clone`	`clone(): IconSymbol3DLayer`
`toJSON` inherited	`toJSON(): any`	JSONSupportMixin

fromJSON

inheritedstatic Method

Signature: fromJSON (json: any): any

Inherited from: JSONSupportMixin

Creates a new instance of this class and initializes it with values from a JSON object generated from an ArcGIS product. The object passed into the input json parameter often comes from a response to a query operation in the REST API or a toJSON() method from another ArcGIS product. See the Using fromJSON() topic in the Guide for details and examples of when and how to use this function.

Parameters

Parameter	Type	Description	Required
json	`any`	A JSON representation of the instance in the ArcGIS format. See the ArcGIS REST API documentation for examples of the structure of various input JSON objects.

Returns: any
Returns a new instance of this class.

clone

Method

Signature: clone (): IconSymbol3DLayer

Creates a deep clone of the symbol layer.

Returns: IconSymbol3DLayer
A deep clone of the object that invoked this method.

Example

// Creates a deep clone of the graphic's first symbol layer
let symLyr = graphic.symbol.symbolLayers.at(0).clone();

toJSON

inherited Method

Signature: toJSON (): any

Inherited from: JSONSupportMixin

Converts an instance of this class to its ArcGIS portal JSON representation. See the Using fromJSON() guide topic for more information.

Returns: any
The ArcGIS portal JSON representation of an instance of this class.
