import LineSymbol3DLayer from "@arcgis/core/symbols/LineSymbol3DLayer.js";

Inheritance:: LineSymbol3DLayer→Symbol3DLayer→Accessor

Since: ArcGIS Maps SDK for JavaScript 4.0

LineSymbol3DLayer renders Polyline geometries using a flat 2D line with a LineSymbol3D in a 3D SceneView. MapView does not support 3D symbols.

The color of the line is set in the material property. The width of the line may be defined in either points or pixels with the size property. Line width and color can also be data-driven by adding size and/or color visual variables to any Renderer that uses this symbol layer.

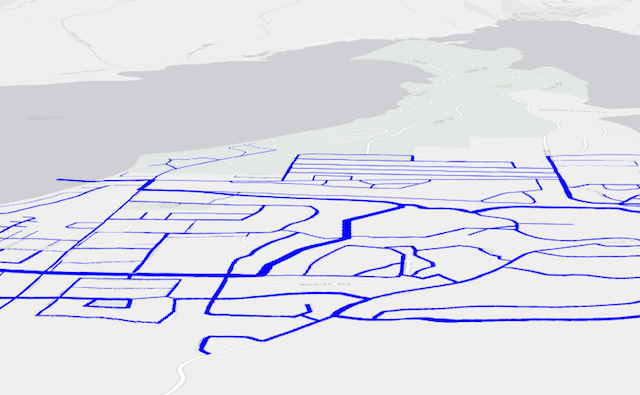

A LineSymbol3DLayer must be added to the symbolLayers property of a LineSymbol3D. Multiple symbol layers may be used in a single symbol. The image below depicts a line FeatureLayer whose features are symbolized with a LineSymbol3D containing a LineSymbol3DLayer.

symbols-3d-lines

See Symbol3DLayer and Symbol3D to read more general information about 3D symbols, symbol layers and how they relate to one another.

See also

Example

const symbol = {
  type: "line-3d",  // autocasts as new LineSymbol3D()
  symbolLayers: [{
    type: "line",  // autocasts as new LineSymbol3DLayer()
    size: 2,  // points
    material: { color: "black" },
    cap: "round",
    join: "round",
    pattern: {  // autocasts as new LineStylePattern3D()
      type: "style",
      style: "dash"
    },
    marker: {  // autocasts as new LineStyleMarker3D()
      type: "style",
      style: "arrow",
      placement: "end",
      color: "red"  // black line with red arrows
    }
  }]
};

Constructors

Constructor

Parameters

Parameter	Type	Description	Required
properties	`LineSymbol3DLayerProperties`

See the properties table for a list of all the properties that may be passed into the constructor.

Properties

Any properties can be set, retrieved or listened to. See the Watch for changes topic.

Property	Type	Class
`cap`	`LineCap`
`declaredClass` readonly inherited	`string`	Accessor
`join`	`LineJoin`
`marker`	`LineStyleMarker3D \| null \| undefined`
`material`	`Symbol3DMaterial \| null \| undefined`
`pattern`	`LineStylePattern3D \| null \| undefined`
`size`	`number`
`type` readonly	`"line"`

cap

Property

Type: LineCap

Since: ArcGIS Maps SDK for JavaScript 4.12

The style used to draw the endpoint of a line. This also applies to the tips of each pattern segment along the line. See the table below for possible values.

Possible Value	Example
butt
round
square

Default value: "butt"

declaredClass

readonlyinherited Property

Type: string

Inherited from: Accessor

Since: ArcGIS Maps SDK for JavaScript 4.7

The name of the class. The declared class name is formatted as esri.folder.className.

join

Property

Type: LineJoin

Since: ArcGIS Maps SDK for JavaScript 4.12

The style used to draw the intersection of two line segments within a line geometry. See the table below for possible values.

Possible Value	Example
bevel
miter
round

Default value: "miter"

marker

autocast Property

Type: LineStyleMarker3D | null | undefined

Since: ArcGIS Maps SDK for JavaScript 4.23

Optional markers to be placed at the start and/or end of each line geometry.

By default, no markers are placed. If markers are added, marker size is proportional to the width of the line. While markers inherit the line's color by default, you can use the color attribute to set a different one.

Example

const symbol = {
  type: "line-3d",  // autocasts as new LineSymbol3D()
  symbolLayers: [{
    type: "line",  // autocasts as new LineSymbol3DLayer()
    material: { color: "black" },
    marker: {  // autocasts as new LineStyleMarker3D()
      type: "style",
      style: "arrow",
      placement: "end",
      color: "red"  // black line with red arrows
    }
  }]
};

material

autocast Property

Type: Symbol3DMaterial | null | undefined

The material used to shade the line. This property defines the line's color.

Examples

// CSS color string
symbolLayer.material = {
  color: "dodgerblue"
};

// HEX string
symbolLayer.material = {
  color: "#33cc33";
}

// array of RGBA values
symbolLayer.material = {
  color: [51, 204, 51, 0.3];
}

// object with rgba properties
symbolLayer.material = {
  color: {
    r: 51,
    g: 51,
    b: 204,
    a: 0.7
  }
};

pattern

autocast Property

Type: LineStylePattern3D | null | undefined

Since: ArcGIS Maps SDK for JavaScript 4.22

The pattern used to render the line stroke. By default, the lines are shown as solid.

Example

const symbol = {
  type: "line-3d",  // autocasts as new LineSymbol3D()
  symbolLayers: [{
    type: "line",  // autocasts as new LineSymbol3DLayer()
    size: 2,  // points
    material: { color: "black" },
    pattern: {  // autocasts as new LineStylePattern3D()
      type: "style",
      style: "dash"
    }
  }]
};

size

autocast Property

Type: number

The width of the line in points. This value may be autocast with a string expressing size in points or pixels (e.g. 12px).

Default value: "1px"

Examples

// width in points
symbolLayer.size = 4;

// width in pixels
symbolLayer.size = "2px";

// width in points
symbolLayer.size = "4pt";

type

readonly Property

Type: "line"

The symbol type.

Methods

Method	Signature	Class
`fromJSON` inherited static	`fromJSON(json: any): any`	JSONSupportMixin
`clone`	`clone(): LineSymbol3DLayer`
`toJSON` inherited	`toJSON(): any`	JSONSupportMixin

fromJSON

inheritedstatic Method

Signature: fromJSON (json: any): any

Inherited from: JSONSupportMixin

Creates a new instance of this class and initializes it with values from a JSON object generated from an ArcGIS product. The object passed into the input json parameter often comes from a response to a query operation in the REST API or a toJSON() method from another ArcGIS product. See the Using fromJSON() topic in the Guide for details and examples of when and how to use this function.

Parameters

Parameter	Type	Description	Required
json	`any`	A JSON representation of the instance in the ArcGIS format. See the ArcGIS REST API documentation for examples of the structure of various input JSON objects.

Returns: any
Returns a new instance of this class.

clone

Method

Signature: clone (): LineSymbol3DLayer

Creates a deep clone of the symbol layer.

Returns: LineSymbol3DLayer
A deep clone of the object that invoked this method.

Example

// Creates a deep clone of the graphic's first symbol layer
let symLyr = graphic.symbol.symbolLayers.at(0).clone();

toJSON

inherited Method

Signature: toJSON (): any

Inherited from: JSONSupportMixin

Converts an instance of this class to its ArcGIS portal JSON representation. See the Using fromJSON() guide topic for more information.

Returns: any
The ArcGIS portal JSON representation of an instance of this class.
