PathSymbol3DLayer | References | ArcGIS Maps SDK for JavaScript

import PathSymbol3DLayer from "@arcgis/core/symbols/PathSymbol3DLayer.js";

Inheritance:: PathSymbol3DLayer→Symbol3DLayer→Accessor

Since: ArcGIS Maps SDK for JavaScript 4.0

PathSymbol3DLayer renders Polyline geometries by extruding a 2D profile along the line. A PathSymbol3DLayer must be added to the symbolLayers property of a LineSymbol3D. This is a 3D symbol, therefore it is only supported in a SceneView.

Different styles can be created by combining the profile, width and height properties. A path can have a circle profile that displays the path as a tube and can be used for visualizations of pipelines or any other tube-like features. Setting the profile to quad displays the path with a rectangular shape. By varying height and width different styles can be created like a wall or a strip. Below are some of the path visualizations that could be created by combining these properties:

3d-path-profiles

The color of the path is set in the material property. The color can be data-driven by adding color visual variables to any Renderer that uses this symbol layer. The width and the height can also be driven with size visual variable.

More properties like cap, join and profileRotation can be set to enhance the PathSymbol3DLayer visualization.

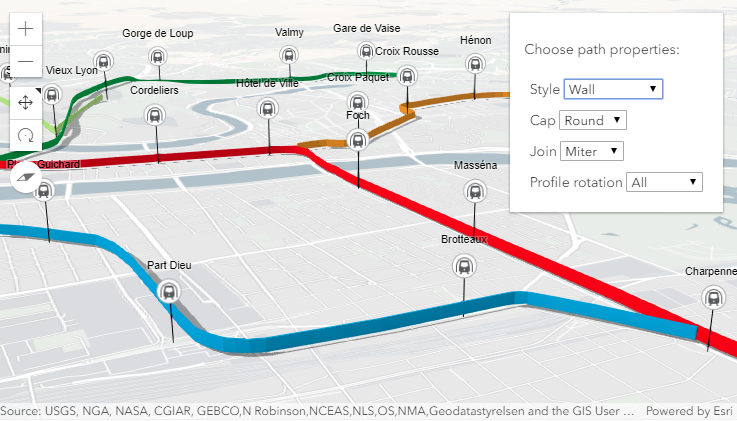

In the image below the FeatureLayer depicts transit lines in a city. The polyline features are visualized with PathSymbol3DLayer set on a LineSymbol3D.

symbols-3d-path

Path visualization in 3D sample shows how the different properties change the style of the PathSymbol3DLayer.

See also

Example

// create a PathSymbol3DLayer with a strip style
let stripPath = {
  type: "line-3d",  // autocasts as new LineSymbol3D()
  symbolLayers: [{
    type: "path",  // autocasts as new PathSymbol3DLayer()
    profile: "quad",  // creates a rectangular shape
    width: 20,  // path width in meters
    height: 5,  // path height in meters
    material: { color: "#ff7380" },
    cap: "square",
    profileRotation: "heading"
  }]
};

// create a PathSymbol3DLayer with a pipe style
let pipePath = {
  type: "line-3d",  // autocasts as new LineSymbol3D()
  symbolLayers: [{
    type: "path",  // autocasts as new PathSymbol3DLayer()
    profile: "circle",  // creates a rectangular shape
    width: 20,  // path width will also set the height to the same value
    material: { color: "#ff7380" },
    cap: "round"
  }]
};

Constructors

Constructor

Parameters

Parameter	Type	Description	Required
properties	`PathSymbol3DLayerProperties`

See the properties table for a list of all the properties that may be passed into the constructor.

Properties

Any properties can be set, retrieved or listened to. See the Watch for changes topic.

Property	Type	Class
`anchor`	`PathSymbol3DLayerAnchor`
`cap`	`PathSymbol3DLayerCap`
`castShadows`	`boolean`
`declaredClass` readonly inherited	`string`	Accessor
`height`	`number \| null \| undefined`
`join`	`PathSymbol3DLayerJoin`
`material`	`Symbol3DMaterial \| null \| undefined`
`profile`	`PathSymbol3DLayerProfile`
`profileRotation`	`PathSymbol3DLayerProfileRotation`
`type` readonly	`"path"`
`width`	`number \| null \| undefined`

anchor

Property

Type: PathSymbol3DLayerAnchor

Since: ArcGIS Maps SDK for JavaScript 4.12

Defines offset of the path cross section relative to the Polyline geometry.

Possible Value	Example
center
bottom
top

Default value: "center"

cap

Property

Type: PathSymbol3DLayerCap

Since: ArcGIS Maps SDK for JavaScript 4.12

Controls the shape at the start and end point of the path. none will not render the faces that close the path. See the table below for possible values.

Possible Value	Example
butt
round
square
none

Default value: "butt"

castShadows

Property

Type: boolean

Since: ArcGIS Maps SDK for JavaScript 4.11

Indicates whether the symbol layer geometry casts shadows in the scene. Setting this property to false will disable shadows for the symbol layer even if direct shadows are enabled in SceneView.environment.

Default value: true

Example

// disables shadow casting
symbolLayer.castShadows = false;

declaredClass

readonlyinherited Property

Type: string

Inherited from: Accessor

Since: ArcGIS Maps SDK for JavaScript 4.7

The name of the class. The declared class name is formatted as esri.folder.className.

height

Property

Type: number | null | undefined

Since: ArcGIS Maps SDK for JavaScript 4.12

The vertical dimension of the cross-section of the path in meters. If only the width is set, then the height is set to the same value as the width. If neither width nor height are set, then the path is not displayed.

Examples

// create a path with a wall style
let wallPath = {
  type: "line-3d",  // autocasts as new LineSymbol3D()
  symbolLayers: [{
    type: "path",  // autocasts as new PathSymbol3DLayer()
    profile: "quad",  // creates a rectangular shape
    width: 1,  // path width in meters
    height: 20,  // path height in meters
    material: { color: "#a382cc" }
  }]
};

// create a path with a pipe style
let wallPath = {
  type: "line-3d",  // autocasts as new LineSymbol3D()
  symbolLayers: [{
    type: "path",  // autocasts as new PathSymbol3DLayer()
    profile: "circle",
    height: 20,  // path width in meters this also sets the width to 20 meters
    material: { color: "##a382cc" }
  }]
};

join

Property

Type: PathSymbol3DLayerJoin

Since: ArcGIS Maps SDK for JavaScript 4.12

Controls the shape of the connection between two segments of the path. See the table below for possible values.

Possible Value	Example
bevel
miter
round

Default value: "miter"

material

autocast Property

Type: Symbol3DMaterial | null | undefined

The material used to shade the path. This property defines the paths's color and emissive properties.

Examples

// CSS color string
symbolLayer.material = {
  color: "dodgerblue"
};

// HEX string
symbolLayer.material = {
  color: "#33cc33";
};

// array of RGBA values
symbolLayer.material = {
  color: [51, 204, 51, 0.3];
};

// object with rgba properties
symbolLayer.material = {
  color: {
    r: 51,
    g: 51,
    b: 204,
    a: 0.7
  }
};

// object with emissive properties and color
symbolLayer.material: {
  color: "#00E9FF",
  emissive: { strength: 1, source: "color" },
};

profile

Property

Type: PathSymbol3DLayerProfile

Since: ArcGIS Maps SDK for JavaScript 4.12

Cross-section profile of the path geometry. Setting it to circle creates a path with a pipe shape and setting it to quad gives the path a rectangular shape.

Default value: "circle"

profileRotation

Property

Type: PathSymbol3DLayerProfileRotation

Since: ArcGIS Maps SDK for JavaScript 4.12

Defines how the profile is rotated as it is extruded along the Polyline geometry.

The rotation axes (heading, tilt, roll) can be limited to constrain the orientation of the profile in the scene. Setting profileRotation to all minimizes the twist along the line and ensures that the diameter of the resulting visualization corresponds to width and height. Setting profileRotation to "heading" ensures that the profile stays upright (no tilt or twist).

Typically, all is used for circle profiles and heading is used for quad profiles.

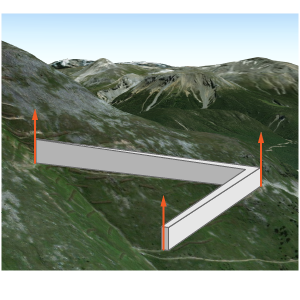

As an example, when setting heading on a path with a quad profile the path is oriented upright:

profileRotation-heading

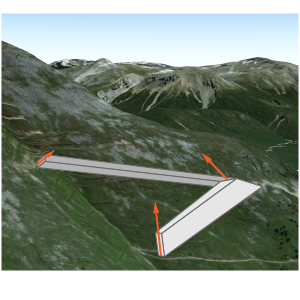

The same path with profileRotation set to all will rotate in all three degrees of freedom:

profileRotation-all

Default value: "all"

type

readonly Property

Type: "path"

The symbol type.

width

Property

Type: number | null | undefined

Since: ArcGIS Maps SDK for JavaScript 4.12

The horizontal dimension of the cross-section of the path in meters. If only the height is set, then the width is set to the same value as the height. If neither width nor height are set, then the path is not displayed.

Examples

// create a path with a strip style
let wallPath = {
  type: "line-3d",  // autocasts as new LineSymbol3D()
  symbolLayers: [{
    type: "path",  // autocasts as new PathSymbol3DLayer()
    profile: "quad",  // creates a rectangular shape
    width: 20,  // path width in meters
    height: 1,  // path height in meters
    material: { color: "#a382cc" }
  }]
};

// create a path with a square style
let wallPath = {
  type: "line-3d",  // autocasts as new LineSymbol3D()
  symbolLayers: [{
    type: "path",  // autocasts as new PathSymbol3DLayer()
    profile: "quad",  // creates a rectangular shape
    width: 20,  // this property also sets the height to 20 meters
    material: { color: "#a382cc" }
  }]
};

Methods

Method	Signature	Class
`fromJSON` inherited static	`fromJSON(json: any): any`	JSONSupportMixin
`clone`	`clone(): PathSymbol3DLayer`
`toJSON` inherited	`toJSON(): any`	JSONSupportMixin

fromJSON

inheritedstatic Method

Signature: fromJSON (json: any): any

Inherited from: JSONSupportMixin

Creates a new instance of this class and initializes it with values from a JSON object generated from an ArcGIS product. The object passed into the input json parameter often comes from a response to a query operation in the REST API or a toJSON() method from another ArcGIS product. See the Using fromJSON() topic in the Guide for details and examples of when and how to use this function.

Parameters

Parameter	Type	Description	Required
json	`any`	A JSON representation of the instance in the ArcGIS format. See the ArcGIS REST API documentation for examples of the structure of various input JSON objects.

Returns: any
Returns a new instance of this class.

clone

Method

Signature: clone (): PathSymbol3DLayer

Creates a deep clone of the symbol layer.

Returns: PathSymbol3DLayer
A deep clone of the object that invoked this method.

Example

// Creates a deep clone of the graphic's first symbol layer
let symLyr = graphic.symbol.symbolLayers.at(0).clone();

toJSON

inherited Method

Signature: toJSON (): any

Inherited from: JSONSupportMixin

Converts an instance of this class to its ArcGIS portal JSON representation. See the Using fromJSON() guide topic for more information.

Returns: any
The ArcGIS portal JSON representation of an instance of this class.
