TextSymbol3DLayer | References | ArcGIS Maps SDK for JavaScript

import TextSymbol3DLayer from "@arcgis/core/symbols/TextSymbol3DLayer.js";

Inheritance:: TextSymbol3DLayer→Symbol3DLayer→Accessor

Since: ArcGIS Maps SDK for JavaScript 4.0

TextSymbol3DLayer is used to draw text labels for features of any geometry type. This is typically done by adding it to a LabelSymbol3D in a 3D SceneView. MapView does not support 3D symbols.

The color of the symbol is set in the material property. The size of the text is always defined in points or pixels via the size property.

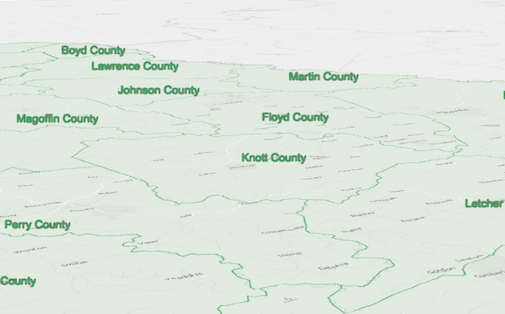

A TextSymbol3DLayer may be added to the symbolLayers property of any 3D symbol. Labeling the features of a FeatureLayer is usually done by adding a TextSymbol3DLayer to a LabelSymbol3D, which is then added to a LabelClass in the FeatureLayer.labelingInfo property of the layer. The image below depicts a FeatureLayer with labels defined by a LabelSymbol3D that contains a TextSymbol3DLayer.

3d-labels

See also

Example

let labelClass = new LabelClass({
  labelExpressionInfo: {
    expression: "$feature.COUNTY" // Text for labels comes from COUNTY field
  },
  symbol: {
    type: "label-3d",  // autocasts as new LabelSymbol3D()
    symbolLayers: [{
      type: "text",  // autocasts as new TextSymbol3DLayer()
      material: { color: [ 49,163,84 ] },
      size: 12  // points
    }]
  }
});
// Add labels to the feature layer
featureLayer.labelsVisible = true;
featureLayer.labelingInfo = [ labelClass ];

Constructors

Constructor

Parameters

Parameter	Type	Description	Required
properties	`TextSymbol3DLayerProperties`

See the properties table for a list of all the properties that may be passed into the constructor.

Properties

Any properties can be set, retrieved or listened to. See the Watch for changes topic.

Property	Type	Class
`background`	`Symbol3DTextBackground \| null \| undefined`
`declaredClass` readonly inherited	`string`	Accessor
`font`	`Font \| null \| undefined`
`halo`	`Symbol3DHalo \| null \| undefined`
`horizontalAlignment`	`TextHorizontalAlignment`
`lineHeight`	`number`
`material`	`Symbol3DMaterial \| null \| undefined`
`occludedVisibility`	`OccludedVisibility \| null \| undefined`
`size`	`number`
`text`	`string \| null \| undefined`
`type` readonly	`"text"`
`verticalAlignment`	`TextVerticalAlignment`

background

autocast Property

Type: Symbol3DTextBackground | null | undefined

The background of the text. The background can be used to define a background color for the text to improve readability by increasing contrast with the background. Setting a background will add additional padding to the text and display using rounded corners.

Example

symbolLayer.background = { color: [0, 0, 0, 0.75] };

declaredClass

readonlyinherited Property

Type: string

Inherited from: Accessor

Since: ArcGIS Maps SDK for JavaScript 4.7

The name of the class. The declared class name is formatted as esri.folder.className.

font

autocast Property

Type: Font | null | undefined

The font of the text label.

halo

autocast Property

Type: Symbol3DHalo | null | undefined

Since: ArcGIS Maps SDK for JavaScript 4.4

The halo surrounding the text.

Example

symbolLayer.halo = {
 color: [255, 255, 255, 0.8], // autocasts as Color
 size: 2
}

horizontalAlignment

Property

Type: TextHorizontalAlignment

Since: ArcGIS Maps SDK for JavaScript 4.23

Adjusts the horizontal alignment of the text in multi-lines.

Known Limitations

This property only applies when the symbol layer is not used for labeling purposes. The horizontalAlignment for labels is inferred from the LabelClass.labelPlacement value. If the symbol layer is added to a symbol with a line callout or vertical offset, then only center is supported.

Default value: "center"

lineHeight

Property

Type: number

Since: ArcGIS Maps SDK for JavaScript 4.23

The height of the space between each line of text. Only applies to multiline text.

This property can be considered as a multiplier of the default value of 1.0 (e.g. a value of 2.0 will be two times the height of the default height). The range of possible values is: 0.1 - 4.0. If a value of 0 is specified, the default value of 1.0 will be used.

Default value: 1.0

material

autocast Property

Type: Symbol3DMaterial | null | undefined

The material used to color the text.

Examples

// CSS color string
symbolLayer.material = {
  color: "dodgerblue"
};

// HEX string
symbolLayer.material = {
  color: "#33cc33";
}

// array of RGBA values
symbolLayer.material = {
  color: [51, 204, 51, 0.3];
}

// object with rgba properties
symbolLayer.material = {
  color: { r: 51, g: 51, b: 204, a: 0.7 }
};

occludedVisibility

autocast Property

Type: OccludedVisibility | null | undefined

Since: ArcGIS Maps SDK for JavaScript 5.0

Defines the occluded visibility mode of the text.

size

autocast Property

Type: number

Size of the text label in points. This value may be autocast with a string expressing size in points or pixels (e.g. 12px). When set, this property overrides the Font.size property.

Default value: 9

Examples

// size in points
symbolLayer.size = 14;

// size in pixels
symbolLayer.size = "20px"; // autocasts as number

// size in points
symbolLayer.size = "14pt"; // autocasts as number

text

Property

Type: string | null | undefined

The text to be displayed. To manually create a new line, use the \n escape character.

Examples

symbolLayer.text = "You are here";

symbolLayer.text = "Wish you were \n here";

type

readonly Property

Type: "text"

The symbol type.

verticalAlignment

Property

Type: TextVerticalAlignment

Since: ArcGIS Maps SDK for JavaScript 4.23

Adjusts the vertical alignment of the text.

Known Limitations

This property only applies when the symbol layer is not used for labeling purposes. The verticalAlignment for labels is inferred from the LabelClass.labelPlacement value.

Default value: "baseline"

Methods

Method	Signature	Class
`fromJSON` inherited static	`fromJSON(json: any): any`	JSONSupportMixin
`clone`	`clone(): TextSymbol3DLayer`
`toJSON` inherited	`toJSON(): any`	JSONSupportMixin

fromJSON

inheritedstatic Method

Signature: fromJSON (json: any): any

Inherited from: JSONSupportMixin

Creates a new instance of this class and initializes it with values from a JSON object generated from an ArcGIS product. The object passed into the input json parameter often comes from a response to a query operation in the REST API or a toJSON() method from another ArcGIS product. See the Using fromJSON() topic in the Guide for details and examples of when and how to use this function.

Parameters

Parameter	Type	Description	Required
json	`any`	A JSON representation of the instance in the ArcGIS format. See the ArcGIS REST API documentation for examples of the structure of various input JSON objects.

Returns: any
Returns a new instance of this class.

clone

Method

Signature: clone (): TextSymbol3DLayer

Creates a deep clone of the symbol layer.

Returns: TextSymbol3DLayer
A deep clone of the object that invoked this method.

Example

// Creates a deep clone of the graphic's first symbol layer
const symbolLayer = graphic.symbol.symbolLayers.at(0).clone();

toJSON

inherited Method

Signature: toJSON (): any

Inherited from: JSONSupportMixin

Converts an instance of this class to its ArcGIS portal JSON representation. See the Using fromJSON() guide topic for more information.

Returns: any
The ArcGIS portal JSON representation of an instance of this class.
