LineCallout3D | References | ArcGIS Maps SDK for JavaScript

import LineCallout3D from "@arcgis/core/symbols/callouts/LineCallout3D.js";

Inheritance:: LineCallout3D→Callout3D→Accessor

Since: ArcGIS Maps SDK for JavaScript 4.4

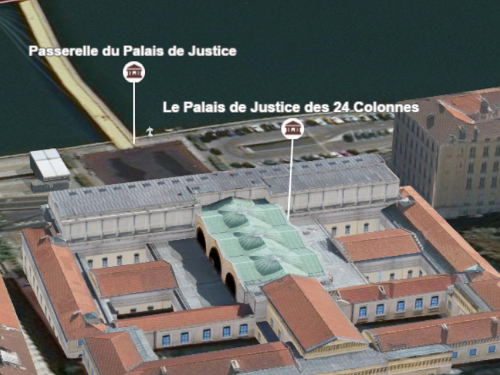

This type of callout displays a line to connect a symbol or a label with its actual location in the scene. For example when displaying points of interest in a city, visualizing them with a callout line helps to understand where the points are actually located:

symbol3D-line-callout

This visualization can be created on a PointSymbol3D or a LabelSymbol3D. After defining the PointSymbol3D.symbolLayers, an offset should be defined by setting the PointSymbol3D.verticalOffset property. The symbols are now shifted vertically, but we still need to add the callout, otherwise it can be very confusing to understand where the points are located:

symbol3D-line-callout

Setting the callout property of type line on the symbol will create the line that connects the symbol with its actual position:

symbol3D-line-callout

See also

Example

let symbol = {
  type: "point-3d",  // autocasts as new PointSymbol3D()
  symbolLayers: [{
    type: "icon",  // autocasts as new IconSymbol3DLayer()
    resource: {
      href: "CityHall.svg"
    },
    size: 20
  }],
  verticalOffset: {
    screenLength: 40,
    maxWorldLength: 100,
    minWorldLength: 20
  },
  callout: {
    type: "line", // autocasts as new LineCallout3D()
    size: 1.5,
    color: "white",
    border: {
      color: "black"
    }
  }
});

Constructors

Constructor

Parameters

Parameter	Type	Description	Required
properties	`LineCallout3DProperties`

See the properties table for a list of all the properties that may be passed into the constructor.

Properties

Any properties can be set, retrieved or listened to. See the Watch for changes topic.

Property	Type	Class
`border`	`LineCallout3DBorder \| null \| undefined`
`color`	`Color \| null \| undefined`
`declaredClass` readonly inherited	`string`	Accessor
`size`	`number`
`type` readonly	`"line"`

border

autocast Property

Type: LineCallout3DBorder | null | undefined

The border settings of the callout line. The border of the callout line can be used to improve the contrast of the callout line color against various background colors. If the border is null, then no border will be visible.

color

autocast Property

Type: Color | null | undefined

The color of the callout line. This can be autocast with an array of rgb(a) values, named string, hex string or an hsl(a) string, an object with r, g, b, and a properties, or a Color object.

Default value: "black"

declaredClass

readonlyinherited Property

Type: string

Inherited from: Accessor

Since: ArcGIS Maps SDK for JavaScript 4.7

The name of the class. The declared class name is formatted as esri.folder.className.

size

autocast Property

Type: number

The width of the callout line in points. This value may be autocast with a string expressing size in points or pixels (e.g. 12px).

Default value: 1px

type

readonly Property

Type: "line"

Methods

Method	Signature	Class
`fromJSON` inherited static	`fromJSON(json: any): any`	JSONSupportMixin
`clone`	`clone(): LineCallout3D`
`toJSON` inherited	`toJSON(): any`	JSONSupportMixin

fromJSON

inheritedstatic Method

Signature: fromJSON (json: any): any

Inherited from: JSONSupportMixin

Creates a new instance of this class and initializes it with values from a JSON object generated from an ArcGIS product. The object passed into the input json parameter often comes from a response to a query operation in the REST API or a toJSON() method from another ArcGIS product. See the Using fromJSON() topic in the Guide for details and examples of when and how to use this function.

Parameters

Parameter	Type	Description	Required
json	`any`	A JSON representation of the instance in the ArcGIS format. See the ArcGIS REST API documentation for examples of the structure of various input JSON objects.

Returns: any
Returns a new instance of this class.

clone

Method

Signature: clone (): LineCallout3D

Creates a deep clone of the callout.

Returns: LineCallout3D
A deep clone of the object that invoked this method.

toJSON

inherited Method

Signature: toJSON (): any

Inherited from: JSONSupportMixin

Converts an instance of this class to its ArcGIS portal JSON representation. See the Using fromJSON() guide topic for more information.

Returns: any
The ArcGIS portal JSON representation of an instance of this class.
