HistogramRangeSlider | References | ArcGIS Maps SDK for JavaScript

import HistogramRangeSlider from "@arcgis/core/widgets/HistogramRangeSlider.js";

Inheritance:: HistogramRangeSlider→Widget→Accessor

Since: ArcGIS Maps SDK for JavaScript 4.12

A slider widget that can be used for filtering data or gathering numeric input from a user for a range of data. When bins are provided, a histogram will render on the slider showing where data is distributed along the range. Use the rangeType property to indicate how the histogram should be styled as the user interacts with slider handles.

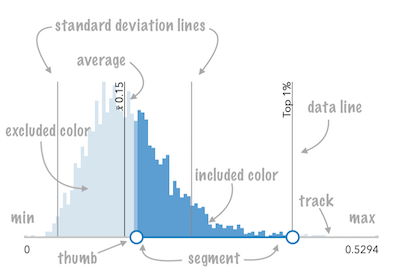

See the image below for a summary of the configurable options available on this slider.

HistogramRangeSlider with annotations

At a minimum, the slider's container or parent container must have a width set in css for it to render.

See also

Constructors

Constructor

Parameters

Parameter	Type	Description	Required
properties	`HistogramRangeSliderProperties`

See the properties table for a list of all the properties that may be passed into the constructor.

Example

// Typical usage
const slider = new HistogramRangeSlider({
  container: "sliderDiv",
  min: 0,
  max: 100,
  values: [ 50, 150 ]
});

Properties

Any properties can be set, retrieved or listened to. See the Watch for changes topic.

Property	Type	Class
`average`	`number \| null \| undefined`
`barCreatedFunction`	`BarCreatedFunction \| null \| undefined`
`bins`	`HistogramBin[] \| null \| undefined`
`container` inherited	`HTMLElement \| null \| undefined`	Widget
`dataLineCreatedFunction`	`DataLineCreatedFunction \| null \| undefined`
`dataLines`	`DataLineInfos[] \| null \| undefined`
`declaredClass` readonly inherited	`string`	Accessor
`destroyed` readonly inherited	`boolean`	Widget
`excludedBarColor`	`Color`
`icon`	`Icon["icon"]`
`id` inherited	`string`	Widget
`includedBarColor`	`Color`
`label`	`string`
`labelFormatFunction`	`LabelFormatFunction`
`max`	`number \| null \| undefined`
`min`	`number \| null \| undefined`
`precision`	`number`
`rangeType`	`RangeType`
`standardDeviation`	`number \| null \| undefined`
`standardDeviationCount`	`number`
`values`	`number[] \| null \| undefined`
`viewModel`	`HistogramRangeSliderViewModel`
`visible` inherited	`boolean`	Widget

average

Property

Type: number | null | undefined

The statistical average of the data in the histogram. You would typically get this value from the avg property of SummaryStatisticsResult, which is the result of the summaryStatistics function.

When set, this value will render on the histogram with a line and an average symbol.

Examples

// sets result returned from a smart mapping method
// to the histogram
slider.average = response.statistics.avg;

slider.average = 34.5;

barCreatedFunction

Property

Type: BarCreatedFunction | null | undefined

Function for styling bars representing histogram bins. This can be used to color bins with the same color of features in the view that fall into bins representing the same range of data.

Example

slider.barCreatedFunction = function(index, element){
  const bin = slider.bins[index];
  element.addEventListener("focus", function(){
    layerView.filter = {
      where: `POPULATION >= ${bin.minValue} AND POPULATION < ${bin.maxValue}`
    };
  });
  element.addEventListener("blur", function(){
    layerView.filter = null;
  });
};

bins

Property

Type: HistogramBin[] | null | undefined

An array of objects representing each bin in the histogram. This information is typically returned from the histogram function.

Examples

// sets the bins of the histogram from the bins in the histogram() result
histogram.bins = histogramResult.bins;

// Creates a histogram with 7 bins.
histogram.bins = [
  { minValue: 0, maxValue: 10, count: 4 },
  { minValue: 10.1, maxValue: 20, count: 14 },
  { minValue: 20.1, maxValue: 30, count: 9 },
  { minValue: 30.1, maxValue: 40, count: 34 },
  { minValue: 40.1, maxValue: 50, count: 351 },
  { minValue: 50.1, maxValue: 60, count: 100 },
  { minValue: 60.1, maxValue: 70, count: 1 }
];

container

autocast inherited Property

Type: HTMLElement | null | undefined

Inherited from: Widget

The ID or node representing the DOM element containing the widget. This property can only be set once. The following examples are all valid use case when working with widgets.

Examples

// Create the HTML div element programmatically at runtime and set to the widget's container
const basemapGallery = new BasemapGallery({
  view: view,
  container: document.createElement("div")
});

// Add the widget to the top-right corner of the view
view.ui.add(basemapGallery, {
  position: "top-right"
});

// Specify an already-defined HTML div element in the widget's container

const basemapGallery = new BasemapGallery({
  view: view,
  container: basemapGalleryDiv
});

// Add the widget to the top-right corner of the view
view.ui.add(basemapGallery, {
  position: "top-right"
});

// HTML markup
<body>
  <div id="viewDiv"></div>
  <div id="basemapGalleryDiv"></div>
</body>

// Specify the widget while adding to the view's UI
const basemapGallery = new BasemapGallery({
  view: view
});

// Add the widget to the top-right corner of the view
view.ui.add(basemapGallery, {
  position: "top-right"
});

dataLineCreatedFunction

Property

Type: DataLineCreatedFunction | null | undefined

Function that fires each time a data line is created. You can use this to style individual dataLines on the data axis.

Example

histogram.dataLineCreatedFunction = function (lineElement, labelElement) {
  lineElement.setAttribute("y2", "25%");
  lineElement.classList.add("line-style");
};

dataLines

Property

Type: DataLineInfos[] | null | undefined

When set, renders lines on the histogram that indicate important or meaningful values to the end user.

Examples

// will render lines at the 25th, 50th, 75th, and 99th percentiles
histogram.dataLines = [{
  value: 30,
  label: "25 pctl"
}, {
  value: 45,
  label: "50 pctl"
}, {
  value: 65,
  label: "75 pctl"
}, {
  value: 89,
  label: "99 pctl"
}];

// calculate standard deviations from mean using stats
// returned from smart mapping statistic methods
const stddevs = smartMappingUtils.getDeviationValues(stats.stddev, stats.avg, 2);
histogram.dataLines = stddevs.map(function(stddev){
  return {
    value: stddev
  };
});

declaredClass

readonlyinherited Property

Type: string

Inherited from: Accessor

The name of the class. The declared class name is formatted as esri.folder.className.

destroyed

readonlyinherited Property

Type: boolean

Inherited from: Widget

When true, this property indicates whether the widget has been destroyed.

excludedBarColor

autocast Property

Type: Color

Sets the color of the histogram bars that are excluded based on the specified rangeType. For example, when a rangeType of between is used, all bars not between the slider thumbs will be rendered with the color set here.

To change the style of histogram bars representing included data based on the rangeType, use the includedBarColor property.

See also

Default value: "#d7e5f0"

Example

slider.excludedBarColor = "black";

icon

autocast Property

Type: Icon["icon"]

Since: ArcGIS Maps SDK for JavaScript 4.27

Icon displayed in the widget's button.

See also

Default value: "arrow-double-horizontal"

id

inherited Property

Type: string

Inherited from: Widget

The unique ID assigned to the widget when the widget is created. If not set by the developer, it will default to the container ID, or if that is not present then it will be automatically generated.

includedBarColor

autocast Property

Type: Color

Sets the color of the histogram bars that are included in the specified rangeType. For example, when a rangeType of between is used, all bars between the slider thumbs will be rendered with the color set here.

To change the style of histogram bars representing excluded data based on the rangeType, use the excludedBarColor property.

See also

Default value: "#599dd4"

Example

slider.includedBarColor = "green";

label

autocast Property

Type: string

The widget's default label. This label displays when it is used within another widget, such as the Expand or LayerList widgets.

labelFormatFunction

Property

Type: LabelFormatFunction

A function used to format labels. Overrides the default label formatter.

By default labels are formatted in the following way:

When the data range is less than 10 ((max - min) < 10), labels are rounded based on the value set in the precision property.
When the data range is larger than 10, HistogramRangeSliderViewModel.labels display with a precision of no more than two decimal places, though actual slider thumb values will maintain the precision specified in precision.

Use this property to override the behavior defined above.

Examples

// For thumb values, rounds each label to whole numbers.
// Note the actual value of the thumb continues to be stored
// based on the indicated data `precision` despite this formatting
slider.labelFormatFunction = function(value, type) {
  return (type === "value") ? value.toFixed(0) : value;
}

// Format thumb values as dates
slider.labelFormatFunction = function(value, type) {
  return new Date(value).toLocaleDateString();
}

max

Property

Type: number | null | undefined

The maximum value or upper bound of the slider. If the largest slider value in the constructor is greater than the maxValue set in this property, then the maxValue will update to match the largest slider value.

Example

slider.max = 150;

min

Property

Type: number | null | undefined

The minimum value or lower bound of the slider. If the smallest slider value in the constructor is greater than the minValue set in this property, then the minValue will update to match the smallest slider value.

Example

slider.min = -150;

precision

Property

Type: number

Defines how slider thumb values should be rounded. This number indicates the number of decimal places slider thumb values should round to when they have been moved.

This value also indicates the precision of thumb HistogramRangeSliderViewModel.labels when the data range (max - min) is less than 10.

When the data range is larger than 10, HistogramRangeSliderViewModel.labels display with a precision of no more than two decimal places, though actual slider thumb values will maintain the precision specified in this property.

For example, given the default precision of 4, and the following slider configuration, The label of the thumb will display two decimal places, but the precision of the actual thumb value will not be lost even when the user slides or moves the thumb.

const slider = new HistogramRangeSliderViewModel({
  min: 20,
  max: 100,  // data range of 80
  values: [50.4331],
  // thumb label will display 50.43
  // thumb value will maintain precision, so
  // value will remain at 50.4331
});

If the user manually enters a value that has a higher precision than what's indicated by this property, the precision of that thumb value will be maintained until the thumb is moved by the user. At that point, the value will be rounded according to the indicated precision.

Keep in mind this property rounds thumb values and shouldn't be used exclusively for formatting purposes. To format thumb labels, use the labelFormatFunction property.

Default value: 4

Example

histogramRangeSlider.precision = 7;

rangeType

Property

Type: RangeType

Indicates how the histogram bins should be rendered as the user slides the thumbs. By default, blue bars indicate data bins included in the range. Gray bars indicate data bins excluded from the range. These colors can be customized with the includedBarColor and excludedBarColor properties.

This property also determines the SQL where clause generated in generateWhereClause() for filtering purposes. The value set here determines the number of values allowed on the slider.

See the table below for a description and requirements of all possible values. value1 refers to the value of the first thumb position. value2 refers to the value of the final thumb position, if applicable.

Possible Value	Number of values	Where clause
equal	1	`${field} = ${value1}`
not-equal	1	`${field} <> ${value1}`
less-than	1	`${field} < ${value1}`
greater-than	1	`${field} > ${value1}`
at-most	1	`${field} <= ${value1}`
at-least	1	`${field} >= ${value1}`
between	2	`${field} BETWEEN ${value1} AND ${value2}`
not-between	2	`${field} NOT BETWEEN ${value1} AND ${value2}`

See also

Example

// renders the histogram so that all bins between
// the two handles are shaded with a blue color
slider.rangeType = "between";

// filters the layer view based on the configuration
// of the slider
layerView.filter = {
  where: slider.generateWhereClause("POPULATION")
}

standardDeviation

Property

Type: number | null | undefined

Indicates the standard deviation of the dataset. When set, computed dataLines will render on the histogram at the location of the given standard deviation above and below the average.

Example

// stddev returned from summaryStatistics
slider.standardDeviation = stats.stddev;

standardDeviationCount

Property

Type: number

Indicates the number of standard deviation lines to render on the histogram from the [average].

Default value: 1

Example

slider.standardDeviationCount = 2;

values

Property

Type: number[] | null | undefined

An array of either one or two numbers representing thumb positions on the slider. The number of values that should be indicated here depends on the associated rangeType.

See also

rangeType

Example

const slider = new HistogramRangeSlider({
  min: 20,
  max: 100,  // data range of 80
  values: [50.4331],
  rangeType: "at-least"
  container: "sliderDiv"
});

viewModel

autocast Property

Type: HistogramRangeSliderViewModel

The view model for the widget. This is a class that contains all the logic (properties and methods) that controls this widget's behavior. See the HistogramRangeSliderViewModel class to access all properties and methods on the Slider widget.

visible

inherited Property

Type: boolean

Inherited from: Widget

Indicates whether the widget is visible.

If false, the widget will no longer be rendered in the web document. This may affect the layout of other elements or widgets in the document. For example, if this widget is the first of three widgets associated to the upper right hand corner of the DefaultUI, then the other widgets will reposition when this widget is made invisible. For more information, refer to the css display value of "none".

Default value: true

Example

// Hides the widget in the view
widget.visible = false;

Methods

Method	Signature	Class
`classes` inherited	`classes(...classNames: ((string \| null \| undefined) \| ((string[] \| Record<string, boolean>) \| null \| undefined) \| false \| null \| undefined)[]): string`	Widget
`destroy` inherited	`destroy(): void`	Widget
`emit` inherited	`emit<Type extends EventNames<this>>(type: Type, event?: this["@eventTypes"][Type]): boolean`	EventedMixin
`generateWhereClause`	`generateWhereClause(field: string): string \| null \| undefined`
`hasEventListener` inherited	`hasEventListener<Type extends EventNames<this>>(type: Type): boolean`	EventedMixin
`isFulfilled` inherited	`isFulfilled(): boolean`	EsriPromiseMixin
`isRejected` inherited	`isRejected(): boolean`	EsriPromiseMixin
`isResolved` inherited	`isResolved(): boolean`	EsriPromiseMixin
`on` inherited	`on<Type extends EventNames<this>>(type: Type, listener: EventedCallback<this["@eventTypes"][Type]>): ResourceHandle`	EventedMixin
`postInitialize` inherited	`postInitialize(): void`	Widget
`render` inherited	`render(): any \| null`	Widget
`renderNow` inherited	`renderNow(): void`	Widget
`scheduleRender` inherited	`scheduleRender(): void`	Widget
`when` inherited	`when<TResult1 = this, TResult2 = never>(onFulfilled?: OnFulfilledCallback<this, TResult1> \| null \| undefined, onRejected?: OnRejectedCallback<TResult2> \| null \| undefined): Promise<TResult1 \| TResult2>`	EsriPromiseMixin

classes

inherited Method

Signature: classes (...classNames: ((string | null | undefined) | ((string[] | Record<string, boolean>) | null | undefined) | false | null | undefined)[]): string

Inherited from: Widget

A utility method used for building the value for a widget's class property. This aids in simplifying css class setup.

Parameters

Parameter	Type	Description	Required
classNames	`((string \| null \| undefined) \| ((string[] \| Record<string, boolean>) \| null \| undefined) \| false \| null \| undefined)[]`	The class names.

Returns: string
The computed class name.

Example

// .tsx syntax showing how to set css classes while rendering the widget

render() {
  const dynamicClasses = {
    [css.flip]: this.flip,
    [css.primary]: this.primary
  };

  return (
    <div class={classes(css.root, css.mixin, dynamicClasses)} />
  );
}

destroy

inherited Method

Signature: destroy (): void

Inherited from: Widget

Destroys the widget instance.

Returns: void

emit

inherited Method

Signature: emit <Type extends EventNames<this>>(type: Type, event?: this["@eventTypes"][Type]): boolean

Type parameters: <Type extends EventNames<this>>

Inherited from: EventedMixin

Emits an event on the instance. This method should only be used when creating subclasses of this class.

Parameters

Parameter	Type	Description	Required
type	`Type`	The name of the event.
event	`this["@eventTypes"][Type]`	The event payload.

Returns: boolean
true if a listener was notified

generateWhereClause

Method

Signature: generateWhereClause (field: string): string | null | undefined

Generates a SQL where clause based on a given field and the slider's rangeType. This is a convenience function for data filtering or data queries.

See also

Parameters

Parameter	Type	Description	Required
field	`string`	Name of the field used in the where clause. This field should correspond to the data used to generate the histogram associated with the slider.

Returns: string | null | undefined
The SQL where clause to apply to a filter or query.

Example

// renders the histogram so that all bins between
// the two handles are shaded with a blue color by default
slider.rangeType = "between";

// filters the layerview based on the configuration
// of the slider
layerView.filter = {
  where: slider.generateWhereClause("POPULATION")
}

hasEventListener

inherited Method

Signature: hasEventListener <Type extends EventNames<this>>(type: Type): boolean

Type parameters: <Type extends EventNames<this>>

Inherited from: EventedMixin

Indicates whether there is an event listener on the instance that matches the provided event name.

Parameters

Parameter	Type	Description	Required
type	`Type`	The name of the event.

Returns: boolean
Returns true if the class supports the input event.

isFulfilled

inherited Method

Signature: isFulfilled (): boolean

Inherited from: EsriPromiseMixin

isFulfilled() may be used to verify if creating an instance of the class is fulfilled (either resolved or rejected). If it is fulfilled, true will be returned.

Returns: boolean
Indicates whether creating an instance of the class has been fulfilled (either resolved or rejected).

isRejected

inherited Method

Signature: isRejected (): boolean

Inherited from: EsriPromiseMixin

isRejected() may be used to verify if creating an instance of the class is rejected. If it is rejected, true will be returned.

Returns: boolean
Indicates whether creating an instance of the class has been rejected.

isResolved

inherited Method

Signature: isResolved (): boolean

Inherited from: EsriPromiseMixin

isResolved() may be used to verify if creating an instance of the class is resolved. If it is resolved, true will be returned.

Returns: boolean
Indicates whether creating an instance of the class has been resolved.

on

inherited Method

Signature: on <Type extends EventNames<this>>(type: Type, listener: EventedCallback<this["@eventTypes"][Type]>): ResourceHandle

Type parameters: <Type extends EventNames<this>>

Inherited from: EventedMixin

Registers an event handler on the instance. Call this method to hook an event with a listener.

Parameters

Parameter	Type	Description	Required
type	`Type`	An event or an array of events to listen for.
listener	`EventedCallback<this["@eventTypes"][Type]>`	The function to call when the event fires.

Returns

ResourceHandle

Returns an event handler with a remove() method that should be called to stop listening for the event(s).

Property	Type	Description
remove	Function	When called, removes the listener from the event.

Example

view.on("click", function(event){
  // event is the event handle returned after the event fires.
  console.log(event.mapPoint);
});

postInitialize

inherited Method

Signature: postInitialize (): void

Inherited from: Widget

Executes after widget is ready for rendering.

Returns: void

render

inherited Method

Signature: render (): any | null

Inherited from: Widget

This method is implemented by subclasses for rendering.

Returns: any | null
The rendered virtual node.

renderNow

inherited Method

Signature: renderNow (): void

Inherited from: Widget

Renders widget to the DOM immediately.

Returns: void

scheduleRender

inherited Method

Signature: scheduleRender (): void

Inherited from: Widget

Schedules widget rendering. This method is useful for changes affecting the UI.

Returns: void

when

inherited Method

Signature: when <TResult1 = this, TResult2 = never>(onFulfilled?: OnFulfilledCallback<this, TResult1> | null | undefined, onRejected?: OnRejectedCallback<TResult2> | null | undefined): Promise<TResult1 | TResult2>

Type parameters: <TResult1 = this, TResult2 = never>

Inherited from: EsriPromiseMixin

when() may be leveraged once an instance of the class is created. This method takes two input parameters: an onFulfilled function and an onRejected function. The onFulfilled executes when the instance of the class loads. The onRejected executes if the instance of the class fails to load.

Parameters

Parameter	Type	Description	Required
onFulfilled	`OnFulfilledCallback<this, TResult1> \| null \| undefined`	The function to call when the promise resolves.
onRejected	`OnRejectedCallback \| null \| undefined`	The function to execute when the promise fails.

Returns: Promise<TResult1 | TResult2>
Returns a new promise for the result of onFulfilled that may be used to chain additional functions.

Example

// Although this example uses MapView, any class instance that is a promise may use when() in the same way
let view = new MapView();
view.when(function(){
  // This function will execute once the promise is resolved
}, function(error){
  // This function will execute if the promise is rejected due to an error
});

Events

Name	Type
`max-change` inherited	CustomEvent<MaxChangeEvent>
`min-change` inherited	CustomEvent<MinChangeEvent>
`segment-drag` inherited	CustomEvent<SegmentDragEvent>
`thumb-change` inherited	CustomEvent<ThumbChangeEvent>
`thumb-drag` inherited	CustomEvent<ThumbDragEvent>

max-change

inherited Event

max-change: CustomEvent<MaxChangeEvent>

Inherited from: CommonSliderEvents

Fires when a user changes the max of the slider.

Example

slider.on("max-change", function() {
  const renderer = layer.renderer.clone();
  const visualVariable = renderer.visualVariables[0].clone();
  colorVariable.stops = slider.stops;
  renderer.visualVariables = [ visualVariable ];
  layer.renderer = renderer;
});

min-change

inherited Event

min-change: CustomEvent<MinChangeEvent>

Inherited from: CommonSliderEvents

Fires when a user changes the min of the slider.

Example

slider.on("min-change", function() {
  const renderer = layer.renderer.clone();
  const visualVariable = renderer.visualVariables[0].clone();
  colorVariable.stops = slider.stops;
  renderer.visualVariables = [ visualVariable ];
  layer.renderer = renderer;
});

segment-drag

inherited Event

segment-drag: CustomEvent<SegmentDragEvent>

Inherited from: CommonSliderEvents

Since: ArcGIS Maps SDK for JavaScript 4.20

Fires when a user drags a segment of the slider. A segment is the portion of the track that lies between two thumbs. Therefore, this only applies when two or more thumbs are set on the slider.

See also

SmartMappingSliderBase.visibleElements

Example

slider.on("segment-drag", () => {
  const renderer = layer.renderer.clone();
  const visualVariable = renderer.visualVariables[0].clone();
  colorVariable.stops = slider.stops;
  renderer.visualVariables = [ visualVariable ];
  layer.renderer = renderer;
});

thumb-change

inherited Event

thumb-change: CustomEvent<ThumbChangeEvent>

Inherited from: CommonSliderEvents

Fires when a user changes the value of a thumb via the arrow keys or by keyboard editing of the label on the slider.

Examples

slider.on("thumb-change", function() {
  const renderer = layer.renderer.clone();
  const visualVariable = renderer.visualVariables[0].clone();
  colorVariable.stops = slider.stops;
  renderer.visualVariables = [ visualVariable ];
  layer.renderer = renderer;
});

slider.on("thumb-change", function() {
  const renderer = layer.renderer.clone();
  renderer.colorStops = slider.stops;
  layer.renderer = renderer;
});

thumb-drag

inherited Event

thumb-drag: CustomEvent<ThumbDragEvent>

Inherited from: CommonSliderEvents

Fires when a user drags a thumb on the widget.

Examples

slider.on("thumb-drag", function() {
  const renderer = layer.renderer.clone();
  const visualVariable = renderer.visualVariables[0].clone();
  colorVariable.stops = slider.stops;
  renderer.visualVariables = [ visualVariable ];
  layer.renderer = renderer;
});

slider.on("thumb-drag", function() {
  const renderer = layer.renderer.clone();
  renderer.colorStops = slider.stops;
  layer.renderer = renderer;
});

Constructors

Parameters

Example

Properties

Examples

Example

Examples

Examples

Example

Examples

Example

Example

Examples

Example

Example

Example

Example

Example

Example

Example

Example

Methods

Parameters

Example

Parameters

Parameters

Example

Parameters

Parameters

Example

Parameters

Example

Events

Example

Example

Example

Examples

Examples

Type definitions
