Swipe | References | ArcGIS Maps SDK for JavaScript

import Swipe from "@arcgis/core/widgets/Swipe.js";

Inheritance:: Swipe→Widget→Accessor

Since: ArcGIS Maps SDK for JavaScript 4.13

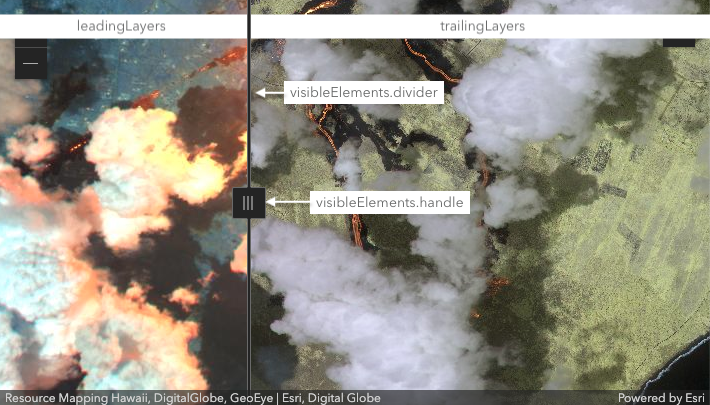

The Swipe widget provides a tool to show a portion of a layer or layers on top of a map. Layers can be swiped vertically or horizontally to easily compare two layers or see what is underneath a layer.

To use the Swipe widget, set the leadingLayers and trailingLayers properties to determine what will be compared on either side of the widget. If one of these properties is not set, then the Swipe widget will overlay the existing map. The visibleElements separate the leading and trailing layers, as shown in the image below.

Known Limitations

This widget is not currently supported with a SceneView.

See also

Example

let swipe = new Swipe({
  view: view,
  leadingLayers: [layer1, layer2],
  trailingLayers: [layer3],
  direction: "vertical", // swipe widget will move from top to bottom of view
  position: 50 // position set to middle of the view (50%)
});
view.ui.add(swipe);

Constructors

Constructor

Parameters

Parameter	Type	Description	Required
properties	`SwipeProperties`

See the properties table for a list of all the properties that may be passed into the constructor.

Properties

Any properties can be set, retrieved or listened to. See the Watch for changes topic.

Property	Type	Class
`container` inherited	`HTMLElement \| null \| undefined`	Widget
`declaredClass` readonly inherited	`string`	Accessor
`destroyed` readonly inherited	`boolean`	Widget
`direction`	`Direction`
`disabled`	`boolean`
`dragLabel`	`string`
`icon`	`Icon["icon"]`
`id` inherited	`string`	Widget
`label`	`string`
`leadingLayers`	`SwipeViewModel["leadingLayers"]`
`position`	`number`
`trailingLayers`	`SwipeViewModel["trailingLayers"]`
`view`	`MapView \| null \| undefined`
`viewModel`	`SwipeViewModel`
`visible` inherited	`boolean`	Widget
`visibleElements`	`VisibleElements`

container

autocast inherited Property

Type: HTMLElement | null | undefined

Inherited from: Widget

The ID or node representing the DOM element containing the widget. This property can only be set once. The following examples are all valid use case when working with widgets.

Examples

// Create the HTML div element programmatically at runtime and set to the widget's container
const basemapGallery = new BasemapGallery({
  view: view,
  container: document.createElement("div")
});

// Add the widget to the top-right corner of the view
view.ui.add(basemapGallery, {
  position: "top-right"
});

// Specify an already-defined HTML div element in the widget's container

const basemapGallery = new BasemapGallery({
  view: view,
  container: basemapGalleryDiv
});

// Add the widget to the top-right corner of the view
view.ui.add(basemapGallery, {
  position: "top-right"
});

// HTML markup
<body>
  <div id="viewDiv"></div>
  <div id="basemapGalleryDiv"></div>
</body>

// Specify the widget while adding to the view's UI
const basemapGallery = new BasemapGallery({
  view: view
});

// Add the widget to the top-right corner of the view
view.ui.add(basemapGallery, {
  position: "top-right"
});

declaredClass

readonlyinherited Property

Type: string

Inherited from: Accessor

The name of the class. The declared class name is formatted as esri.folder.className.

destroyed

readonlyinherited Property

Type: boolean

Inherited from: Widget

When true, this property indicates whether the widget has been destroyed.

direction

Property

Type: Direction

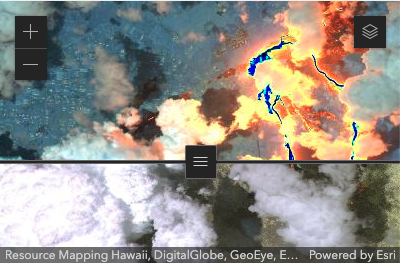

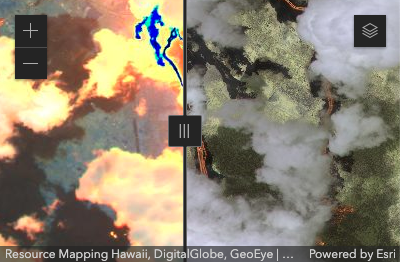

The direction the Swipe widget moves across the view. If "horizontal", the widget will move left and right and if "vertical", the widget will move up and down.

horizontal	vertical

Default value: "horizontal"

disabled

Property

Type: boolean

When true, sets the widget to a disabled state so the user cannot interact with it.

Default value: false

dragLabel

autocast Property

Type: string

The text that shows in a tooltip when hovering over the handle of the Swipe widget.

icon

autocast Property

Type: Icon["icon"]

Since: ArcGIS Maps SDK for JavaScript 4.27

Icon which represents the widget. It is typically used when the widget is controlled by another one (e.g. in the Expand widget).

See also

Default value: "compare"

id

inherited Property

Type: string

Inherited from: Widget

The unique ID assigned to the widget when the widget is created. If not set by the developer, it will default to the container ID, or if that is not present then it will be automatically generated.

label

autocast Property

Type: string

The widget's default label.

leadingLayers

autocast Property

Type: SwipeViewModel["leadingLayers"]

A collection of Layers that will show on the left or top side of the Swipe widget. See the image in the class description at the top of the page.

See also

trailingLayers

position

Property

Type: number

The position of the Swipe widget. This determines what percentage of the view will be taken up by the leadingLayers.

Default value: 25

trailingLayers

autocast Property

Type: SwipeViewModel["trailingLayers"]

A collection of Layers that will show on the right or bottom side of the Swipe widget. See the image in the class description at the top of the page.

See also

leadingLayers

view

Property

Type: MapView | null | undefined

A reference to the MapView. Set this to link the widget to a specific view.

viewModel

autocast Property

Type: SwipeViewModel

The view model for this widget. This is a class that contains all the logic (properties and methods) that controls this widget's behavior. See the SwipeViewModel class to access all properties and methods on the widget.

visible

inherited Property

Type: boolean

Inherited from: Widget

Indicates whether the widget is visible.

If false, the widget will no longer be rendered in the web document. This may affect the layout of other elements or widgets in the document. For example, if this widget is the first of three widgets associated to the upper right hand corner of the DefaultUI, then the other widgets will reposition when this widget is made invisible. For more information, refer to the css display value of "none".

Default value: true

Example

// Hides the widget in the view
widget.visible = false;

visibleElements

Property

Type: VisibleElements

The visible elements that are displayed within the widget. This property provides the ability change the visibility of individual elements of the widget's display.

Example

swipe.visibleElements = {
  divider: true,
  handle: false // handle will not display
}

Methods

Method	Signature	Class
`classes` inherited	`classes(...classNames: ((string \| null \| undefined) \| ((string[] \| Record<string, boolean>) \| null \| undefined) \| false \| null \| undefined)[]): string`	Widget
`destroy` inherited	`destroy(): void`	Widget
`emit` inherited	`emit<Type extends EventNames<this>>(type: Type, event?: this["@eventTypes"][Type]): boolean`	EventedMixin
`hasEventListener` inherited	`hasEventListener<Type extends EventNames<this>>(type: Type): boolean`	EventedMixin
`isFulfilled` inherited	`isFulfilled(): boolean`	EsriPromiseMixin
`isRejected` inherited	`isRejected(): boolean`	EsriPromiseMixin
`isResolved` inherited	`isResolved(): boolean`	EsriPromiseMixin
`on` inherited	`on<Type extends EventNames<this>>(type: Type, listener: EventedCallback<this["@eventTypes"][Type]>): ResourceHandle`	EventedMixin
`postInitialize` inherited	`postInitialize(): void`	Widget
`render` inherited	`render(): any \| null`	Widget
`renderNow` inherited	`renderNow(): void`	Widget
`scheduleRender` inherited	`scheduleRender(): void`	Widget
`when` inherited	`when<TResult1 = this, TResult2 = never>(onFulfilled?: OnFulfilledCallback<this, TResult1> \| null \| undefined, onRejected?: OnRejectedCallback<TResult2> \| null \| undefined): Promise<TResult1 \| TResult2>`	EsriPromiseMixin

classes

inherited Method

Signature: classes (...classNames: ((string | null | undefined) | ((string[] | Record<string, boolean>) | null | undefined) | false | null | undefined)[]): string

Inherited from: Widget

A utility method used for building the value for a widget's class property. This aids in simplifying css class setup.

Parameters

Parameter	Type	Description	Required
classNames	`((string \| null \| undefined) \| ((string[] \| Record<string, boolean>) \| null \| undefined) \| false \| null \| undefined)[]`	The class names.

Returns: string
The computed class name.

Example

// .tsx syntax showing how to set css classes while rendering the widget

render() {
  const dynamicClasses = {
    [css.flip]: this.flip,
    [css.primary]: this.primary
  };

  return (
    <div class={classes(css.root, css.mixin, dynamicClasses)} />
  );
}

destroy

inherited Method

Signature: destroy (): void

Inherited from: Widget

Destroys the widget instance.

Returns: void

emit

inherited Method

Signature: emit <Type extends EventNames<this>>(type: Type, event?: this["@eventTypes"][Type]): boolean

Type parameters: <Type extends EventNames<this>>

Inherited from: EventedMixin

Emits an event on the instance. This method should only be used when creating subclasses of this class.

Parameters

Parameter	Type	Description	Required
type	`Type`	The name of the event.
event	`this["@eventTypes"][Type]`	The event payload.

Returns: boolean
true if a listener was notified

hasEventListener

inherited Method

Signature: hasEventListener <Type extends EventNames<this>>(type: Type): boolean

Type parameters: <Type extends EventNames<this>>

Inherited from: EventedMixin

Indicates whether there is an event listener on the instance that matches the provided event name.

Parameters

Parameter	Type	Description	Required
type	`Type`	The name of the event.

Returns: boolean
Returns true if the class supports the input event.

isFulfilled

inherited Method

Signature: isFulfilled (): boolean

Inherited from: EsriPromiseMixin

isFulfilled() may be used to verify if creating an instance of the class is fulfilled (either resolved or rejected). If it is fulfilled, true will be returned.

Returns: boolean
Indicates whether creating an instance of the class has been fulfilled (either resolved or rejected).

isRejected

inherited Method

Signature: isRejected (): boolean

Inherited from: EsriPromiseMixin

isRejected() may be used to verify if creating an instance of the class is rejected. If it is rejected, true will be returned.

Returns: boolean
Indicates whether creating an instance of the class has been rejected.

isResolved

inherited Method

Signature: isResolved (): boolean

Inherited from: EsriPromiseMixin

isResolved() may be used to verify if creating an instance of the class is resolved. If it is resolved, true will be returned.

Returns: boolean
Indicates whether creating an instance of the class has been resolved.

on

inherited Method

Signature: on <Type extends EventNames<this>>(type: Type, listener: EventedCallback<this["@eventTypes"][Type]>): ResourceHandle

Type parameters: <Type extends EventNames<this>>

Inherited from: EventedMixin

Registers an event handler on the instance. Call this method to hook an event with a listener.

Parameters

Parameter	Type	Description	Required
type	`Type`	An event or an array of events to listen for.
listener	`EventedCallback<this["@eventTypes"][Type]>`	The function to call when the event fires.

Returns

ResourceHandle

Returns an event handler with a remove() method that should be called to stop listening for the event(s).

Property	Type	Description
remove	Function	When called, removes the listener from the event.

Example

view.on("click", function(event){
  // event is the event handle returned after the event fires.
  console.log(event.mapPoint);
});

postInitialize

inherited Method

Signature: postInitialize (): void

Inherited from: Widget

Executes after widget is ready for rendering.

Returns: void

render

inherited Method

Signature: render (): any | null

Inherited from: Widget

This method is implemented by subclasses for rendering.

Returns: any | null
The rendered virtual node.

renderNow

inherited Method

Signature: renderNow (): void

Inherited from: Widget

Renders widget to the DOM immediately.

Returns: void

scheduleRender

inherited Method

Signature: scheduleRender (): void

Inherited from: Widget

Schedules widget rendering. This method is useful for changes affecting the UI.

Returns: void

when

inherited Method

Signature: when <TResult1 = this, TResult2 = never>(onFulfilled?: OnFulfilledCallback<this, TResult1> | null | undefined, onRejected?: OnRejectedCallback<TResult2> | null | undefined): Promise<TResult1 | TResult2>

Type parameters: <TResult1 = this, TResult2 = never>

Inherited from: EsriPromiseMixin

when() may be leveraged once an instance of the class is created. This method takes two input parameters: an onFulfilled function and an onRejected function. The onFulfilled executes when the instance of the class loads. The onRejected executes if the instance of the class fails to load.

Parameters

Parameter	Type	Description	Required
onFulfilled	`OnFulfilledCallback<this, TResult1> \| null \| undefined`	The function to call when the promise resolves.
onRejected	`OnRejectedCallback \| null \| undefined`	The function to execute when the promise fails.

Returns: Promise<TResult1 | TResult2>
Returns a new promise for the result of onFulfilled that may be used to chain additional functions.

Example

// Although this example uses MapView, any class instance that is a promise may use when() in the same way
let view = new MapView();
view.when(function(){
  // This function will execute once the promise is resolved
}, function(error){
  // This function will execute if the promise is rejected due to an error
});
