import TableList from "@arcgis/core/widgets/TableList.js";const TableList = await $arcgis.import("@arcgis/core/widgets/TableList.js");- Since
- ArcGIS Maps SDK for JavaScript 4.17

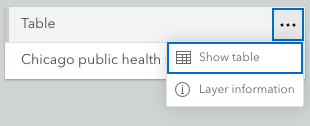

The TableList widget provides a way to display a list of tables associated with a Map. It is meant to be used with feature layer tables.
If a map contains feature layer tables, they will display within the widget. Tables can also be added to the Map.tables collection. Any tables referenced in the map property will display in the widget. If unsure of whether the layer is a table, check the feature layer's FeatureLayer.isTable property.
The ListItem API provides access to each table, allows the developer to configure actions related to the table, and allows the developer to add content to the item related to the table.
Known Limitations
The TableList widget is not supported with web scenes.
Example
const tableList = new TableList({ map: map, // takes any tables associated with the map and displays in widget listItemCreatedFunction: function(event) { let item = event.item; item.actionsSections = [ { title: "Show table", className: "esri-icon-table", id: "table", type: "toggle" }, { title: "Layer information", className: "esri-icon-description", id: "information" } ]});Constructors
Constructor
Parameters
| Parameter | Type | Description | Required |
|---|---|---|---|
| properties | | |
Example
// Typical usageconst tableList = new TableList({ map: map});Properties
| Property | Type | Class |
|---|---|---|
| | ||
container inherited | HTMLElement | null | undefined | |
declaredClass readonly inherited | ||
destroyed readonly inherited | ||
| | ||
| | ||
| | ||
| | ||
| | ||
Icon["icon"] | | |
id inherited | ||
| | ||
TableListViewModel["listItemCreatedFunction"] | | |
| | ||
| | ||
| | ||
| | ||
"multiple" | "none" | "single" | "single-persist" | | |
tableItems readonly | | |
uid readonly inherited | ||
| | ||
visible inherited | ||
| |
collapsed
- Type
- boolean
- Since
- ArcGIS Maps SDK for JavaScript 4.29
Indicates whether the widget is collapsed. When collapsed, only the collapse button and heading are displayed.
- See also
- Default value
- false
Example
tableList.collapsed = true; container
- Type
- HTMLElement | null | undefined
The ID or node representing the DOM element containing the widget. This property can only be set once. The following examples are all valid use case when working with widgets.
Examples
// Create the HTML div element programmatically at runtime and set to the widget's containerconst basemapGallery = new BasemapGallery({ view: view, container: document.createElement("div")});
// Add the widget to the top-right corner of the viewview.ui.add(basemapGallery, { position: "top-right"});// Specify an already-defined HTML div element in the widget's container
const basemapGallery = new BasemapGallery({ view: view, container: basemapGalleryDiv});
// Add the widget to the top-right corner of the viewview.ui.add(basemapGallery, { position: "top-right"});
// HTML markup<body> <div id="viewDiv"></div> <div id="basemapGalleryDiv"></div></body>// Specify the widget while adding to the view's UIconst basemapGallery = new BasemapGallery({ view: view});
// Add the widget to the top-right corner of the viewview.ui.add(basemapGallery, { position: "top-right"}); dragEnabled
- Type
- boolean
- Since
- ArcGIS Maps SDK for JavaScript 4.29
Indicates whether list items may be reordered within the list by dragging and dropping. Drag won't be enabled until the number of list items is equal to or greater than than the value set set in minDragEnabledItems.
- See also
- Default value
- false
Example
tableList.dragEnabled = true; filterPlaceholder
- Type
- string
- Since
- ArcGIS Maps SDK for JavaScript 4.29
Placeholder text used in the filter input if visibleElements.filter is true.
- See also
- Default value
- ""
Example
tableList.filterPlaceholder = "Filter layers"; filterPredicate
- Type
- FilterPredicate | null | undefined
- Since
- ArcGIS Maps SDK for JavaScript 4.32
Specifies a function to handle filtering list items.
Example
layerList.filterPredicate = (item) => item.title.toLowerCase().includes("streets"); filterText
- Type
- string
- Since
- ArcGIS Maps SDK for JavaScript 4.29
The value of the filter input text string if visibleElements.filter is true.
- See also
- Default value
- ""
Example
reactiveUtils.watch( () => tableList.filterText, (filterText) => console.log(filterText)); headingLevel
- Type
- HeadingLevel
Indicates the heading level to use for the TableListVisibleElements.heading.
By default, the title is rendered
as a level 2 heading (e.g. <h2>Table List</h2>). Depending on the widget's placement
in your app, you may need to adjust this heading for proper semantics. This is
important for meeting accessibility standards.
- Default value
- 2
icon
- Type
- Icon["icon"]
- Since
- ArcGIS Maps SDK for JavaScript 4.27
Icon which represents the widget. It is typically used when the widget is controlled by another one (e.g. in the Expand widget).
- Default value
- "table"
listItemCreatedFunction
- Type
- TableListViewModel["listItemCreatedFunction"]
Specifies a function that accesses each ListItem. Each list item can be modified according to its modifiable properties. Actions can be added to list items using the ListItem.actionsSections property of the ListItem.
Example
const tableList = new TableList({ map: map, listItemCreatedFunction: (event) => { const { item } = event; item.actionsSections = [ [ { title: "Go to full extent", icon: "layer-zoom-to", id: "full-extent" } ] ]; }}); map
A reference to a Map containing the tables. Set this property to access the underlying tables within the map.
- See also
Example
Layer.fromPortalItem({ // Loads a layer (table) from a portal item portalItem: { // autocasts new PortalItem() id: "add portal item id" }}).then(function(layer) { // Load the layer layer.load().then(function() { // Check if the layer is a table if (layer.isTable) { map.tables.add(layer); console.log(map.tables); } });});
const tableList = new TableList({ map: map // map contains tables collection}); minDragEnabledItems
- Type
- number
- Since
- ArcGIS Maps SDK for JavaScript 4.29
The minimum number of list items required to enable drag and drop reordering with dragEnabled.
- See also
- Default value
- 2
Example
tableList.dragEnabled = true;tableList.minDragEnabledItems = 5; minFilterItems
- Type
- number
- Since
- ArcGIS Maps SDK for JavaScript 4.29
The minimum number of list items required to display the visibleElements.filter input box.
- See also
- Default value
- 10
Example
tableList.visibleElements.filter = true;tableList.minFilterItems = 5; selectedItems
- Type
- Collection<ListItem>
A collection of selected ListItems representing table list items selected by the user.
- See also
selectionMode
- Type
- "multiple" | "none" | "single" | "single-persist"
- Since
- ArcGIS Maps SDK for JavaScript 4.29
Specifies the selection mode. Selected items are available in the selectedItems property.
| Value | Description |
|---|---|
| multiple | Allows any number of items to be selected at once. This is useful when you want to apply an operation to multiple items at the same time. |
| none | Disables selection. Use this when you want to prevent selecting items. |
| single | Allows only one item to be selected at a time. If another item is selected, the previous selection is cleared. This is useful when you want to ensure that a maximum of one item is selected at a time. |
| single-persist | Allows only one item to be selected at a time and prevents de-selection. Once an item is selected, it remains selected until another item is selected. This is useful when you want to ensure that there is always exactly one selected item. |
- See also
- Default value
- "none"
Example
tableList.selectionMode = "multiple"; tableItems
- Type
- Collection<ListItem>
The collection of table ListItems displayed within the widget.
uid
- Type
- string
- Since
- ArcGIS Maps SDK for JavaScript 4.33
An automatically generated unique identifier assigned to the instance. The unique id is generated each time the application is loaded.
viewModel
- Type
- TableListViewModel
The view model for this widget. This is a class that contains all the logic (properties and methods) that controls this widget's behavior. See the TableListViewModel class to access all properties and methods on the widget.
visible
- Type
- boolean
Indicates whether the widget is visible.
If false, the widget will no longer be rendered in the web document. This may affect the layout of other elements or widgets in the document. For example, if this widget is
the first of three widgets associated to the upper right hand corner of the DefaultUI, then the other widgets will reposition when this widget is made invisible.
For more information, refer to the css display value of "none".
- Default value
- true
Example
// Hides the widget in the viewwidget.visible = false; visibleElements
- Since
- ArcGIS Maps SDK for JavaScript 4.25
The visible elements that are displayed within the widget. This property provides the ability to turn individual elements of the widget's display on/off.
Example
tableList.visibleElements = { closeButton: false, collapseButton: true, errors: true, filter: true, heading: true, statusIndicators: true};Methods
| Method | Signature | Class |
|---|---|---|
classes inherited | classes(...classNames: ((string | null | undefined) | ((string[] | Record<string, boolean>) | null | undefined) | false | null | undefined)[]): string | |
destroy inherited | destroy(): void | |
emit inherited | emit<Type extends EventNames<this>>(type: Type, event?: this["@eventTypes"][Type]): boolean | |
hasEventListener inherited | hasEventListener<Type extends EventNames<this>>(type: Type): boolean | |
isFulfilled inherited | isFulfilled(): boolean | |
isRejected inherited | isRejected(): boolean | |
isResolved inherited | isResolved(): boolean | |
on inherited | on<Type extends EventNames<this>>(type: Type, listener: EventedCallback<this["@eventTypes"][Type]>): ResourceHandle | |
postInitialize inherited | postInitialize(): void | |
render inherited | render(): any | null | |
renderNow inherited | renderNow(): void | |
scheduleRender inherited | scheduleRender(): void | |
triggerAction(action: Action, item: ListItem): void | | |
when inherited | when<TResult1 = this, TResult2 = never>(onFulfilled?: OnFulfilledCallback<this, TResult1> | null | undefined, onRejected?: OnRejectedCallback<TResult2> | null | undefined): Promise<TResult1 | TResult2> |
classes
- Signature
-
classes (...classNames: ((string | null | undefined) | ((string[] | Record<string, boolean>) | null | undefined) | false | null | undefined)[]): string
A utility method used for building the value for a widget's class property.
This aids in simplifying css class setup.
Parameters
- Returns
- string
The computed class name.
Example
// .tsx syntax showing how to set css classes while rendering the widget
render() { const dynamicClasses = { [css.flip]: this.flip, [css.primary]: this.primary };
return ( <div class={classes(css.root, css.mixin, dynamicClasses)} /> );} emit
- Signature
-
emit <Type extends EventNames<this>>(type: Type, event?: this["@eventTypes"][Type]): boolean
- Type parameters
- <Type extends EventNames<this>>
Emits an event on the instance. This method should only be used when creating subclasses of this class.
hasEventListener
- Signature
-
hasEventListener <Type extends EventNames<this>>(type: Type): boolean
- Type parameters
- <Type extends EventNames<this>>
Indicates whether there is an event listener on the instance that matches the provided event name.
Parameters
| Parameter | Type | Description | Required |
|---|---|---|---|
| type | Type | The name of the event. | |
- Returns
- boolean
Returns true if the class supports the input event.
isFulfilled
- Signature
-
isFulfilled (): boolean
isFulfilled() may be used to verify if creating an instance of the class is fulfilled (either resolved or rejected).
If it is fulfilled, true will be returned.
- Returns
- boolean
Indicates whether creating an instance of the class has been fulfilled (either resolved or rejected).
isRejected
- Signature
-
isRejected (): boolean
isRejected() may be used to verify if creating an instance of the class is rejected.
If it is rejected, true will be returned.
- Returns
- boolean
Indicates whether creating an instance of the class has been rejected.
isResolved
- Signature
-
isResolved (): boolean
isResolved() may be used to verify if creating an instance of the class is resolved.
If it is resolved, true will be returned.
- Returns
- boolean
Indicates whether creating an instance of the class has been resolved.
on
- Signature
-
on <Type extends EventNames<this>>(type: Type, listener: EventedCallback<this["@eventTypes"][Type]>): ResourceHandle
- Type parameters
- <Type extends EventNames<this>>
Registers an event handler on the instance. Call this method to hook an event with a listener.
Parameters
| Parameter | Type | Description | Required |
|---|---|---|---|
| type | Type | An event or an array of events to listen for. | |
| listener | EventedCallback<this["@eventTypes"][Type]> | The function to call when the event fires. | |
- Returns
- ResourceHandle
Returns an event handler with a
remove()method that should be called to stop listening for the event(s).Property Type Description remove Function When called, removes the listener from the event.
Example
view.on("click", function(event){ // event is the event handle returned after the event fires. console.log(event.mapPoint);}); triggerAction
- Signature
-
triggerAction (action: Action, item: ListItem): void
Triggers the @trigger-action event and executes the given action or action toggle.
when
- Signature
-
when <TResult1 = this, TResult2 = never>(onFulfilled?: OnFulfilledCallback<this, TResult1> | null | undefined, onRejected?: OnRejectedCallback<TResult2> | null | undefined): Promise<TResult1 | TResult2>
when() may be leveraged once an instance of the class is created. This method takes two input parameters: an onFulfilled function and an onRejected function.
The onFulfilled executes when the instance of the class loads. The
onRejected executes if the instance of the class fails to load.
Parameters
| Parameter | Type | Description | Required |
|---|---|---|---|
| onFulfilled | OnFulfilledCallback<this, TResult1> | null | undefined | The function to call when the promise resolves. | |
| onRejected | The function to execute when the promise fails. | |
- Returns
- Promise<TResult1 | TResult2>
Returns a new promise for the result of
onFulfilledthat may be used to chain additional functions.
Example
// Although this example uses MapView, any class instance that is a promise may use when() in the same waylet view = new MapView();view.when(function(){ // This function will execute once the promise is resolved}, function(error){ // This function will execute if the promise is rejected due to an error});Events
| Name | Type |
|---|---|
trigger-action inherited |
trigger-action
trigger-action: CustomEvent<TableListViewModelTriggerActionEvent> Emitted when the user clicks an action or action toggle in a table list. Use this event to run custom logic when a specific action is triggered.
- See also
