DimensionalDefinition | References | ArcGIS Maps SDK for JavaScript

import DimensionalDefinition from "@arcgis/core/layers/support/DimensionalDefinition.js";

Inheritance:: DimensionalDefinition→Accessor

Since: ArcGIS Maps SDK for JavaScript 4.0

A dimensional definition defines a filter based on one variable and one dimension. You can filter multidimensional data with one or multiple dimensional slices. Instances of this class are typically used when filtering data based on slices or ranges in one or more dimensions by setting MosaicRule.multidimensionalDefinition on an ImageryLayer.mosaicRule or the ImageryTileLayer.multidimensionalDefinition on an ImageryTileLayer.

For example, a single ImageryLayer may have a depth dimension storing sea temperatures for the same pixel location at various depths. Another dimension could be time where the same pixel stores multiple values based on a window of time.

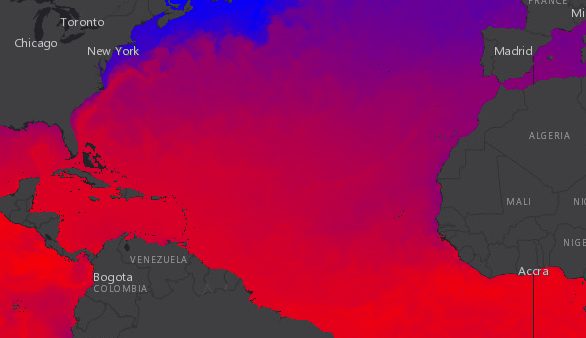

The snippet in the image below renders sea temperature at the surface for a specific time in the year.

let multidimensionalDefinition = [];
multidimensionalDefinition.push(new DimensionalDefinition({
  variableName: "water_temp",
  dimensionName: "StdZ", // water depth
  values: [0], // sea surface or 0ft
  isSlice: true
}));

let mosaicRule = new MosaicRule();
mosaicRule.multidimensionalDefinition = multidimensionalDefinition;

In contrast, the following image renders sea temperature data from the same service at 5000 meters below the surface within the same time window.

let multidimensionalDefinition = [];
multidimensionalDefinition.push(new DimensionalDefinition({
  variableName: "water_temp",
  dimensionName: "StdZ", // water depth
  values: [-5000], // 5000 m below
  isSlice: true
}));

let mosaicRule = new MosaicRule();
mosaicRule.multidimensionalDefinition = multidimensionalDefinition;

See also

Constructors

Constructor

Parameters

Parameter	Type	Description	Required
properties	`DimensionalDefinitionProperties`

See the properties table for a list of all the properties that may be passed into the constructor.

Properties

Any properties can be set, retrieved or listened to. See the Watch for changes topic.

Property	Type	Class
`declaredClass` readonly inherited	`string`	Accessor
`dimensionName`	`string`
`isSlice`	`boolean`
`values`	`(number \| [ number, number ])[]`
`variableName`	`string`

declaredClass

readonlyinherited Property

Type: string

Inherited from: Accessor

Since: ArcGIS Maps SDK for JavaScript 4.7

The name of the class. The declared class name is formatted as esri.folder.className.

dimensionName

Property

Type: string

The dimension associated with the variable.

isSlice

Property

Type: boolean

Indicates whether the values indicate slices (rather than ranges).

Default value: false

values

Property

Type: (number | [ number, number ])[]

An array of single values or tuples [min, max] each defining a range of valid values along the specified dimension.

Example

// -10 is the minimum valid value and 10 is the maximum valid value
definition.values = [[-10, 10]];

variableName

Property

Type: string

The required variable name by which to filter.

Methods

Method	Signature	Class
`fromJSON` inherited static	`fromJSON(json: any): any`	JSONSupportMixin
`clone`	`clone(): DimensionalDefinition`
`toJSON` inherited	`toJSON(): any`	JSONSupportMixin

fromJSON

inheritedstatic Method

Signature: fromJSON (json: any): any

Inherited from: JSONSupportMixin

Creates a new instance of this class and initializes it with values from a JSON object generated from an ArcGIS product. The object passed into the input json parameter often comes from a response to a query operation in the REST API or a toJSON() method from another ArcGIS product. See the Using fromJSON() topic in the Guide for details and examples of when and how to use this function.

Parameters

Parameter	Type	Description	Required
json	`any`	A JSON representation of the instance in the ArcGIS format. See the ArcGIS REST API documentation for examples of the structure of various input JSON objects.

Returns: any
Returns a new instance of this class.

clone

Method

Signature: clone (): DimensionalDefinition

Creates a clone of the DimensionalDefinition object.

Returns: DimensionalDefinition
A clone of the object that invoked this method.

Example

// Creates a clone of the DimensionalDefinition
let dimensionalDefinition1 = dimensionalDefinition.clone();

toJSON

inherited Method

Signature: toJSON (): any

Inherited from: JSONSupportMixin

Converts an instance of this class to its ArcGIS portal JSON representation. See the Using fromJSON() guide topic for more information.

Returns: any
The ArcGIS portal JSON representation of an instance of this class.
