Effect provides various filter functions that can be performed on a layer or a layerView to achieve different visual effects similar to how image filters (photo apps) work. The CSS filters are supported as effects in the API with the following differences:

• No url() css filter support.
• Only absolute length units are allowed for the effects where lengths are accepted.
• Support for bloom effect in addition to css filters.

The following effects are supported: bloom, blur, brightness, contrast, drop-shadow, grayscale, hue-rotate, invert, opacity, saturate and sepia. The effect can be set in two different ways. It can be set as a string or as an array of objects.

Setting effect as a string

Effects can be chained together separated by a space character. Effects are applied in the order they are set. When set as a string, the effect is applied at all scales.

 // the following effect will be applied to the layer at all scales
 // brightness will be applied first, then hue-rotate followed by contrast
 // changing order of the effects will change the final result
 layer.effect = "brightness(5) hue-rotate(270deg) contrast(200%)";

Setting effect as an array of objects

Some effects such as bloom and drop-shadow are sensitive to scale. Scale dependent effects should be used to fine tune or control parameters of your effects at different scales so it produces desired effects. Scale dependent effects can be set as an array of objects where you specify the scale and the effect value for that scale. When you set scale dependent effects, the API will interpolate the effects in between scales. For example, if you set opacity(0%) at one scale and opacity(100%) at another, the API will interpolate the opacity value between the scales. The type and order of effects should be consistent at all scales so that they can be interpolated. If the type and order are not consistent, the effect will be set to null, and a warning will be shown in the console.

// This is a valid scale dependent effects
// at scale 4622324, the brightness will not be applied
// since it is dropped.
layer.featureEffect = new FeatureEffect({
  filter: featureFilter,
  includedEffect: [
    {
      scale: 36978595, // small scale
      value: "drop-shadow(3px, 3px, 4px) brightness(400%)",
   },
   {
      scale: 18489297, // large scale
      value: "drop-shadow(2px, 2px, 3px) brightness(200%)",
   },
   {
      scale: 4622324, // larger scale
      value: "drop-shadow(1px, 1px, 2px)",
   }
  ],
  // applied at all scales
  excludedEffect: "brightness(80%)"
});

// This is an illegal scale dependent effect.
// Scale dependent effects cannot be mixed like this.
// No effects will be applied to the layer.
// Invalid effect warning will be thrown in the console.
layer.effect = [
  {
    scale: 36978595,
    value: "opacity(50%)"
  },
  {
    scale: 4622324,
    value: "brightness(500%)"
  }
];

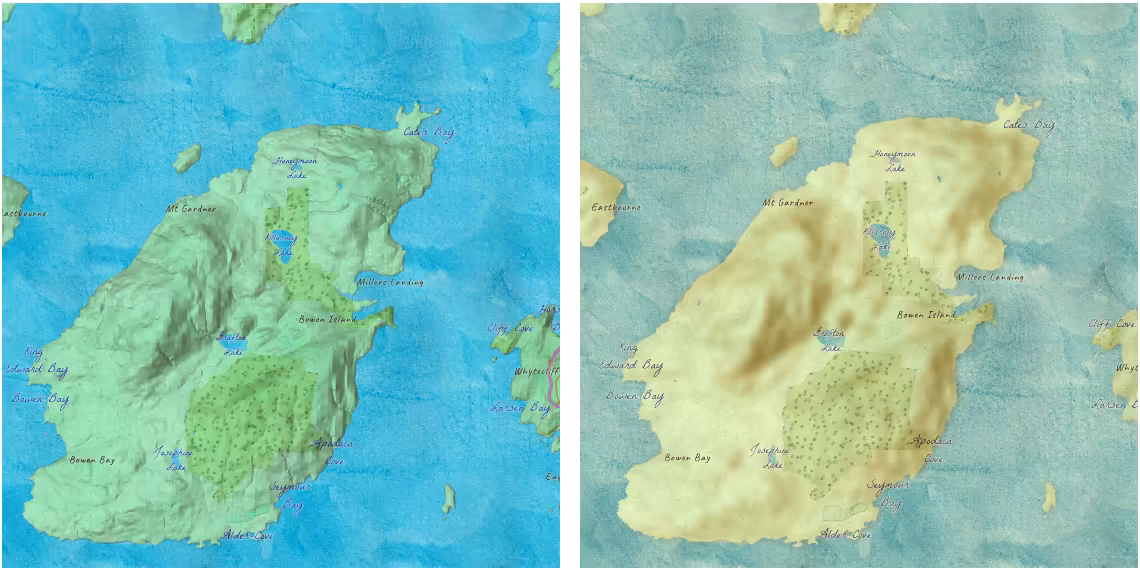

// hillshade layer is displayed under the water color layer
hillShadeLayer.effect = "saturate(400%) contrast(100%) blur(10px)";
waterColorLayer.effect = "sepia(50%) saturate(100%) contrast(100%)";

If all of the following four properties are applied, then they will be applied in this order: featureEffect, effect, opacity and blendMode.

Read More

bloom(strength, radius, threshold) - The bloom effect produces fringes of light extending from the borders of bright areas in a layer. It causes brighter colors than the specified threshold to glow. You can add glow to your layers when mapping fires, volcanic eruptions and night lights.

Parameter	Description
strength	The intensity of the bloom effect. This value can percent or number. Default is 1. The higher the value, the brighter the glow. Negative values are not allowed.
radius	Determines the radius of the blur in an absolute length. Default value is 0. Negative values are not allowed. Leaves the features inside the radius untouched.
threshold	Determines how bright a color must be before it blooms or glows. Accepted values are 0%-100% or 0-1. Default value is 0.

layer.effect = "bloom(200%, 1px, 0.2)";
 // same as the line above
layer.effect = "bloom(2, 1px, 20%)";

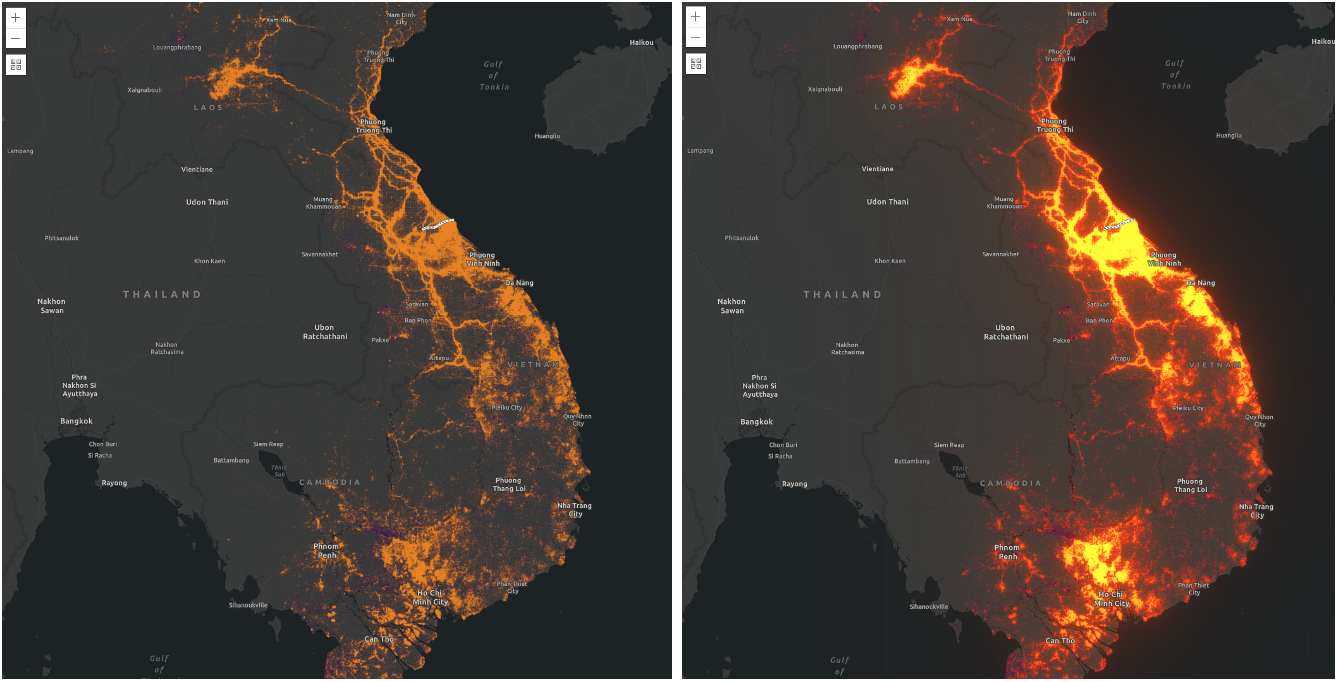

In the following screenshot, both maps show the bombing missions of the Vietnam War (USA). The left map shows the layer without any effects. The right map shows the layer after the bloom effect is applied.

// scale dependent bloom effect is applied to US missions layer
// that is shown in the above screen shot
layer.effect = [
  {
   value: "bloom(3, 1px, 0.4)",
   scale: 9244648.868618
  },
  {
    value: "bloom(1, 0.75px, 0.3)",
    scale: 4622324.434309
  },
  {
    value: "bloom(3, 0.5px, 0.2)",
    scale: 577790.5542885
  }
];

blur(radius) - Applies a Gaussian blur to a layer or a layerView. It makes look like you are viewing a layer through a translucent screen making it look out of focus or blurry. The radius parameter of the blur is specified in a absolute length. It defines how many pixels on the screen blend into each other. A larger value will create more blur. Negative values are not allowed.

The blur effect can be used to soften a layer underneath a reference layer, or other layers of importance, so above features can stand out more clearly. For a layerView, it could be used to blur out excluded features from the filter so that the included features will stand out clearly.

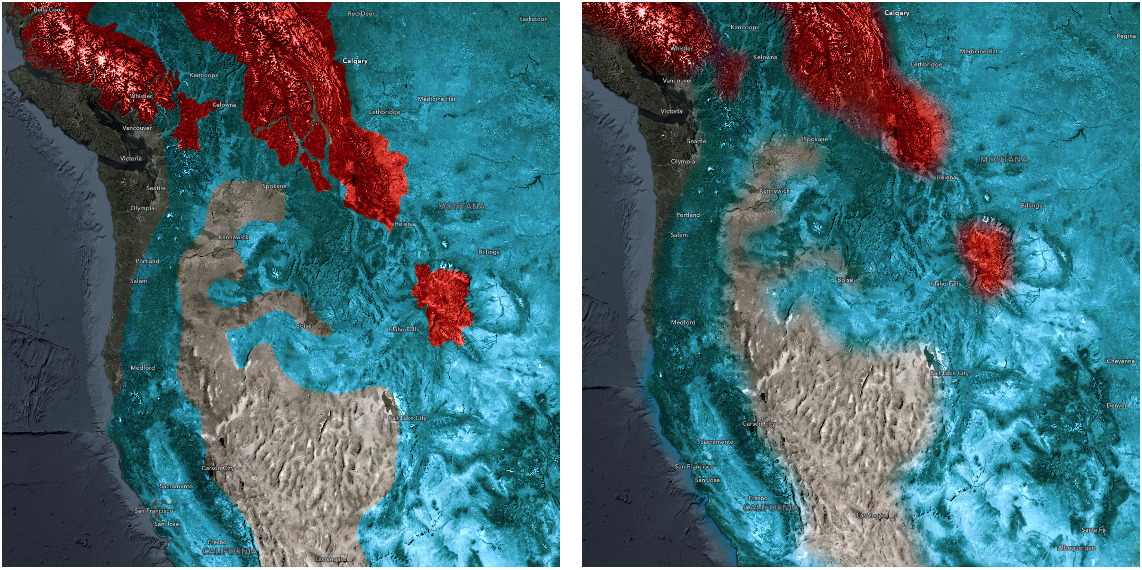

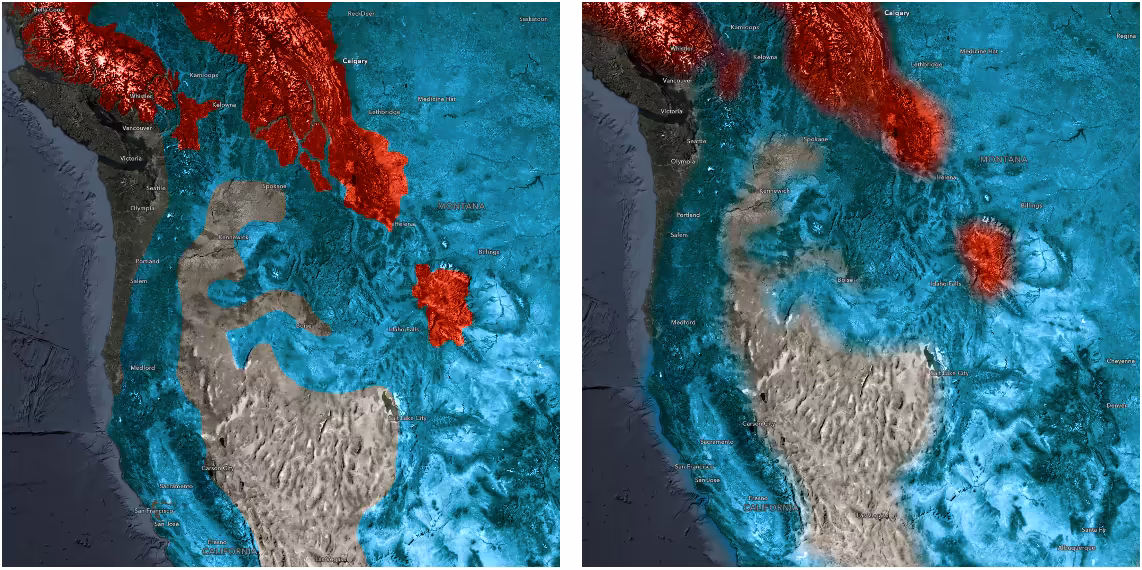

These maps show historic (blue) and current (red) Grizzly Bear habitat ranges. The map on the right uses a blur layer effect to indicate uncertainty or fuzziness to the boundaries.

// apply effect to a layer
layer.effect = "blur(5px)";

brightness(percent | number) - Applies a linear multiplier to a layer or a layerView, making it appear brighter or darker.

Values	Effect
brightness(0%) or brightness(0)	Produces a completely black layer
brightness(100%) or brightness(1)	Unchanged layer
> 100% or > 1	Brighter layer
< 100% or < 1	Darker layer

contrast(percent | number) – Adjusts the contrast of a layer or a layerView. Negative values are not allowed.

Values	Effect
contrast(0%) or contrast(0)	Completely a gray layer
contrast(100%) or contrast(1)	Unchanged layer
> 100% or > 1	More contrast in a layer
< 100% or < 1	Less contrast in a layer

drop-shadow(offsetX, offsetY, blurRadius?, color?) - Applies a drop shadow effect to a layer or a layerView that follows the outline of the layer or the layerView. The drop-shadow effect is useful when you want some features to stand out from the rest of the features on a busy map. For example, you can apply this effect to your labels (reference layer) to make them legible.

Parameter	Description
offset-x	An absolute length value that determines the shadow offset in the horizontal distance. Negative values place the shadow to the left of the layer. If both x and y offsets are 0, the shadow is placed directly underneath the layer.
offset-y	An absolute length value that determines the shadow offset in the vertical distance. Negative values place the shadow above the layer.
blur-radius	An absolute length value that determines the blur radius. The larger the value, the larger and more blurred the shadow becomes. If unspecified, it defaults to 0, resulting in a sharp, unblurred edge. Negative values are not allowed.
color	The color of the shadow. If unspecified, it defaults to black color.

const featureFilter = new FeatureFilter({
  where: "BoroughEdge='true'"
});
layer.featureEffect = new FeatureEffect({
  filter: featureFilter,
  includedEffect: "drop-shadow(3px, 3px, 3px, black)",
  excludedEffect: "blur(1px) brightness(65%)"
});

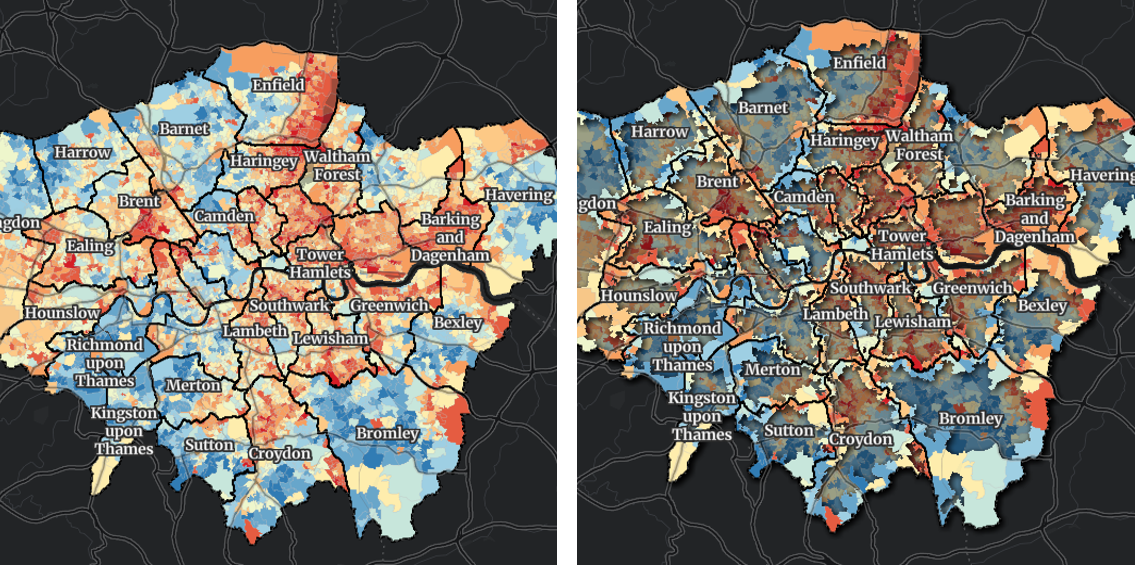

These maps show areas in Greater London that intersect the boundaries of London boroughs. The right map shows the result of applying a drop-shadow effect to features that intersect boundaries of London boroughs while applying blur and brightness effects to features do not meet from the filter criteria.

grayscale(percent | number) - Converts a layer or a layerView to grayscale. The value of amount defines the proportion of the conversion. If the amount parameter is missing, a value of 100% is used. Negative values are not allowed.

Values	Effect
grayscale(0%) or grayscale(0)	Unchanged layer
grayscale(100%) or grayscale(1)	Completely gray layer
< 100% or < 1	Varying shades of gray
> 100% or > 1	Same as 100% or 1

hue-rotate(angle) - Applies a hue rotation on a layer or a layerView. The value of angle defines the number of degrees around the color wheel. The colors in the layer will be shifted to the colors at the specified angle. A value of 0deg leaves the input unchanged. Maximum value is 360deg. A positive hue rotation shifts the hue clock-wise while a negative rotation shifts the hue counter clock-wise.

Parameter	Description
angle	The relative change in hue of the input sample, specified as an angle such as deg, rad, grad and turn.

invert(percent | number) - Inverts the samples in the layer. The value of amount defines the proportion of the conversion. Negative values are not allowed.

Values	Effect
invert(0%) or invert(0)	Unchanged layer
invert(100%) or invert(1)	Completely inverted layer
< 100% or < 1	Varying degrees of inversion
> 100% or > 1	Same as 100% or 1

opacity(percent | number) - Applies transparency to a layer or a layerView. The value of amount defines the proportion of the conversion. Negative values are not allowed.

Values	Effect
opacity(0%) or opacity(0)	Completely transparent layer
opacity(100%) or opacity(1)	Completely opaque layer
< 100% or < 1	Varying degrees of opacity
> 100% or > 1	Same as 100% or 1

saturate(percent | number) - Saturates or desaturates a layer or a layerView.

Values	Effect
saturate(0%) or saturate(0)	Completely unsaturated layer
saturate(100%) or saturate(1)	Leaves the layer or layerView unchanged
< 100% or < 1	Varying degrees of desaturation
> 100% or > 1	Varying degrees of saturation

sepia(percent | number) - Converts colors in a layer or a layerView to sepia, giving it a warmer, more yellow/brown appearance. Negative values are not allowed.

Values	Effect
sepia(0%) or sepia(0)	Unchanged layer or layerView
sepia(100%) or sepia(1)	Completely sepia
< 100% or < 1	Varying degrees of sepia
> 100% or > 1	Same as 100% or 1
