AttachmentsContent | References | ArcGIS Maps SDK for JavaScript

import AttachmentsContent from "@arcgis/core/popup/content/AttachmentsContent.js";

Inheritance:: AttachmentsContent→Content→Accessor

Since: ArcGIS Maps SDK for JavaScript 4.11

An AttachmentsContent popup element represents an attachment element associated with a feature. This resource is available only if the FeatureLayer.capabilities.data.supportsAttachment or the Sublayer.capabilities.data.supportsAttachment is true.

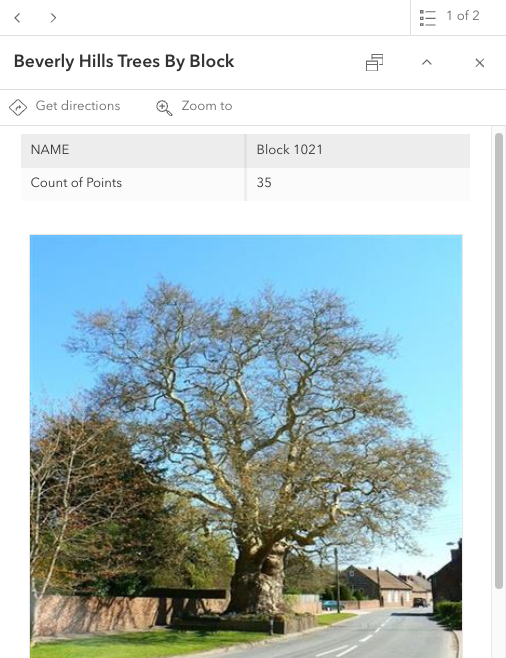

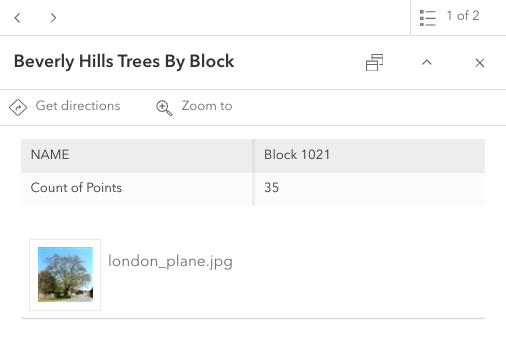

Preview view	List view

See also

Example

// Create the AttachmentsContent popup element
// If the selected feature has attributes associated with it, they will display within the popup
let attachmentsElement = new AttachmentsContent({
  // Shows all attachments as a list of linked files
  displayType: "list",
  // Sorts the attachments by their `ATT_NAME` attachmentInfo field in descending order
  orderByFields: [{ field: "ATT_NAME", order: "descending" }]
});

// Create the PopupTemplate
let template = new PopupTemplate({
  title: "Beverly Hills trees by block",
  outFields: ["*"],
  content: [attachmentsElement]
});

Constructors

Constructor

Parameters

Parameter	Type	Description	Required
properties	`AttachmentsContentProperties`

See the properties table for a list of all the properties that may be passed into the constructor.

Properties

Any properties can be set, retrieved or listened to. See the Watch for changes topic.

Property	Type	Class
`attachmentKeywords`	`string[] \| null \| undefined`
`attachmentTypes`	`("application" \| "audio" \| "image" \| "model" \| "text" \| "video")[] \| null \| undefined`
`declaredClass` readonly inherited	`string`	Accessor
`description`	`string \| null \| undefined`
`displayType`	`"auto" \| "preview" \| "list"`
`orderByFields`	`AttachmentsOrderByInfo[] \| null \| undefined`
`title`	`string \| null \| undefined`
`type` readonly	`"attachments"`

attachmentKeywords

Property

Type: string[] | null | undefined

Since: ArcGIS Maps SDK for JavaScript 4.34

An array of strings used to identify attachment(s). When keywords are specified, attachments will be filtered using this array of keywords. Matching is case-sensitive and requires exact keyword matches; partial matches are not supported.

See also

attachmentTypes

Property

Type: ("application" | "audio" | "image" | "model" | "text" | "video")[] | null | undefined

Since: ArcGIS Maps SDK for JavaScript 4.34

An array of strings representing MIME types. Attachments will be filtered based on the specified array of MIME types.

See also

declaredClass

readonlyinherited Property

Type: string

Inherited from: Accessor

The name of the class. The declared class name is formatted as esri.folder.className.

description

Property

Type: string | null | undefined

Since: ArcGIS Maps SDK for JavaScript 4.19

Describes the attachment's content in detail. Starting at version 4.30, the description supports rendering HTML.

displayType

Property

Type: "auto" | "preview" | "list"

Since: ArcGIS Maps SDK for JavaScript 4.22

A string value indicating how to display an attachment.

Value	Description
auto	The attachments will display in `preview` mode if the feature layer capabilities or sublayer capabilites support resized attachments. Otherwise, the attachments are displayed in `list` mode.
preview	Shows a thumbnail image of the attachment.
list	Shows a list of attachment links.

Default value: "auto"

orderByFields

autocast Property

Type: AttachmentsOrderByInfo[] | null | undefined

Since: ArcGIS Maps SDK for JavaScript 4.32

An array of AttachmentsOrderByInfo indicating the display order for the attachments, and whether they should be sorted in ascending or descending order. This only applies if the feature layer capabilities supports attachment.supportsOrderByFields.

Example

// Sort the attachments by their `ATT_NAME` attribute in descending order
const attachmentsElement = new AttachmentsContent({
  orderByFields: [
    { field: "ATT_NAME", order: "descending" }
  ]
});

title

Property

Type: string | null | undefined

Since: ArcGIS Maps SDK for JavaScript 4.19

A heading indicating what the attachment's content represents. Starting at version 4.30, the title supports rendering HTML.

type

readonly Property

Type: "attachments"

The type of popup element displayed.

See also

Default value: "attachments"

Methods

Method	Signature	Class
`fromJSON` inherited static	`fromJSON(json: any): any`	JSONSupportMixin
`clone` inherited	`clone(): this`	ClonableMixin
`toJSON` inherited	`toJSON(): any`	JSONSupportMixin

fromJSON

inheritedstatic Method

Signature: fromJSON (json: any): any

Inherited from: JSONSupportMixin

Creates a new instance of this class and initializes it with values from a JSON object generated from an ArcGIS product. The object passed into the input json parameter often comes from a response to a query operation in the REST API or a toJSON() method from another ArcGIS product. See the Using fromJSON() topic in the Guide for details and examples of when and how to use this function.

Parameters

Parameter	Type	Description	Required
json	`any`	A JSON representation of the instance in the ArcGIS format. See the ArcGIS REST API documentation for examples of the structure of various input JSON objects.

Returns: any
Returns a new instance of this class.

clone

inherited Method

Signature: clone (): this

Inherited from: ClonableMixin

Creates a deep clone of this object. Any properties that store values by reference will be assigned copies of the referenced values on the cloned instance.

Returns: this
A deep clone of the class instance that invoked this method.

toJSON

inherited Method

Signature: toJSON (): any

Inherited from: JSONSupportMixin

Converts an instance of this class to its ArcGIS portal JSON representation. See the Using fromJSON() guide topic for more information.

Returns: any
The ArcGIS portal JSON representation of an instance of this class.
