TextSymbol | References | ArcGIS Maps SDK for JavaScript

import TextSymbol from "@arcgis/core/symbols/TextSymbol.js";

Inheritance:: TextSymbol→Symbol→Accessor

Since: ArcGIS Maps SDK for JavaScript 4.0

Text symbols are used to define the graphic for displaying labels on a FeatureLayer, CSVLayer, Sublayer, and StreamLayer in a 2D MapView. Text symbols can also be used to define the symbol property of Graphic if the geometry type is Point or Multipoint. With this class, you may alter the color, font, halo, and other properties of the label graphic.

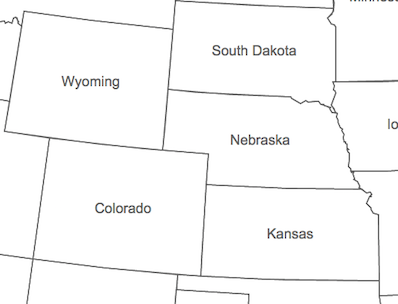

TextSymbol may be used to label Point, Polyline, or Polygon features. The image below depicts a polygon FeatureLayer that uses a TextSymbol to label its features.

text-sample

See also

Example

let textSymbol = {
  type: "text",  // autocasts as new TextSymbol()
  color: "white",
  haloColor: "black",
  haloSize: "1px",
  text: "You are here",
  xoffset: 3,
  yoffset: 3,
  font: {  // autocasts as new Font()
    size: 12,
    family: "Josefin Slab",
    weight: "bold"
  }
};

Constructors

Constructor

Parameters

Parameter	Type	Description	Required
properties	`TextSymbolProperties`

See the properties table for a list of all the properties that may be passed into the constructor.

Properties

Any properties can be set, retrieved or listened to. See the Watch for changes topic.

Property	Type	Class
`angle`	`number`
`backgroundColor`	`Color \| null \| undefined`
`borderLineColor`	`Color \| null \| undefined`
`borderLineSize`	`number \| null \| undefined`
`color` inherited	`Color \| null \| undefined`	Symbol
`declaredClass` readonly inherited	`string`	Accessor
`font`	`Font`
`haloColor`	`Color \| null \| undefined`
`haloSize`	`number \| null \| undefined`
`horizontalAlignment`	`TextHorizontalAlignment`
`kerning`	`boolean`
`lineHeight`	`number`
`lineWidth`	`number`
`rotated`	`boolean`
`text`	`string`
`type` readonly	`"text"`
`verticalAlignment`	`TextVerticalAlignment`
`xoffset`	`number`
`yoffset`	`number`

angle

Property

Type: number

The angle of the text. 0 is horizontal and the angle moves clockwise.

Known Limitations

This property is currently not supported in 3D SceneViews.

Default value: 0

Example

const textSymbol = {
  type: "text", // autocasts as new TextSymbol()
  angle: 90,
  color: "green",
  font: {
    // autocast as new Font()
    family: "Just Another Hand",
    size: 12
  },
  haloColor: "black",
  haloSize: 1,
  horizontalAlignment: "right",
  verticalAlignment: "bottom"
};

backgroundColor

autocast Property

Type: Color | null | undefined

The background color of the label's bounding box.

Known Limitations

This property is currently not supported when labelling a FeatureLayer polyline with a "curved" LabelClass.labelPosition.

See also

Sample: MapImageLayer - label sublayer features

borderLineColor

autocast Property

Type: Color | null | undefined

The border color of the label's bounding box.

Known Limitations

This property is currently not supported when labelling a FeatureLayer polyline with a "curved" LabelClass.labelPosition.

See also

Sample: MapImageLayer - label sublayer features

borderLineSize

Property

Type: number | null | undefined

The border size or width of the label's bounding box.

Known Limitations

This property is currently not supported when labelling a FeatureLayer polyline with a "curved" LabelClass.labelPosition.

See also

Sample: MapImageLayer - label sublayer features

color

autocast inherited Property

Type: Color | null | undefined

Inherited from: Symbol

The color of the symbol. This can be autocast with an array of rgb(a) values, named string, hex string or an hsl(a) string, an object with r, g, b, and a properties, or a Color object.

Default value: "black"

Examples

// CSS color string
symbol.color = "dodgerblue";

// HEX string
symbol.color = "#33cc33";

// array of RGBA values
symbol.color = [51, 204, 51, 0.3];

// object with rgba properties
symbol.color = {
  r: 51,
  g: 51,
  b: 204,
  a: 0.7
};

declaredClass

readonlyinherited Property

Type: string

Inherited from: Accessor

Since: ArcGIS Maps SDK for JavaScript 4.7

The name of the class. The declared class name is formatted as esri.folder.className.

font

autocast Property

Type: Font

The Font used to style the text. This property allows the developer to set the font's family, decoration, size, style, and weight properties.

See the Labeling guide page for more information and known limitations.

Known Limitations

The available Font.family property values depend on whether you are working with a 2D MapView or a 3D SceneView.

See also

Labeling Guide

Example

let textSymbol = {
  type: "text",  // autocasts as new TextSymbol()
  text: "Science of Where",
  font: {  // autocasts as new Font()
    family: "Merriweather",
    size: 12,
    style: "italic",
    weight: "bold"
  }
};

haloColor

autocast Property

Type: Color | null | undefined

The color of the text symbol's halo. To include a halo in the TextSymbol, you must also set the size of the halo in haloSize.

Known Limitations

Sub-pixel halo (i.e. fractional size such as 1.25px) renders inconsistently in various browsers.

Examples

// CSS color string
symbol.haloColor = "dodgerblue";

// HEX string
symbol.haloColor = "#33cc33";

// array of RGBA values
symbol.haloColor = [51, 204, 51, 0.3];

// object with rgba properties
symbol.haloColor = {
  r: 51,
  g: 51,
  b: 204,
  a: 0.7
};

haloSize

autocast Property

Type: number | null | undefined

The size in points of the text symbol's halo. This value may be autocast with a string expressing size in points or pixels (e.g. 12px). To include a halo in the TextSymbol, you must also set the color of the halo in haloColor.

Known Limitations

Sub-pixel halo (i.e. fractional size such as 1.25px) renders inconsistently in various browsers. Halo size should not be 1/4 larger than the text size. For example, if your text size is 12, the halo size should not be larger than 3.

Examples

// haloSize in points
symbol.haloSize = 1;

// haloSize in pixels
symbol.haloSize = "2px";

// haloSize in points
symbol.haloSize = "1pt";

horizontalAlignment

Property

Type: TextHorizontalAlignment

Adjusts the horizontal alignment of the text in multi-lines.

Known Limitations

This property only applies when TextSymbol is not used for labeling purposes. The horizontalAlignment for labels is inferred from the LabelClass.labelPlacement value.

Default value: "center"

kerning

Property

Type: boolean

Determines whether to adjust the spacing between characters in the text string.

Default value: true

lineHeight

Property

Type: number

Since: ArcGIS Maps SDK for JavaScript 4.15

The height of the space between each line of text. Only applies to multiline text.

This property can be considered as a multiplier of the default value of 1.0 (e.g. a value of 2.0 will be two times the height of the default height). The range of possible values is: 0.1 - 4.0. If a value of 0 is specified, the default value of 1.0 will be used.

Default value: 1.0

Example

const textSymbol = {
  type: "text", // autocasts as new TextSymbol()
  color: "blue",
  haloColor: "white",
  haloSize: 1,
  lineHeight: 1.5
};

lineWidth

autocast Property

Type: number

Since: ArcGIS Maps SDK for JavaScript 4.15

The maximum length in points for each line of text. This value may be autocast with a string expressing size in points or pixels (e.g. 72px).

The default value is 192 points. The range of possible values is: 32px - 512px.

If text extends farther than the lineWidth value, then the line will break at the whitespace before the text that extends past the limit if possible, and a new line will be created.

Known Limitations

This property is currently not supported in 3D SceneViews. The default value is subject to change in future releases.

Default value: 192

Example

const textSymbol = {
  type: "text", // autocasts as new TextSymbol()
  color: "blue",
  haloColor: "white",
  haloSize: 1,
  lineWidth: 200
};

rotated

Property

Type: boolean

Determines whether every character in the text string is rotated.

Known Limitations

This property is currently not supported in 3D SceneViews.

Default value: false

text

Property

Type: string

The text string to display in the view. Long text strings will be split into multiple lines. The length of the line is controlled by the lineWidth property. To manually create a new line, use the \n escape character.

Known Limitations

This property only applies when TextSymbol is used to define the symbol property of a Graphic, and not for labeling purposes.

See also

lineWidth

Default value: ""

Examples

symbol.text = "You are here";

symbol.text = "Wish you were \n here";

type

readonly Property

Type: "text"

The symbol type.

verticalAlignment

Property

Type: TextVerticalAlignment

Adjusts the vertical alignment of the text.

Known Limitations

This property only applies when TextSymbol is not used for labeling purposes. The verticalAlignment for labels is inferred from the LabelClass.labelPlacement value.

Default value: "baseline"

xoffset

autocast Property

Type: number

The offset on the x-axis in points. This value may be autocast with a string expressing size in points or pixels (e.g. 12px).

Known Limitations

This property is currently not supported in 3D SceneViews.

Default value: 0

Examples

// xoffset in points
symbol.xoffset = 3;

// xoffset in pixels
symbol.xoffset = "6px";

// xoffset in points
symbol.xoffset = "3pt";

yoffset

autocast Property

Type: number

The offset on the y-axis in points. This value may be autocast with a string expressing size in points or pixels (e.g. 12px).

Known Limitations

This property is currently not supported in 3D SceneViews.

Default value: 0

Examples

// yoffset in points
symbol.yoffset = 3;

// yoffset in pixels
symbol.yoffset = "6px";

// yoffset in points
symbol.yoffset = "3pt";

Methods

Method	Signature	Class
`fromJSON` inherited static	`fromJSON(json: any): any`	JSONSupportMixin
`clone`	`clone(): TextSymbol`
`toJSON` inherited	`toJSON(): any`	JSONSupportMixin

fromJSON

inheritedstatic Method

Signature: fromJSON (json: any): any

Inherited from: JSONSupportMixin

Creates a new instance of this class and initializes it with values from a JSON object generated from an ArcGIS product. The object passed into the input json parameter often comes from a response to a query operation in the REST API or a toJSON() method from another ArcGIS product. See the Using fromJSON() topic in the Guide for details and examples of when and how to use this function.

Parameters

Parameter	Type	Description	Required
json	`any`	A JSON representation of the instance in the ArcGIS format. See the ArcGIS REST API documentation for examples of the structure of various input JSON objects.

Returns: any
Returns a new instance of this class.

clone

Method

Signature: clone (): TextSymbol

Creates a deep clone of the symbol.

Returns: TextSymbol
A deep clone of the object that invoked this method.

Example

// Creates a deep clone of the graphic's symbol
let symLyr = graphic.symbol.clone();

toJSON

inherited Method

Signature: toJSON (): any

Inherited from: JSONSupportMixin

Converts an instance of this class to its ArcGIS portal JSON representation. See the Using fromJSON() guide topic for more information.

Returns: any
The ArcGIS portal JSON representation of an instance of this class.
