SketchLabelOptions | References | ArcGIS Maps SDK for JavaScript

import SketchLabelOptions from "@arcgis/core/views/interactive/sketch/SketchLabelOptions.js";

Inheritance:: SketchLabelOptions→Accessor

Since: ArcGIS Maps SDK for JavaScript 4.24

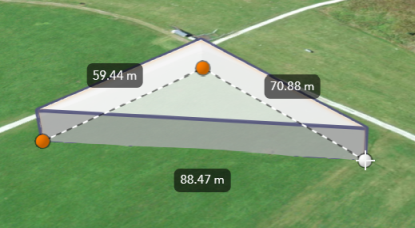

The SketchLabelOptions allows users to configure the labels which are shown next to each segment of a graphic while sketching and editing. The labels display each segment's horizontal length and are not shown for non-planar polygons and polylines.

How the segment lengths are computed depends on the view's spatial reference. In geographic coordinate systems (GCS) and in Web Mercator, the lengths are computed geodetically. In projected coordinate systems (PCS), apart from Web Mercator, the lengths are computed in a Euclidean manner (in the respective PCS).

Known Limitation

Sketch labels are currently only supported when working with a SceneView.

Set the unit system for labels

Utilize either a Portal or a PortalItem to establish the unit system for labels while using the Sketch widget.

The unit of measurement used in the Sketch labels can be programmatically set through the PortalItem of a Map by defining the Portal.units property.

// Create a PortalItem instance for the map used in the 3D view
view.map.portalItem = new PortalItem({
  portal: {
    units: "english" //or "metric"
  },
});

Or, if a PortalItem already exists, the Portal.units property can be directly set or changed.

// Set the units directly on an existing PortalItem of the 3D view
view.map.portalItem.portal.units = "english" //or "metric"

In alternative, if there is no an existing Portal, it is possible to set the Portal.units property from a new default Portal created using the Portal.getDefault() method.

// Create an instance of a new Portal and set the unit
const portal = Portal.getDefault();
portal.units = "english" //or "metric"

See also

Constructors

Constructor

Parameters

Parameter	Type	Description	Required
properties	`SketchLabelOptionsProperties`

See the properties table for a list of all the properties that may be passed into the constructor.

Properties

Any properties can be set, retrieved or listened to. See the Watch for changes topic.

Property	Type	Class
`declaredClass` readonly inherited	`string`	Accessor
`enabled`	`boolean`

declaredClass

readonlyinherited Property

Type: string

Inherited from: Accessor

The name of the class. The declared class name is formatted as esri.folder.className.

enabled

Property

Type: boolean

Whether labels are shown next to each segment of the graphic being sketched.

Default value: false
