import DistanceMeasurement2D from "@arcgis/core/widgets/DistanceMeasurement2D.js";const DistanceMeasurement2D = await $arcgis.import("@arcgis/core/widgets/DistanceMeasurement2D.js");- Inheritance:
- DistanceMeasurement2D→
Widget<DistanceMeasurement2DProperties>→ Accessor
- Since
- ArcGIS Maps SDK for JavaScript 4.10

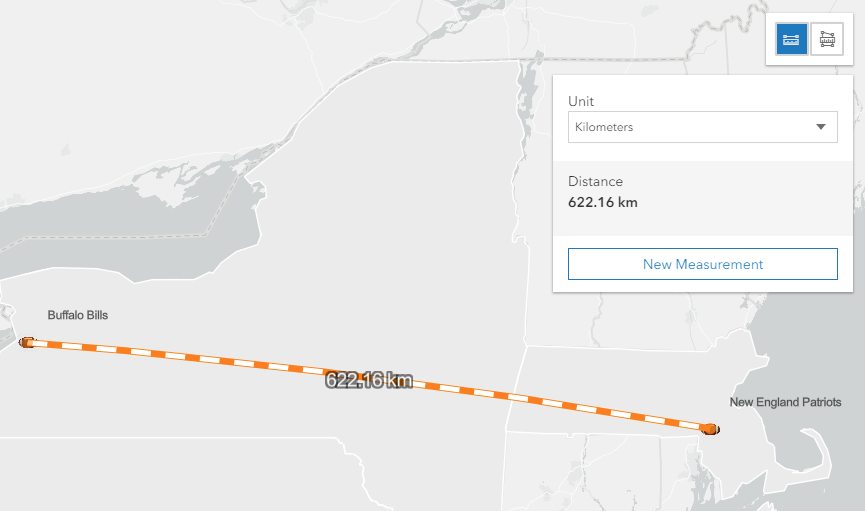

The DistanceMeasurement2D widget calculates and displays the distance between two or more points in a MapView. How distances are computed depends on the map's spatial reference:
- In geographic coordinate systems (GCS) and in Web Mercator, distances are computed geodetically.
- In projected coordinate systems (PCS), apart from Web Mercator, distances are computed in a Euclidean manner (in their respective PCS).
Undo / Redo
| Gesture | Action |
|---|---|
| Z | Incrementally undoes actions recorded in the stack. |
| R | Incrementally redos actions recorded in the stack. |
This widget is designed to work with 2D MapViews. For measurements with 3D SceneViews, use DirectLineMeasurement3D.
Note: Snapping is disabled by default. This can be enabled by setting the snappingOptions property. Please refer to FeatureSnappingLayerSource for additional information on what layer sources are supported.
Example
// To add the DistanceMeasurement2D widget to the maplet measurementWidget = new DistanceMeasurement2D({ view: view});view.ui.add(measurementWidget, "top-right");Constructors
Constructor
Parameters
| Parameter | Type | Description | Required |
|---|---|---|---|
| properties | | |
Example
// To add the DistanceMeasurement2D widget to the maplet measurementWidget = new DistanceMeasurement2D({ view: view});view.ui.add(measurementWidget, "top-right");Properties
| Property | Type | Class |
|---|---|---|
container inherited | HTMLElement | null | undefined | |
declaredClass readonly inherited | ||
destroyed readonly inherited | ||
Icon["icon"] | | |
id inherited | ||
| | ||
| | ||
| | ||
| | ||
| | ||
| | ||
visible inherited |
container
- Type
- HTMLElement | null | undefined
The ID or node representing the DOM element containing the widget. This property can only be set once. The following examples are all valid use case when working with widgets.
Examples
// Create the HTML div element programmatically at runtime and set to the widget's containerconst basemapGallery = new BasemapGallery({ view: view, container: document.createElement("div")});
// Add the widget to the top-right corner of the viewview.ui.add(basemapGallery, { position: "top-right"});// Specify an already-defined HTML div element in the widget's container
const basemapGallery = new BasemapGallery({ view: view, container: basemapGalleryDiv});
// Add the widget to the top-right corner of the viewview.ui.add(basemapGallery, { position: "top-right"});
// HTML markup<body> <div id="viewDiv"></div> <div id="basemapGalleryDiv"></div></body>// Specify the widget while adding to the view's UIconst basemapGallery = new BasemapGallery({ view: view});
// Add the widget to the top-right corner of the viewview.ui.add(basemapGallery, { position: "top-right"}); icon
- Type
- Icon["icon"]
- Since
- ArcGIS Maps SDK for JavaScript 4.27
Icon which represents the widget. It is typically used when the widget is controlled by another one (e.g. in the Expand widget).
- Default value
- "measure-line"
snappingOptions
- Type
- SnappingOptions
- Since
- ArcGIS Maps SDK for JavaScript 4.32
The SnappingOptions for sketching. It supports self and feature snapping.
unit
- Type
- SystemOrLengthUnit
Unit system (imperial, metric) or specific unit used for displaying the distance values. Possible values are listed in unitOptions.
Example
// To create the DistanceMeasurement2D widget that displays distance in yardslet measurementWidget = new DistanceMeasurement2D({ view: view, unit: "yards"});
// To display the current measurement unitconsole.log('Current unit: ', measurementWidget.unit); unitOptions
- Type
- SystemOrLengthUnit[]
List of available units and unit systems (imperial, metric) for displaying the distance values.
By default, the following units are included: metric, imperial, inches, feet, us-feet, yards, miles, nautical-miles, meters, kilometers.
Possible unit values can only be a subset of this list.
Example
// To display the available units to the consolelet measurementWidget = new DistanceMeasurement2D({ view: view});console.log('All units: ', measurementWidget.unitOptions.join(", ")); viewModel
The view model for this widget. This is a class that contains all the logic (properties and methods) that controls this widget's behavior. See the DistanceMeasurement2DViewModel class to access all properties and methods on the widget.
Example
// Use the ViewModel to access and set advanced settingslet measurementWidget = new DistanceMeasurement2D({ viewModel: { view: view, unit: "feet" }});view.ui.add(measurementWidget, "top-right"); visible
- Type
- boolean
Indicates whether the widget is visible.
If false, the widget will no longer be rendered in the web document. This may affect the layout of other elements or widgets in the document. For example, if this widget is
the first of three widgets associated to the upper right hand corner of the DefaultUI, then the other widgets will reposition when this widget is made invisible.
For more information, refer to the css display value of "none".
- Default value
- true
Example
// Hides the widget in the viewwidget.visible = false;Methods
| Method | Signature | Class |
|---|---|---|
classes inherited | classes(...classNames: ((string | null | undefined) | ((string[] | Record<string, boolean>) | null | undefined) | false | null | undefined)[]): string | |
destroy inherited | destroy(): void | |
emit inherited | emit<Type extends EventNames<this>>(type: Type, event?: this["@eventTypes"][Type]): boolean | |
hasEventListener inherited | hasEventListener<Type extends EventNames<this>>(type: Type): boolean | |
isFulfilled inherited | isFulfilled(): boolean | |
isRejected inherited | isRejected(): boolean | |
isResolved inherited | isResolved(): boolean | |
on inherited | on<Type extends EventNames<this>>(type: Type, listener: EventedCallback<this["@eventTypes"][Type]>): ResourceHandle | |
postInitialize inherited | postInitialize(): void | |
render inherited | render(): any | null | |
renderNow inherited | renderNow(): void | |
scheduleRender inherited | scheduleRender(): void | |
when inherited | when<TResult1 = this, TResult2 = never>(onFulfilled?: OnFulfilledCallback<this, TResult1> | null | undefined, onRejected?: OnRejectedCallback<TResult2> | null | undefined): Promise<TResult1 | TResult2> |
classes
- Signature
-
classes (...classNames: ((string | null | undefined) | ((string[] | Record<string, boolean>) | null | undefined) | false | null | undefined)[]): string
A utility method used for building the value for a widget's class property.
This aids in simplifying css class setup.
Parameters
- Returns
- string
The computed class name.
Example
// .tsx syntax showing how to set css classes while rendering the widget
render() { const dynamicClasses = { [css.flip]: this.flip, [css.primary]: this.primary };
return ( <div class={classes(css.root, css.mixin, dynamicClasses)} /> );} emit
- Signature
-
emit <Type extends EventNames<this>>(type: Type, event?: this["@eventTypes"][Type]): boolean
- Type parameters
- <Type extends EventNames<this>>
Emits an event on the instance. This method should only be used when creating subclasses of this class.
hasEventListener
- Signature
-
hasEventListener <Type extends EventNames<this>>(type: Type): boolean
- Type parameters
- <Type extends EventNames<this>>
Indicates whether there is an event listener on the instance that matches the provided event name.
Parameters
| Parameter | Type | Description | Required |
|---|---|---|---|
| type | Type | The name of the event. | |
- Returns
- boolean
Returns true if the class supports the input event.
isFulfilled
- Signature
-
isFulfilled (): boolean
isFulfilled() may be used to verify if creating an instance of the class is fulfilled (either resolved or rejected).
If it is fulfilled, true will be returned.
- Returns
- boolean
Indicates whether creating an instance of the class has been fulfilled (either resolved or rejected).
isRejected
- Signature
-
isRejected (): boolean
isRejected() may be used to verify if creating an instance of the class is rejected.
If it is rejected, true will be returned.
- Returns
- boolean
Indicates whether creating an instance of the class has been rejected.
isResolved
- Signature
-
isResolved (): boolean
isResolved() may be used to verify if creating an instance of the class is resolved.
If it is resolved, true will be returned.
- Returns
- boolean
Indicates whether creating an instance of the class has been resolved.
on
- Signature
-
on <Type extends EventNames<this>>(type: Type, listener: EventedCallback<this["@eventTypes"][Type]>): ResourceHandle
- Type parameters
- <Type extends EventNames<this>>
Registers an event handler on the instance. Call this method to hook an event with a listener.
Parameters
| Parameter | Type | Description | Required |
|---|---|---|---|
| type | Type | An event or an array of events to listen for. | |
| listener | EventedCallback<this["@eventTypes"][Type]> | The function to call when the event fires. | |
- Returns
- ResourceHandle
Returns an event handler with a
remove()method that should be called to stop listening for the event(s).Property Type Description remove Function When called, removes the listener from the event.
Example
view.on("click", function(event){ // event is the event handle returned after the event fires. console.log(event.mapPoint);}); when
- Signature
-
when <TResult1 = this, TResult2 = never>(onFulfilled?: OnFulfilledCallback<this, TResult1> | null | undefined, onRejected?: OnRejectedCallback<TResult2> | null | undefined): Promise<TResult1 | TResult2>
when() may be leveraged once an instance of the class is created. This method takes two input parameters: an onFulfilled function and an onRejected function.
The onFulfilled executes when the instance of the class loads. The
onRejected executes if the instance of the class fails to load.
Parameters
| Parameter | Type | Description | Required |
|---|---|---|---|
| onFulfilled | OnFulfilledCallback<this, TResult1> | null | undefined | The function to call when the promise resolves. | |
| onRejected | The function to execute when the promise fails. | |
- Returns
- Promise<TResult1 | TResult2>
Returns a new promise for the result of
onFulfilledthat may be used to chain additional functions.
Example
// Although this example uses MapView, any class instance that is a promise may use when() in the same waylet view = new MapView();view.when(function(){ // This function will execute once the promise is resolved}, function(error){ // This function will execute if the promise is rejected due to an error});
