import LabelClass from "@arcgis/core/layers/support/LabelClass.js";

Inheritance:: LabelClass→Accessor

Since: ArcGIS Maps SDK for JavaScript 4.0

Defines label expressions, symbols, scale ranges, label priorities, and label placement options for labels on a layer. See the Labeling guide for more information about labeling.

Known Limitations

Polygon geometries only support always-horizontal labelPlacement. The available Font properties used in the symbol depends on the layer type, geometry type, and if you are working in 2D or 3D. Currently, features cannot be properly labeled when a TimeExtent is applied to the layer or view. Currently, when a FeatureEffect and/or a FeatureFilter is applied to the LayerView, labels may not display properly. 3D SceneViews only support one label per feature. If a feature satisfies the where condition of multiple LabelClasses, then only the label corresponding to the first matching LabelClass is displayed.

See also

Example

const labelClass = {  // autocasts as new LabelClass()
  symbol: {
    type: "text",  // autocasts as new TextSymbol()
    color: "white",
    haloColor: "blue",
    haloSize: 1,
    font: {  // autocast as new Font()
       family: "Ubuntu Mono",
       size: 14,
       weight: "bold"
     }
  },
  labelPlacement: "above-right",
  labelExpressionInfo: {
    expression: "$feature.Team + TextFormatting.NewLine + $feature.Division"
  },
  maxScale: 0,
  minScale: 25000000,
  where: "Conference = 'AFC'"
};

const labelLayer = new FeatureLayer({
  portalItem: {  // autocasts as new PortalItem()
    id: "7f0bfc7bf67a407d8efebf584f6d956d"
  },
  labelingInfo: [labelClass]
});

Constructors

Constructor

Parameters

Parameter	Type	Description	Required
properties	`LabelClassProperties`

See the properties table for a list of all the properties that may be passed into the constructor.

Properties

Any properties can be set, retrieved or listened to. See the Watch for changes topic.

Property	Type	Class
`allowOverrun`	`boolean`
`declaredClass` readonly inherited	`string`	Accessor
`deconflictionStrategy`	`"none" \| "static"`
`labelExpression`	`string \| null \| undefined`
`labelExpressionInfo`	`LabelExpressionInfo \| null \| undefined`
`labelPlacement`	`PointPlacement \| PolylinePlacement \| PolygonPlacement \| PlacementType3D`
`labelPosition`	`LabelPosition`
`maxScale`	`number`
`minScale`	`number`
`name`	`string \| null \| undefined`
`repeatLabel`	`boolean`
`repeatLabelDistance`	`number \| null \| undefined`
`symbol`	`TextSymbol \| LabelSymbol3D`
`useCodedValues`	`boolean`
`where`	`string \| null \| undefined`

allowOverrun

Property

Type: boolean

Since: ArcGIS Maps SDK for JavaScript 4.22

Specifies whether or not a polyline label can overrun the feature being labeled. For example, after the end of a polyline segment.

Known Limitations

Currently, this property only applies to Polyline FeatureLayer, CSVLayer, and StreamLayer in 2D MapViews.

Default value: false

declaredClass

readonlyinherited Property

Type: string

Inherited from: Accessor

Since: ArcGIS Maps SDK for JavaScript 4.7

The name of the class. The declared class name is formatted as esri.folder.className.

deconflictionStrategy

Property

Type: "none" | "static"

Since: ArcGIS Maps SDK for JavaScript 4.16

Defines how labels should be placed relative to one another. By default, labels have a static deconfliction strategy, meaning labels that overlap are dropped to make them easier to read.

In some cases where few labels overlap, it may be preferable to turn off label deconfliction with the none option. It is also advisable to turn off deconfliction when labeling clusters with a count of features in the center of the cluster.

The following images illustrate when you may, or may not, want labels to deconflict.

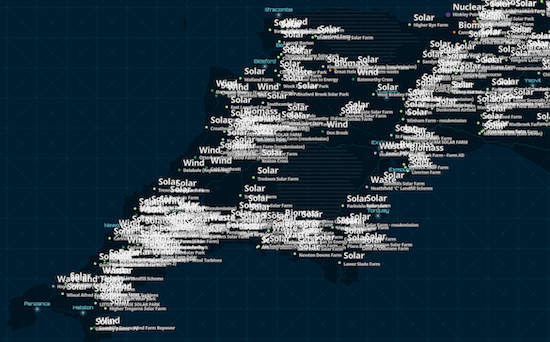

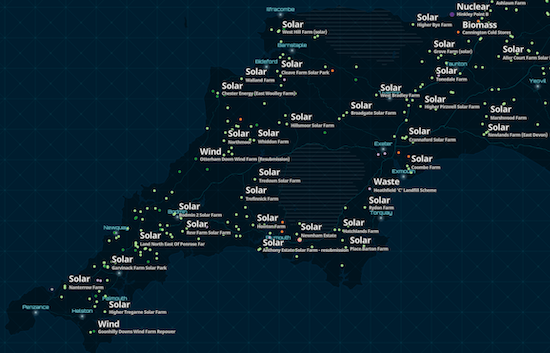

When labeling dense layers, the default deconfliction strategy (static) is preferable since labeling all features causes significant overlap, making the labels illegible. Keeping the default setting allows some labels to render. As the user zooms in, all labels will eventually come into view.

static (default)	none

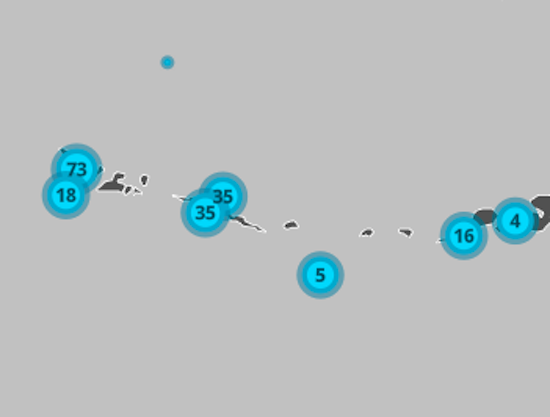

When labeling clusters (or even sparsely distributed features) with small labels, it may be preferable to allow labels to slightly overlap since the information is still legible and doesn't significantly occlude the visualization. In the clustering scenario, a label deconfliction setting of static may actually cause more confusion, making some features not appear to be clusters.

static (default)	none

Known Limitations

Currently, this property only applies to FeatureLayer, CSVLayer, and StreamLayer in 2D MapViews.

Default value: "static"

Example

// Ensures all labels are displayed regardless
// of whether they overlap
labelClass.deconflictionStrategy = "none";

labelExpression

Property

Type: string | null | undefined

Defines the labels for a MapImageLayer. If working with a MapImageLayer that supports Arcade, you can also use labelExpressionInfo instead. To determine this, check the supportsArcadeExpressionForLabeling property. If true, then labelExpression or labelExpressionInfo can be used. If false, then only labelExpression can be used.

If working with FeatureLayer, use labelExpressionInfo instead.

Attribute values may be included in labels using SQL syntax. To include an attribute value in a label, wrap the name of the field in square brackets []. See the example snippet below.

Example

// For Spokane County, WA, label will display: "Spokane County, Washington"
labelClass.labelExpression = '[COUNTY_NAME] CONCAT " County, " CONCAT [STATE_NAME]';

labelExpressionInfo

autocast Property

Type: LabelExpressionInfo | null | undefined

Defines the labels for a FeatureLayer.

If working with a MapImageLayer that supports Arcade, you can also use labelExpressionInfo. To determine this, check the supportsArcadeExpressionForLabeling property. If true, then labelExpression or labelExpressionInfo can be used. If false, then only labelExpression can be used.

See also

Arcade Labeling Profile

Example

// For Spokane County, WA, label will display: "Spokane County, Washington"
labelClass.labelExpressionInfo = {
  expression: "$feature.COUNTY_NAME + ' County, ' + $feature.STATE_NAME"
};

labelPlacement

Property

Type: PointPlacement | PolylinePlacement | PolygonPlacement | PlacementType3D

The position of the label. Possible values are based on the feature type. This property requires a value.

Feature Type	Possible Values
Points	`above-center`, `above-left`, `above-right`, `below-center`, `below-left`, `below-right`, `center-center`, `center-left`, `center-right`
Polylines	`above-after`, `above-along`, `above-before`, `above-start`, `above-end`, `below-after`, `below-along`, `below-before`, `below-start`, `below-end`, `center-after`, `center-along`, `center-before`, `center-start`, `center-end`
Polygons	`always-horizontal`

Known Limitations

Currently, if the label has a line callout or vertical offset in a 3D SceneView, then only above-center is supported. Label placement only applies to Point layers in 3D SceneViews. FeatureLayer Polylines only support above-along, below-along, and center-along label placement in 2D MapViews.

See also

Example

labelClass.labelPlacement = "above-right";

labelPosition

Property

Type: LabelPosition

Since: ArcGIS Maps SDK for JavaScript 4.22

Specifies the orientation of the label position of a single line polyline label. If "curved", this means the characters follow the curve of the polyline, while "parallel" means the characters will always be straight, and the orientation will be based on the angle of the polyline's curve at the label's position.

Known Limitations

Currently, multiline polyline labels only support the "parallel" property value. Currently, this property only applies to Polyline FeatureLayer, CSVLayer, and StreamLayer in 2D MapViews. Currently, this property cannot be saved as part of a WebMap.

Default value: "curved"

maxScale

Property

Type: number

The maximum scale (most zoomed in) at which labels are visible in the view. A value of 0 means the label's visibility does not have a maximum scale. The maxScale value should always be smaller than the minScale value, and greater than or equal to the service specification.

Default value: 0

minScale

Property

Type: number

The minimum scale (most zoomed out) at which labels are visible in the view. A value of 0 means the label's visibility does not have a minimum scale. The minScale value should always be larger than the maxScale value, and lesser than or equal to the service specification.

Default value: 0

name

Property

Type: string | null | undefined

Since: ArcGIS Maps SDK for JavaScript 5.0

When set, specifies a custom title for the label class.

repeatLabel

Property

Type: boolean

Since: ArcGIS Maps SDK for JavaScript 4.22

Indicates whether or not to repeat the label along the polyline feature. If true, the label will be repeated according to the repeatLabelDistance. If false, the label will display once per polyline segment.

Known Limitations

Currently, this property only applies to Polyline FeatureLayer, CSVLayer, and StreamLayer in 2D MapViews.

Default value: true

repeatLabelDistance

autocast Property

Type: number | null | undefined

Since: ArcGIS Maps SDK for JavaScript 4.22

The size in points of the distance between labels on a polyline. This value may be autocast with a string expressing size in points or pixels (e.g. 100, or "64pt", or "128px"). The repeatLabel property must be true for this property to be honored.

Known Limitations

Currently, this property only applies to Polyline FeatureLayer, CSVLayer, and StreamLayer in 2D MapViews.

Example

const labelClass = {  // autocasts as new LabelClass()
  symbol: {
    type: "text",  // autocasts as new TextSymbol()
    color: "white",
    font: {  // autocast as new Font()
       family: "Orbitron",
       size: 12,
       weight: "bold"
     }
  },
  labelExpressionInfo: {
    expression: "$feature.rte_num1"
  },
  labelPlacement: "center-along",
  repeatLabel: true,
  repeatDistanceLabel: 100
};

symbol

autocast Property

Type: TextSymbol | LabelSymbol3D

Defines the symbol used for rendering the label. If not set, the default symbol will be used. See the example below.

Example

// If not set, this default symbol will be used
labelClass.symbol = {
  type: "text",
  color: [255, 255, 255, 255],  // white
  font: { family: "Arial Unicode MS", size: 10, weight: "bold" },
  haloColor: [0, 0, 0, 255],  // black
  haloSize: 1
};

useCodedValues

Property

Type: boolean

Indicates whether to use domain names if the fields in the labelExpression or labelExpressionInfo have domains.

Known Limitations

This property only applies to 3D SceneViews.

where

Property

Type: string | null | undefined

A SQL where clause used to determine the features to which the label class should be applied. When specified, only features evaluating to true based on this expression will be labeled.

Examples

labelClass.where = "CITYNAME = 'Redlands'";

labelClass.where = "MARKER_ACTIVITY IN ('Picnicking', 'Group Camping')";

Methods

Method	Signature	Class
`fromJSON` inherited static	`fromJSON(json: any): any`	JSONSupportMixin
`clone`	`clone(): LabelClass`
`toJSON` inherited	`toJSON(): any`	JSONSupportMixin

fromJSON

inheritedstatic Method

Signature: fromJSON (json: any): any

Inherited from: JSONSupportMixin

Creates a new instance of this class and initializes it with values from a JSON object generated from an ArcGIS product. The object passed into the input json parameter often comes from a response to a query operation in the REST API or a toJSON() method from another ArcGIS product. See the Using fromJSON() topic in the Guide for details and examples of when and how to use this function.

Parameters

Parameter	Type	Description	Required
json	`any`	A JSON representation of the instance in the ArcGIS format. See the ArcGIS REST API documentation for examples of the structure of various input JSON objects.

Returns: any
Returns a new instance of this class.

clone

Method

Signature: clone (): LabelClass

Creates a deep clone of the LabelClass.

Returns: LabelClass
A deep clone of the object that invoked this method.

Example

// Creates a deep clone of the layer's first labelClass
let label = layer.labelingInfo[0].clone();

toJSON

inherited Method

Signature: toJSON (): any

Inherited from: JSONSupportMixin

Converts an instance of this class to its ArcGIS portal JSON representation. See the Using fromJSON() guide topic for more information.

Returns: any
The ArcGIS portal JSON representation of an instance of this class.
