DictionaryRenderer | References | ArcGIS Maps SDK for JavaScript

import DictionaryRenderer from "@arcgis/core/renderers/DictionaryRenderer.js";

Inheritance:: DictionaryRenderer→Renderer→Accessor

Since: ArcGIS Maps SDK for JavaScript 4.13

Dictionary Renderer is used to symbolize layers using a dictionary of CIMSymbols configured with multiple attributes. This renderer should be used when individual features need to be visualized based on multiple data attributes. This may lead to many symbol permutations that would be inappropriate for using a UniqueValueRenderer.

A dictionary renderer applies symbols to features through an associated dictionary symbol web style. The web style contains all the symbol components as well as rules for displaying the symbol.

dictionary-renderer

Known Limitations

DictionaryRenderer may only be used to create visualizations for the following layer types:
DictionaryRenderer is not supported in the Legend.

Best Practices

Dictionary symbol styles can be created manually or from ArcGIS Pro (since ArcGIS Pro 2.5). It is recommended to use ArcGIS Pro to create and publish your styles. See Share a web style for details. Instructions on creating dictionary symbol style manually are available at: Creating Dictionary Symbol Style.
DictionaryRenderer works best when visualizing data at large scales (zoomed in closer to the ground). Because theses symbols can be complex, containing multiple icons and varied text per feature, layers rendered with DictionaryRenderer can be illegible when many features overlap one another and clutter the view. We suggest setting FeatureLayer.minScale and FeatureLayer.maxScale on layers rendered with DictionaryRenderer to avoid displaying too much information at small scales.

See also

Example

let renderer = new DictionaryRenderer({
  url: "./alternative-fuel-stations",
  fieldMap: {
    fuel_type: "Fuel_Type_Code",
    name: "Station_Name"
  },
  config: {
    show_label: "false"
  }
});

let layer = new FeatureLayer({
  url: "http://url.to.service",
  renderer: renderer
});

Constructors

Constructor

Parameters

Parameter	Type	Description	Required
properties	`DictionaryRendererProperties`

See the properties table for a list of all the properties that may be passed into the constructor.

Example

// Typical usage
let renderer = new DictionaryRenderer({
  url: "./alternative-fuel-stations",
  fieldMap: {
    fuel_type: "Fuel_Type_Code",
    name: "Station_Name"
  },
  config: {
    show_label: "false"
  }
});

Properties

Any properties can be set, retrieved or listened to. See the Watch for changes topic.

Property	Type	Class
`authoringInfo` inherited	`AuthoringInfo \| null \| undefined`	Renderer
`config`	`DictionaryUserConfig \| null \| undefined`
`declaredClass` readonly inherited	`string`	Accessor
`fieldMap`	`DictionaryFieldMap \| null \| undefined`
`scaleExpression`	`string \| null \| undefined`
`scaleExpressionTitle`	`string \| null \| undefined`
`styleConfigProperties` readonly	`DictionaryConfigItem[] \| null \| undefined`
`styleName` readonly	`string \| null \| undefined`
`styleSymbolFields` readonly	`string[] \| null \| undefined`
`styleTextFields` readonly	`string[] \| null \| undefined`
`styleUISchema` readonly	`Object \| null \| undefined`
`styleVersion` readonly	`string \| null \| undefined`
`type` readonly	`"dictionary"`
`url`	`string \| null \| undefined`
`visualVariables` inherited	`VisualVariable[] \| null \| undefined`	VisualVariablesMixin

authoringInfo

autocast inherited Property

Type: AuthoringInfo | null | undefined

Inherited from: Renderer

Authoring metadata only included in renderers generated from one of the Smart Mapping creator methods, such as sizeRendererCreator.createContinuousRenderer() or colorRendererCreator.createContinuousRenderer(). This includes information from UI elements such as sliders and selected classification methods and themes. This allows the authoring clients to save specific overridable settings so that next time it is accessed via the UI, their selections can be remembered.

config

Property

Type: DictionaryUserConfig | null | undefined

This property allows you to set display options that can be configured on the dictionary symbol style. For example, if the dictionary symbol style provides a display option to turn on/off a symbol/text, you could set it here.

Example

renderer.config = {
 show_label: "true"
}

declaredClass

readonlyinherited Property

Type: string

Inherited from: Accessor

The name of the class. The declared class name is formatted as esri.folder.className.

fieldMap

Property

Type: DictionaryFieldMap | null | undefined

Defines a field mapping that maps input fields from the feature to the dictionary symbol style's expected fields for symbols and text. Each key identifies an expected field (defined in the dictionary's symbol and text properties). The value identifies the corresponding mapped field from the dataset. Field names are case sensitive.

Example

renderer.fieldMap = {
  fuel_type: "Fuel_Type_Code",
  connector_types: "EV_Connector_Types",
  network: "EV_Network",
  name: "Station_Name"
};

scaleExpression

Property

Type: string | null | undefined

A scaling expression can be set to increase or decrease the size of the dictionary symbols. The scaling expression can be a constant value for all symbols or an Arcade expression following the specification defined by the Arcade Visualization Profile. Expressions in DictionaryRenderer may reference field values using the $feature profile variable and must return a number.

See also

Arcade Visualization Profile

Examples

renderer.scaleExpression = "2"; //Make the symbols two times bigger.

renderer.scaleExpression = "IIF($feature.symbolset == 10, 2, 1)"; //If the value of "symbolset" field of a feature is 10, make the symbols two times bigger.

scaleExpressionTitle

Property

Type: string | null | undefined

The title identifying and describing the associated Arcade expression as defined in the scaleExpression property.

Example

renderer.scaleExpression = "IIF($feature.symbolset == 10, 2, 1)";
renderer.scaleExpressionTitle = "Scale by symbol set";

styleConfigProperties

readonly Property

Type: DictionaryConfigItem[] | null | undefined

Since: ArcGIS Maps SDK for JavaScript 5.0

The properties of the dictionary style configuration.

styleName

readonly Property

Type: string | null | undefined

Since: ArcGIS Maps SDK for JavaScript 5.0

The dictionary style name.

styleSymbolFields

readonly Property

Type: string[] | null | undefined

Since: ArcGIS Maps SDK for JavaScript 5.0

Symbol fields of the dictionary style.

styleTextFields

readonly Property

Type: string[] | null | undefined

Since: ArcGIS Maps SDK for JavaScript 5.0

Text fields of the dictionary style.

styleUISchema

readonly Property

Type: Object | null | undefined

Since: ArcGIS Maps SDK for JavaScript 5.0

The dictionary style UI schema.

styleVersion

readonly Property

Type: string | null | undefined

Since: ArcGIS Maps SDK for JavaScript 5.0

The dictionary style version.

type

readonly Property

Type: "dictionary"

The type of renderer.

url

Property

Type: string | null | undefined

The URL to the dictionary style.

Example

renderer.url = "https://www.arcgis.com/sharing/rest/content/items/30cfbf36efd64ccf92136201d9e852af/data";

visualVariables

autocast inherited Property

Type: VisualVariable[] | null | undefined

Inherited from: VisualVariablesMixin

An array of VisualVariable objects. Each object must indicate the type of visual variable to apply (e.g. ColorVisualVariable, SizeVisualVariable, OpacityVisualVariable, RotationVisualVariable), the numeric field or expression from which to drive the visualization, and the visual values to map to the data. The following list identifies each visual variable type and provides a link to the specification table of each.

Type	Object Specification	Legend Example
color	ColorVisualVariable
size	SizeVisualVariable
opacity	OpacityVisualVariable
rotation	RotationVisualVariable	-

Visual variables are primarily be used in two ways.

1. Thematic mapping

In most cases, visual variables are used to create visualizations based on a thematic attribute (e.g. population, education, rank, money, magnitude, etc.) in either 2D or 3D.

renderer.visualVariables = [{
  type: "size",
  field: "POP_POVERTY",
  normalizationField: "TOTPOP_CY",
  legendOptions: {
    title: "% population in poverty by county"
  },
  stops: [
    { value: 0.15, size: 4, label: "<15%" },
    { value: 0.25, size: 12, label: "25%" },
    { value: 0.35, size: 24, label: ">35%" }
  ]
}];

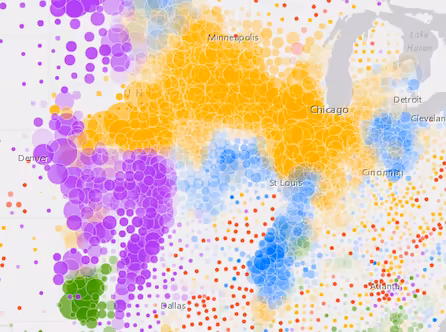

You can take the visualization a step further and use multiple visual variables in the same renderer. The sample below uses three visual variables (size, color, and opacity).

2. Mapping real-world sizes

The size visual variable can be used to visualize the true sizes of features (e.g. tree canopy, road width, building height, etc.) based on their size in the real world. This can be particularly powerful when working in a 3D SceneView. The image below shows a layer of trees that uses visual variables to size each feature to the true dimensions of each tree based on data stored in multiple attribute fields.

See the Thematic visualization with realistic 3D symbols for an example of using multiple visual variables to visualize your data.

Known Limitations

Color and opacity visual variables must not have more than 8 stops and size visual variables must not have more than 6 stops. This does not apply to variables driven by view scale.

For apps where users can interactively change the field or valueExpression of a visual variable, we suggest you include all potential fields referenced by visual variables in the FeatureLayer.outFields of the layer. This ensures the best user experience when switching or updating fields in renderers.

See also

Styles and data visualization

Methods

Method	Signature	Class
`fromJSON` inherited static	`fromJSON(json: any): any`	JSONSupportMixin
`clone`	`clone(): DictionaryRenderer`
`getSymbolAsync`	`getSymbolAsync(graphic: Graphic): Promise<CIMSymbol \| null \| undefined>`
`toJSON` inherited	`toJSON(): any`	JSONSupportMixin

fromJSON

inheritedstatic Method

Signature: fromJSON (json: any): any

Inherited from: JSONSupportMixin

Creates a new instance of this class and initializes it with values from a JSON object generated from an ArcGIS product. The object passed into the input json parameter often comes from a response to a query operation in the REST API or a toJSON() method from another ArcGIS product. See the Using fromJSON() topic in the Guide for details and examples of when and how to use this function.

Parameters

Parameter	Type	Description	Required
json	`any`	A JSON representation of the instance in the ArcGIS format. See the ArcGIS REST API documentation for examples of the structure of various input JSON objects.

Returns: any
Returns a new instance of this class.

clone

Method

Signature: clone (): DictionaryRenderer

Creates a deep clone of the renderer.

Returns: DictionaryRenderer
A deep clone of the object that invoked this method.

Example

// Creates a deep clone of the first layer's renderer
const renderer = view.map.layers.at(0).renderer.clone();

getSymbolAsync

Method

Signature: getSymbolAsync (graphic: Graphic): Promise<CIMSymbol | null | undefined>

This method will return the symbol for a given graphic using the dictionary renderer.

Parameters

Parameter	Type	Description	Required
graphic	`Graphic`	The graphic used to get the resulting symbol.

Returns: Promise<CIMSymbol | null | undefined>
When resolved, a CIMSymbol will be returned.

toJSON

inherited Method

Signature: toJSON (): any

Inherited from: JSONSupportMixin

Converts an instance of this class to its ArcGIS portal JSON representation. See the Using fromJSON() guide topic for more information.

Returns: any
The ArcGIS portal JSON representation of an instance of this class.
