BaseLayerViewGL2D | References | ArcGIS Maps SDK for JavaScript

import BaseLayerViewGL2D from "@arcgis/core/views/2d/layers/BaseLayerViewGL2D.js";

Inheritance:: BaseLayerViewGL2D→LayerView→Accessor

Since: ArcGIS Maps SDK for JavaScript 4.11

Represents the LayerView of a Layer after it has been added to a Map with a MapView. In contrast to the related class BaseLayerView2D, this one exposes WebGL rendering capabilities.

Important notes

This interface is experimental. Please read the following information carefully before using it in a product.

Due to the nature of WebGL it is not possible to fully sandbox user-supplied code, and its malfunctions can affect the performance, visual quality and even stability of the entire MapView. For this reason, Esri does not provide any support for issues related to WebGL rendering in custom rendering code, or for issues that arise in MapView rendering while using custom rendering code.

This class may be extended to create a custom LayerView for a Layer. A LayerView is created on demand by the MapView when a layer is added the to list of layers of its map.

The subclass can implement multiple functions of the LayerView lifecycle.

First, the attach() method is called when the LayerView is about to start drawing the layer's content; it is usually responsible for resource allocation.
Then during the life of the LayerView the render() method is called once per frame; it must complete drawing before returning.
Finally the detach() method is called after the layer is removed from the map; it releases all allocated resources and stops on-going requests.

Each of these functions has access to the MapView's WebGL context through the instance property this.context. The developer must provide own shaders, meshes and textures, and is responsible for setting the required GL states on the context.

As a convenience for the developer, starting with version 4.14 of the API, BaseLayerViewGL2D includes tessellation helper methods; the developer can supply Point, Multipoint, Polyline, Extent, or Polygon geometries and have them converted to abstract descriptions of triangle meshes that can be easily fed to the GPU as vertex and index buffers. The SDK sample explains in detail how to use the tessellation helpers and how to write compatible shaders.

See also

Example

let CustomLayerView2D = BaseLayerViewGL2D.createSubclass({
   render(renderParameters) {
     const gl = this.context;

     ...
   }

   attach() {
     const gl = this.context;

     ...
   }

   detach() {
     const gl = this.context;

     ...
   }
 });

 let CustomTileLayer = Layer.createSubclass({
   tileInfo: TileInfo.create({ spatialReference: { wkid: 3857 }}),

   createLayerView(view) {
     if (view.type === "2d") {
       return new CustomLayerView2D({
         view: view,
         layer: this
       });
     }
   }
 });

Constructors

Constructor

Parameters

Parameter	Type	Description	Required
properties	`BaseLayerViewGL2DProperties`

See the properties table for a list of all the properties that may be passed into the constructor.

Properties

Any properties can be set, retrieved or listened to. See the Watch for changes topic.

Property	Type	Class
`context` readonly	`WebGL2RenderingContext`
`declaredClass` readonly inherited	`string`	Accessor
`layer` readonly	`Layer`
`spatialReferenceSupported` readonly inherited	`boolean`	LayerView
`suspended` readonly inherited	`boolean`	LayerView
`tiles`	`Tile[]`
`uid` readonly inherited	`string`	IdentifiableMixin
`updating` readonly inherited	`boolean`	LayerView
`view` readonly	`MapView`
`visible` inherited	`boolean`	LayerView
`visibleAtCurrentScale` readonly inherited	`boolean`	LayerView
`visibleAtCurrentTimeExtent` readonly inherited	`boolean`	LayerView

context

readonly Property

Type: WebGL2RenderingContext

The WebGL rendering context associated to this layer view.

declaredClass

readonlyinherited Property

Type: string

Inherited from: Accessor

The name of the class. The declared class name is formatted as esri.folder.className.

layer

readonly Property

Type: Layer

References the layer this LayerView represents.

spatialReferenceSupported

readonlyinherited Property

Type: boolean

Inherited from: LayerView

Since: ArcGIS Maps SDK for JavaScript 4.23

Indicates if the spatialReference of the MapView or Map component is supported by the layer view. When false layer view will be suspended.

Known Limitations

This property is not supported for layer views of a 3D SceneView or Scene component.

See also

suspended

suspended

readonlyinherited Property

Type: boolean

Inherited from: LayerView

Value is true if the layer is suspended (i.e., layer will not redraw or update itself when the extent changes).

See also

spatialReferenceSupported

tiles

Property

Type: Tile[]

The array of Tile objects computed to cover the MapView's visible area. This array is updated when the view is animating or the user is interacting with it. Then if tiles have been added or removed, tilesChanged() is called.

See also

tilesChanged()

uid

readonlyinherited Property

Type: string

Inherited from: IdentifiableMixin

Since: ArcGIS Maps SDK for JavaScript 4.33

An automatically generated unique identifier assigned to the instance. The unique id is generated each time the application is loaded.

updating

readonlyinherited Property

Type: boolean

Inherited from: LayerView

Indicates if the layer view is making any updates that will impact what is displayed on the map. For example, this value is true when renderer, definitionExpression, filter or effect is changed or if the layer view is in the process of the fetching data.

Watch FeatureLayerView.dataUpdating property instead to only know when the data has been updated (e.g. to run statistics query on all feature available in the layer view).

Default value: false

Example

// Check for the first time layerView.updating becomes false. Then query for
// features that are visible within the view associated with the layer view.
await reactiveUtils.whenOnce(() => !layerView.updating);
const query = layerView.createQuery();
query.geometry = layerView.view.extent;
const result = layerView.queryFeatures(query);

view

readonly Property

Type: MapView

Since: ArcGIS Maps SDK for JavaScript 4.28

References the MapView this LayerView belongs to.

Example

// Check for the first time layerView.updating becomes false. Then query for
// features that are visible within the view associated with the layer view.
await reactiveUtils.whenOnce(() => !layerView.updating);
const query = layerView.createQuery();
query.geometry = layerView.view.extent;
const result = layerView.queryFeatures(query);

visible

autocast inherited Property

Type: boolean

Inherited from: LayerView

When true, the layer is visible in the view. Value of this property is inherited from the layer.visible unless the developer overrides it. The layerView.visible will take precedence over layer.visible if both properties are set.

Default value: true

visibleAtCurrentScale

readonlyinherited Property

Type: boolean

Inherited from: LayerView

Since: ArcGIS Maps SDK for JavaScript 4.30

When true, the layer is visible in the view at the current scale. This applies to layers that have minScale and maxScale properties set.

Known Limitations

This property isn’t supported for tiled layers in 3D SceneView or in the Scene component

See also

Default value: true

visibleAtCurrentTimeExtent

readonlyinherited Property

Type: boolean

Inherited from: LayerView

Since: ArcGIS Maps SDK for JavaScript 4.30

When true, the layer is visible in the view's View.timeExtent. This applies to layers that have a Layer.visibilityTimeExtent.

See also

Default value: true

Methods

Method	Signature	Class
`attach`	`attach(): void`
`bindRenderTarget`	`bindRenderTarget(): void`
`detach`	`detach(): void`
`emit` inherited	`emit<Type extends EventNames<this>>(type: Type, event?: this["@eventTypes"][Type]): boolean`	EventedMixin
`getRenderTarget`	`getRenderTarget(): RenderTarget`
`hasEventListener` inherited	`hasEventListener<Type extends EventNames<this>>(type: Type): boolean`	EventedMixin
`hitTest`	`hitTest(mapPoint: Point, screenPoint: ScreenPoint): Promise<ViewHit[] \| null \| undefined>`
`isFulfilled` inherited	`isFulfilled(): boolean`	EsriPromiseMixin
`isRejected` inherited	`isRejected(): boolean`	EsriPromiseMixin
`isResolved` inherited	`isResolved(): boolean`	EsriPromiseMixin
`on` inherited	`on<Type extends EventNames<this>>(type: Type, listener: EventedCallback<this["@eventTypes"][Type]>): ResourceHandle`	EventedMixin
`render`	`render(renderParameters: RenderParameters): void`
`requestRender`	`requestRender(): void`
`tessellateExtent`	`tessellateExtent(extent: Extent): Promise<TessellatedMesh>`
`tessellateMultipoint`	`tessellateMultipoint(multipoint: Multipoint, footprint: Rect): Promise<TessellatedMesh>`

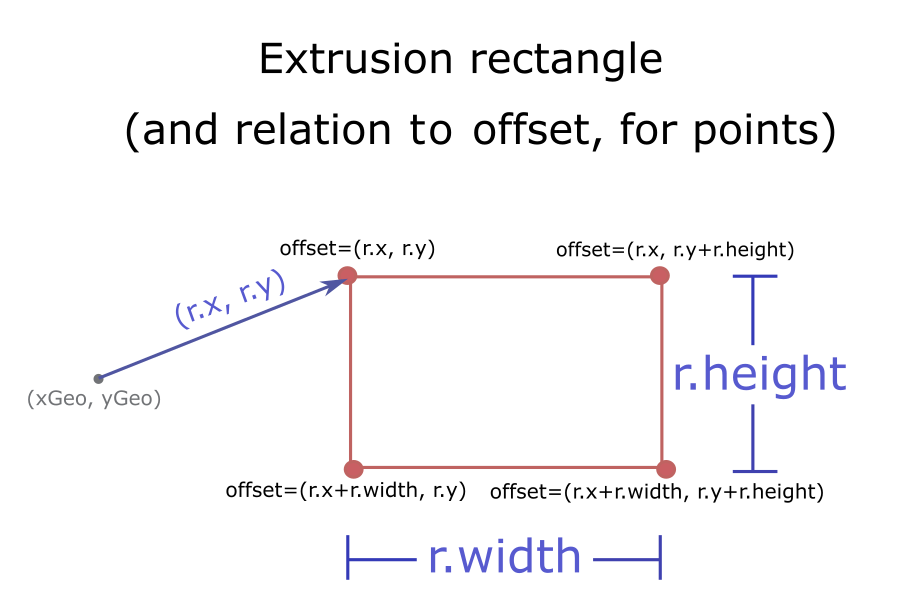

`tessellatePoint`	`tessellatePoint(point: Point, footprint: Rect): Promise<TessellatedMesh>`
`tessellatePolygon`	`tessellatePolygon(polygon: Polygon): Promise<TessellatedMesh>`
`tessellatePolyline`	`tessellatePolyline(polyline: Polyline, width: number): Promise<TessellatedMesh>`
`tilesChanged`	`tilesChanged(added: Tile[], removed: Tile[]): void`
`when` inherited	`when<TResult1 = this, TResult2 = never>(onFulfilled?: OnFulfilledCallback<this, TResult1> \| null \| undefined, onRejected?: OnRejectedCallback<TResult2> \| null \| undefined): Promise<TResult1 \| TResult2>`	EsriPromiseMixin

attach

Method

Signature: attach (): void

Method called after the LayerView is created and right before it starts drawing the layer's content. Typically this method is implemented to start watching property changes on the layer and to initialize WebGL objects such as shaders.

See also

detach()

Returns: void

Example

// Create a shader program and a property watcher
attach() {
  let gl = this.context;

  this._shaderProgram = gl.createProgram();
  ...

  this._propertyHandle = reactiveUtils.watch(
    () => this.layer.opacity,
    () => this.requestRender()
  );
}

bindRenderTarget

Method

Signature: bindRenderTarget (): void

Bind the designated rendering output surface and restore the correct viewport.

This method can be used after the WebGL state has been altered by a call to gl.bindFramebuffer() to restore the framebuffer that contains the final, composited frame, i.e. the one that is guaranteed to be bound right before control is handed over to render(). Note that this may or may not be the default framebuffer; MapView can use various surfaces for frame compositing and there is no guarantee that when render() is called, the bound framebuffer is the default one.

Together with the framebuffer, also a matching full-size viewport is restored.

Returns: void

Example

render() {
  let gl = this.context;

  ...

  // Bind a temporary offscreen surface
  gl.bindFramebuffer(gl.FRAMEBUFFER, this.myOffscreenSurface);

  ...

  // Render to the offscreen surface

  ...

  // Bind the original render surface so that the image stored
  // into the temporary one can be blitted/composited with the
  // actual frame data
  this.bindRenderTarget();

  ...

  // Your own frame composition logic

  ...
}

detach

Method

Signature: detach (): void

Method called after the layer is removed and the LayerView is about to be removed. Typically, this method is implemented to free resources like watchers and destroy WebGL objects such as shader programs.

See also

attach()

Returns: void

Example

// Remove the watchers and destroy the shader program created in attach()
detach() {
  this._propertyHandle.remove();
  this._propertyHandle = null;

  const gl = this.context;

  gl.deleteProgram(this._shaderProgram);
  this._shaderProgram = null;
}

emit

inherited Method

Signature: emit <Type extends EventNames<this>>(type: Type, event?: this["@eventTypes"][Type]): boolean

Type parameters: <Type extends EventNames<this>>

Inherited from: EventedMixin

Emits an event on the instance. This method should only be used when creating subclasses of this class.

Parameters

Parameter	Type	Description	Required
type	`Type`	The name of the event.
event	`this["@eventTypes"][Type]`	The event payload.

Returns: boolean
true if a listener was notified

getRenderTarget

Method

Signature: getRenderTarget (): RenderTarget

Get the designated rendering output surface and corresponding viewport configuration.

The returned object is the same render target that is restored by a call to bindRenderTarget().

Returns: RenderTarget

hasEventListener

inherited Method

Signature: hasEventListener <Type extends EventNames<this>>(type: Type): boolean

Type parameters: <Type extends EventNames<this>>

Inherited from: EventedMixin

Indicates whether there is an event listener on the instance that matches the provided event name.

Parameters

Parameter	Type	Description	Required
type	`Type`	The name of the event.

Returns: boolean
Returns true if the class supports the input event.

hitTest

Method

Signature: hitTest (mapPoint: Point, screenPoint: ScreenPoint): Promise<ViewHit[] | null | undefined>

Method to implement that is responsible for providing objects hit at the specified screen coordinates. This method is called internally by the MapView each time its MapView.hitTest() method is called.

Parameters

Parameter	Type	Description	Required
mapPoint	`Point`	The point in map units.
screenPoint	`ScreenPoint`	The point in screen coordinates.

Returns: Promise<ViewHit[] | null | undefined>
A Promise that resolves to an array of graphics.

isFulfilled

inherited Method

Signature: isFulfilled (): boolean

Inherited from: EsriPromiseMixin

isFulfilled() may be used to verify if creating an instance of the class is fulfilled (either resolved or rejected). If it is fulfilled, true will be returned.

Returns: boolean
Indicates whether creating an instance of the class has been fulfilled (either resolved or rejected).

isRejected

inherited Method

Signature: isRejected (): boolean

Inherited from: EsriPromiseMixin

isRejected() may be used to verify if creating an instance of the class is rejected. If it is rejected, true will be returned.

Returns: boolean
Indicates whether creating an instance of the class has been rejected.

isResolved

inherited Method

Signature: isResolved (): boolean

Inherited from: EsriPromiseMixin

isResolved() may be used to verify if creating an instance of the class is resolved. If it is resolved, true will be returned.

Returns: boolean
Indicates whether creating an instance of the class has been resolved.

on

inherited Method

Signature: on <Type extends EventNames<this>>(type: Type, listener: EventedCallback<this["@eventTypes"][Type]>): ResourceHandle

Type parameters: <Type extends EventNames<this>>

Inherited from: EventedMixin

Registers an event handler on the instance. Call this method to hook an event with a listener.

Parameters

Parameter	Type	Description	Required
type	`Type`	An event or an array of events to listen for.
listener	`EventedCallback<this["@eventTypes"][Type]>`	The function to call when the event fires.

Returns

ResourceHandle

Returns an event handler with a remove() method that should be called to stop listening for the event(s).

Property	Type	Description
remove	Function	When called, removes the listener from the event.

Example

view.on("click", function(event){
  // event is the event handle returned after the event fires.
  console.log(event.mapPoint);
});

render

Method

Signature: render (renderParameters: RenderParameters): void

The method to implement that is responsible of drawing the content of the layer. This method is called every time the MapView's state changes, or if requestRender() has been called.

Parameters

Parameter	Type	Description	Required
renderParameters	`RenderParameters`

Returns: void

Example

// Example of a render implementation that draws using a custom shader program
render(renderParameters) {
  const gl = this.context;
  gl.bindBuffer(gl.ARRAY_BUFFER, this._vertexBuffer);
  gl.vertexAttribPointer(0, 2, gl.SHORT, false, 10, 0);
  gl.vertexAttribPointer(1, 3, gl.SHORT, true, 10, 4);
  gl.bindBuffer(gl.ARRAY_BUFFER, null);
  gl.enableVertexAttribArray(0);
  gl.enableVertexAttribArray(1);
  ...
  // Update uniforms as needed by calling gl.uniform...
  ...
  gl.useProgram(this._shaderProgram);
  gl.drawArrays(gl.TRIANGLES, 0, this._vertexCount);
  gl.disableVertexAttribArray(0);
  gl.disableVertexAttribArray(1);
  gl.useProgram(null);
}

requestRender

Method

Signature: requestRender (): void

The LayerView can call this method to ask the MapView to schedule a new rendering frame.

Returns: void

Example

// Call requestRender whenever the layer opacity has changed
attach() {
  this._propertyHandle = reactiveUtils.watch(
    () => this.layer.opacity,
    () => this.requestRender()
  );
}

tessellateExtent

Method

Signature: tessellateExtent (extent: Extent): Promise<TessellatedMesh>

Since: ArcGIS Maps SDK for JavaScript 4.14

Tessellate an Extent into a rectangle.

Parameters

Parameter	Type	Description	Required
extent	`Extent`	The input geometry.

Returns: Promise<TessellatedMesh>
A promise to a TessellatedMesh. The output mesh is composed of two triangles.

Example

this.tessellateExtent(g.geometry).then(function (mesh) {
   // do something with mesh
 });

tessellateMultipoint

Method

Signature: tessellateMultipoint (multipoint: Multipoint, footprint: Rect): Promise<TessellatedMesh>

Since: ArcGIS Maps SDK for JavaScript 4.14

Tessellate a Multipoint into quads (markers).

Parameters

Parameter	Type	Description	Required
multipoint	`Multipoint`	The input geometry. These are the geographic points where each marker will me anchored.
footprint	`Rect`	The rectangle that describes the geometry of each marker. Coordinates x and y can be thought as being in screen-space, relative to the screen-space projection of the geographic point.

Returns: Promise<TessellatedMesh>
A promise to a TessellatedMesh. Each marker is represented by two triangles.

Example

this.tessellateMultipoint(g.geometry, {x: 0, : -12, width: 34, height: 10}).then(function (mesh) {
   // do something with mesh
 });

tessellatePoint

Method

Signature: tessellatePoint (point: Point, footprint: Rect): Promise<TessellatedMesh>

Since: ArcGIS Maps SDK for JavaScript 4.14

Tessellate a Point into a quad (marker).

Parameters

Parameter	Type	Description	Required
point	`Point`	The input geometry. This is the geographic point where the marker will me anchored.
footprint	`Rect`	The rectangle that describes the geometry of the marker. Coordinates `x` and `y` are the position of the upper-left corner of the marker, and can be thought as being in screen-space, relative to the screen-space projection of the geographic point; `width` and `height` are in pixels. See Rect for a visual explanation of marker geometry.

Returns: Promise<TessellatedMesh>
A promise to a TessellatedMesh. The output mesh is composed of two triangles.

Example

this.tessellatePoint(g.geometry, {x: 0, : -12, width: 34, height: 10}).then(function (mesh) {
   // do something with mesh
 });

tessellatePolygon

Method

Signature: tessellatePolygon (polygon: Polygon): Promise<TessellatedMesh>

Since: ArcGIS Maps SDK for JavaScript 4.14

Tessellate a Polygon into triangles.

Parameters

Parameter	Type	Description	Required
polygon	`Polygon`	The input geometry. The geometry must be simple; if the input geometry is not simple, you must first create a simplified version of it using simplifyOperator, and pass the simplified geometry to `tessellatePolygon`.

Returns: Promise<TessellatedMesh>
A promise to a TessellatedMesh.

Example

this.tessellatePolygon(g.geometry).then(function (mesh) {
   // do something with mesh
 });

tessellatePolyline

Method

Signature: tessellatePolyline (polyline: Polyline, width: number): Promise<TessellatedMesh>

Since: ArcGIS Maps SDK for JavaScript 4.14

Tessellate a Polyline into triangles.

Parameters

Parameter	Type	Description	Required
polyline	`Polyline`	The input geometry. The geometry must be simple; if the input geometry is not simple, you must first create a simplified version of it using simplifyOperator, and pass the simplified geometry to `tessellatePolyline`.
width	`number`	The width of the line; this will be used to scale xOffset and yOffset.

Returns: Promise<TessellatedMesh>
A promise to a TessellatedMesh.

Example

this.tessellatePolyline(g.geometry, 10).then(function (mesh) {
   // do something with mesh
 });

tilesChanged

Method

Signature: tilesChanged (added: Tile[], removed: Tile[]): void

Method to implement, which notifies of tiles being added or removed for the current view state. This function can be implemented to start and stop fetching new data, or allocate and dispose resources.

Parameters

Parameter	Type	Description	Required
added	`Tile[]`	The tile objects added for the current view viewport.
removed	`Tile[]`	The tile objects removed from the view viewport.

Returns: void

when

inherited Method

Signature: when <TResult1 = this, TResult2 = never>(onFulfilled?: OnFulfilledCallback<this, TResult1> | null | undefined, onRejected?: OnRejectedCallback<TResult2> | null | undefined): Promise<TResult1 | TResult2>

Type parameters: <TResult1 = this, TResult2 = never>

Inherited from: EsriPromiseMixin

when() may be leveraged once an instance of the class is created. This method takes two input parameters: an onFulfilled function and an onRejected function. The onFulfilled executes when the instance of the class loads. The onRejected executes if the instance of the class fails to load.

Parameters

Parameter	Type	Description	Required
onFulfilled	`OnFulfilledCallback<this, TResult1> \| null \| undefined`	The function to call when the promise resolves.
onRejected	`OnRejectedCallback \| null \| undefined`	The function to execute when the promise fails.

Returns: Promise<TResult1 | TResult2>
Returns a new promise for the result of onFulfilled that may be used to chain additional functions.

Example

// Although this example uses MapView, any class instance that is a promise may use when() in the same way
let view = new MapView();
view.when(function(){
  // This function will execute once the promise is resolved
}, function(error){
  // This function will execute if the promise is rejected due to an error
});

Type definitions

Rect

Type definition

A rectangle in screen-space.

An instance of Rect is used to specify the screen-space geometry of the resulting marker when calling tessellatePoint() or tessellateMultipoint(). The exact interpretation of "screen-space" is ultimately implemented through a custom vertex shader; a common convention is to interpret the values in the rect as being expressed in pixels or points. See TessellatedMesh for more details.

tessellation-helpers-uv

x

Property

Type: number

The x-coordinate of the upper-left corner of the rectangle, relative to the anchor of the marker.

y

Property

Type: number

The y-coordinate of the upper-left corner of the rectangle, relative to the anchor of the marker.

width

Property

Type: number

Width of the rectangle.

height

Property

Type: number

Height of the rectangle.

RenderTarget

Type definition

The destination to which render() should direct its output.

Rendering output is saved into a framebuffer, possibly but not necessarily the default one, at a location defined by the viewport.

An instance of this class is mantained internally by BaseLayerViewGL2D and can be accessed by a call to getRenderTarget(). It is the same instance that is restored to the WebGL context by calling bindRenderTarget().

When control is handed over to render(), the WebGL context is guaranteed to be in a default state except for the currently bound framebuffer and the configured viewport. Implementations of render() are free to change these parameters using gl.bindFramebuffer() and gl.viewport(), but they must send the output of the rendering process to the render target.

framebuffer

Property

Type: WebGLFramebuffer | null

The framebuffer where the render() method should direct its output.

viewport

Property

Type: [ number, number, number, number ]

A viewport that fully covers framebuffer.

RenderParameters

Type definition

context

Property

Type: WebGL2RenderingContext

The WebGL or WebGL 2 context. Its concrete type depends on system configuration. Every time that render() is called, the API automatically resets WebGL to a conventional state which is almost the default one; the only two things that may be non-default are the bound framebuffer and the viewport, which is set to match the entire framebuffer. The body of render() must not change these settings.
