Display a map from a mobile map package

Learn how to display a map from a mobile map package (MMPK).

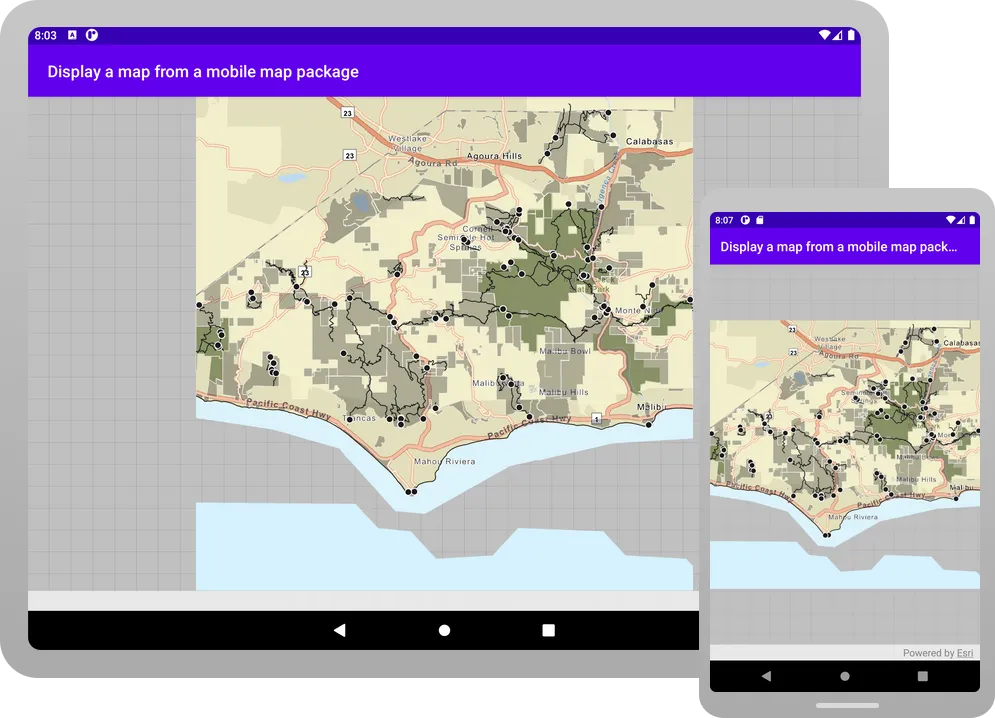

In this tutorial you will display a fully interactive map from a mobile map package (MMPK). The map contains a basemap layer and data layers and does not require a network connection.

Prerequisites

Steps

In this tutorial, you will first code, build, and install the app on a device, and then add the MahouRivieraTrails.mmpk.

Open an Android Studio project

1. To start this tutorial, complete the Display a map tutorial. Or download and unzip the Display a map solution in a new folder.

2. Modify the old project for use in this new tutorial. Expand More info for instructions.

   More info

   1. On your file system, delete the .idea folder, if present, at the top level of your project.

   2. In the Android tool window, open app > res > values > strings.xml.

      In the <string name="app_name"> element, change the text content to Display a map from a mobile map package.

      strings.xml

      Use dark colors for code blocks

      1
      2
      3
      4
      5
      6
      7
      <resources>

          <string name="app_name">Display a map from a mobile map package</string>

      </resources>

   3. In the Android tool window, open Gradle Scripts > settings.gradle.kts.

      Change the value of rootProject.name to "Display a map from a mobile map package".

      settings.gradle.kts

      Expand

      Use dark colors for code blocks

      1
      2
      3
      4
      5
      6
      7
      8
      9
      10
      11
      12
      13
      14
      15
      16
      17
      18
      19
      20
      21
      dependencyResolutionManagement {
          @Suppress("UnstableApiUsage")
          repositoriesMode.set(RepositoriesMode.FAIL_ON_PROJECT_REPOS)
          @Suppress("UnstableApiUsage")
          repositories {
              google()
              mavenCentral()
              maven { url = uri("https://esri.jfrog.io/artifactory/arcgis") }
          }
      }

      rootProject.name = "Display a map from a mobile map package"
      include(":app")

   4. The UI theme composable in Display a map tutorial was DisplayAMapTheme. Rename the theme composable throughout the tutorial by refactoring DisplayAMapTheme.

      In the Android tool window, open app > kotlin+java > com.exmple.app > ui.theme > Theme.kt.

      Right-click the function name DisplayAMapTheme and select Refactor -> Rename. Replace the name with DisplayAMapFromAMobileMapPackageTheme.

      Theme.kt

      Use dark colors for code blocksCopy

      1
      2
      3
      4
      5
      6
      7
      8
      9
      10
      11
      12
      13
      14
      15
      16
      17
      18
      19
      20
      21
      22
      23
      24
      25
      26
      27
      28
      29
      30
      31
      32
      33
      34
      35
      36
      37
      38
      39
      40
      41
      42
      43
      44
      45
      46
      47
      48
      49
      50
      51
      52
      53
      54
      55
      56
      57
      58
      59
      60
      61
      62
      63
      64
      65
      66
      67
      68
      69
      70
      71
      72
      @Composable
      fun DisplayAMapTheme(

          darkTheme: Boolean = isSystemInDarkTheme(),
          // Dynamic color is available on Android 12+
          dynamicColor: Boolean = true,
          content: @Composable () -> Unit
      ) {
          val colorScheme = when {
              dynamicColor && Build.VERSION.SDK_INT >= Build.VERSION_CODES.S -> {
                  val context = LocalContext.current
                  if (darkTheme) dynamicDarkColorScheme(context) else dynamicLightColorScheme(context)
              }

              darkTheme -> DarkColorScheme
              else -> LightColorScheme
          }


   5. Click File > Sync Project with Gradle files. Android Studio will recognize your changes and create a new .idea folder.

3. Set your API key in MainActivity.kt.

   More info

   An API Key enables access to services, web maps, and web scenes hosted in ArcGIS Online.

   1. In Android Studio: in the Android tool window, open app > java > com.example.app > MainActivity.

   2. In the setApiKey() function, find the ApiKey.create() call and paste your API key inside the quotes, replacing YOUR_API_KEY.

      MainActivity.kt

      Use dark colors for code blocksCopy

      1
      2
      3
      4
      5
      6
      7
      8
      9
      10
      11
      12
      13
      14
      15
      16
      17
      18
      19
      20
      21
      22
      23
      24
      25
      26
      27
      28
      29
      30
      31
      32
          private fun setApiKey() {

              ArcGISEnvironment.apiKey = ApiKey.create("YOUR_API_KEY")

          }


Add import statements

1. In the Android tool window, open app > kotlin+java > com.example.app > MainScreen.kt. Replace the import statements with the imports needed for this tutorial.

   MainScreen.kt

   Use dark colors for code blocks

   1
   2
   3
   4
   5
   6
   7
   8
   9
   10
   11
   12
   13
   14
   15
   16
   17
   18
   19
   20
   21
   22
   23
   24
   25
   26
   27
   28
   29
   30
   31
   32
   33
   34
   35
   36
   37
   38
   39
   40
   41
   42
   43
   44
   45
   46
   47
   48
   49
   50
   51
   52
   53
   54
   55
   56
   57
   58
   59
   60
   61
   62
   63
   64
   65
   66
   67
   68
   69
   @file:OptIn(ExperimentalMaterial3Api::class)

   package com.example.app.screens

   import android.content.Context
   import android.widget.Toast
   import androidx.compose.foundation.layout.fillMaxSize
   import androidx.compose.foundation.layout.padding
   import androidx.compose.material3.ExperimentalMaterial3Api
   import androidx.compose.material3.Scaffold
   import androidx.compose.material3.Text
   import androidx.compose.material3.TopAppBar
   import androidx.compose.runtime.Composable
   import androidx.compose.runtime.LaunchedEffect
   import androidx.compose.runtime.mutableStateOf
   import androidx.compose.runtime.remember
   import androidx.compose.ui.Modifier
   import androidx.compose.ui.platform.LocalContext
   import androidx.compose.ui.res.stringResource
   import com.arcgismaps.mapping.ArcGISMap
   import com.arcgismaps.mapping.BasemapStyle
   import com.arcgismaps.mapping.MobileMapPackage
   import com.arcgismaps.toolkit.geoviewcompose.MapView
   import com.example.app.R
   import java.io.File


Loading mobile map package and displaying a map

Code the app to select a map from the maps contained in a mobile map package and display the map in a map view. Use the MobileMapPackage class to access the mobile map package and load it to read its contents.

1. In the Android tool window, open app > res > values > strings.xml. Add a string resource that specifies the file name of the mobile map package.

   strings.xml

   Use dark colors for code blocks

   1
   2
   3
   4
   5
   6
   7
   <resources>

       <string name="app_name">Display a map from a mobile map package</string>

       <string name="mahourivieratrails_mmpk">MahouRivieraTrails.mmpk</string>

   </resources>

2. In the Android tool window, open app > kotlin+java > com.example.app > screens > MainScreen.kt. Find the createMap() function and delete it.

   MainScreen.kt

   Expand

   Use dark colors for code blocks

   1
   2
   3
   4
   5
   6
   7
   8
   9
   10
   11
   12
   13
   14
   15
   16
   17
   18
   19
   20
   21
   22
   23
   24
   25
   26
   27
   28
   29
   30
   31
   32
   33
   34
   35
   36
   37
   38
   39
   40
   41
   42
   43
   44
   45
   46
   47
   48
   49
   50
   51
   52
   53
   54
   55
   fun createMap(): ArcGISMap {

       return ArcGISMap(BasemapStyle.ArcGISTopographic).apply {

           initialViewpoint = Viewpoint(
               latitude = 34.0270,
               longitude = -118.8050,

               scale = 72000.0

           )

       }

   }

3. Get the local Context and assign it to a variable named context. Then specify the file path where the mobile map package will be stored, and assign it to a variable named mmpkFilePath, which is a string.

   MainScreen.kt

   Expand

   Use dark colors for code blocks

   1
   2
   3
   4
   5
   6
   7
   8
   9
   10
   11
   12
   13
   14
   15
   16
   17
   18
   19
   20
   21
   22
   23
   24
   25
   26
   27
   28
   29
   30
   31
   32
   33
   34
   35
   36
   37
   38
   39
   40
   41
   42
   43
   44
   45
   46
   47
   48
   49
   50
   51
   52
   53
   54
   55
   56
   57
   58
   59
   60
   61
   62
   63
   64
   65
   66
   67
   68
   69
   @Composable
   fun MainScreen() {

       val context = LocalContext.current
       // Get the path of the mobile map package
       val mmpkFilePath = context.getExternalFilesDir(null)?.path + File.separator + stringResource(id = R.string.mahourivieratrails_mmpk)
       // Create the ArcGIS Map which would use the map provided by the map package

       val map = remember {

           mutableStateOf(ArcGISMap(BasemapStyle.ArcGISTopographic))

       }

       Scaffold(
           topBar = { TopAppBar(title = { Text(text = stringResource(id = R.string.app_name)) }) }
       ) {
           // Display map when the mobile map package is loaded
           MapView(
               modifier = Modifier.fillMaxSize().padding(it),

               arcGISMap = map.value

           )
       }
   }


   Expand

4. Inside the remember block, replace the createMap() call with a mutable state holding a nullable ArcGISMap object. Then, in MapView, assign the map state value to the arcGISMap property.

   MainScreen.kt

   Expand

   Use dark colors for code blocks

   1
   2
   3
   4
   5
   6
   7
   8
   9
   10
   11
   12
   13
   14
   15
   16
   17
   18
   19
   20
   21
   22
   23
   24
   25
   26
   27
   28
   29
   30
   31
   32
   33
   34
   35
   36
   37
   38
   39
   40
   41
   42
   43
   44
   45
   46
   47
   48
   49
   50
   51
   52
   53
   54
   55
   56
   57
   58
   59
   60
   61
   62
   63
   64
   65
   66
   67
   68
   69
   @Composable
   fun MainScreen() {

       val context = LocalContext.current
       // Get the path of the mobile map package
       val mmpkFilePath = context.getExternalFilesDir(null)?.path + File.separator + stringResource(id = R.string.mahourivieratrails_mmpk)
       // Create the ArcGIS Map which would use the map provided by the map package

       val map = remember {

           mutableStateOf(ArcGISMap(BasemapStyle.ArcGISTopographic))

       }

       Scaffold(
           topBar = { TopAppBar(title = { Text(text = stringResource(id = R.string.app_name)) }) }
       ) {
           // Display map when the mobile map package is loaded
           MapView(
               modifier = Modifier.fillMaxSize().padding(it),

               arcGISMap = map.value

           )
       }
   }


   Expand

5. Call the LaunchedEffect composable. In the LaunchedEffect block, load the mobile map package.

   If the mobile map package loaded successfully, get the first map stored in the mobile map package and assign it to the map state value. If the mobile map package failed to load, create a top-level showError() function and call it.

   MainScreen.kt

   Expand

   Use dark colors for code blocks

   1
   2
   3
   4
   5
   6
   7
   8
   9
   10
   11
   12
   13
   14
   15
   16
   17
   18
   19
   20
   21
   22
   23
   24
   25
   26
   27
   28
   29
   30
   31
   32
   33
   34
   35
   36
   37
   38
   39
   40
   41
   42
   43
   44
   45
   46
   47
   48
   49
   50
   51
   52
   53
   54
   55
   56
   57
   58
   59
   60
   61
   62
   63
   64
   65
   66
   67
   68
   69
   @Composable
   fun MainScreen() {

       val context = LocalContext.current
       // Get the path of the mobile map package
       val mmpkFilePath = context.getExternalFilesDir(null)?.path + File.separator + stringResource(id = R.string.mahourivieratrails_mmpk)
       // Create the ArcGIS Map which would use the map provided by the map package

       val map = remember {

           mutableStateOf(ArcGISMap(BasemapStyle.ArcGISTopographic))

       }

       LaunchedEffect(Unit) {

           // Load the mobile map package
           val mapPackage = MobileMapPackage(mmpkFilePath)

           mapPackage.load().onSuccess {
               map.value = mapPackage.maps.first()
           }.onFailure { error ->
               showError(context, "Failed to load mobile map package: ${error.message}")
           }

       }

       Scaffold(
           topBar = { TopAppBar(title = { Text(text = stringResource(id = R.string.app_name)) }) }
       ) {
           // Display map when the mobile map package is loaded
           MapView(
               modifier = Modifier.fillMaxSize().padding(it),

               arcGISMap = map.value

           )
       }
   }

   fun showError(context: Context, message: String) {
       Toast.makeText(context, message, Toast.LENGTH_LONG).show()
   }

Build and install your app

This is a necessary step, because the app install process creates the path (sdcard > Android > data > com.example.app > files) where you will upload your mobile map package to the device. Do not try to create the path manually in Device Explorer, as you will get a Operation not permitted error.

1. Click Run > Run > app to run the app.

   More info

   In Android Studio, you have two choices for running your app: an actual Android device or the Android Emulator.

   Android device

   Connect your computer to your Android device, using USB or Wi-Fi. For more details, see How to connect your Android device.

   Android Emulator

   Create an AVD (Android Virtual Device) to run in the Android Emulator. For details, see Run apps on the Android Emulator.

   Selecting a device

   When you build and run an app in Android Studio, you must first select a device. From the Android Studio toolbar, you can access the drop-down list of your currently available devices, both virtual and physical.

   .

   If you cannot access the list on the toolbar, click Tools > Device Manager.

   Your app will be built and installed on the Android Virtual Device (AVD) that is currently selected in the Android Studio toolbar. On the AVD, you should see an ArcGISTopographic map with initial extent of the whole world. You should also see the app name Display a map from a mobile map package at the top of the screen, and the message Failed to load mobile map package: File not found. briefly displayed at the bottom. This is expected.

   Next you will add the mobile map package.

Add a mobile map package using Device Explorer

Add a mobile map package (.mmpk) to the device file system for use by your app.

1. On your development computer, create or download the MahouRivieraTrails.mmpk mobile map package. Either complete the Create a mobile map package tutorial to create the package yourself, or download the MahouRivieraTrails.mmpk mobile map package from ArcGIS Online.

2. In Android Studio, verify that your Android Virtual Device (AVD) is still connected. If it is not, expand More info below.

   More info

   If you already closed the AVD on which you installed your app, then launch the Android Emulator manually.

   1. Click Tools > Device Manager. In the Device Manager, click the triangle icon (Start button) on the AVD you used before.

3. Display the Device Explorer tool window, which shows the file system on your AVD. Click View > Tool Windows > Device Explorer and wait until Device Manager connects to your AVD and shows the file system tree.

4. Upload the MahouRivieraTrails.mmpk file from your development computer.

   1. In Device Explorer, right-click on the sdcard > Android > data directory and click Synchronize.

   2. Right-click on sdcard > Android > data > com.example.app > files and click Upload. Navigate to the MahouRivieraTrails.mmpk file on your development computer. Then click OK.

      You should see a Device Explorer Toast in the lower corner confirming success.

Restart the app on your AVD

1. Shut down the app running on your AVD. Clicking Run > Stop 'app' in Android Studio is the quickest way to stop the app.

2. Run the app a second time by clicking Run > Run > app.

   You will see a map of trailheads, trails, and parks for the area south of the Santa Monica mountains. You can pinch (to zoom and rotate), drag, and double-tap the map view to explore the map.

What's next?

Learn how to use additional API features, ArcGIS location services, and ArcGIS tools in these tutorials:

• Display a scene
• Add a feature layer
