ImageryTileLayer presents raster data from a tiled image service. Binary imagery tiles are projected, processed, and rendered on the client-side. Tiled access is fast and scalable.
Creating an ImageryTileLayer
ImageryTileLayers may be created from one of the following sources:
- ArcGIS Enterprise or ArcGIS Online tiled image services
- Cloud Optimized GeoTIFF (COG)
- Coverage json source
- PixelData
From ArcGIS tiled image services
You can create an ImageryTileLayer from ArcGIS Enterprise or ArcGIS Online tiled image services in one of two ways:
- To create an ImageryTileLayer instance from a service, you must set the url property to the REST endpoint of tiled image service.
// reference an tiled image service via the ImageryTileLayer.urlconst ImageryTileLayer = await $arcgis.import("@arcgis/core/layers/ImageryTileLayer.js");const layer = new ImageryTileLayer({ url: "https://sampleserver6.arcgisonline.com/arcgis/rest/services/Toronto/ImageServer"});map.add(layer);- You can also create an ImageryTileLayer from its ID if it exists as an item in ArcGIS Online or ArcGIS Enterprise. For example, the following snippet shows how to add a new ImageryTileLayer instance to a map using the portalItem property.
const layer = new ImageryTileLayer({ portalItem: { id: "1fb9eae319e54c74a13e2a8135015c41" }});map.add(layer);
From Cloud Optimized GeoTIFF (COG) (beta)
At version 4.25, an ImageryTileLayer can be created by setting the url property to point to a Cloud Optimized GeoTIFF (COG) file. COG is a regular GeoTIFF file, hosted on a HTTP file server, with internal settings that enable efficient workflows on the cloud. This may be a useful option when your imagery workflow generates a temporary image, and you need to view the image without having to publish it as an image service. In addition to the geo/tiff specifications, the JS API also supports auxiliary metadata (aux.xml) containing statistics and histograms, and attribute tables (vat.dbf) if the COG has categorical information such as land use type. Review the ImageryTileLayer with COG sample to see COG in action.
Notes
At this release, only COGS with the following settings are supported:
Non user defined spatial references with EPSG codes or spatial references with esri WKT.
NONE, JPEG, DEFLATE, LZW, LERC compressions.
Affine and polynomial transformations (in aux with coefficients).
Photometric interpretation with normal grayscale, RGB or color palette. Other photometric interpretation are read but displayed without color space conversion.
const layer = new ImageryTileLayer({ url: "https://ss6imagery.arcgisonline.com/imagery_sample/landsat8/Bolivia_LC08_L1TP_001069_20190719_MS.tiff", bandIds: [3, 2, 1]});
From CoverageJSON (beta)
At version 4.29, an ImageryTileLayer can be created from CoverageJSON. CoverageJSON is an OGC format for storing data such as grids, time and elevation profiles. CoverageJSON with grid domain and NdArrays are supported. Once the layer is loaded, the data source is stored in memory.
An ImageryTileLayer can be created from CoverageJSON in one of two ways:
- Set the url property to point to a CoverageJSON file.
const layer = new ImageryTileLayer({ url: "link-to-coveragejson.covjson"});map.add(layer);- Set the source property to point a CoverageJSON object.
const layer = new ImageryTileLayer({ source:{ type: "Coverage", domain: { type: "Domain", domainType: "Grid", axes: { x: { values: [-10, -5, 0] }, y: { values: [40, 50] }, t: { values: ["2010-01-01T00:12:20Z"] } }, referencing: [ { coordinates: ["x", "y"], system: { type: "GeographicCRS", id: "http://www.opengis.net/def/crs/OGC/1.3/CRS84" } }, { coordinates: ["t"], system: { type: "TemporalRS", calendar: "Gregorian" } } ] }, parameters: { ... }, ranges: { LC: { type: "NdArray", dataType: "integer", axisNames: ["t", "y", "x"], shape: [1, 2, 3], values: [1, 1, null, 2, 1, 2] } } }});map.add(layer);
Image tiles
There are four types of image service tiles that can be leveraged by ImageryTileLayer:
- Raster tiles represent tiles with meaningful pixel values compressed with LERC or JPEGPNG. The hosted land cover ImageryTileLayer sample uses a raster tile service.
- Map tiles represent rendered map images, typically in JPEG or PNG format. For example, this tile image service has map tiles.
- Elevation tiles represent precooked elevation data compressed with Limited Error Raster Compression (LERC). Review the Tiled elevations service document for more information. The ImageryTileLayer - shaded relief renderer sample uses a service with elevation tiles.
- Transposed multidimensional tiles are a subtype of raster tiles, which are hyper-cubic image tiles representing specific variables over all dimensions. They are created for optimizing performance while accessing pixel values across all multidimensional slices. Transposed multidimensional tiles are not used for visualization; they are only used for analysis. For example, you would use transposed multidimensional tiles to perform an identify operation that would provide access to dimension series' pixel values for a requested variable at a given location. The Transposed multidimensional ImageryTileLayer sample demonstrates how these services can be used for analysis efficiently.
Working with multidimensional raster data

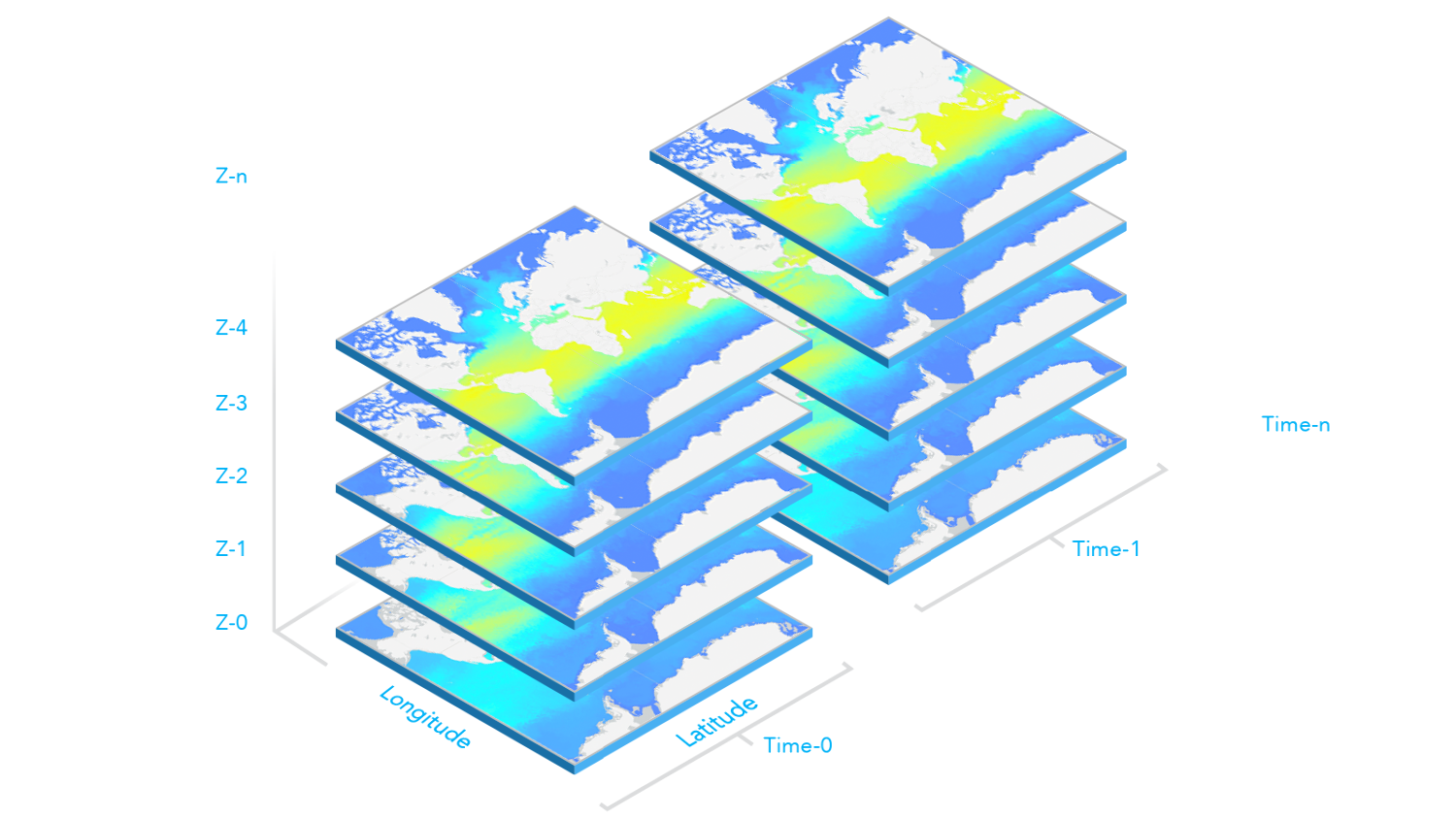

Multidimensional data is commonly used in the scientific community to store atmospheric, oceanographic, and earth science data. Temperature, humidity, wind speed, and direction are all examples of the data that can be stored as variables in a multidimensional array. As illustrated in the graphic below, multidimensional data can show sea temperature (variable) for a specific area at multiple time and depth dimensions. This information is stored as slices, where the service has a slice for each unique combination of dimension values and variable names.
Read More
ImageryTileLayer's multidimensional data information can be accessed through the layer's serviceRasterInfo.multidimensionalInfo property. This
information can then be used for analysis and visualization. For example, in the following snippet, the time dimension values associated with
the wind_magdir variable are read from the layer's serviceRasterInfo.multidimensionalInfo property once the layer is loaded. Then, time values are used to configure
the Time Slider component to animate the wind speed and direction data over time.
viewElement.whenLayerView(layer).then(() => { // get all time dimension values from the service, create an array of dates const windEpochDates = layer.serviceRasterInfo.multidimensionalInfo.variables[0].dimensions[0].values; const windDates = windEpochDates.map((item) => new Date(item));
// time slider component initialization // users can visualize daily wind information for all the time dimension available const timeSlider = document.createElement("arcgis-time-slider"); timeSlider.mode = "instant"; timeSlider.view = view; timeSlider.fullTimeExtent = { start: new Date(windDates[0]), // Jan 1, 2011, end: new Date(windDates[windDates.length - 1]) // Dec 31, 2011 }; // set the stops to match the dates coming from time dimension timeSlider.stops = { dates: windDates }; timeSlider.slot = "bottom-right";});To display data based on a specific slice of a variable and dimensions, set the layer's multidimensionalDefinition
property to an array of desired dimensional definitions. For example, the following snippet
shows how to update the layer's multidimensionalDefinition to display data based on a given StdZ (depth) value in response to a slider thumb change event.
depthSlider.on(["thumb-change", "thumb-drag"], (delta) => updateRenderer("StdZ", value));const updateRenderer = promiseUtils.debounce(function (dimensionName, sliderData) { // set the depth or StdZ dimension of the layer corresponding to the slider's thumb location const multidimensionalDefinition = layer.multidimensionalDefinition; const depthDef = multidimensionalDefinition.find((def) => def.dimensionName === "StdZ"); if (dimensionName === "StdZ") { if (depthDef.values[0] === sliderData.value) { return; } depthDef.values[0] = sliderData.value; } layer.multidimensionalDefinition = multidimensionalDefinition;});The multidimensionalSubset can be set on a layer to expose only a subset of multidimensional data that satisfies the requirements.
For example, if you have one year of wind speed and direction data collected daily, but only want to expose a subset of the data for every day of October, then
you can set the multidimensionalSubset property on the layer as shown in the code snippet below.
// Wind speed and direction info for every day of Oct will be available on the layer.// Users will not be able to access data that falls outside of Oct.const multidimensionalSubset = new MultidimensionalSubset({ subsetDefinitions: [ { variableName: "wind_magdir", dimensionName: "StdTime", values: [1317427200000, 1320019200000], // 10/1/14 - 10/31/14 isSlice: true } ]});layer.multidimensionalSubset = multidimensionalSubset;The following image illustrates when the multidimensionalDefinition and multidimensionalSubset properties are both set on the layer. Slices with the
purple borders are slices included in the layer's multidimensionalSubset. The slice with the red border is the multidimensionalDefinition of the layer and
what is visible on the map. The layer's multidimensionalDefinition must fall within the multidimensionalSubset, otherwise nothing will be displayed in the map.
Constructors
Constructor
Parameters
| Parameter | Type | Description | Required |
|---|---|---|---|
| properties | | |
Example
// Typical usagelet layer = new ImageryTileLayer({ url: "https://sampleserver6.arcgisonline.com/arcgis/rest/services/Toronto/ImageServer"});Properties
| Property | Type | Class |
|---|---|---|
activePresetRendererName inherited | ||
bandIds inherited | ||
blendMode inherited | ||
copyright inherited | ||
customParameters inherited | ||
declaredClass readonly inherited | ||
effect inherited | ||
| | ||
fullExtent inherited | ||
id inherited | ||
interpolation inherited | ||
| | ||
listMode inherited | ||
loaded readonly inherited | ||
loadError readonly inherited | ||
loadStatus readonly inherited | "not-loaded" | "loading" | "failed" | "loaded" | |
loadWarnings readonly inherited | any[] | |
maxScale inherited | ||
minScale inherited | ||
multidimensionalDefinition inherited | ||
multidimensionalSubset inherited | ||
opacity inherited | ||
parent inherited | Map | Basemap | Ground | GroupLayer | CatalogDynamicGroupLayer | CatalogLayer | null | undefined | |
persistenceEnabled inherited | ||
| | ||
| | ||
portalItem inherited | PortalItem | null | undefined | |
presetRenderers inherited | ||
rasterFields readonly | Field[] | |
| | ||
refreshInterval inherited | ||
| | ||
| | ||
serviceRasterInfo readonly inherited | RasterInfo | null | undefined | |
source readonly | | |
| | ||
spatialReference readonly inherited | ||
| | ||
timeExtent inherited | TimeExtent | null | undefined | |
timeInfo inherited | ||
timeOffset inherited | ||
| | ||
type readonly | "imagery-tile" | |
uid readonly inherited | ||
| | ||
useViewTime inherited | ||
version readonly | | |
visibilityTimeExtent inherited | TimeExtent | null | undefined | |
visible inherited |
activePresetRendererName
- Since
- ArcGIS Maps SDK for JavaScript 4.31
The active preset renderer name. Setting this value will set the layer's renderer property to a
RasterPresetRenderer.renderer defined in the presetRenderers.
If null, the layer's renderer will revert to the default or previously set renderer.
If the layer's renderer is set then the activePresetRendererName will be null.
Example
// to use a preset rendererlayer.activePresetRenderer = "temperatureRenderer"; bandIds
Defines a band combination using 0-based band indexes.
blendMode
- Type
- BlendMode
Blend modes are used to blend layers together to create an interesting effect in a layer, or even to produce what seems like a new layer. Unlike the method of using transparency which can result in a washed-out top layer, blend modes can create a variety of very vibrant and intriguing results by blending a layer with the layer(s) below it.
When blending layers, a top layer is a layer that has a blend mode applied. All layers underneath the top layer are background layers.
The default blending mode is normal where the top layer is simply displayed over the background layer. While this default behavior is perfectly acceptable,
the use of blend modes on layers open up a world of endless possibilities to generate creative maps.
The layers in a GroupLayer are blended together in isolation from the rest of the map.

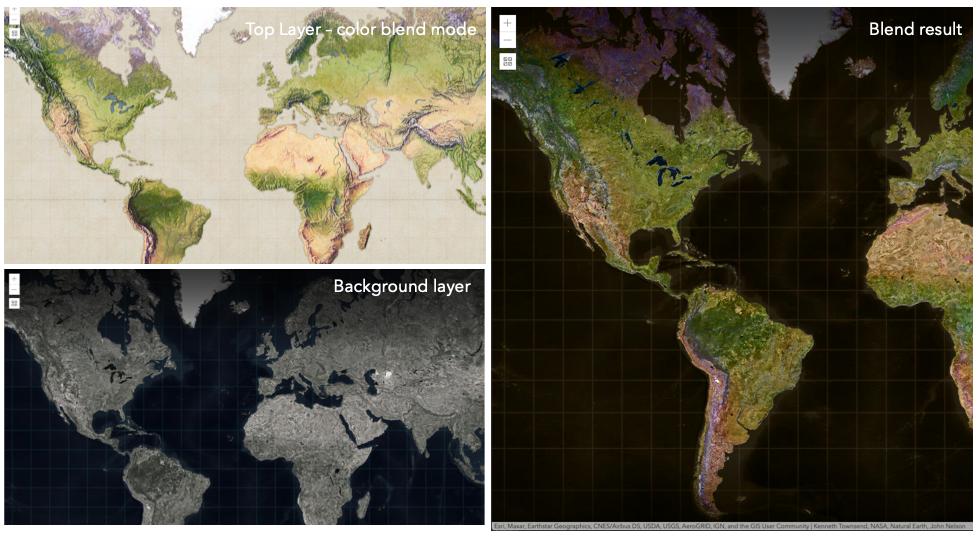

In the following screenshots, the vintage shaded relief
layer is displayed over a firefly world imagery layer. The color blend mode
is applied to the vintage shaded relief and the result looks like a new layer.
Known Limitations
- In 3D SceneViews, the blendMode is supported on BaseTileLayer, ImageryTileLayer, OpenStreetMapLayer, TileLayer, VectorTileLayer, WCSLayer, WebTileLayer, WMTSLayer and GroupLayer.
- When working with GroupLayers in a 3D SceneView, the blendMode is only applied to the sublayers that support it.
- The blendMode is not supported in the Legend.
- See print for known printing limitations.
The following factors will affect the blend result:
- Order of all layers
- Layer opacity
- Opacity of features in layers
- Visibility of layers
- By default, the very bottom layer in a map is drawn on a transparent background. You can change the MapView's background color.
Read More
| Blend mode | Description |
|---|---|
| normal | The top layer is displayed over the background layer. The data of the top layer block the data of background layer where they overlap. |
| average | Takes the mathematical average of top and background layers. Result of average blend mode is often similar to the effect of setting the layer's opacity to 50%. |
Lighten blend modes:
The following blend modes create lighter results than all layers. In lighten blend modes, pure black colors in the top layer become transparent allowing the background layer to show through. White in the top layer will stay unchanged. Any color that is lighter than pure black is going to lighten colors in the top layer to varying degrees all way to pure white.
Lighten blend modes can be useful when lightening dark colors of the top layer or removing black colors from the result.
The plus, lighten and screen modes can be used to brighten layers that have faded or dark colors on a dark background.
| Blend mode | Description |
|---|---|
| lighten | Compares top and background layers and retains the lighter color. Colors in the top layer become transparent if they are darker than the overlapping colors in the background layer allowing the background layer to show through completely. Can be thought of as the opposite of darken blend mode. |
| lighter | Colors in top and background layers are multiplied by their alphas (layer opacity and layer's data opacity. Then the resulting colors are added together. All overlapping midrange colors are lightened in the top layer. The opacity of layer and layer's data will affect the blend result. |
| plus | Colors in top and background layers are added together. All overlapping midrange colors are lightened in the top layer. This mode is also known as add or linear-dodge. |
| screen | Multiplies inverted colors in top and background layers then inverts the colors again. The resulting colors will be lighter than the original color with less contrast. Screen can produce many different levels of brightening depending on the luminosity values of the top layer. Can be thought of as the opposite of the multiply mode. |
| color-dodge | Divides colors in background layer by the inverted top layer. This lightens the background layer depending on the value of the top layer. The brighter the top layer, the more its color affects the background layer. Decreases the contrast between top and background layers resulting in saturated mid-tones and blown highlights. |
Darken blend modes:
The following blend modes create darker results than all layers. In darken blend modes, pure white in the top layer will become transparent allowing the background layer to show through. Black in the top layer will stay unchanged. Any color that is darker than pure white is going to darken a top layer to varying degrees all the way to pure black.
The multiply blend mode is often used to highlight shadows, show contrast, or accentuate an aspect of a map. For example, you can use multiply blend mode on a topographic map
displayed over hillshade when you want to have your elevation show through the topographic layer. See the intro to layer blending sample.
The multiply and darken modes can be used to have dark labels of the basemap to show through top layers. See the darken blending sample.
The color-burn mode works well with colorful top and background layers since it increases saturation in mid-tones. It increases the contrast by tinting pixels in overlapping areas in
top and bottom layers more towards the top layer color. Use this blend mode, when you want an effect with more contrast than multiply or darken.
The following screenshots show how the multiply blend mode used for creating a physical map of the world that shows both boundaries and elevation.
| Blend mode | Description |
|---|---|
| darken | Emphasizes the darkest parts of overlapping layers. Colors in the top layer become transparent if they are lighter than the overlapping colors in the background layer, allowing the background layer to show through completely. |
| multiply | Emphasizes the darkest parts of overlapping layers by multiplying colors of the top layer and the background layer. Midrange colors from top and background layers are mixed together more evenly. |
| color-burn | Intensifies the dark areas in all layers. It increases the contrast between top and background layers, by tinting colors in overlapping area towards the top color. To do this it inverts colors of the background layer, divides the result by colors of the top layer, then inverts the results. |
Contrast blend modes:
The following blend modes create contrast by both lightening the lighter areas and darkening the darker areas in the top layer by using lightening or darkening blend modes to create the blend.
The contrast blend modes will lighten the colors lighter than 50% gray ([128,128,128]), and darken the colors darker than 50% gray. 50% gray will be transparent in the top layer.
Each mode can create a variety of results depending on the colors of top and background layers being blended together.
The overlay blend mode makes its calculations based on the brightness of the colors in the background layer while all of the other contrast blend modes make their calculations based on the brightness of the top layer.
Some of these modes are designed to simulate the effect of shining a light through the top layer, effectively projecting upon the layers beneath it.
Contrast blend modes can be used to increase the contrast and saturation to have more vibrant colors and give a punch to your layers.
For example, you can duplicate a layer and set overlay blend mode on the top layer to increase the contrast and tones of your layer.
You can also add a polygon layer with a white fill symbol over a dark imagery layer and apply soft-light blend mode to increase the brightness in the imagery layer.
The following screenshots show an effect of the overlay blend mode on a GraphicsLayer. The left image shows when the buffer graphics layer has the normal blend mode.
As you can see, the gray color for the buffer polygon is blocking the intersecting census tracts. The right image shows when the overlay blend mode is applied to the buffer graphics layer.
The overlay blend mode darkens or lightens the gray buffer polygon depending on the colors of the background layer while the census tracts layer is shining through.
See this in action.
| Normal blend mode | Overlay blend mode |
|---|---|
 |  |
| Blend mode | Description |
|---|---|
| overlay | Uses a combination of multiply and screen modes to darken and lighten colors in the top layer with the background layer always shining through. The result is darker color values in the background layer intensify the top layer, while lighter colors in the background layer wash out overlapping areas in the top layer. |
| soft-light | Applies a half strength screen mode to lighter areas and half strength multiply mode to darken areas of the top layer. You can think of the soft-light as a softer version of the overlay mode. |
| hard-light | Multiplies or screens the colors, depending on colors of the top layer. The effect is similar to shining a harsh spotlight on the top layer. |
| vivid-light | Uses a combination of color-burn or color-dodge by increasing or decreasing the contrast, depending on colors in the top layer. |
Component blend modes:
The following blend modes use primary color components, which are hue, saturation and luminosity to blend top and background layers.
You can add a feature layer with a simple renderer over any layer and set hue, saturation, color or luminosity blend mode on this layer. With this technique, you create a brand new looking map.

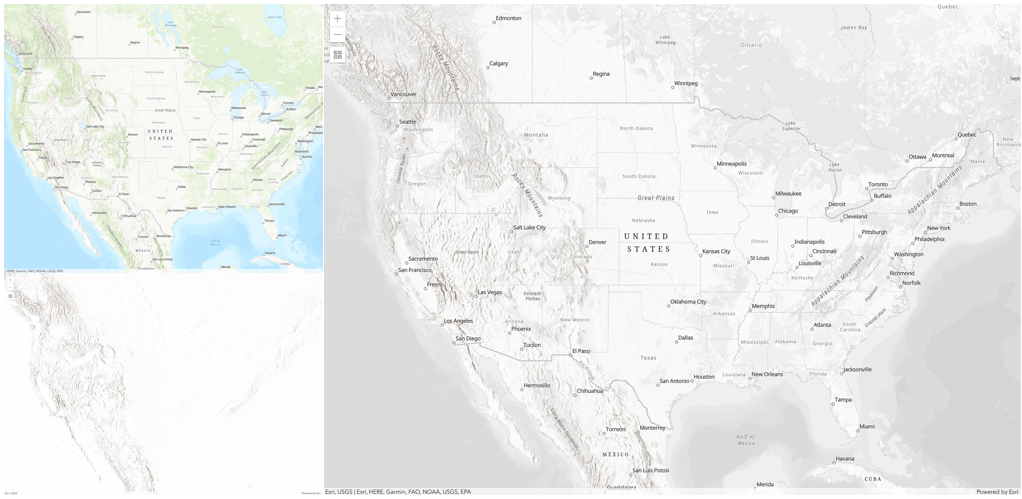

The following screenshots show where the topo layer is blended with
world hillshade layer with luminosity blend mode.
The result is a drastically different looking map which preserves the brightness of the topo layer while adapting the hue and saturation of the hillshade layer.
| Blend mode | Description |
|---|---|
| hue | Creates an effect with the hue of the top layer and the luminosity and saturation of the background layer. |
| saturation | Creates an effect with the saturation of the top layer and the hue and luminosity of the background layer. 50% gray with no saturation in the background layer will not produce any change. |
| luminosity | Creates effect with the luminosity of the top layer and the hue and saturation of the background layer. Can be thought of as the opposite of color blend mode. |
| color | Creates an effect with the hue and saturation of the top layer and the luminosity of the background layer. Can be thought of as the opposite of luminosity blend mode. |
Composite blend modes:
The following blend modes can be used to mask the contents of top, background or both layers.
Destinationmodes are used to mask the data of the top layer with the data of the background layer.Sourcemodes are used to mask the data of the background layer with the data of the top layer.
The destination-in blend mode can be used to show areas of focus such as earthquakes, animal migration, or point-source pollution by revealing the underlying map,
providing a bird's eye view of the phenomenon. Check out multiple blending and groupLayer blending
samples to see composite blend modes in action.
The following screenshots show feature and imagery layers on the left side on their own in the order they are drawn in the view. The imagery layer that contains land cover classification rasters.
The feature layer contains 2007 county crops data. The right image shows the result of layer blending where destination-in blendMode is set on the imagery layer. As you can see, the effect is
very different from the original layers. The blended result shows areas of cultivated crops only (where both imagery and feature layers overlap).
| Blend mode | Description |
|---|---|
| destination-over | Destination/background layer covers the top layer. The top layer is drawn underneath the destination layer. You'll see the top layer peek through wherever the background layer is transparent or has no data. |
| destination-atop | Destination/background layer is drawn only where it overlaps the top layer. The top layer is drawn underneath the background layer. You'll see the top layer peek through wherever the background layer is transparent or has no data. |
| destination-in | Destination/background layer is drawn only where it overlaps with the top layer. Everything else is made transparent. |
| destination-out | Destination/background layer is drawn where it doesn't overlap the top layer. Everything else is made transparent. |
| source-atop | Source/top layer is drawn only where it overlaps the background layer. You will see the background layer peek through where the source layer is transparent or has no data. |
| source-in | Source/top layer is drawn only where it overlaps with the background layer. Everything else is made transparent. |
| source-out | Source/top layer is drawn where it doesn't overlap the background layer. Everything else is made transparent. |
| xor | Top and background layers are made transparent where they overlap. Both layers are drawn normal everywhere else. |
Invert blend modes:
The following blend modes either invert or cancel out colors depending on colors of the background layer.
These blend modes look for variations between top and background layers.
For example, you can use difference or exclusion blend modes on two imagery layers of forest covers to visualize how forest covers changed from one year to another.
The invert blend mode can be used to turn any light basemap into a dark basemap to accommodate those who work in low-light conditions. The following screenshots show
how setting the invert blend mode set on a feature layer with a simple renderer turns the world Hillshade
into a dark themed basemap in no time.
| Blend mode | Description |
|---|---|
| difference | Subtracts the darker of the overlapping colors from the lighter color. When two pixels with the same value are subtracted, the result is black. Blending with black produces no change. Blending with white inverts the colors. This blending mode is useful for aligning layers with similar content. |
| exclusion | Similar to the difference blend mode, except that the resulting image is lighter overall. Overlapping areas with lighter color values are lightened, while darker overlapping color values become transparent. |
| minus | Subtracts colors of the top layer from colors of the background layer making the blend result darker. In the case of negative values, black is displayed. |
| invert | Inverts the background colors wherever the top and background layers overlap. The invert blend mode inverts the layer similar to a photographic negative. |
| reflect | This blend mode creates effects as if you added shiny objects or areas of light in the layer. Black pixels in the background layer are ignored as if they were transparent. |
- See also
- Default value
- "normal"
copyright
The copyright text as defined by the service.
customParameters
- Type
- CustomParameters | null | undefined
- Since
- ArcGIS Maps SDK for JavaScript 4.18
A list of custom parameters appended to the URL of all resources fetched by the layer.
It's an object with key-value pairs where value is a string.
The layer's refresh() method needs to be called if the customParameters are updated at runtime.
Example
// send a custom parameter to your special servicelet layer = new MapImageLayer({ url: serviceUrl, customParameters: { "key": "my-special-key" }}); effect
- Since
- ArcGIS Maps SDK for JavaScript 4.18
Effect provides various filter functions that can be performed on the layer to achieve different visual effects similar to
how image filters work. This powerful capability allows you to apply css filter-like
functions to layers to create custom visual effects to enhance the cartographic quality of your maps. This is done by applying the desired
effect to the layer's effect property as a string or an array of objects to set scale dependent effects.
Notes
Set featureEffect property on a layer if different effects need to be applied features that meet or fail a specified filter. If all of the following four properties are applied, then they will be applied in this order: featureEffect, effect, opacity and blendMode.
Known Limitations
- The effect is not supported in 3D SceneViews.
- The effect cannot be applied to a layer with a heatmap renderer.
- The effect is not supported in layers with FeatureLayer.featureReduction of type
clusterenabled. - See print for known printing limitations.
Examples
// the following effect will be applied to the layer at all scales// brightness will be applied first, then hue-rotate followed by contrast// changing order of the effects will change the final resultlayer.effect = "brightness(5) hue-rotate(270deg) contrast(200%)";// set a scale dependent bloom effect on the layerlayer.effect = [ { scale: 36978595, value: "drop-shadow(3px, 3px, 4px)" }, { scale: 18489297, value: "drop-shadow(2px, 2px, 3px)" }, { scale: 4622324, value: "drop-shadow(1px, 1px, 2px)" }]; elevationInfo
- Type
- ElevationInfo | null | undefined
- Since
- ArcGIS Maps SDK for JavaScript 4.34
Specifies how the imagery is placed on the vertical axis (z). This property may only be used in a SceneView. See the ElevationInfo sample for an example of how this property may be used.
The elevation info only affects ImageryTileLayer if the renderer is set to FlowRenderer and applies on-the-ground mode if it is null.
The relative-to-scene mode does not affect ImageryTileLayer.
ElevationInfo.featureExpressionInfo is not supported when the elevation info is specified for this class.
If the elevation info is not specified, the effective elevation depends on the context and could vary per point.
fullExtent
The full extent of the layer. By default, this is worldwide. This property may be used to set the extent of the view to match a layer's extent so that its features appear to fill the view. See the sample snippet below.
The fullExtent property is always null for GroupLayer.
Example
// Once the layer loads, set the view's extent to the layer's full extentlayer.when(function(){ view.extent = layer.fullExtent;}); interpolation
- Type
- RasterInterpolation
Defines how to interpolate pixel values. By default, this will be set to the service's resampling method,
if it has one. If the service does not have a default resampling method, the bilinear resampling will be used in
most cases, and nearest interpolation type will be used for thematic data source.
legendEnabled
- Type
- boolean
Indicates whether the layer will be included in the legend. When false, the layer will be excluded from the legend.
- Default value
- true
listMode
- Type
- LayerListMode
Indicates how the layer should display in the Layer List component. The possible values are listed below.
| Value | Description |
|---|---|
| show | The layer is visible in the table of contents. |
| hide | The layer is hidden in the table of contents. |
| hide-children | If the layer is a GroupLayer, BuildingSceneLayer, KMLLayer, MapImageLayer, SubtypeGroupLayer, TileLayer, or WMSLayer, hide the children layers from the table of contents. |
- Default value
- "show"
loadError
The Error object returned if an error occurred while loading.
loadStatus
- Type
- "not-loaded" | "loading" | "failed" | "loaded"
Represents the status of a load() operation.
| Value | Description |
|---|---|
| not-loaded | The object's resources have not loaded. |
| loading | The object's resources are currently loading. |
| loaded | The object's resources have loaded without errors. |
| failed | The object's resources failed to load. See loadError for more details. |
- Default value
- "not-loaded"
loadWarnings
- Type
- any[]
A list of warnings which occurred while loading.
maxScale
- Type
- number
The maximum scale (most zoomed in) at which the layer is visible in the view.
If the map is zoomed in beyond this scale, the layer will not be visible.
A value of 0 means the layer does not have a maximum scale.
The maxScale value should always be smaller than the minScale value,
and greater than or equal to the service specification.
- Default value
- 0
Examples
// The layer will not be visible when the view is zoomed in beyond a scale of 1:1,000layer.maxScale = 1000;// The layer's visibility is not restricted to a maximum scale.layer.maxScale = 0; minScale
- Type
- number
The minimum scale (most zoomed out) at which the layer is visible in the view.
If the map is zoomed out beyond this scale, the layer will not be visible.
A value of 0 means the layer does not have a minimum scale.
The minScale value should always be larger than the maxScale value,
and lesser than or equal to the service specification.
- Default value
- 0
Examples
// The layer will not be visible when the view is zoomed out beyond a scale of 1:3,000,000layer.minScale = 3000000;// The layer's visibility is not restricted to a minimum scale.layer.minScale = 0; multidimensionalDefinition
- Type
- DimensionalDefinition[] | null | undefined
- Since
- ArcGIS Maps SDK for JavaScript 4.20
The multidimensional definitions associated with the layer. Filters the layer by slicing data along defined variables and dimensions such as time, depth, altitude, etc. For example, you can display a particular variable such as temperature or salinity measured at a fixed dimension (e.g. time, depth).
Examples
// set the `multidimensionalDefinition` to visualize a sea water// temperature at -5000m on April 7th 2014.const dimension = [ { variableName: "temperature", dimensionName: "Std_Time", values: [1396828800000] }, { variableName: "temperature", dimensionName:"Std_Z", values:[-5000] }];layer.multidimensionalDefinition = dimension;// get the layer's multidimensionalDefinition and locate the// Salinity dimension and filter the data by salinity.const multidimensionalDefinition = layer.multidimensionalDefinition;const variableName = "Salinity";// filter the data by salinity dimensionmultidimensionalDefinition.forEach((def) => def.variableName = variableName);layer.multidimensionalDefinition = multidimensionalDefinition;
// update the statistics of the layer's stretch renderer.const renderer = layer.renderer.clone();const dimensions = layer.serviceRasterInfo.multidimensionalInfo;// get the salinity variable's statisticsconst salinity = dimensions.variables.find((variable) => variable.name === variableName);renderer.customStatistics = salinity.statistics;layer.renderer = renderer; multidimensionalSubset
- Type
- MultidimensionalSubset | null | undefined
- Since
- ArcGIS Maps SDK for JavaScript 4.25
Represents a multidimensional subset of raster data. This includes subsets of both variables and dimensions. When the multidimensionalSubset is defined on a layer, the multidimensionalDefinition must be within the defined multidimensionalSubset, otherwise nothing will be displayed.
Example
// set a multidimensionalSubset on the imagery tile layer// so that users can only access wind magnitude and direction data// between Jan 1 - 19, 2011.const multidimensionalSubset = new MultidimensionalSubset({ subsetDefinitions: [ { variableName: "wind_magdir", dimensionName: "StdTime", values: [1293876000000, 1295395200000], // 1/1/11 - 11/19/11 isSlice: false } ]});layer.multidimensionalSubset = multidimensionalSubset; opacity
- Type
- number
The opacity of the layer. This value can range between 1 and 0, where 0 is 100 percent
transparent and 1 is completely opaque.
Known Limitations
In a 3D SceneView, modifying opacity is not supported for DimensionLayer, GaussianSplatLayer, IntegratedMesh3DTilesLayer, IntegratedMeshLayer, LineOfSightLayer, PointCloudLayer, ViewshedLayer, and VoxelLayer.
- Default value
- 1
Example
// Makes the layer 50% transparentlayer.opacity = 0.5; parent
- Type
- Map | Basemap | Ground | GroupLayer | CatalogDynamicGroupLayer | CatalogLayer | null | undefined
- Since
- ArcGIS Maps SDK for JavaScript 4.27
The parent to which the layer belongs.
persistenceEnabled
- Type
- boolean
- Default value
- true
popupEnabled
- Type
- boolean
Indicates whether to display popups when features in the layer are clicked.
- Default value
- true
popupTemplate
- Type
- PopupTemplate | null | undefined
The popup template for the layer. When set on the layer, the popupTemplate allows users to access attributes and display their values using text and/or charts in the view's popup when a pixel is clicked. See this sample for an example of how PopupTemplate interacts with an ImageryTileLayer.
A default popup template is automatically used if no popupTemplate has been defined when
Popup.defaultPopupTemplateEnabled
is set to true.
portalItem
- Type
- PortalItem | null | undefined
The portal item from which the layer is loaded. If the portal item references
a feature or scene service, then you can specify a single layer
to load with the layer's layerId property.
Loading non-spatial tables
Non-spatial tables can be loaded from service items hosted in ArcGIS Online and ArcGIS Enterprise. This only applies to:
- FeatureLayer if the layer's isTable returns
trueat version 4.17. - SubtypeGroupLayer if the layer's isTable returns
trueat version 4.32.
Examples
// While this example uses FeatureLayer, this same pattern can be// used for other layers that may be loaded from portalItem ids.const layer = new FeatureLayer({ portalItem: { // autocasts as new PortalItem() id: "caa9bd9da1f4487cb4989824053bb847" } // the first layer in the service is returned});// Set hostname when using an on-premise portal (default is ArcGIS Online)// esriConfig.portalUrl = "http://myHostName.esri.com/arcgis";
// While this example uses FeatureLayer, this same pattern can be// used for SceneLayers.const layer = new FeatureLayer({ portalItem: { // autocasts as new PortalItem() id: "8d26f04f31f642b6828b7023b84c2188" }, // loads the third item in the given feature service layerId: 2});// Initialize GeoJSONLayer by referencing a portalItem id pointing to geojson file.const layer = new GeoJSONLayer({ portalItem: new PortalItem({ id: "81e769cd7031482797e1b0768f23c7e1", // optionally define the portal, of the item. // if not specified, the default portal defined is used. // see https://developers.arcgis.com/javascript/latest/references/core/config/#portalUrl portal: new Portal({ url: "https://jsapi.maps.arcgis.com/" }) }});// This snippet loads a table hosted in ArcGIS Online.const table = new FeatureLayer({ portalItem: { // autocasts as esri/portal/PortalItem id: "123f4410054b43d7a0bacc1533ceb8dc" }});
// Before adding the table to the map, it must first be loaded and confirm it is the right type.table.load().then(() => { if (table.isTable) { map.tables.add(table); }});// While this example uses FeatureLayer, this same pattern can be// used for other layers that may be loaded from portalItem ids.const layer = new FeatureLayer({ portalItem: { // autocasts as esri/portal/PortalItem id: "caa9bd9da1f4487cb4989824053bb847", // Set an API key to access a secure portal item configured with API key authentication. apiKey: "APIKEY" }}); presetRenderers
- Type
- RasterPresetRenderer[] | null | undefined
- Since
- ArcGIS Maps SDK for JavaScript 4.31
A list of preset renderers that defines a preferred renderer for a given multidimensional variable, a given raster function template, or an additional generic predefined renderer.
rasterFields
- Type
- Field[]
- Since
- ArcGIS Maps SDK for JavaScript 4.20
A complete list of fields that consists of service pixel value and vector fields. This list is used for layer's popupTemplate.
It is essential in many imagery workflows to show pixel values and related categorical information (if applicable) in a popup.
To meet this requirement, there're additional raster fields used in image service popups, representing pixel values and corresponding attributes
if the service has additional rasterAttributeTable resource. These raster fields are prefixed with Raster. to indicate that they are special fields and avoid
any potential conflict with fields from service info.
Below is a list of raster fields that return different types of pixel values and their descriptions.
Service pixel value
The Raster.ServicePixelValue field returns a pixel value based on the layer's rasterFunction at the identifying location.
The Raster.ServicePixelValue.Raw field returns a pixel value from the source at the identifying location without a raster function.
These fields exist for all image services.
Vector fields
The Raster.Magnitude and Raster.Direction fields return magnitude and direction values from a multidimensional dataset with a vector field.
Multidimensional fields
Since 4.32. For multidimensional data, the Raster.Variable field returns current variable used by the layer.
Additional dimension fields are used to return corresponding dimension values, e.g. Raster.Dim.StdTime, Raster.Dim.StdZ.
When a dimension is ranged, there will be a corresponding maximum dimension value field.
For instance, a multidimensional data record representing average sea temperature during 02/12/2025 and 02/13/2025.
In this example, Raster.Dim.StdTime is 02/12/2025, Raster.Dim.StdTime.Max is 02/13/2025.
Example
layer.when(() => { // print out field names returned in layer.rasterFields layer.rasterFields.forEach((field) => { console.log(field.name); });}); rasterFunction
- Type
- RasterFunction | null | undefined
- Since
- ArcGIS Maps SDK for JavaScript 4.26
The client-side raster functions are operations that apply processing directly to the source image pixels. The calculations are only applied to the source pixels that are visible in the map as you pan and zoom within the map.
There are many of out-of-the-box raster functions that can be used for radiometric enhancement, data management, visualization, and analysis. These raster functions can be applied individually or combined to create function chains to be shared as raster function templates (RFTs). Refer to Client-side raster function app to see a list of client-side raster functions.
Use helper functions from the rasterFunctionUtils module when creating raster functions that apply to ImageryTileLayers.
The rasterFunctionConstants module provides constant values that can be used as parameters of different raster functions when
setting the layer's rasterFunction.
Examples
// apply NDVI and colormap raster function to an imagery tile layer// use rasterFunctionUtils convenience methods to create raster functionsconst ndvi = rasterFunctionUtils.bandArithmeticNDVI({ nirBandId: 4, redBandId: 3, scientificOutput: false});
const colormap = rasterFunctionUtils.colormap({ colorRampName: "NDVI3", raster: ndvi});layer.rasterFunction = colormap;function createRasterFunction() { // processed bands from the imagery tile layer const rasters = [weightedRoadDistance, weightedProtectedStatus, weightedTerrainRuggedness, weightedLandCover, 0.25]; const sumFunction = new RasterFunction({ functionName: "Local", functionArguments: { operation: rasterFunctionTypes.cellStatisticalOperation.sum, rasters }, outputPixelType: "u8" });
const colormapFunction = new RasterFunction({ functionName: "Colormap", functionArguments: { colormap: [[0, 0, 0, 255], [1, 56, 168, 0], [2, 141, 212, 0], [3, 255, 255, 0], [4, 255, 128, 0], [5, 255, 0, 0]], raster: sumFunction }, outputPixelType: "u8" }); return colormapFunction;}
// clear renderer to use the default renderer for the new functionlayer.renderer = null;layer.rasterFunction = createRasterFunction(); refreshInterval
- Type
- number
Refresh interval of the layer in minutes. Value of 0 indicates no refresh.
- Default value
- 0
Example
// the layer will be refreshed every minute.layer.refreshInterval = 1; renderer
- Type
- RasterRendererUnion | null | undefined
The client-side renderer assigned to the layer. The renderer defines how to visualize pixels in the tile imagery layer. Depending on the renderer type, the pixels may be stretched across the color ramp, classified, have different symbols based on values, or show shaded reliefs.
Known Limitations
Currently, the VectorFieldRenderer is not supported in 3D SceneView.
- See also
screenSizePerspectiveEnabled
- Type
- boolean
- Since
- ArcGIS Maps SDK for JavaScript 4.34
Apply perspective scaling to screen-size symbols in a SceneView.
When true, screen sized objects such as streamlines from a FlowRenderer
integrate better in the 3D scene by applying a certain perspective projection to the size.
This only applies when using a SceneView.
Known Limitations
Screen size perspective is currently not optimized for situations where the camera is very near the ground, or for scenes with visual elements located far from the ground surface. In these cases it may be better to turn off screen size perspective.
- Default value
- true
serviceRasterInfo
- Type
- RasterInfo | null | undefined
- Since
- ArcGIS Maps SDK for JavaScript 4.29
Raster information retrieved from tiled imagery data source.
source
- Since
- ArcGIS Maps SDK for JavaScript 4.29
The data source for client-side ImageryTileLayer can be a coverage JSON object or PixelData. Once the layer is loaded, the data source is stored in memory. See Creating ImageryTileLayer from CoverageJSON section for more information.
sourceJSON
The tiled image service's metadata JSON exposed by the ArcGIS REST API. While most commonly used properties are exposed on the ImageryTileLayer class directly, this property gives access to all information returned by the tiled image service. This property is useful if working in an application built using an older version of the API which requires access to image service properties from a more recent version.
spatialReference
- Type
- SpatialReference
- Since
- ArcGIS Maps SDK for JavaScript 4.33
The spatial reference of the layer.
timeExtent
- Type
- TimeExtent | null | undefined
- Since
- ArcGIS Maps SDK for JavaScript 4.22
The layer's time extent. When the layer's useViewTime is false, the layer
instructs the view to show data from the layer based on this time extent.
If the useViewTime is true, and both layer and view time extents are set, then features that fall within
the intersection of the view and layer time extents will be displayed.
For example, if the layer's time extent is set to display features between 1970 and 1975 and
the view has a time extent set to 1972-1980, the effective time on the feature layer will be 1972-1975.
Examples
if (!layer.useViewTime) { if (layer.timeExtent) { console.log("Current timeExtent:", layer.timeExtent.start, " - ", layer.timeExtent.end} } else { console.log("The layer will display data within the view's timeExtent."); console.log("Current view.timeExtent:", view.timeExtent.start, " - ", view.timeExtent.end} }}// set the timeExtent on the layer and useViewTime false// In this case, the layer will honor its timeExtent and ignore// the view's timeExtentconst layer = new ImageryTileLayer({ url: "https://tiledimageservices.arcgis.com/V6ZHFr6zdgNZuVG0/arcgis/rest/services/NLDAS2011_daily_wind_magdir/ImageServer", timeExtent: { start: new Date(2014, 4, 18), end: new Date(2014, 4, 19) }, useViewTime: false});// timeExtent is set on the layer and the view// In this case, the layer will display features that fall// within the intersection of view and layer time extents// features within Jan 1, 1976 - Jan 1, 1981 will be displayedconst view = new MapView({ timeExtent: { start: new Date(1976, 0, 1), end: new Date(2002, 0, 1) }});const layer = new FeatureLayer({ url: myUrl, timeExtent: { start: new Date(1974, 0, 1), end: new Date(1981, 0, 1) }}); timeInfo
- Since
- ArcGIS Maps SDK for JavaScript 4.22
TimeInfo provides information such as date fields that store start and end time for each feature and the TimeInfo.fullTimeExtent for the layer.
timeOffset
- Type
- TimeInterval | null | undefined
- Since
- ArcGIS Maps SDK for JavaScript 4.22
A temporary offset of the time data based on a certain TimeInterval. This allows users to overlay features from two or more time-aware layers with different time extents. For example, if a layer has data recorded for the year 1970, an offset value of 2 years would temporarily shift the data to 1972. You can then overlay this data with data recorded in 1972. A time offset can be used for display purposes only. The query and selection are not affected by the offset.
Example
// Offset a CSV Layer containing hurricanes from 2015 so that they appear in 2019 (+4 years).let layer = new CSVLayer({ url: `hurricanes-and-storms-2015.csv`, timeOffset: { value: 4, unit: "years" }, timeInfo: { startField: "ISO_time" }, renderer: { type: "simple", symbol: { type: "simple-marker", size: 6, color: "red", outline: { width: 0.5, color: "black" } } }}); title
The title of the layer used to identify it in places such as the Legend and Layer List.
When loading a layer by service url, the title is derived from the service name. If the service has several layers, then the title of each layer will be the concatenation of the service name and the layer name. When the layer is loaded from a portal item, the title of the portal item will be used instead. Finally, if a layer is loaded as part of a webmap or a webscene, then the title of the layer as stored in the webmap/webscene will be used.
uid
- Type
- string
- Since
- ArcGIS Maps SDK for JavaScript 4.33
An automatically generated unique identifier assigned to the instance. The unique id is generated each time the application is loaded.
url
- Type
- string
The URL of the REST endpoint of the layer. The URL may either point to a resource on ArcGIS Enterprise or ArcGIS Online.
Release specific changes:
- At version 4.25, an ImageryTileLayer can be created by setting the url property to point to a Cloud Optimized GeoTIFF (COG) file. See Referencing Cloud Optimized GeoTiff URL section for more information.
- At version 4.29, an ImageryTileLayer can be created by setting the url property to point to a coverage json file.
useViewTime
- Type
- boolean
- Since
- ArcGIS Maps SDK for JavaScript 4.22
Determines if the layer will update its temporal data based on the view's
View.timeExtent. When false, the layer will display its temporal
data based on the layer's timeExtent, regardless of changes to the view.
If both view and layer time extents are set while this property is true, then the features that fall within
the intersection of the view and layer time extents will be displayed.
For example, if a layer's time extent is set to display features between 1970 and 1975 and
the view has a time extent set to 1972-1980, the effective time on the feature layer will be 1972-1975.
- Default value
- true
Example
if (featureLayer.useViewTime) { console.log("Displaying data between:", view.timeExtent.start, " - ", view.timeExtent.end);} visibilityTimeExtent
- Type
- TimeExtent | null | undefined
- Since
- ArcGIS Maps SDK for JavaScript 4.30
Specifies a fixed time extent during which a layer should be visible. This property can be used to configure a layer that does not have time values stored in an attribute field to work with time. Once configured, the TimeSlider widget will display the layer within the set time extent. In the case that only one of the TimeExtent.start or TimeExtent.end date values are available, the layer remains visible indefinitely in the direction where there is no time value.
Aerial imagery can capture seasonal variations in vegetation, water bodies, and land use patterns. For example, in agricultural regions, aerial imageries taken during different growing seasons provide insights into crop health and productivity. Defining a fixed time extent on imageries from specific time periods provides temporal context and facilitates focused analysis based on specific time periods or events.
visible
- Type
- boolean
Indicates if the layer is visible in the View. When false,
the layer may still be added to a Map
instance that is referenced in a view, but its features will not be visible in the view.
- Default value
- true
Example
// The layer is no longer visible in the viewlayer.visible = false;
// Watch for changes in the layer's visibility// and set the visibility of another layer when it changesreactiveUtils.watch( () => layer.visible, (visible) => { if (visible) { anotherLayer.visible = true; } else { anotherLayer.visible = false; } });Methods
| Method | Signature | Class |
|---|---|---|
fromArcGISServerUrl inherited static | fromArcGISServerUrl(params: string | FromArcGISServerUrlParameters): Promise<Layer> | |
fromPortalItem inherited static | fromPortalItem(params: LayerFromPortalItemParameters): Promise<Layer> | |
cancelLoad inherited | cancelLoad(): this | |
clone inherited | clone(): this | |
computeStatisticsHistograms(parameters: ImageHistogramParameters | ImageHistogramParametersProperties, requestOptions?: RequestOptions): Promise<ImageServiceStatisticsHistogramsResult> | | |
createLayerView inherited | createLayerView<T extends LayerView = LayerView>(view: View<T>, options?: AbortOptions): Promise<T> | |
createPopupTemplate(options?: CreatePopupTemplateOptions): PopupTemplate | null | undefined | | |
destroy inherited | destroy(): void | |
emit inherited | emit<Type extends EventNames<this>>(type: Type, event?: this["@eventTypes"][Type]): boolean | |
fetchAttributionData inherited | fetchAttributionData(): Promise<any> | |
fetchPixels inherited | fetchPixels(extent: Extent, width: number, height: number, options?: FetchRasterOptions): Promise<any> | |
fetchTile(level: number, row: number, col: number, options?: FetchRasterOptions): Promise<any> | | |
generateRasterInfo(rasterFunction: RasterFunction | RasterFunctionProperties | null | undefined, options?: AbortOptions): Promise<RasterInfo> | | |
getSamples inherited | getSamples(parameters: ImageSampleParameters | ImageSampleParametersProperties, requestOptions?: RequestOptions): Promise<ImageSampleResult> | |
hasEventListener inherited | hasEventListener<Type extends EventNames<this>>(type: Type): boolean | |
identify inherited | identify(point: Point | PointProperties, options?: RasterIdentifyOptions): Promise<RasterIdentifyResult> | |
isFulfilled inherited | isFulfilled(): boolean | |
isRejected inherited | isRejected(): boolean | |
isResolved inherited | isResolved(): boolean | |
load inherited | load(options?: AbortOptions | null | undefined): Promise<this> | |
on inherited | on<Type extends EventNames<this>>(type: Type, listener: EventedCallback<this["@eventTypes"][Type]>): ResourceHandle | |
refresh inherited | refresh(): void | |
save(options?: LayerSaveOptions): Promise<PortalItem> | | |
saveAs(portalItem: PortalItemProperties, options?: LayerSaveAsOptions): Promise<PortalItem> | | |
when inherited | when<TResult1 = this, TResult2 = never>(onFulfilled?: OnFulfilledCallback<this, TResult1> | null | undefined, onRejected?: OnRejectedCallback<TResult2> | null | undefined): Promise<TResult1 | TResult2> |
fromArcGISServerUrl
- Signature
-
fromArcGISServerUrl (params: string | FromArcGISServerUrlParameters): Promise<Layer>
Creates a new layer instance from an ArcGIS Server URL. Depending on the URL, the returned layer type may be a BuildingSceneLayer, CatalogLayer, ElevationLayer, FeatureLayer, GroupLayer, ImageryLayer, ImageryTileLayer, IntegratedMeshLayer, KnowledgeGraphLayer, MapImageLayer, OrientedImageryLayer, PointCloudLayer, SceneLayer, StreamLayer, SubtypeGroupLayer, TileLayer, or VideoLayer.
This is useful when you work with various ArcGIS Server URLs, but you don't necessarily know which layer type(s) they create. This method creates the appropriate layer type for you. In case of a feature service or a scene service, when the URL points to the service and the service has multiple layers, the returned promise will resolve to a GroupLayer.
Beginning with version 4.17, it is possible to load tables from hosted feature services.
This only applies to feature layers, and will successfully load if FeatureLayer.isTable returns true.
The following table details what is returned when loading specific URL types.
| URL | Returns |
|---|---|
| Feature service with one layer | FeatureLayer where FeatureLayer.isTable returns false. |
| Feature service with one table | FeatureLayer where FeatureLayer.isTable returns true. |
| Feature service with more than one layer(s)/table(s) | GroupLayer with layers and tables. |
| Layers with type other than "Feature Layer" are discarded, e.g. Utility Network Layers | N/A |
- See also
Parameters
| Parameter | Type | Description | Required |
|---|---|---|---|
| params | Input parameters for creating the layer. | |
Examples
// This snippet shows how to add a feature layer from an ArcGIS Server URL// Get an ArcGIS Server URL from a custom functionconst arcgisUrl = getLayerUrl();
Layer.fromArcGISServerUrl({ url: arcgisUrl, properties: { // set any layer properties here popupTemplate: new PopupTemplate() }}).then(function(layer){ // add the layer to the map map.add(layer);});// This snippet shows how to add a table from an ArcGIS Server URL// Get an ArcGIS Server URL from a custom functionconst arcgisUrl = getLayerUrl();
Layer.fromArcGISServerUrl({ url: arcgisUrl}).then(function(layer){ // Load the table before it can be used layer.load().then(function() { // Check that it is the right type if (layer.isTable) { // Add table to map's tables collection map.tables.add(layer); } });}); fromPortalItem
- Signature
-
fromPortalItem (params: LayerFromPortalItemParameters): Promise<Layer>
Creates a new layer instance of the appropriate layer class from an ArcGIS Online or ArcGIS Enterprise portal item. If the item points to a feature service with multiple layers, then a GroupLayer is created. If the item points to a service with a single layer, then it resolves to a layer of the same type of class as the service.
Note
- At version 4.29, MediaLayer can be loaded from portal items.
- At version 4.28, GroupLayer and OrientedImageryLayer can be loaded from portal items.
- At version 4.25, CSVLayer and GeoJSONLayer can be loaded from CSV and GeoJSON portal items respectively.
- At version 4.17, it is possible to load tables from feature service items hosted in ArcGIS Online and ArcGIS Enterprise.
This only applies to feature layers, and will successfully load
if FeatureLayer.isTable returns
true.
The following table details what is returned when loading specific item types.
| Item(s) | Returns |
|---|---|
| Feature service with one layer | FeatureLayer where FeatureLayer.isTable returns false. |
| Feature service with one table | FeatureLayer where FeatureLayer.isTable returns true. |
| Feature service with more than one layer(s)/table(s) | GroupLayer with layers and tables. |
| Feature collection with one layer | FeatureLayer where FeatureLayer.isTable returns false. |
| Feature collection with one table | FeatureLayer where FeatureLayer.isTable returns true. |
| Feature collection with more than one layer(s)/table(s) | GroupLayer with layers and tables. |
Known Limitations
- This method does not currently work with OGCFeatureServer portal items.
Parameters
| Parameter | Type | Description | Required |
|---|---|---|---|
| params | The parameters for loading the portal item. | |
Examples
// Create a layer from a specified portal item and add to the mapLayer.fromPortalItem({ portalItem: { // autocasts new PortalItem() id: "8444e275037549c1acab02d2626daaee" }}).then(function(layer){ // add the layer to the map map.add(layer);});// Create a table from a specified portal item and add it to the map's tables collectionLayer.fromPortalItem({ portalItem: { // autocasts new PortalItem() id: "123f4410054b43d7a0bacc1533ceb8dc" // This is a hosted table stored in a feature service }}).then(function(layer) { // Necessary to load the table in order for it to be read correctly layer.load().then(function() { // Confirm this reads as a table if (layer.isTable) { // Add the new table to the map's table collection map.tables.add(layer); } });}); cancelLoad
- Signature
-
cancelLoad (): this
Cancels a load() operation if it is already in progress.
- Returns
- this
clone
- Signature
-
clone (): this
Creates a deep clone of this object. Any properties that store values by reference will be assigned copies of the referenced values on the cloned instance.
- Returns
- this
A deep clone of the class instance that invoked this method.
computeStatisticsHistograms
- Signature
-
computeStatisticsHistograms (parameters: ImageHistogramParameters | ImageHistogramParametersProperties, requestOptions?: RequestOptions): Promise<ImageServiceStatisticsHistogramsResult>
- Since
- ArcGIS Maps SDK for JavaScript 4.27
Computes statistics and histograms for the provided ImageHistogramParameters. Only ImageHistogramParameters.geometry and a ImageHistogramParameters.pixelSize parameters are supported for ImageryTileLayer.
The result of this operation contains both statistics and histograms computed for the given extent or polygon. Note that the given extent or polygon is first projected to the spatial reference of the service, then the source pixels are requested at the specified resolution for the projected geometry's extent. The statistics and histogram are then computed based on the source pixel's values.
Parameters
| Parameter | Type | Description | Required |
|---|---|---|---|
| parameters | Specifies parameters for computing statistics and histograms. | | |
| requestOptions | Additional options to be used for the data request (will override requestOptions defined during construction). | |
- Returns
- Promise<ImageServiceStatisticsHistogramsResult>
Resolves to an object containing histogram and statistics results. See the object specification table below for details.
Property Type Description histograms[] RasterHistogram Result containing raster histograms. statistics[] RasterBandStatistics Raster band statistics.
Example
// set the pixel size parameter to match the current// resolution of the view and spatial referencelet pixelSize = { x:view.resolution, y:view.resolution, spatialReference: { wkid: view.spatialReference.wkid }}// set the histogram parameters to request// data for the current view extent and resolutionlet params = new ImageHistogramParameters({ geometry: view.extent, pixelSize: pixelSize});
// request for histograms and statistics for the specified parameterslayer.computeStatisticsHistograms(params).then(function(results){ // results are returned and process it as needed. console.log("histograms and stats", results);}).catch(function(err){ console.log("err", err)}); createLayerView
- Signature
-
createLayerView <T extends LayerView = LayerView>(view: View<T>, options?: AbortOptions): Promise<T>
Called by the views, such as MapView and SceneView, when the layer is added to the Map.layers collection and a layer view must be created for it. This method is used internally and there is no use case for invoking it directly.
- See also
Parameters
| Parameter | Type | Description | Required |
|---|---|---|---|
| view | The parent view. | | |
| options | An object specifying additional options. See the object specification table below for the required properties of this object. | |
createPopupTemplate
- Signature
-
createPopupTemplate (options?: CreatePopupTemplateOptions): PopupTemplate | null | undefined
Creates a default popup template for the layer, populated with all the fields of the layer.
Parameters
| Parameter | Type | Description | Required |
|---|---|---|---|
| options | Options for creating the popup template. | |
- Returns
- PopupTemplate | null | undefined
The popup template, or
nullif the layer does not have any fields.
destroy
- Signature
-
destroy (): void
- Since
- ArcGIS Maps SDK for JavaScript 4.17
Destroys the layer and any associated resources (including its portalItem, if it is a property on the layer). The layer can no longer be used once it has been destroyed.
The destroyed layer will be removed from its parent object like Map, WebMap, WebScene, Basemap, Ground, or GroupLayer.
- Returns
- void
emit
- Signature
-
emit <Type extends EventNames<this>>(type: Type, event?: this["@eventTypes"][Type]): boolean
- Type parameters
- <Type extends EventNames<this>>
Emits an event on the instance. This method should only be used when creating subclasses of this class.
fetchPixels
- Signature
-
fetchPixels (extent: Extent, width: number, height: number, options?: FetchRasterOptions): Promise<any>
- Since
- ArcGIS Maps SDK for JavaScript 4.19
Fetches pixels for a given extent.
Parameters
| Parameter | Type | Description | Required |
|---|---|---|---|
| extent | The extent of the image to export. | | |
| width | The width of the image in pixels. | | |
| height | The height of the image in pixels. | | |
| options | The parameter options is an object with the following properties. | |
- Returns
- Promise<any>
Resolves to an object containing the parameters of the exported pixels including PixelBlock. The
pixelBlockcontains the value of each pixel in the image.
fetchTile
- Signature
-
fetchTile (level: number, row: number, col: number, options?: FetchRasterOptions): Promise<any>
This method fetches a tile for the given level, row and column present in the view.
Parameters
| Parameter | Type | Description | Required |
|---|---|---|---|
| level | Level of detail of the tile to fetch. This value is provided by LayerView. | | |
| row | The row (y) position of the tile fetch. This value is provided by LayerView. | | |
| col | The column (x) position of the tile to fetch. This value is provided by LayerView. | | |
| options | Optional settings for the tile request. | |
- Returns
- Promise<any>
Returns a promise that resolves to an object containing pixel block and source extent.
generateRasterInfo
- Signature
-
generateRasterInfo (rasterFunction: RasterFunction | RasterFunctionProperties | null | undefined, options?: AbortOptions): Promise<RasterInfo>
- Since
- ArcGIS Maps SDK for JavaScript 4.31
Generates a new raster info for the specified client side raster function.
Parameters
| Parameter | Type | Description | Required |
|---|---|---|---|
| rasterFunction | Raster function for the requested raster info. | | |
| options | An object with the following properties. | |
- Returns
- Promise<RasterInfo>
When resolved, a RasterInfo containing info specific to the requested raster function is returned.
getSamples
- Signature
-
getSamples (parameters: ImageSampleParameters | ImageSampleParametersProperties, requestOptions?: RequestOptions): Promise<ImageSampleResult>
- Since
- ArcGIS Maps SDK for JavaScript 4.33
Returns sample point locations, pixel values and corresponding resolutions of the source data for a given geometry. When the input geometry is a Polyline, Extent, or Polygon, the sampling is based on ImageSampleParameters.sampleCount or ImageSampleParameters.sampleDistance parameters. When the geometry is a Point or Multipoint, the point or points are used directly.
The number of sample locations in the response is based on the sampleDistance or sampleCount parameter and the maximum is 1000.
Parameters
| Parameter | Type | Description | Required |
|---|---|---|---|
| parameters | The parameters used in the getSamples operation. | | |
| requestOptions | Additional options to be used for the data request (will override requestOptions defined during construction). | |
- Returns
- Promise<ImageSampleResult>
When resolved, ImageSampleResult is returned containing an array of ImageSamples.
Example
// get all sample points along a polyline// at the specified sample distance and pixel sizeconst param = { geometry: polyline returnFirstValueOnly: false, interpolation: "nearest", // unit of the geometry's spatial reference is used sampleDistance: 30, outFields: ["*"]};imageryLayer.getSamples(param).then((results) => { // use the getSamples results as needed. console.log(results);}).catch(function(error){ console.log(error)}) hasEventListener
- Signature
-
hasEventListener <Type extends EventNames<this>>(type: Type): boolean
- Type parameters
- <Type extends EventNames<this>>
Indicates whether there is an event listener on the instance that matches the provided event name.
Parameters
| Parameter | Type | Description | Required |
|---|---|---|---|
| type | Type | The name of the event. | |
- Returns
- boolean
Returns true if the class supports the input event.
identify
- Signature
-
identify (point: Point | PointProperties, options?: RasterIdentifyOptions): Promise<RasterIdentifyResult>
Identify pixel values at a given location. This method identifies the content of an image service for the input location and in a specified dimensional definition.
Starting at version 4.25, the identify method returns pixel values from specific dimensional definitions for a transposed multidimensional service
referenced in an ImageryTileLayer. Set the transposedVariableName parameter along with the multidimensionalDefinition to get pixel values
from specific dimensional slices. To get pixel values from all dimensional slices, just set the transposedVariableName.
The ImageryTileLayer's serviceRasterInfo.hasMultidimensionalTranspose property must be true when setting the transposedVariableName parameter.
Parameters
| Parameter | Type | Description | Required |
|---|---|---|---|
| point | Input point that defines the location to be identified. | | |
| options | Optional settings for the identify request.
At version 4.25, the | |
- Returns
- Promise<RasterIdentifyResult>
Returns a promise that resolves to a RasterIdentifyResult containing a location and pixel values. The identify returns a value for only one slice at a time for WCSLayer.identify() and for non-transposed multidimensional ImageryTileLayer.identify(). If the
transposedVariableNameparameter is set for the transposed multidimensional ImageryTileLayer, the result returns all pixel values from all multidimensional slices.
isFulfilled
- Signature
-
isFulfilled (): boolean
isFulfilled() may be used to verify if creating an instance of the class is fulfilled (either resolved or rejected).
If it is fulfilled, true will be returned.
- Returns
- boolean
Indicates whether creating an instance of the class has been fulfilled (either resolved or rejected).
isRejected
- Signature
-
isRejected (): boolean
isRejected() may be used to verify if creating an instance of the class is rejected.
If it is rejected, true will be returned.
- Returns
- boolean
Indicates whether creating an instance of the class has been rejected.
isResolved
- Signature
-
isResolved (): boolean
isResolved() may be used to verify if creating an instance of the class is resolved.
If it is resolved, true will be returned.
- Returns
- boolean
Indicates whether creating an instance of the class has been resolved.
load
- Signature
-
load (options?: AbortOptions | null | undefined): Promise<this>
Loads the resources referenced by this class. This method automatically executes for a View and all of the resources it references in Map if the view is constructed with a map instance.
This method must be called by the developer when accessing a resource that will not be loaded in a View.
The load() method only triggers the loading of the resource the first time it is called. The subsequent calls return the same promise.
It's possible to provide a signal to stop being interested into a Loadable instance load status.
When the signal is aborted, the instance does not stop its loading process, only cancelLoad() can abort it.
on
- Signature
-
on <Type extends EventNames<this>>(type: Type, listener: EventedCallback<this["@eventTypes"][Type]>): ResourceHandle
- Type parameters
- <Type extends EventNames<this>>
Registers an event handler on the instance. Call this method to hook an event with a listener.
Parameters
| Parameter | Type | Description | Required |
|---|---|---|---|
| type | Type | An event or an array of events to listen for. | |
| listener | EventedCallback<this["@eventTypes"][Type]> | The function to call when the event fires. | |
- Returns
- ResourceHandle
Returns an event handler with a
remove()method that should be called to stop listening for the event(s).Property Type Description remove Function When called, removes the listener from the event.
Example
view.on("click", function(event){ // event is the event handle returned after the event fires. console.log(event.mapPoint);}); refresh
- Signature
-
refresh (): void
Fetches all the data for the layer.
- Returns
- void
save
- Signature
-
save (options?: LayerSaveOptions): Promise<PortalItem>
- Since
- ArcGIS Maps SDK for JavaScript 4.28
Saves the layer to its existing portal item in the Portal authenticated within the user's current session. If the layer is not saved to a PortalItem, then you should use saveAs().
Parameters
| Parameter | Type | Description | Required |
|---|---|---|---|
| options | Various options for saving the layer. | |
- Returns
- Promise<PortalItem>
When resolved, returns the portal item to which the layer is saved.
Example
const portalItem = await layer.save(); saveAs
- Signature
-
saveAs (portalItem: PortalItemProperties, options?: LayerSaveAsOptions): Promise<PortalItem>
- Since
- ArcGIS Maps SDK for JavaScript 4.28
Saves the layer to a new portal item in the Portal authenticated within the user's current session.
Parameters
| Parameter | Type | Description | Required |
|---|---|---|---|
| portalItem | The portal item to which the layer will be saved. | | |
| options | Various options for saving the layer. | |
- Returns
- Promise<PortalItem>
When resolved, returns the portal item to which the layer is saved.
Example
const portalItem = new PortalItem();await layer.saveAs(portalItem); when
- Signature
-
when <TResult1 = this, TResult2 = never>(onFulfilled?: OnFulfilledCallback<this, TResult1> | null | undefined, onRejected?: OnRejectedCallback<TResult2> | null | undefined): Promise<TResult1 | TResult2>
when() may be leveraged once an instance of the class is created. This method takes two input parameters: an onFulfilled function and an onRejected function.
The onFulfilled executes when the instance of the class loads. The
onRejected executes if the instance of the class fails to load.
Parameters
| Parameter | Type | Description | Required |
|---|---|---|---|
| onFulfilled | OnFulfilledCallback<this, TResult1> | null | undefined | The function to call when the promise resolves. | |
| onRejected | The function to execute when the promise fails. | |
- Returns
- Promise<TResult1 | TResult2>
Returns a new promise for the result of
onFulfilledthat may be used to chain additional functions.
Example
// Although this example uses MapView, any class instance that is a promise may use when() in the same waylet view = new MapView();view.when(function(){ // This function will execute once the promise is resolved}, function(error){ // This function will execute if the promise is rejected due to an error});Events
| Name | Type |
|---|---|
layerview-create inherited | |
layerview-create-error inherited | |
layerview-destroy inherited | |
refresh inherited |
layerview-create
layerview-create: CustomEvent<LayerLayerviewCreateEvent> Fires after the layer's LayerView is created and rendered in a view.
- See also
Example
// This function will fire each time a layer view is created for this// particular view.layer.on("layerview-create", function(event){ // The LayerView for the layer that emitted this event event.layerView;}); layerview-create-error
layerview-create-error: CustomEvent<LayerLayerviewCreateErrorEvent> Fires when an error emits during the creation of a LayerView after a layer has been added to the map.
- See also
Example
// This function fires when an error occurs during the creation of the layer's layerviewlayer.on("layerview-create-error", function(event) { console.error("LayerView failed to create for layer with the id: ", layer.id, " in this view: ", event.view);}); layerview-destroy
layerview-destroy: CustomEvent<LayerLayerviewDestroyEvent> Fires after the layer's LayerView is destroyed and no longer renders in a view.
refresh
refresh: CustomEvent<RefreshEvent> - Since
- ArcGIS Maps SDK for JavaScript 4.21
Fires if the layer has the refreshInterval set or when refresh() method is called. The event payload indicates if the layer's data has changed.
Examples
// listen to layer's refresh event to fetch the attachments// for the updated features.layer.on("refresh", async (event) =>{ if (!event.dataChanged){ return; }
try { const query = layer.createQuery(); const objectIds = await layer.queryObjectIds(query); let attachmentQuery = { objectIds: objectIds, definitionExpression: layer.definitionExpression, attachmentTypes: ["image/jpeg"] };
const attachments = await layer.queryAttachments(attachmentQuery);
attachmentQuery.objectIds.forEach(function (objectId) { if (attachments[objectId]) { // process the updated attachments let attachment = attachments[objectId]; console.log("Attachments for objectId ", objectId, attachment); } }); } catch (error) { console.log("attachment query error", error); }});// listen to layer's refresh event to fetch object ids of completed featureslayer.on("refresh", function(event){ if (event.dataChanged){ const query = layer.createQuery(); query.where = "Status = 'Completed'"; layer.queryObjectIds(query).then((objectIds) => { // process returned features }); }});
