Display symbols from a style with a dictionary renderer

When symbolizing geoelements in your map, you may need to convey several pieces of information with a single symbol. For example, you may want to symbolize restaurants so that each symbol reflects the type of food, price, rating, number of reviews, current health grade, seating capacity, average wait time, and so on. You can try to symbolize such data using a unique value renderer, but as the number of fields and values increases, that approach becomes impractical. With a dictionary renderer, however, you can build each symbol on the fly based on one or several attribute values and also handle a nearly infinite number of unique combinations.

Each component of a dictionary renderer's symbol is based on an attribute value and describes something about the geoelement it represents. This can be useful for data with attribute values that change frequently, since the symbol can update to show the current state of the geoelement. The following example shows a single symbol for a restaurant in which each component (symbol primitive) describes an aspect of the feature:

A symbol from a dictionary style constructed using geoelement attribute values.

A dictionary renderer applies symbols to geoelements through an associated dictionary symbol style. The style contains all the required symbols as well as (for newer format styles) logic and configurable properties for applying them. For details, see the How a dictionary renderer works section below.

How a dictionary renderer works

A renderer contains a collection of (one or more) symbols and some logic that determines how those symbols are applied to geoelements in a layer or graphics overlay. ArcGIS Runtime SDK provides several types of renderers for displaying symbols and they are described in the symbology overview.

A dictionary renderer applies symbols from an associated style file, stored in an SQLite database with a .stylx extension. Each symbol in the style is identified with a unique key. A style can be opened in ArcGIS Pro, and symbols can be added, deleted, or modified.

Catalog for managing custom styles in ArcGIS Pro.

For versions prior to 100.6.0, a dictionary renderer was used exclusively for displaying military symbols. The logic (known as the rule engine) for displaying the symbols was built into ArcGIS Runtime binaries, required a style based on one of the supported specifications, and was not open to customization. Starting with ArcGIS Pro 2.4 (and supported in ArcGIS Runtime SDK 100.6.0), the logic for applying symbols from a dictionary style is implemented as an Arcade script and stored in the style file along with the symbols. This allows you to create your own dictionary style with the symbols you need as well as the logic for how they are applied. A JSON definition of dictionary configuration properties (also stored in the style) allows you to define the expected attributes and other settings used by the style.

One or more symbols are read from a dictionary style to build a composite multilayer symbol for a geoelement. A dictionary renderer determines the symbol components to request for a geoelement's symbol (using symbol keys) based on input attribute values and style-specific logic. The Arcade code below, for example, reads the input value for the health inspection ($feature.healthgrade), determines the corresponding letter grade, and stores the appropriate key to return.


1
2
3
4
5
6
if (!isempty($feature.healthgrade) && $feature.healthgrade > 0) {
    if($feature.healthgrade > 89){ healthgradekey = 'inspection-A' }
    else if($feature.healthgrade > 79){ healthgradekey = 'inspection-B' }
    else if($feature.healthgrade > 69){ healthgradekey = 'inspection-C' }
    else { healthgradekey = 'inspection-yuk' }
  }

While you can open a dictionary style in ArcGIS Pro for editing symbols, you cannot access the Arcade logic or configuration there. You can use a utility for opening SQLite databases (such as DB Browser for SQLite), however, to view and edit those properties of the style.

The meta table in the style file contains the dictionary configuration and script.

For more information about creating your own dictionary style, see the Dictionary Renderer Toolkit.

Dictionary style properties

Dictionary style properties include symbol properties, text properties, and configuration properties. Symbol and text properties define the attribute fields expected by the style to display symbols and text. Configuration properties provide settings to control specific aspects of their display. When the dictionary renderer is applied, expected attribute names in the symbol and text properties are automatically mapped to fields in the data that have a matching name. To use an input field that doesn't match an expected attribute, you can explicitly map the input field to one of the configured attribute names in the symbol or text properties. This allows more flexibility for applying a style to datasets that have different names for input fields or that have several fields with appropriate input values.

The following example shows the configuration JSON for the restaurant dictionary style illustrated previously. In this case, there is only one configuration property, which is the ability to turn text display on or off. Symbol properties are defined with a list of the expected attributes for creating geoelement symbols. The text properties list contains attributes used to display text with the symbol (in this case, only a "name" field).


1
2
3
4
5
6
7
8
9
10
11
{
  "configuration": [{
      "name": "text",
      "value": "ON",
      "domain": ["ON", "OFF"],
      "info": "indicates if the text is rendered"
    }
  ],
  "symbol": ["style", "rating", "price", "healthgrade", "opentime", "closetime"],
  "text": ["name"]
}

Text can be displayed as additional symbol components using the values contained in the specified field or fields. The configuration property for showing or hiding text can be used to turn off all text display, regardless of the input attribute values.

Map geoelement fields to configuration fields

A DictionaryRenderer will automatically read fields in your data that have names matching those required by the style specification. For any fields in your data that don't exactly match the expected names, map the field names by setting the DictionaryRenderer.getSymbologyFieldOverrides() and DictionaryRenderer.getTextFieldOverrides() properties of the dictionary renderer. These operations take a set of key-value pairs, in which the key is the expected attribute name (for example, healthgrade), and the value is the corresponding attribute name from the dataset (for example, inspection_score).

If you're not sure what attributes are defined in the symbol and text configuration properties, you can obtain a string list of the expected symbology and text fields from DictionarySymbolStyle by calling DictionarySymbolStyle.getSymbologyFieldNames() and DictionarySymbolStyle.getTextFieldNames().

Military symbols

Military symbols are based on military specifications (military standards, such as MIL-STD-2525C and MIL-STD-2525D) and are composed of many elements such as frames, icons, modifiers, graphic amplifiers, and text amplifiers. In ArcGIS, military symbols are composed of multiple symbol layers. The ArcGIS Solutions for Defense team hosts military symbology styles for the following standards: MIL-STD-2525D, MIL-STD-2525C, MIL-STD-2525B w/CHANGE 2, APP-6(B), and APP-6(D). Use the support matrix to find the supported stylx file for your version of ArcGIS Runtime SDK.

Military symbol dictionary styles allow you to choose whether to assemble and render the symbol based on a single attribute with a unique Symbol ID Code (SIC or SIDC) or based on a series of predefined attributes. For example, in MIL-STD-2525BC2, a SIC of SFSPCL--------- represents this symbol: A military symbol based on a symbol ID code.

The ArcGIS Military Overlay is a solution for creating and sharing military overlays in ArcGIS Pro according to a specific schema (such as identity, symbol set, and so on), each having a range of valid values associated with it. This schema will work by default with the military symbol dictionary style.

Regardless of the specification, all military symbols are based on a varying combination of attributes or codes and a set of rules about how the symbols should display.

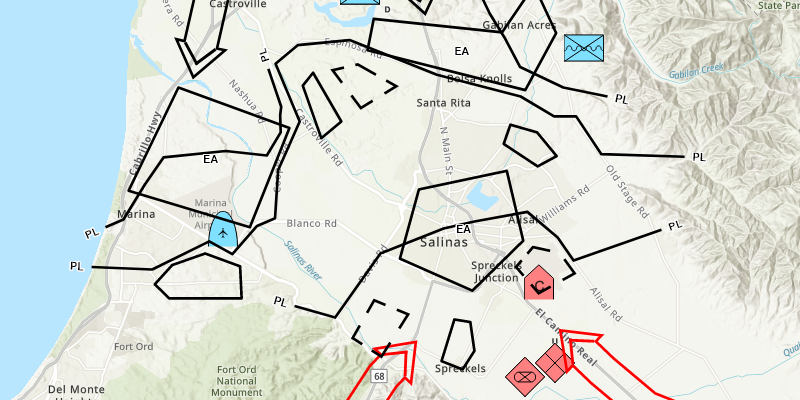

A map in an ArcGIS Runtime app showing military symbols.

Examples

Symbolize a feature layer or graphics overlay

  1. Point to the dictionary style file (.stylx) and create a DictionarySymbolStyle object.

    This can be one of the standard military styles supported with ArcGIS Runtime SDK, or a custom dictionary style. Custom styles use the newer (Arcade-based) styles that have metadata with the specification name. The DictionarySymbolStyle.createFromFile() constructor is used for newer Arcade-based styles and will fail if you provide an older style. The constructor, deprecated at 100.6.0, can be used exclusively for older styles. When opening an older style, you must also provide the name of the style specification.

  2. ArcGIS Runtime will automatically discover input fields whose names match the dictionary style's expected fields for symbols and text. However, if certain field names don't match (or you want to use different fields), you can explicitly map the expected fields to the appropriate fields in the data.

    Field mapping overrides are defined with two sets of key-value pairs: one for symbol fields and one for text fields. Each key identifies an expected field (defined in the dictionary's symbol and text properties) and the value identifies the corresponding mapped field (from the dataset). Field names are not case sensitive.

  3. Set configuration property values for the style.

    Configuration properties are stored in a read-only list of symbol style configuration objects. Access the desired configuration in the list and change its value. This step is only necessary if you want to change any of the default configuration settings.

  4. Create a dictionary renderer that uses the style. If you need to use custom field mappings, include the key-value pairs that define them.

  5. Assign the DictionaryRenderer to the layer or graphics overlay.


1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
package com.esri.samples.custom_dictionary_style;

import javafx.application.Application;
import javafx.geometry.Insets;
import javafx.geometry.Pos;
import javafx.scene.Scene;
import javafx.scene.control.Alert;
import javafx.scene.control.Label;
import javafx.scene.control.ProgressIndicator;
import javafx.scene.control.RadioButton;
import javafx.scene.control.ToggleGroup;
import javafx.scene.layout.Background;
import javafx.scene.layout.BackgroundFill;
import javafx.scene.layout.CornerRadii;
import javafx.scene.layout.StackPane;
import javafx.scene.layout.VBox;
import javafx.scene.paint.Paint;
import javafx.stage.Stage;

import com.esri.arcgisruntime.ArcGISRuntimeEnvironment;
import com.esri.arcgisruntime.data.ServiceFeatureTable;
import com.esri.arcgisruntime.geometry.Point;
import com.esri.arcgisruntime.layers.FeatureLayer;
import com.esri.arcgisruntime.loadable.LoadStatus;
import com.esri.arcgisruntime.mapping.ArcGISMap;
import com.esri.arcgisruntime.mapping.BasemapStyle;
import com.esri.arcgisruntime.mapping.Viewpoint;
import com.esri.arcgisruntime.mapping.view.MapView;
import com.esri.arcgisruntime.portal.Portal;
import com.esri.arcgisruntime.portal.PortalItem;
import com.esri.arcgisruntime.symbology.DictionaryRenderer;
import com.esri.arcgisruntime.symbology.DictionarySymbolStyle;
import com.esri.arcgisruntime.symbology.Renderer;

import java.io.File;
import java.util.HashMap;

public class CustomDictionaryStyleSample extends Application {

  private MapView mapView;
  private DictionarySymbolStyle dictSymbStyleFromPortal; // keep loadables in scope to avoid garbage collection
  private DictionaryRenderer webStyleDictionaryRenderer;

  private VBox controlsVBox;
  private ToggleGroup toggleGroup;
  private RadioButton webStyleButton;
  private RadioButton fileStyleButton;
  private ProgressIndicator progressIndicator;

  @Override
  public void start(Stage stage) {
    try {
      // create stack pane and application scene
      StackPane stackPane = new StackPane();
      Scene scene = new Scene(stackPane);
      scene.getStylesheets().add(getClass().getResource("/custom_dictionary_style/style.css").toExternalForm());

      // set title, size, and add scene to stage
      stage.setTitle("Custom Dictionary Style Sample");
      stage.setWidth(800);
      stage.setHeight(700);
      stage.setScene(scene);
      stage.show();

      // authentication with an API key or named user is required to access basemaps and other location services
      String yourAPIKey = System.getProperty("apiKey");
      ArcGISRuntimeEnvironment.setApiKey(yourAPIKey);

      // create a map with the topographic basemap style
      ArcGISMap map = new ArcGISMap(BasemapStyle.ARCGIS_TOPOGRAPHIC);

      // create a map view and set the map to it
      mapView = new MapView();
      mapView.setMap(map);

      // set the initial viewpoint to the Esri Redlands campus
      map.setInitialViewpoint(
        new Viewpoint(new Point(-13046305, 4036698.1412000, map.getSpatialReference()), 5000));

      // set up the UI
      setupUI();

      // enable UI interactions once the map has loaded
      map.addDoneLoadingListener(() -> {
        if (map.getLoadStatus() == LoadStatus.LOADED) {
          controlsVBox.setDisable(false);
        } else {
          new Alert(Alert.AlertType.ERROR, "Map failed to load").show();
        }
      });

      // create a stylex file from a local location
      File stylxFile = new File(System.getProperty("data.dir"), "./samples-data/stylx/Restaurant.stylx");
      // create a dictionary symbol style from the stylx file, and create a new dictionary renderer from it
      DictionarySymbolStyle dictSymbStyleFromFile = DictionarySymbolStyle.createFromFile(stylxFile.getAbsolutePath());
      DictionaryRenderer dictRendFromFile = new DictionaryRenderer(dictSymbStyleFromFile);
      // set the renderer from the style file to the UI
      fileStyleButton.setUserData(dictRendFromFile);

      // create a portal item using the portal and the item id of the dictionary web style
      Portal portal = new Portal("https://arcgisruntime.maps.arcgis.com");
      PortalItem portalItem = new PortalItem(portal, "adee951477014ec68d7cf0ea0579c800");

      // map the input fields in the feature layer to the dictionary symbol style's expected fields for symbols and text
      HashMap<String, String> fieldMap = new HashMap<>();
      fieldMap.put("healthgrade", "Inspection");

      // create a new dictionary symbol style from the web style in the portal item
      dictSymbStyleFromPortal = new DictionarySymbolStyle(portalItem);
      // load the symbol dictionary
      dictSymbStyleFromPortal.loadAsync();

      dictSymbStyleFromPortal.addDoneLoadingListener(() -> {
        if (dictSymbStyleFromPortal.getLoadStatus() == LoadStatus.LOADED) {
          // enable the UI
          controlsVBox.setDisable(false);
          // create a dictionary renderer with the dictionary symbol style,
          // and manually map the feature layer's attribute name to those expected by the dictionary symbol style
          webStyleDictionaryRenderer = new DictionaryRenderer(dictSymbStyleFromPortal, fieldMap, fieldMap);
          // set the renderer from web style to the UI
          webStyleButton.setUserData(webStyleDictionaryRenderer);
          progressIndicator.setVisible(false);
        } else {
          new Alert(Alert.AlertType.ERROR, "Dictionary symbol style failed to load!").show();
        }
      });

      // create a service feature table and create a feature layer from it (restaurant data)
      var serviceFeatureTable =
        new ServiceFeatureTable("https://services2.arcgis.com/ZQgQTuoyBrtmoGdP/ArcGIS/rest/services/Redlands_Restaurants/FeatureServer/0");
      FeatureLayer restaurantLayer = new FeatureLayer(serviceFeatureTable);
      map.getOperationalLayers().add(restaurantLayer);

      // add a listener to the radio button toggle group to change the dictionary renderer
      toggleGroup.selectedToggleProperty().addListener((observable -> {
          if (toggleGroup.getSelectedToggle() != null) {
            // set the chosen dictionary renderer to the feature layer
            restaurantLayer.setRenderer((Renderer) toggleGroup.getSelectedToggle().getUserData());
          }
        })
      );

      // show the style file symbols by default
      toggleGroup.selectToggle(fileStyleButton);

      // add the control panel, map view, and progress indicator to the stack pane
      stackPane.getChildren().addAll(mapView, controlsVBox, progressIndicator);
      StackPane.setAlignment(controlsVBox, Pos.TOP_LEFT);
      StackPane.setAlignment(progressIndicator, Pos.CENTER);
      StackPane.setMargin(controlsVBox, new Insets(10, 0, 0, 10));
    } catch (Exception e) {
      e.printStackTrace();
    }
  }

  /**
   * Sets up control panel with radio buttons to toggle between the dictionary symbol styles.
   */
  public void setupUI() {
    // create a label
    Label symbolStyleLabel = new Label("Choose a Dictionary Symbol Style:");

    // create radio buttons for toggling between the web and file styles
    webStyleButton = new RadioButton("Web style");
    fileStyleButton = new RadioButton("Local style file");

    // set the radio buttons to a toggle group
    toggleGroup = new ToggleGroup();
    toggleGroup.getToggles().addAll(webStyleButton, fileStyleButton);

    // show progress indicator when the dictionary symbol styles are loading
    progressIndicator = new ProgressIndicator();
    progressIndicator.setMaxWidth(30);
    progressIndicator.setVisible(true);

    // create a control panel
    controlsVBox = new VBox(6);
    controlsVBox.setBackground(new Background(new BackgroundFill(Paint.valueOf("rgba(0,0,0,0.3)"), CornerRadii.EMPTY,
      Insets.EMPTY)));
    controlsVBox.setPadding(new Insets(10.0));
    controlsVBox.setMaxSize(210, 80);
    controlsVBox.getStyleClass().add("panel-region");
    controlsVBox.setDisable(true);
    // add the label and radio buttons to the control panel
    controlsVBox.getChildren().addAll(symbolStyleLabel, webStyleButton, fileStyleButton);
  }

  /**
   * Stops and releases all resources used in application.
   */
  @Override
  public void stop() {

    // release resources when the application closes
    if (mapView != null) {
      mapView.dispose();
    }
  }

  /**
   * Opens and runs application.
   *
   * @param args arguments passed to this application
   */
  public static void main(String[] args) {

    Application.launch(args);
  }
}

Restaurants symbolized with a custom dictionary style.

Samples

Your browser is no longer supported. Please upgrade your browser for the best experience. See our browser deprecation post for more details.
