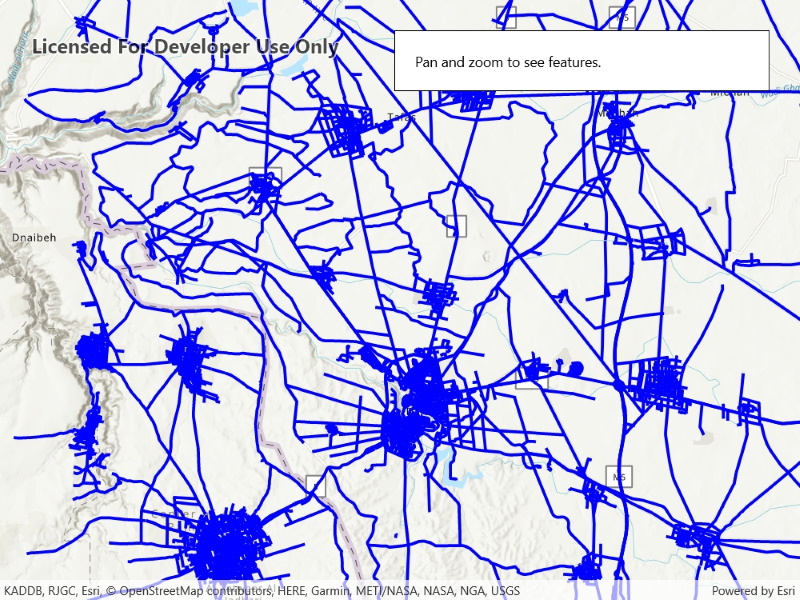

Display OGC API collection

<UserControl x:Class="ArcGIS.WinUI.Samples.DisplayOACollection.DisplayOACollection"
             xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
             xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
             xmlns:esriUI="using:Esri.ArcGISRuntime.UI.Controls">
    <Grid>
        <esriUI:MapView x:Name="MyMapView" />
        <Border Style="{StaticResource BorderStyle}">
            <StackPanel>
                <TextBlock Text="Pan and zoom to see features." />
                <ProgressBar x:Name="LoadingProgressBar"
                             Margin="5"
                             IsIndeterminate="True" />
            </StackPanel>
        </Border>
    </Grid>
</UserControl>

// Copyright 2021 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License"); you may not use this file except in compliance with the License.
// You may obtain a copy of the License at: http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software distributed under the License is distributed on an
// "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. See the License for the specific
// language governing permissions and limitations under the License.

using Esri.ArcGISRuntime.Data;
using Esri.ArcGISRuntime.Geometry;
using Esri.ArcGISRuntime.Mapping;
using Esri.ArcGISRuntime.Symbology;
using Microsoft.UI.Xaml;
using System;
using System.Drawing;
using System.Threading.Tasks;

namespace ArcGIS.WinUI.Samples.DisplayOACollection
{
    [ArcGIS.Samples.Shared.Attributes.Sample(
        name: "Display OGC API collection",
        category: "Layers",
        description: "Display an OGC API feature collection and query features while navigating the map view.",
        instructions: "Pan the map and observe how new features are loaded from the OGC API feature service.",
        tags: new[] { "OGC", "OGC API", "feature", "feature layer", "feature table", "service", "table", "web" })]
    [ArcGIS.Samples.Shared.Attributes.OfflineData()]
    public partial class DisplayOACollection
    {
        // Hold a reference to the OGC feature collection table.
        private OgcFeatureCollectionTable _featureTable;

        // Constants for the service URL and collection id.
        private const string ServiceUrl = "https://demo.ldproxy.net/daraa";

        // Note that the service defines the collection id which can be accessed via OgcFeatureCollectionInfo.CollectionId.
        private const string CollectionId = "TransportationGroundCrv";

        public DisplayOACollection()
        {
            InitializeComponent();
            _ = Initialize();
        }

        private async Task Initialize()
        {
            // Create the map with topographic basemap.
            MyMapView.Map = new Map(BasemapStyle.ArcGISTopographic);

            try
            {
                // Create the feature table from URI and collection id.
                _featureTable = new OgcFeatureCollectionTable(new Uri(ServiceUrl), CollectionId);

                // Set the feature request mode to manual (only manual is currently supported).
                // In this mode, you must manually populate the table - panning and zooming won't request features automatically.
                _featureTable.FeatureRequestMode = FeatureRequestMode.ManualCache;

                // Load the table.
                await _featureTable.LoadAsync();

                // Create a feature layer to visualize the OAFeat features.
                FeatureLayer ogcFeatureLayer = new FeatureLayer(_featureTable);

                // Apply a renderer.
                ogcFeatureLayer.Renderer = new SimpleRenderer(new SimpleLineSymbol(SimpleLineSymbolStyle.Solid, Color.Blue, 3));

                // Add the layer to the map.
                MyMapView.Map.OperationalLayers.Add(ogcFeatureLayer);

                // Use the navigation completed event to populate the table with the features needed for the current extent.
                MyMapView.NavigationCompleted += MapView_NavigationCompleted;

                // Zoom to a small area within the dataset by default.
                Envelope datasetExtent = _featureTable.Extent;
                if (datasetExtent != null && !datasetExtent.IsEmpty)
                {
                    await MyMapView.SetViewpointGeometryAsync(new Envelope(datasetExtent.GetCenter(), datasetExtent.Width / 3, datasetExtent.Height / 3));
                }
            }
            catch (Exception ex)
            {
                await new MessageDialog2(ex.Message, "Error").ShowAsync();
            }
        }

        private async void MapView_NavigationCompleted(object sender, EventArgs e)
        {
            // Show the loading bar.
            LoadingProgressBar.Visibility = Visibility.Visible;

            // Get the current extent.
            Envelope currentExtent = MyMapView.VisibleArea.Extent;

            // Create a query based on the current visible extent.
            QueryParameters visibleExtentQuery = new QueryParameters();
            visibleExtentQuery.Geometry = currentExtent;
            visibleExtentQuery.SpatialRelationship = SpatialRelationship.Intersects;

            // Set a limit of 5000 on the number of returned features per request,
            // because the default on some services could be as low as 10.
            visibleExtentQuery.MaxFeatures = 5000;

            try
            {
                // Populate the table with the query, leaving existing table entries intact.
                // Setting outFields to null requests all fields.
                await _featureTable.PopulateFromServiceAsync(visibleExtentQuery, false, null);
            }
            catch (Exception ex)
            {
                await new MessageDialog2(ex.Message, "Couldn't populate table.").ShowAsync();
            }
            finally
            {
                // Hide the loading bar.
                LoadingProgressBar.Visibility = Visibility.Collapsed;
            }
        }
    }
}
