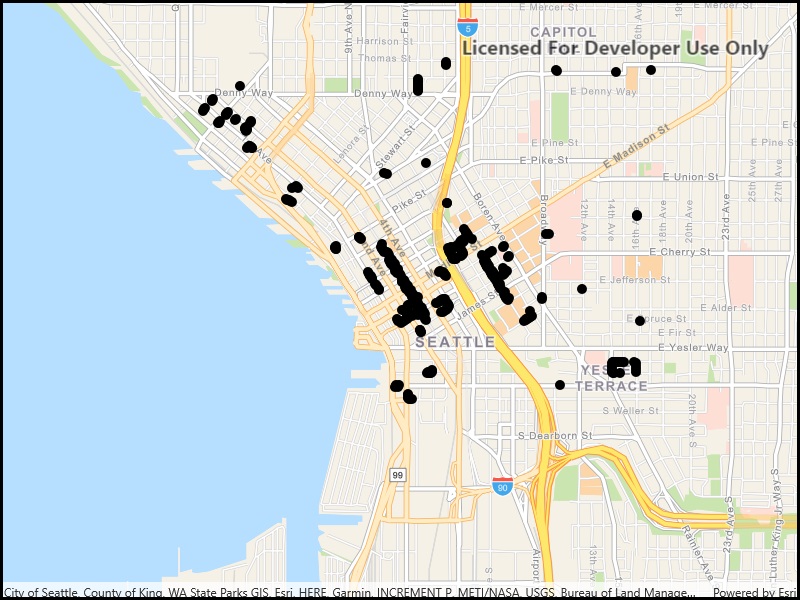

Load WFS with XML query

<UserControl x:Class="ArcGIS.WinUI.Samples.WfsXmlQuery.WfsXmlQuery"
             xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
             xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
             xmlns:esriUI="using:Esri.ArcGISRuntime.UI.Controls">
    <Grid>
        <esriUI:MapView x:Name="MyMapView" />
    </Grid>
</UserControl>

// Copyright 2019 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License"); you may not use this file except in compliance with the License.
// You may obtain a copy of the License at: http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software distributed under the License is distributed on an
// "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. See the License for the specific
// language governing permissions and limitations under the License.

using Esri.ArcGISRuntime.Data;
using Esri.ArcGISRuntime.Mapping;
using System;
using System.Diagnostics;
using System.Threading.Tasks;

namespace ArcGIS.WinUI.Samples.WfsXmlQuery
{
    [ArcGIS.Samples.Shared.Attributes.Sample(
        name: "Load WFS with XML query",
        category: "Layers",
        description: "Load a WFS feature table using an XML query.",
        instructions: "Run the sample and view the data loaded from the the WFS feature table.",
        tags: new[] { "OGC", "WFS", "XML", "feature", "query", "service", "web" })]
    public partial class WfsXmlQuery
    {
        // Constants for the service URL, table name, and the query.
        // To learn more about specifying filters in OGC technologies, see https://www.opengeospatial.org/standards/filter.
        private const string XmlQuery = @"
<wfs:GetFeature service=""WFS"" version=""2.0.0""
  xmlns:Seattle_Downtown_Features=""https://dservices2.arcgis.com/ZQgQTuoyBrtmoGdP/arcgis/services/Seattle_Downtown_Features/WFSServer""
  xmlns:wfs=""http://www.opengis.net/wfs/2.0""
  xmlns:fes=""http://www.opengis.net/fes/2.0""
  xmlns:gml=""http://www.opengis.net/gml/3.2"">
  <wfs:Query typeNames=""Seattle_Downtown_Features:Trees"">
    <fes:Filter>
      <fes:PropertyIsLike wildCard=""*"" escapeChar=""\"">
        <fes:ValueReference>Trees:SCIENTIFIC</fes:ValueReference>
        <fes:Literal>Tilia *</fes:Literal>
      </fes:PropertyIsLike>
    </fes:Filter>
  </wfs:Query>
</wfs:GetFeature>
";

        // Constants for the table name and URL.
        private const string TableUrl = "https://dservices2.arcgis.com/ZQgQTuoyBrtmoGdP/arcgis/services/Seattle_Downtown_Features/WFSServer?service=wfs&request=getcapabilities";

        // Note that the layer name is defined by the service. The layer name can be accessed via WfsLayerInfo.Name.
        private const string LayerName = "Seattle_Downtown_Features:Trees";

        public WfsXmlQuery()
        {
            InitializeComponent();
            _ = Initialize();
        }

        private async Task Initialize()
        {
            // Create the map with basemap.
            MyMapView.Map = new Map(BasemapStyle.ArcGISNavigation);

            try
            {
                // Create the WFS feature table from URL and name.
                WfsFeatureTable wfsTable = new WfsFeatureTable(new Uri(TableUrl), LayerName);

                // Set the feature request mode to manual. Only calls to PopulateFromService will load features.
                // Features will not be populated automatically when the user pans and zooms the layer.
                wfsTable.FeatureRequestMode = FeatureRequestMode.ManualCache;

                // Load the WFS feature table.
                await wfsTable.LoadAsync();

                // Create a feature layer to visualize the WFS feature table.
                FeatureLayer statesLayer = new FeatureLayer(wfsTable);

                // Add the layer to the map.
                MyMapView.Map.OperationalLayers.Add(statesLayer);

                // Populate the WFS feature table with the XML query.
                await wfsTable.PopulateFromServiceAsync(XmlQuery, true);

                // Zoom to the extent of the query results.
                await MyMapView.SetViewpointGeometryAsync(wfsTable.Extent, 50);
            }
            catch (Exception e)
            {
                Debug.WriteLine(e.ToString());
                await new MessageDialog2(e.ToString(), "Couldn't populate table with XML query.").ShowAsync();
            }
        }
    }
}
