Find co-travelers

Find Co-travelers analyzes time-enabled points representing moving entities. The tool finds where two or more entities are moving together in space (location) and time, also known as co-traveling. You can choose to find all co-traveling entities in your data, or you can find only entities that are co-traveling with specific entities of interest. You can also choose to either find pairs of entities or groups of two or more entities co-traveling together. See Usage Notes below for a glossary of commonly used terms in this topic.

Two entities are considered co-travelers if they are within a search distance of each other (specified with setSearchDistance()) at the same time for at least a specified duration. There are two ways in which you can define the duration criteria:

• setConsecutiveDuration()—The minimum time that two entities must be within the search distance of each other without moving farther apart than the search distance. For example, in the diagram below two entities are near each other from 8:30:45 to 8:33:05. The resulting co-travel event has a consecutive duration of 2 minutes and 20 seconds.



• setCumulativeDuration()—The minimum total time that two entities must be within the search distance of each other, regardless of if they temporarily move farther apart than the search distance. For example, in the diagram below two entities are within a search distance of each other from 8:32:20 to 8:33:40 (a consecutive duration of 1 minute and 20 seconds) before separating and then coming near each other again from 8:35:50 to 8:37:00 (a consecutive duration of 1 minute and 10 seconds). The resulting co-travel event has a cumulative duration of 2 minutes and 30 seconds.



One of these two duration criteria is required. You can also choose to use both for finer control of co-travel detection.

By default, two entities must be within the search distance of each other at the same instant in time to be candidates for co-travel. A search duration can be optionally defined (using setSearchDuration()) to expand the range of time that two entities can come within the search distance of each other to be considered co-travelers.

For example, consider the diagram below. A vehicle is traveling down a highway followed by another vehicle that takes the same route 5 minutes later. With a search distance of 10 feet and no search duration, these vehicles would not be considered co-travelers because they are not within 10 feet of each other at any instant in time. However, with a search distance of 10 feet and a search duration of 5 minutes, these vehicles would likely be considered co-travelers because they were within 10 feet of the same location within the time frame allowed by the search duration.

By default, co-travel is found between pairs of entities. You can also find groups of two or more entities that are co-traveling simultaneously using setGroupMode(). When group_mode is True, each record in the result represents a co-travel incident between at least the number of entities specified by min_group_size. Within a single group, each entity is within the search distance and duration of at least one other entity in the group for the minimum consecutive or cumulative duration specified.

For example, consider the diagram below where three people are walking through a park. Around 7:30:00, one person (Entity 1) is walking alone towards the park, while two other people (Entity 2 and Entity 3) are walking together within the park. With group mode enabled, a minimum group size of 3, and a search distance of 5 meters, there are no co-travel events at 7:30:00 because a maximum of 2 entities are co-travelng at that time. However, at approximately 7:32:30 Entity 1 comes within 5 meters of Entity 2 and Entity 3 and the three entities co-travel together through the park. Because there are at least the minimum group size of entities co-traveling together, this is a group co-travel event.

By default, all co-travel between a pair or group of entities is summarized in a single record in the result DataFrame. Optionally, setGapCutoff() can be used to specify the maximum gap duration allowed in a single co-travel incident. When finding pairs of co-traveling entities, a gap is when two entities are temporarily farther apart than the search distance and/or search duration. When finding groups of co-traveling entities, a gap is when there are temporarily fewer entities than the minimum group size. Co-travel incidents with a gap in spatiotemporal nearness or minimum group size longer than the gap cutoff will be split into separate records in the result DataFrame.

For example, consider the diagram below showing co-travel detected between 2 entities. There is a 2 minute and 10 second gap in this co-travel incident. With no gap cutoff, the co-travel incident would be returned as a single record in the result DataFrame. With a gap cutoff of 2 minutes, the same co-travel incident would be returned as two separate records in the result DataFrame, as the 2 minute and 10 second gap exceeds the gap cutoff.

If one DataFrame is provided as input, the result will include all pairs or groups of entities that meet the co-travel criteria. You can optionally use setEntitiesOfInterest() to specify a second DataFrame of tracks that will be used as seeds when searching for co-travelers. In this case, the result will include only pairs or groups of entities that meet the co-travel criteria and each co-travel incident will include at least one entity from the entities_of_interest DataFrame. If the same track ID exists in both DataFrames, the two tracks will be treated as distinct and separate entities. To exclude co-travel between entities with the same track ID, use setExcludeSelfMatch(). If setEntitiesOfInterest() is not used, setExcludeSelfMatch() will be ignored.

Usage notes

• The following table outlines terminology for Find Co-travelers:

  Term	Definition	Example
  Entity	A moving object with position periodically recorded.	A marine vessel.
  Observation	A point geometry and timestamp representing a single entity's location at an instant in time.	The location of a vessel at an instant in time.
  Entities of interest	Specific entities used to find co-travel incidents.	A specific marine vessel known to engage in illegal fishing.
  Co-travel incident	When two entities are within the search distance of each other over a minimum duration of time. When group mode is enabled, a single co-travel incident may have as many or more entites than the minimum group size.	Two vessels that are within 500 meters of each other for at least 1 hour.
  Gap	When two entities temporarily farther apart than the search distance and, if defined, the search duration. When group mode is enabled, this is also when there are temporarily fewer entities co-traveling than the minimum group size.	Two vessels are within 500 meters of each other for 20 minutes before moving farther apart for 10 minutes and finally moving within 500 meters of each other for 10 more minutes. This co-travel incident has a 10-minute gap.
  Consecutive duration	The duration that two entities co-travel without separating.	In the previous example, the co-travel event has consecutive durations of 20 minutes and 10 minutes.
  Cumulative duration	The total duration that two entities are co-traveling, including gaps.	In the previous example, the co-travel event has a cumulative duration of 50 minutes.

• The input DataFrame must contain time-enabled point observations that represent an instant in time. Track observations that do not have a valid timestamp or geometry will be excluded from analysis.

• Tracks must have more than one observation to be used in analysis.

• You can specify one or more fields to identify tracks using setTrackFields(). Tracks are represented by the unique combination of one or more track fields. For example, if the flightID and Destination fields are used as track identifiers, the records ID007, Solden and ID007, Tokyo would be in different tracks since they have different values for the Destination field.

• Geodesic distance calculations will be used if your data is in a geographic spatial reference with no projection. Planar distance calculations will be used if your data is in a projected spatial reference or has no spatial reference. You can override the default behavior by calling setDistanceMethod(). Geodesic distance calculations require a spatial reference to be set on the input data. Planar distance calculations require that your data is in a projected spatial reference or has no spatial reference. For more information see Coordinate systems and transformations.

• When using geodesic distance calculations, co-travel events may include instances where two entities are very slightly farther apart than the search distance.

• The entities_of_interest DataFrame must have the same track fields as the observations DataFrame.

• The spatial reference of the observations DataFrame must be the same as the spatial reference of the entities_of_interest DataFrame. If the two DataFrames have different spatial references, the observations will be transformed to the spatial reference of the entities_of_interest. If no such transformation exists, or if one of the DataFrames does not have a spatial reference set, the tool will fail.

• When finding co-travelers, it is your responsibility to understand organizational, local, and national guidelines regarding data sensitivity and privacy. False positives may occur depending on data quality, tool parameters, and circumstance.

Results

By default, results will include the following fields:

If setGroupMode() is used to find groups of co-travelers, results will include the following fields:

Performance notes

Improve the performance of Find Co-travelers by doing one or more of the following:

• Only analyze the records in your area of interest. You can pick the records of interest by using one of the following SQL functions:

  • ST_Intersection—Clip to an area of interest represented by a polygon. This will modify your input records.
  • ST_BboxIntersects—Select records that intersect an envelope.
  • ST_EnvIntersects—Select records having an evelope that intersects the envelope of another geometry.
  • ST_Intersects—Select records that intersect another dataset or area of intersect represented by a polygon.
• Specifying a larger value for setSearchDistance() results in more events and takes longer to process the results. Smaller distances results in fewer events and a shorter processing time.
• Specify a value of planar using setDistanceMethod() to use planar distance calculations instead of geodesic.

Limitations

When using this tool to find co-travel, be aware of the following:

• Co-travel detection depends on user-defined parameters and data quality. Even if a pair of entities are returned in the result, there is no guarantee that the two entities willingly or knowingly traveled together.

• Z-values and M-values from the input observations and entities_of_interest DataFrames are not used to calculate spatial or temporal nearness when searching for co-travelers. These values are not guaranteed to be included in the result linestring (cotravel_track).

• This tool does not consider directionality when discovering co-travel. Relatively large search distance and/or search duration values can result in detection of co-travel that may be implausible (i.e., the two entities are traveling in opposite directions).

• This tool does not consider reachability when discovering co-travel. For example, two entities traveling at the same time on separate levels of a mult-level roadway may be returned as co-travelers when there is no practical way that the entities could be together.

• It is unrealistic to calculate co-travel of a duration shorter than the observation period. For example, on data with observations every 2 minutes, it is meaningless to look for co-travel lasting less than 2 minutes.

Syntax

For more details, go to the GeoAnalytics Engine API reference for Find Co-travelers.

Examples

Run Find Co-travelers

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21

import geoanalytics
geoanalytics.auth(username="myusername", password="mypassword")

from geoanalytics.tools import FindCotravelers
from pyspark.sql import functions as F

data_url = "https://services1.arcgis.com/36PP9fe9l4BSnArw/ArcGIS/rest/services/walking_points_UofR/FeatureServer/0"
df = spark.read.format("feature-service").load(data_url)

result = FindCotravelers() \
        .setTrackFields("user_id") \
        .setSearchDistance(distance=15, distance_unit="meters") \
        .setSearchDuration(duration=30, duration_unit="seconds") \
        .setConsecutiveDuration(duration=2, duration_unit="minutes") \
        .run(observations=df)

result.drop("cotravel_track", "cotravel_id") \
      .withColumn("cumu_dura", F.round("cumu_dura", 3)) \
      .withColumn("consec_dura", F.round("consec_dura", 3)) \
      .sort("cumu_dura").show(truncate=False)

1
2
3
4
5
6
+-------+-------+---------+-----------+----------------------+-----------------------+
|entity1|entity2|cumu_dura|consec_dura|cotravel_start        |cotravel_end           |
+-------+-------+---------+-----------+----------------------+-----------------------+
|user_1 |user_2 |349.554  |349.554    |2022-03-01 01:09:24.34|2022-03-01 01:15:13.894|
|user_1 |user_3 |773.968  |411.231    |2022-03-01 01:03:00   |2022-03-01 01:28:00    |
+-------+-------+---------+-----------+----------------------+-----------------------+

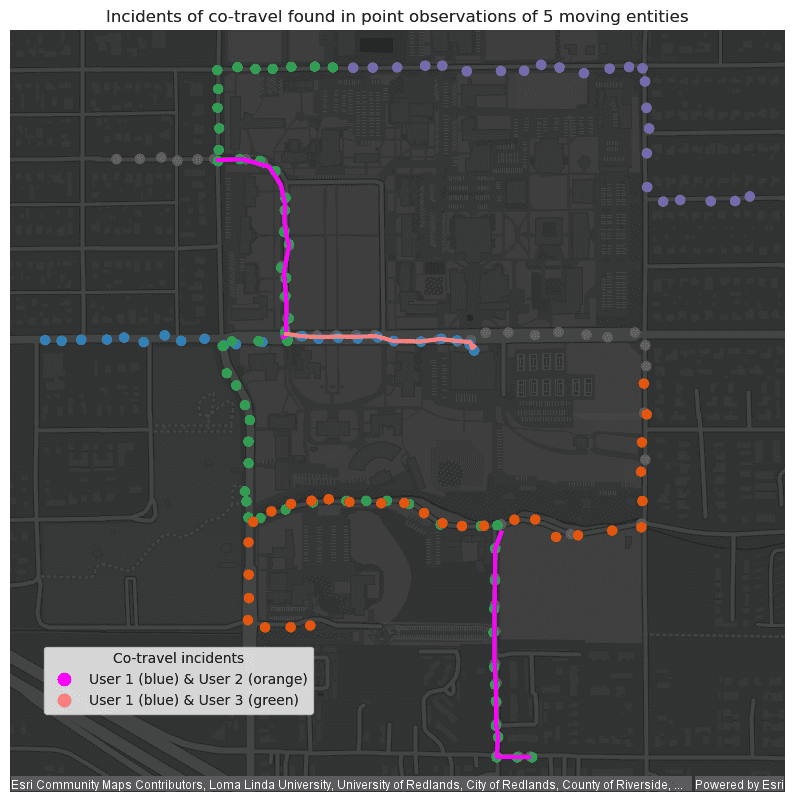

Plot results

1
2
3
4
5
6
7
8
9
10
11
12
13

ax = df.st.plot(figsize=(10,10), is_categorical=True, cmap_values="user_id", cmap="tab20c", s=43)
plot_config = {'ax':ax, 'zorder':4, 'basemap':'dark', 'linewidth':3, 'is_categorical':True,
               'cmap_values':'cotravel_pair', 'cmap':'spring', 'legend':True,
               'legend_kwds':{"labels":["User 1 (blue) & User 2 (orange)",
                                        "User 1 (blue) & User 3 (green)"],
                              "bbox_to_anchor": (0.4, 0.2), "fontsize": "medium",
                              "markerscale": 2, "title": "Co-travel incidents"}}
result_plot = result.withColumn("cotravel_pair", F.concat(F.col("entity1"), F.lit("-"), F.col("entity2"))) \
                    .st.plot(**plot_config)
result_plot.set_title("Incidents of co-travel found in point observations of 5 moving entities", {'fontsize': 12})
result_plot.set_xlabel("X (Meters)")
result_plot.set_ylabel("Y (Meters)");
