import SceneLayer from "@arcgis/core/layers/SceneLayer.js";

Inheritance:: SceneLayer→Layer→Accessor

Since: ArcGIS Maps SDK for JavaScript 4.0

Overview

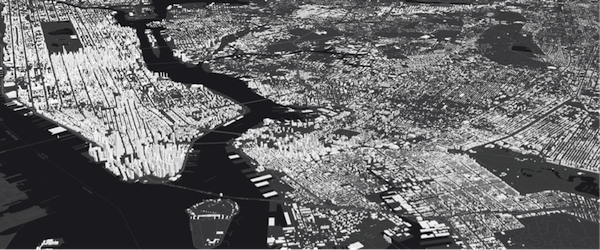

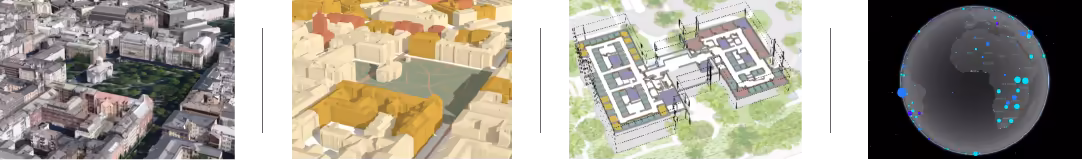

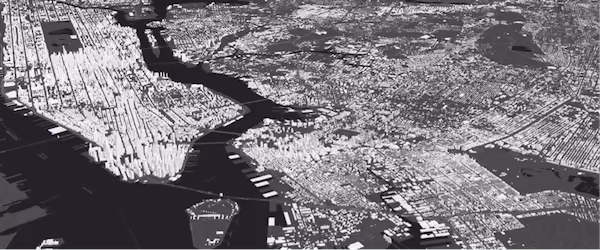

The SceneLayer is a layer type designed for on-demand streaming and displaying large amounts of data in a SceneView. SceneLayers support two geometry types: Point and 3D Objects (e.g. Buildings).

You can find many samples of SceneLayers in ArcGIS Online by searching the gallery.

Publishing a SceneLayer

The SceneLayer displays data coming from a Scene Service. Scene Services can hold large volumes of features in an open format that is suitable for web streaming. The SceneLayer loads these features progressively, starting from coarse representations and refines them to higher detail as necessary for close-up views.

Scene Services can be hosted on ArcGIS Online or ArcGIS Enterprise by uploading a Scene Layer Package (.slpk) or by publishing it from ArcGIS Pro. Depending on how you publish a SceneLayer, there are two types of layers: SceneLayers with an associated feature layer and SceneLayers with cached attributes only. For more information see the Publishing section of the Scene layer guide topic.

The Scene Service is identified by the url or portalItem of the ArcGIS Server REST resource:

let sceneLayer = new SceneLayer({
  url: "https://services.arcgis.com/V6ZHFr6zdgNZuVG0/arcgis/rest/services/Paris_3D_Local_WSL2/SceneServer/layers/0"
});

let sceneLayer = new SceneLayer({
 portalItem: {
   id: "b8138adb2ba7479cadba52d382b34c3b"
 }
});

Most of the times it's better to create the SceneLayer from a portal item rather than a scene service url, because the information about an associated feature service is stored at the item level and not at the service level.

If the scene service is requested from a different domain, a CORS enabled server or a proxy is required.

Although the internal logic of displaying a SceneLayer is technically advanced, its usage within the API follows the same model as other layers. You can use renderers to style the SceneLayer and popups to retrieve attribute information and display it to the user.

Data Visualization

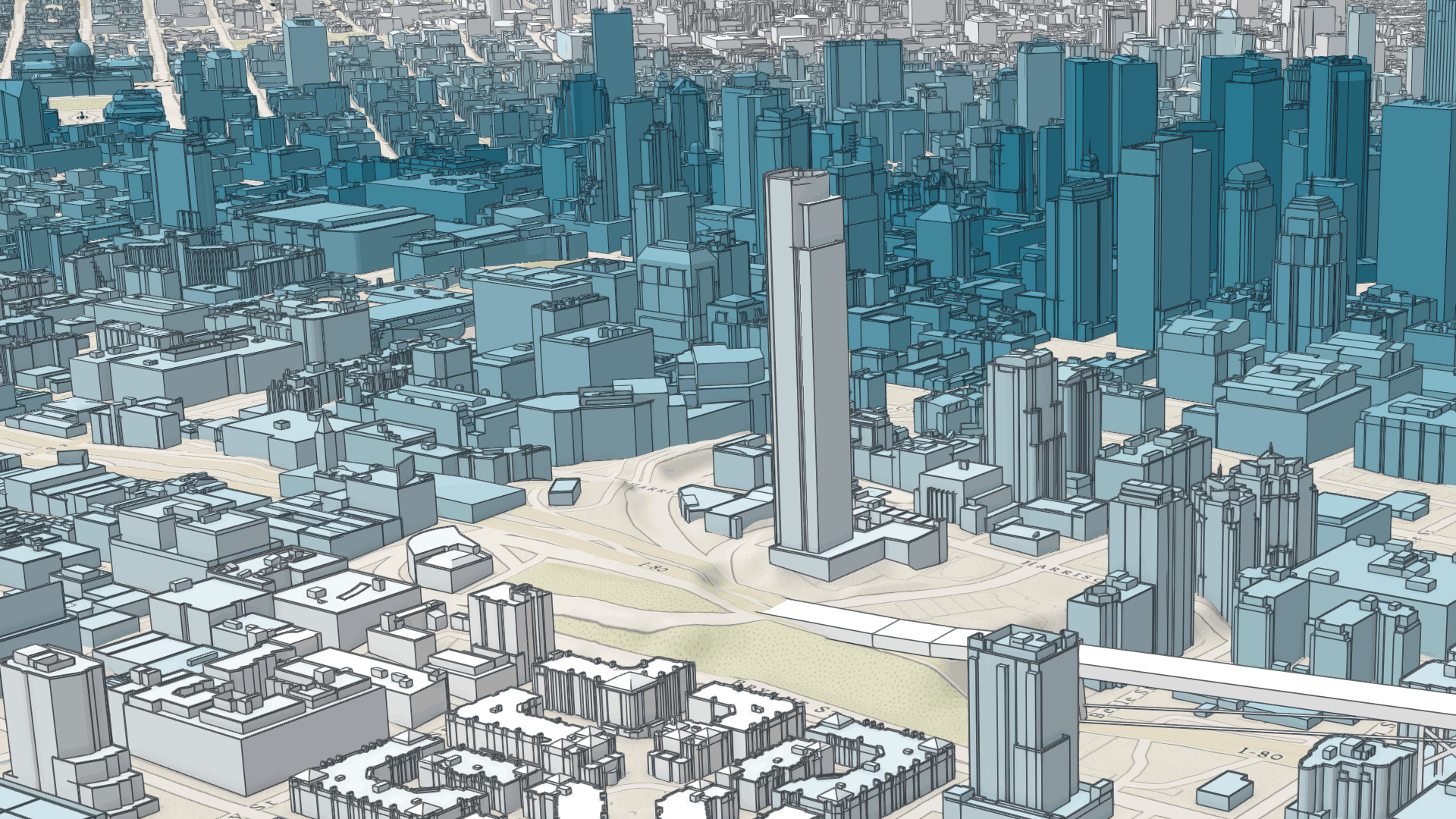

Just like other layers, SceneLayers can be visualized using renderers. 3D Objects in a SceneLayer can be styled using MeshSymbol3D with a FillSymbol3DLayer.

let symbol = {
  type: "mesh-3d",  // autocasts as new MeshSymbol3D()
  symbolLayers: [{
    type: "fill",  // autocasts as new FillSymbol3DLayer()
    material: { color: "red" }
  }]
};

sceneLayer.renderer = {
  type: "simple",  // autocasts as new SimpleRenderer()
  symbol: symbol
};

SceneLayers also support visual variables, which allow you to easily map continuous ramps of color, size, and/or opacity to minimum and maximum data values of one of the layer's numeric attribute fields. In the example below, the renderer for the layer uses the color visual variable to shade each feature along a continuous white to blue color ramp. White features represent buildings that are farther away from a public transport station and deep blue features represent buildings that are very close to one (less than 1 minute walking time). Buildings with values between the low and high values are assigned intermediate colors. To improve the perception of shapes of 3D Object SceneLayers, they can also be visualized with edges. See this sample to explore this example further, or read the visualization overview to learn more about data visualization techniques.

Attributes used in data-driven visualizations with visual variables must be accessible to a SceneLayer's cache. For both SceneLayers with cached attributes only and SceneLayer with associated feature layer the attribute values come from the cache. Therefore if the attributes on the feature layer change, the visualization will not update. Keeping the number of cached attributes to a minimum improves the performance of the SceneLayer. Therefore it is best practice to be judicious with the attributes you make available through the layer's cache.

Filtering data

SceneLayers can be filtered using an SQL where clause. Filtering is implemented with the definitionExpression property. This property is evaluated on the client using SceneLayer cached attributes and it only supports standardized SQL.

let layer = new SceneLayer({
 url: "https://services.arcgis.com/V6ZHFr6zdgNZuVG0/arcgis/rest/services/Paris_3D_Local_WSL2/SceneServer/layers/0",
 definitionExpression: "Type_Toit = 'plat' AND H_MAX <= 20"
});

Another way to filter data is to use a FeatureFilter on the SceneLayerView. This will only display the features that satisfy the filter conditions. Setting a FeatureFilter.geometry and a FeatureFilter.spatialRelationship allows you to filter features based on the spatialRelationship with the geometry you pass in. Currently only spatial relationships of type contains, intersects or disjoint are supported.

Alternatively you can also use a SceneFilter on the filter property directly on the layer. It works similar to the FeatureFilter, but you can define more than just one geometry object. This filter is also persisted in WebScenes and when the layer is saved.

For more information see the Filter SceneLayer with FeatureFilter or the Filter SceneLayer with SceneFilter sample.

Popups

Point and 3D Object SceneLayers can have customized popup content using the popupTemplate property. A SceneLayer with associated feature layer will query the associated feature layer for attributes. For a SceneLayer with cached attributes only, attributes come from the cache. Arcade expressions for expressionInfo in a popupTemplate are also supported.

custom-popups

Querying

The SceneLayer and the SceneLayerView both support queries, but act differently.

Querying a SceneLayer retrieves results from the attributes in the associated feature layer. If the layer doesn't have an associated feature layer, then the query will be rejected with an error. Queries on the layer are powerful because they are made on all the features in the SceneLayer and they also support advanced queries. Spatial queries are supported when the Query.spatialRelationship is set to intersects, contains, or disjoint.

For making attribute based queries on a SceneLayerView you need to specify the required fields in the outFields property of the SceneLayer to ensure that attribute values are available on the client for querying. You can use SceneLayerView.availableFields to inspect which fields are available on the client. On a SceneLayerView spatial queries are possible by setting the Query.geometry and the Query.spatialRelationship of the query. Note that for 3D Object SceneLayers these spatial relationships are evaluated based on the Extent and not the footprint of the feature. The queries on the SceneLayerView return results for features that are currently loaded in the view.

Query method	queryExtent() (only works if it has an associated feature layer)	SceneLayerView.queryExtent() (works on all scene layers)
queryExtent	returns the 2D extent of all features that satisfy the query	returns the 3D extent of currently loaded features that satisfy the query
queryFeatureCount	returns the number of all features that satisfy the query	returns the number of currently loaded features that satisfy the query
queryFeatures	returns all the features that satisfy the query	returns the currently loaded features that satisfy the query
queryObjectIds	returns objectIds of all the features that satisfy the query	returns the objectIds of currently loaded features that satisfy the query

Known Limitations

Spatial queries have the same limitations as those listed in the projectOperator documentation. Spatial queries use the Extent of the feature and not the footprint when calculating the spatial relationship with the query geometry. This means that a feature might be returned from the query, even though its footprint is not in a spatial relationship with the geometry. Currently only intersects, contains, and disjoint spatialRelationships are supported on spatial queries. Spatial queries are not currently supported if the SceneLayer has any of the following SpatialReferences:

GDM 2000 (4742) - Malaysia
Gsterberg (Ferro) (8042) - Austria/Czech Republic
ISN2016 (8086) - Iceland
SVY21 (4757) - Singapore

Get geometry/extent of SceneLayers

3D Object SceneLayers do not return the raw geometry as this is a binary format. To obtain spatial information you can query the 2D extent or 3D extent of features in a SceneLayer. The 2D extent can be retrieved for all features (even the ones that are not loaded yet) with queryExtent() method on the SceneLayer. This method only succeeds if the layer has an associated feature layer. The 3D extent can only be queried for the features that are already loaded, by using the SceneLayerView.queryExtent() method on the SceneLayerView.

Point SceneLayers return geometry when setting Query.returnGeometry to true on any of the query methods. Additionally, the 2D extent of multiple points can be retrieved using queryExtent() on the SceneLayer. It is not possible to get the extent for a SceneLayer with cached attributes only.

Editing

Scene Layers support full editing of both attributes and geometry, including adding, updating, and deleting 3D models. For geometry editing operations, geometry is represented using Mesh objects.

The simplest way to use this functionality is with the Editor widget, which includes all the necessary workflows out of the box, see: Using the Editor widget.

Prerequisites

The prerequisite for an editable SceneLayer is an associated FeatureLayer with editing and change tracking enabled. Geometry can be edited when in global SceneView.viewingMode and the layer spatial reference is a GCS or when in local SceneView.viewingMode and the layer spatial reference is a PCS and matches the spatial reference of the view. For detailed information on publishing, sharing and working with 3D object layers, see the 3D Object Layer: A Comprehensive Overview blog post.

Applying Edits and Cache Management

For customized editing workflows, the applyEdits() methods can be called directly on the SceneLayer. For more details see the 3D object workflows in the SDK - Essential aspects of the editing workflow.

Edits to a scene layer are applied directly to its associated feature service. However, there are limits to how many live edits can be displayed before the scene layer cache must be rebuilt, see Caching 3D object layers

For example, features with edited attributes are rendered with the updates until the number of edited features exceeds 50,000. After that, the live edits are no longer retrieved, and features are rendered with the older, cached attributes until the cache is rebuilt. Similarly, limits for uploading new models to create features depend on the complexity and size of the models.

Samples and use cases

Updating attributes such as status or type: Sample - SceneLayer attribute editing.
Uploading and editing 3D models directly in the scene: Sample - SceneLayer upload 3D models and applyEdits.

Editing Feature Release History

Version	Key Feature Introduced
4.18	introduced Attribute editing
4.27	introduced Geometry (model) add, update, and delete
4.34	introduced `convertMesh` for georeferenced models

Troubleshooting mesh georeferencing

If meshes are not being displayed, then chances are that this is due a configuration which the API does not support for display and editing.

First check the SceneView.viewingMode, Scene Layers spatialReference and vertex space of the mesh geometry involved and consult the console of the javascript debugger. If the API rejects display of SceneLayer edits, a warning message is printed.
If it is determined that an unsupported configuration is used, consider switching the SceneView.viewingMode in your application.
Alternatively, consider rebuilding the cache. Rebuilding the I3S cache will do some of the projects we won't allow on the client and extent the cases in which 3D object feature edits are displayed.
If there is no other option, consider changing the data by switching to a supported spatial reference for the required SceneView.viewingMode.

See also

Constructors

Constructor

Parameters

Parameter	Type	Description	Required
properties	`SceneLayerProperties`

See the properties table for a list of all the properties that may be passed into the constructor.

Example

// Typical usage
let layer = new SceneLayer({
  // URL to the service
  url: "https://services.arcgis.com/V6ZHFr6zdgNZuVG0/arcgis/rest/services/Paris_3D_Local_WSL2/SceneServer/layers/0"
});
modifications?: nil | SceneModifications;
modifications?: nil | SceneModifications;
modifications?: nil | SceneModifications;

Properties

Any properties can be set, retrieved or listened to. See the Watch for changes topic.

Property	Type	Class
`apiKey` inherited	`string \| null \| undefined`	APIKeyMixin
`attributeTableTemplate`	`AttributeTableTemplate \| null \| undefined`
`capabilities` readonly	`SceneLayerCapabilities`
`copyright` inherited	`string \| null \| undefined`	SceneService
`customParameters` inherited	`CustomParameters \| null \| undefined`	CustomParametersMixin
`declaredClass` readonly inherited	`string`	Accessor
`definitionExpression`	`string \| null \| undefined`
`effectiveCapabilities` readonly	`SceneLayerCapabilities`
`elevationInfo`	`ElevationInfo \| null \| undefined`
`excludeObjectIds`	`Collection<number>`
`featureReduction`	`FeatureReductionSelection \| null \| undefined`
`fields` readonly	`Field[]`
`fieldsIndex` readonly	`FieldsIndex<Field>`
`filter`	`SceneFilter \| null \| undefined`
`floorInfo`	`LayerFloorInfo \| null \| undefined`
`fullExtent` inherited	`Extent \| null \| undefined`	Layer
`geometryType` readonly	`I3SGeometryType`
`id` inherited	`string`	Layer
`labelingInfo`	`LabelClass[] \| null \| undefined`
`labelsVisible`	`boolean`
`layerId` inherited	`number`	SceneService
`legendEnabled`	`boolean`
`listMode` inherited	`LayerListMode`	Layer
`loaded` readonly inherited	`boolean`	Layer
`loadError` readonly inherited	`EsriError \| null \| undefined`	LoadableMixin
`loadStatus` readonly inherited	`"not-loaded" \| "loading" \| "failed" \| "loaded"`	LoadableMixin
`loadWarnings` readonly inherited	`any[]`	LoadableMixin
`maxScale` inherited	`number`	ScaleRangeLayer
`minScale` inherited	`number`	ScaleRangeLayer
`objectIdField`	`string`
`opacity` inherited	`number`	Layer
`outFields`	`string[] \| null \| undefined`
`parent` inherited	`Map \| Basemap \| Ground \| GroupLayer \| CatalogDynamicGroupLayer \| CatalogLayer \| null \| undefined`	Layer
`persistenceEnabled` inherited	`boolean`	OperationalLayer
`popupEnabled`	`boolean`
`popupTemplate`	`PopupTemplate \| null \| undefined`
`portalItem` inherited	`PortalItem \| null \| undefined`	PortalLayer
`relationships` readonly	`Relationship[] \| null \| undefined`
`renderer`	`RendererUnion`
`screenSizePerspectiveEnabled`	`boolean`
`spatialReference` inherited	`SpatialReference`	SceneService
`timeExtent`	`TimeExtent \| null \| undefined`
`timeInfo`	`TimeInfo \| null \| undefined`
`timeOffset`	`TimeInterval \| null \| undefined`
`title`	`string \| null \| undefined`
`type` readonly	`"scene"`
`uid` readonly inherited	`string`	IdentifiableMixin
`url` inherited	`string \| null \| undefined`	SceneService
`useViewTime`	`boolean`
`version` readonly inherited	`SceneServiceVersion`	SceneService
`visibilityTimeExtent` inherited	`TimeExtent \| null \| undefined`	Layer
`visible` inherited	`boolean`	Layer

apiKey

inherited Property

Type: string | null | undefined

Inherited from: APIKeyMixin

Since: ArcGIS Maps SDK for JavaScript 4.20

An authorization string used to access a resource or service. This property will append the API key to all requests made by the layer to the service. API keys are generated and managed in the portal. An API key is tied explicitly to an ArcGIS account; it is also used to monitor service usage. Setting a fine-grained API key on a specific class overrides the global API key.

If loading a secure layer with API authentication via a PortalItem, the API key needs to be set on the layer's portalItem property.

See also

Example

// set the api key to access a protected service
const layer = new FeatureLayer({
  url: serviceUrl,
  apiKey: "YOUR_API_KEY"
});

attributeTableTemplate

autocast Property

Type: AttributeTableTemplate | null | undefined

Since: ArcGIS Maps SDK for JavaScript 4.31

This property is used to configure the associated layer's FeatureTable. It is meant to configure how the columns display within the table in regard to visibility, column order, and sorting.

This property differs from a FeatureTable's tableTemplate property. The TableTemplate provides more fine-grained control over how the table is rendered within the application by offering more advanced configurations such as custom cell rendering, column formatting, and more. TableTemplate is useful for application-level development that remains within an application. Use the attributeTableTemplate property to access the table's settings across different applications. By using this property, the settings can be saved within a webmap or layer. Please refer to the AttributeTableTemplate and TableTemplate documentation for more information.

See also

Sample - FeatureTable Component

capabilities

readonly Property

Type: SceneLayerCapabilities

Describes the layer's supported capabilities.

copyright

inherited Property

Type: string | null | undefined

Inherited from: SceneService

The copyright text as defined by the scene service.

customParameters

inherited Property

Type: CustomParameters | null | undefined

Inherited from: CustomParametersMixin

Since: ArcGIS Maps SDK for JavaScript 4.18

A list of custom parameters appended to the URL of all resources fetched by the layer. It's an object with key-value pairs where value is a string. The layer's refresh() method needs to be called if the customParameters are updated at runtime.

Example

// send a custom parameter to your special service
let layer = new MapImageLayer({
  url: serviceUrl,
  customParameters: {
    "key": "my-special-key"
  }
});

declaredClass

readonlyinherited Property

Type: string

Inherited from: Accessor

Since: ArcGIS Maps SDK for JavaScript 4.7

The name of the class. The declared class name is formatted as esri.folder.className.

definitionExpression

Property

Type: string | null | undefined

Since: ArcGIS Maps SDK for JavaScript 4.3

The SQL where clause used to filter features. Only the features that satisfy the definition expression are kept on the client and displayed in the View. Setting a definition expression is useful when only a subset of the data in the layer should be displayed.

Setting the definition expression of a layer automatically updates all layer views.

If the definition expression is set after the layer has been added to the map, the view will automatically refresh itself to display the features that satisfy the new definition expression.

Deprecation warning

In the future, setting definitionExpression will load all the nodes on the client and discard the features that don't match the filter. This uses less memory, but the filter updates will be slower than in the current version. A definitionExpression should only be used if the filter changes rarely, and removing the filtered features is desired to free up memory for other data in the scene.

For fast client-side filters use the where property of SceneLayerView.filter instead.

Example

let layer = new SceneLayer({
   url: "https://services.arcgis.com/V6ZHFr6zdgNZuVG0/arcgis/rest/services/Paris_3D_Local_WSL2/SceneServer/layers/0",
   definitionExpression: "Type_Toit = 'plat' AND H_MAX <= 20"
 });

effectiveCapabilities

readonly Property

Type: SceneLayerCapabilities

Since: ArcGIS Maps SDK for JavaScript 4.28

Describes effective capabilities of the layer taking in to consideration privileges of the currently signed-in user.

elevationInfo

autocast Property

Type: ElevationInfo | null | undefined

Specifies how features are placed on the vertical axis (z). See the ElevationInfo sample for an example of how this property may be used.

The relative-to-scene mode does not affect 3D Object SceneLayers. SceneLayers with Point geometries support all the elevation modes listed in the ElevationInfo. ElevationInfo.featureExpressionInfo is not supported when the elevation info is specified for this class. If the elevation info is not specified, the effective elevation depends on the context and could vary per point.

excludeObjectIds

autocast Property

Type: Collection<number>

Since: ArcGIS Maps SDK for JavaScript 4.23

List of ObjectIDs not being displayed in the view.

featureReduction

autocast Property

Type: FeatureReductionSelection | null | undefined

Since: ArcGIS Maps SDK for JavaScript 4.4

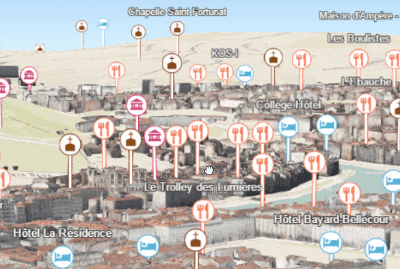

Configures the method for decluttering overlapping features in the view. If this property is not set (or set to null), every feature is drawn individually.

This property is only supported for point scene layers with non-draped Icon or Text symbol layers.

Known Limitation

When applying featureReduction on a point SceneLayer layer updates are slow. This will be addressed in upcoming releases.

See also

Sample: Point styles for cities

Example

layer.featureReduction = {
  type: "selection"
};

fields

readonly Property

Type: Field[]

An array of fields accessible in the layer. Depending on the scene service, fields may have limited support for certain capabilities. Use getFieldUsageInfo() to query the contexts (rendering, labeling, popups or querying) for which a particular field may be used.

fieldsIndex

readonly Property

Type: FieldsIndex<Field>

Since: ArcGIS Maps SDK for JavaScript 4.12

A convenient property that can be used to make case-insensitive lookups for a field by name. It can also provide a list of the date fields in a layer.

Example

// lookup a field by name. name is case-insensitive
const field = layer.fieldsIndex.get("SoMeFiEld");

if (field) {
  console.log(field.name); // SomeField
}

filter

autocast Property

Type: SceneFilter | null | undefined

Since: ArcGIS Maps SDK for JavaScript 4.24

A collection of polygons SceneFilter.geometries which will mask out different parts of the layer. With the SceneFilter.spatialRelationship property you can define if the content inside or outside of the polygons should be masked.

See also

SceneFilter

Example

const layer = new SceneLayer({ ... })

// create a polygon
const polygon = new Polygon({ ... });

// create the masking
const filter = new SceneFilter({ geometries: [polygon], spatialRelationship: "contains" });

// add the mask to the SceneLayer
layer.filter = filter;

floorInfo

autocast Property

Type: LayerFloorInfo | null | undefined

Since: ArcGIS Maps SDK for JavaScript 4.19

When a scene layer is configured as floor-aware, it has a floorInfo property defined. A floor-aware layer is a layer that contains indoor GIS data representing features that can be located on a specific floor of a building.

fullExtent

autocast inherited Property

Type: Extent | null | undefined

Inherited from: Layer

The full extent of the layer. By default, this is worldwide. This property may be used to set the extent of the view to match a layer's extent so that its features appear to fill the view. See the sample snippet below.

The fullExtent property is always null for GroupLayer.

Example

// Once the layer loads, set the view's extent to the layer's full extent
layer.when(function(){
  view.extent = layer.fullExtent;
});

geometryType

readonly Property

Type: I3SGeometryType

The geometry type of features in the layer.

id

inherited Property

Type: string

Inherited from: Layer

The unique ID assigned to the layer. If not set by the developer, it is automatically generated when the layer is loaded.

labelingInfo

autocast Property

Type: LabelClass[] | null | undefined

The label definition for this layer, specified as an array of LabelClass. Use this property to specify labeling properties for the layer such as label expression, placement, and size.

Known Limitations

Each feature can have only one label. Multiple Label classes with different LabelClass.where clauses can be used to have different label styles on different features that belong to the same layer (for example blue labels for lakes and green labels for parks).

See also

labelsVisible

Example

let statesLabelClass = new LabelClass({
  labelExpressionInfo: { expression: "$feature.NAME" },
  symbol: {
    type: "label-3d",  // autocasts as new LabelSymbol3D()
    symbolLayers: [{
      type: "text",  // autocasts as new TextSymbol3DLayer()
      material: { color: [ 49,163,84 ] },
      size: 12  // points
    }]
  }
});

sceneLayer.labelingInfo = [ statesLabelClass ];

labelsVisible

Property

Type: boolean

Indicates whether to display labels for this layer. If true, labels will appear as defined in the labelingInfo property.

See also

labelingInfo

Default value: true

layerId

inherited Property

Type: number

Inherited from: SceneService

The layer ID, or layer index, of a Scene Service layer. This is particularly useful when loading a single layer with the portalItem property from a service containing multiple layers. You can specify this value in one of two scenarios:

When loading the layer via the portalItem property.
When pointing the layer url directly to the Scene Service.

If a layerId is not specified in either of the above scenarios, then the first layer in the service (layerId = 0) is selected.

Examples

// while these examples use a SceneLayer, the same pattern can be
// used for other layers that may be loaded from portalItem ids

// loads the third layer in the given Portal Item
let layer = new SceneLayer({
  portalItem: {
    id: "73df987984b24094b848d580eb83b0fb"
  },
  layerId: 2
});

// If not specified, the first layer (layerId: 0) will be returned
let layer = new SceneLayer({
  portalItem: {
    id: "73df987984b24094b848d580eb83b0fb"
  }
});

// Can also be used if URL points to service and not layer
let layer = new SceneLayer({
  url: "https://scenesampleserverdev.arcgis.com/arcgis/rest/services/Hosted/DevA_Trees/SceneServer",
  layerId: 0  // Notice that the url doesn't end with /2
});

// This code returns the same layer as the previous snippet
let layer = new SceneLayer({
  url: "https://scenesampleserverdev.arcgis.com/arcgis/rest/services/Hosted/DevA_Trees/SceneServer/layers/0",
  // The layer id is specified in the URL
});

legendEnabled

Property

Type: boolean

Indicates whether the layer will be included in the legend.

Default value: true

listMode

inherited Property

Type: LayerListMode

Inherited from: Layer

Indicates how the layer should display in the Layer List component. The possible values are listed below.

Value	Description
show	The layer is visible in the table of contents.
hide	The layer is hidden in the table of contents.
hide-children	If the layer is a GroupLayer, BuildingSceneLayer, KMLLayer, MapImageLayer, SubtypeGroupLayer, TileLayer, or WMSLayer, hide the children layers from the table of contents.

Default value: "show"

loaded

readonlyinherited Property

Type: boolean

Inherited from: Layer

Indicates whether the layer's resources have loaded. When true, all the properties of the object can be accessed.

Default value: false

loadError

readonlyinherited Property

Type: EsriError | null | undefined

Inherited from: LoadableMixin

The Error object returned if an error occurred while loading.

loadStatus

readonlyinherited Property

Type: "not-loaded" | "loading" | "failed" | "loaded"

Inherited from: LoadableMixin

Represents the status of a load() operation.

Value	Description
not-loaded	The object's resources have not loaded.
loading	The object's resources are currently loading.
loaded	The object's resources have loaded without errors.
failed	The object's resources failed to load. See loadError for more details.

Default value: "not-loaded"

loadWarnings

readonlyinherited Property

Type: any[]

Inherited from: LoadableMixin

A list of warnings which occurred while loading.

maxScale

inherited Property

Type: number

Inherited from: ScaleRangeLayer

The maximum scale (most zoomed in) at which the layer is visible in the view. If the map is zoomed in beyond this scale, the layer will not be visible. A value of 0 means the layer does not have a maximum scale. The maxScale value should always be smaller than the minScale value, and greater than or equal to the service specification.

Default value: 0

Examples

// The layer will not be visible when the view is zoomed in beyond a scale of 1:1,000
layer.maxScale = 1000;

// The layer's visibility is not restricted to a maximum scale.
layer.maxScale = 0;

minScale

inherited Property

Type: number

Inherited from: ScaleRangeLayer

The minimum scale (most zoomed out) at which the layer is visible in the view. If the map is zoomed out beyond this scale, the layer will not be visible. A value of 0 means the layer does not have a minimum scale. The minScale value should always be larger than the maxScale value, and lesser than or equal to the service specification.

Default value: 0

Examples

// The layer will not be visible when the view is zoomed out beyond a scale of 1:3,000,000
layer.minScale = 3000000;

// The layer's visibility is not restricted to a minimum scale.
layer.minScale = 0;

objectIdField

Property

Type: string

The name of the field containing each graphic's Object ID. If this is not explicitly specified, this is automatically derived from the fields of the service by taking the first field of type oid.

See also

fields

opacity

inherited Property

Type: number

Inherited from: Layer

The opacity of the layer. This value can range between 1 and 0, where 0 is 100 percent transparent and 1 is completely opaque.

Known Limitations

In a 3D SceneView, modifying opacity is not supported for DimensionLayer, GaussianSplatLayer, IntegratedMesh3DTilesLayer, IntegratedMeshLayer, LineOfSightLayer, PointCloudLayer, ViewshedLayer, and VoxelLayer.

Default value: 1

Example

// Makes the layer 50% transparent
layer.opacity = 0.5;

outFields

Property

Type: string[] | null | undefined

Since: ArcGIS Maps SDK for JavaScript 4.12

An array of field names from the service to include with each feature. To fetch the values from all fields in the layer, use ["*"]. Fields specified in outFields will be requested alongside with required fields for rendering, labeling and setting the elevation info for the layer. The required fields and outFields are used to populate SceneLayerView.availableFields. Set this property to include the fields that will be used for client-side queries if the fields are not part of required fields used for rendering.

See also

Examples

// Includes all fields from the service in the layer
sl.outFields = ["*"];

// Get the specified fields from the service in the layer
// These fields will be added to SceneLayerView.availableFields
// along with rendering and labeling fields. Use these fields
// for client-side querying.
sl.outFields = ["NAME", "POP_2010", "FIPS", "AREA"];

// set the outFields for the layer coming from webscene
webscene.when(function () {
  layer = webscene.layers.at(1);
  layer.outFields = ["*"];
});

parent

inherited Property

Type: Map | Basemap | Ground | GroupLayer | CatalogDynamicGroupLayer | CatalogLayer | null | undefined

Inherited from: Layer

Since: ArcGIS Maps SDK for JavaScript 4.27

The parent to which the layer belongs.

persistenceEnabled

inherited Property

Type: boolean

Inherited from: OperationalLayer

Since: ArcGIS Maps SDK for JavaScript 4.28

Enable persistence of the layer in a WebMap or WebScene.

Default value: true

popupEnabled

Property

Type: boolean

Indicates whether to display popups when features in the layer are clicked. The layer needs to have a popupTemplate to define what information should be displayed in the popup. Alternatively, a default popup template may be automatically used if Popup.defaultPopupTemplateEnabled is set to true.

See also

Default value: true

popupTemplate

autocast Property

Type: PopupTemplate | null | undefined

The popup template for the layer. When set on the layer, the popupTemplate allows users to access attributes and display their values in the view's Popup when a feature is selected using text and/or charts. See the PopupTemplate sample for an example of how PopupTemplate interacts with a FeatureLayer. Setting a PopupTemplate on this layer type is done in the same way as a FeatureLayer.

A default popup template is automatically used if no popupTemplate has been defined when Popup.defaultPopupTemplateEnabled is set to true.

See also

portalItem

autocast inherited Property

Type: PortalItem | null | undefined

Inherited from: PortalLayer

The portal item from which the layer is loaded. If the portal item references a feature or scene service, then you can specify a single layer to load with the layer's layerId property.

Loading non-spatial tables

Non-spatial tables can be loaded from service items hosted in ArcGIS Online and ArcGIS Enterprise. This only applies to:

FeatureLayer if the layer's isTable returns true at version 4.17.
SubtypeGroupLayer if the layer's isTable returns true at version 4.32.

Examples

// While this example uses FeatureLayer, this same pattern can be
// used for other layers that may be loaded from portalItem ids.
const layer = new FeatureLayer({
  portalItem: {  // autocasts as new PortalItem()
    id: "caa9bd9da1f4487cb4989824053bb847"
  }  // the first layer in the service is returned
});

// Set hostname when using an on-premise portal (default is ArcGIS Online)
// esriConfig.portalUrl = "http://myHostName.esri.com/arcgis";

// While this example uses FeatureLayer, this same pattern can be
// used for SceneLayers.
const layer = new FeatureLayer({
  portalItem: {  // autocasts as new PortalItem()
    id: "8d26f04f31f642b6828b7023b84c2188"
  },
  // loads the third item in the given feature service
  layerId: 2
});

// Initialize GeoJSONLayer by referencing a portalItem id pointing to geojson file.
const layer = new GeoJSONLayer({
  portalItem: new PortalItem({
    id: "81e769cd7031482797e1b0768f23c7e1",
    // optionally define the portal, of the item.
    // if not specified, the default portal defined is used.
    // see https://developers.arcgis.com/javascript/latest/references/core/config/#portalUrl
    portal: new Portal({
      url: "https://jsapi.maps.arcgis.com/"
    })
  }
});

// This snippet loads a table hosted in ArcGIS Online.
const table = new FeatureLayer({
  portalItem: { // autocasts as esri/portal/PortalItem
    id: "123f4410054b43d7a0bacc1533ceb8dc"
  }
});

// Before adding the table to the map, it must first be loaded and confirm it is the right type.
table.load().then(() => {
  if (table.isTable) {
    map.tables.add(table);
  }
});

// While this example uses FeatureLayer, this same pattern can be
// used for other layers that may be loaded from portalItem ids.
const layer = new FeatureLayer({
  portalItem: { // autocasts as esri/portal/PortalItem
    id: "caa9bd9da1f4487cb4989824053bb847",
    // Set an API key to access a secure portal item configured with API key authentication.
    apiKey: "APIKEY"
  }
});

relationships

readonly Property

Type: Relationship[] | null | undefined

Since: ArcGIS Maps SDK for JavaScript 4.28

Array of relationships set up for the layer. Each object in the array describes the layer's Relationship with another layer or table. This property is read from the associated feature layer if available.

See also

queryRelatedFeatures()

Example

// print out layer's relationship length and each relationship info to console
layer.when(function () {
  console.log("layer relationships", layer.relationships.length);

  layer.relationships.forEach(function (relationship) {
    console.log("relationship id:", relationship.id)
    console.log("relationship cardinality:", relationship.cardinality)
    console.log("relationship key field:", relationship.keyField)
    console.log("relationship name:", relationship.name)
    console.log("relationship relatedTableId:", relationship.relatedTableId)
  });
});

renderer

autocast Property

Type: RendererUnion

The renderer assigned to the layer. The renderer defines how to visualize each feature in the layer. Depending on the renderer type, features may be visualized with the same symbol, or with varying symbols based on the values of provided attribute fields or functions.

See also

Styles and data visualization

Example

// all features in the layer will be visualized with
// a blue color
layer.renderer = {
  type: "simple",  // autocasts as new SimpleRenderer()
  symbol: {
    type: "mesh-3d",  // autocasts as new MeshSymbol3D()
    symbolLayers: [{
      type: "fill",  // autocasts as new FillSymbol3DLayer()
      material: { color: "blue" }
    }]
  }
};

screenSizePerspectiveEnabled

Property

Type: boolean

Since: ArcGIS Maps SDK for JavaScript 4.4

Apply perspective scaling to screen-size symbols in a SceneView. When true, screen sized objects such as icons, labels or callouts integrate better in the 3D scene by applying a certain perspective projection to the sizing of features. This only applies when using a SceneView.

layer.screenSizePerspectiveEnabled = true

screen-size-perspective

layer.screenSizePerspectiveEnabled = false

no-screen-size-perspective

Known Limitations

Screen size perspective is currently not optimized for situations where the camera is very near the ground, or for scenes with visual elements located far from the ground surface. In these cases it may be better to turn off screen size perspective. As screen size perspective changes the size based on distance to the camera, it should be set to false when using size visual variables.

See also

Sample: Point styles for cities

Default value: true

spatialReference

autocast inherited Property

Type: SpatialReference

Inherited from: SceneService

The spatial reference of the layer.

timeExtent

autocast Property

Type: TimeExtent | null | undefined

Since: ArcGIS Maps SDK for JavaScript 4.30

The layer's time extent. When the layer's useViewTime is false, the layer instructs the view to show data from the layer based on this time extent. If the useViewTime is true, and both layer and view time extents are set, then features that fall within the intersection of the view and layer time extents will be displayed. For example, if the layer's time extent is set to display features between 1970 and 1975 and the view has a time extent set to 1972-1980, the effective time on the feature layer will be 1972-1975.

Examples

if (!layer.useViewTime) {
  if (layer.timeExtent) {
    console.log("Current timeExtent:", layer.timeExtent.start, " - ", layer.timeExtent.end);
  } else {
    console.log("The layer will display data within the view's timeExtent.");
    console.log("Current view.timeExtent:", view.timeExtent.start, " - ", view.timeExtent.end);
  }
}

// set the timeExtent on the layer and useViewTime false
// In this case, the layer will honor its timeExtent and ignore
// the view's timeExtent
const layer = new SceneLayer({
  url: "https://services.arcgis.com/V6ZHFr6zdgNZuVG0/arcgis/rest/services/Paris_3D_Local_WSL2/SceneServer",
  timeExtent: {
    start: new Date(2014, 4, 18),
    end: new Date(2014, 4, 19)
  },
  useViewTime: false
});

// timeExtent is set on the layer and the view
// In this case, the layer will display features that fall
// within the intersection of view and layer time extents
// features within Jan 1, 1976 - Jan 1, 1981 will be displayed
const view = new SceneView({
  timeExtent: {
    start: new Date(1976, 0, 1),
    end: new Date(2002, 0, 1)
  }
});
const layer = new SceneLayer({
  url: myUrl,
  timeExtent: {
    start: new Date(1974, 0, 1),
    end: new Date(1981, 0, 1)
  }
});

timeInfo

autocast Property

Type: TimeInfo | null | undefined

Since: ArcGIS Maps SDK for JavaScript 4.30

TimeInfo provides information such as date fields that store start and end time for each feature and the TimeInfo.fullTimeExtent for the layer.

If timeInfo configuration exists on the service it gets read and used from there. A developer can overwrite or create a timeInfo configuration on initialization. The timeInfo parameters cannot be changed after the layer is loaded.

TimeInfo's startField and endField can be date, date-only or timestamp-offset field type for SceneLayer and BuildingComponentSublayer.

timeOffset

autocast Property

Type: TimeInterval | null | undefined

Since: ArcGIS Maps SDK for JavaScript 4.30

A temporary offset of the time data based on a certain TimeInterval. This allows users to overlay features from two or more time-aware layers with different time extents. For example, if a layer has data recorded for the year 1970, an offset value of 2 years would temporarily shift the data to 1972. You can then overlay this data with data recorded in 1972. A time offset can be used for display purposes only. The query and selection are not affected by the offset.

title

Property

Type: string | null | undefined

The title of the layer used to identify it in places such as the Legend and LayerList.

When loading a layer by service url, the title is derived from the service name. If the service has several layers, then the title of each layer will be the concatenation of the service name and the layer name. When the layer is loaded from a portal item, the title of the portal item will be used instead. Finally, if a layer is loaded as part of a webmap or a webscene, then the title of the layer as stored in the webmap/webscene will be used.

type

readonly Property

Type: "scene"

The layer type provides a convenient way to check the type of the layer without the need to import specific layer modules.

uid

readonlyinherited Property

Type: string

Inherited from: IdentifiableMixin

Since: ArcGIS Maps SDK for JavaScript 4.33

An automatically generated unique identifier assigned to the instance. The unique id is generated each time the application is loaded.

url

inherited Property

Type: string | null | undefined

Inherited from: SceneService

The URL of the REST endpoint of the layer or scene service. The URL may either point to a resource on ArcGIS Enterprise or ArcGIS Online.

The layer may be specified using the layerId property when the url points directly to a service and not a specific layer. If layerId is not specified, then it will default to the first layer in the service.

Examples

// Layer from Scene Service on ArcGIS Server
let sceneLayer = new SceneLayer({
  url: "https://services.arcgis.com/V6ZHFr6zdgNZuVG0/arcgis/rest/services/Paris_3D_Local_WSL2/SceneServer/layers/0"
});

// Can also be used if URL points to service and not layer
let layer = new SceneLayer({
  // Notice that the url doesn't end with /0
  url: "https://scenesampleserverdev.arcgis.com/arcgis/rest/services/Hosted/DevA_Trees/SceneServer",
  layerId: 0
});

useViewTime

autocast Property

Type: boolean

Since: ArcGIS Maps SDK for JavaScript 4.30

Determines if the layer will update its temporal data based on the view's View.timeExtent. When false, the layer will display its temporal data based on the layer's timeExtent, regardless of changes to the view. If both view and layer time extents are set while this property is true, then the features that fall within the intersection of the view and layer time extents will be displayed. For example, if a layer's time extent is set to display features between 1970 and 1975 and the view has a time extent set to 1972-1980, the effective time on the feature layer will be 1972-1975.

Default value: true

Example

if (layer.useViewTime) {
  console.log("Displaying data between:", view.timeExtent.start, " - ", view.timeExtent.end);
}

version

readonlyinherited Property

Type: SceneServiceVersion

Inherited from: SceneService

The version of the scene service specification used for this service.

See also

github.com/Esri/i3s-spec

Example

// Prints the version to the console - e.g. 1.4, 1.5, etc.
console.log(layer.version.versionString);

visibilityTimeExtent

autocast inherited Property

Type: TimeExtent | null | undefined

Inherited from: Layer

Since: ArcGIS Maps SDK for JavaScript 4.30

Specifies a fixed time extent during which a layer should be visible. This property can be used to configure a layer that does not have time values stored in an attribute field to work with time. Once configured, the TimeSlider widget will display the layer within the set time extent. In the case that only one of the TimeExtent.start or TimeExtent.end date values are available, the layer remains visible indefinitely in the direction where there is no time value.

Aerial imagery can capture seasonal variations in vegetation, water bodies, and land use patterns. For example, in agricultural regions, aerial imageries taken during different growing seasons provide insights into crop health and productivity. Defining a fixed time extent on imageries from specific time periods provides temporal context and facilitates focused analysis based on specific time periods or events.

See also

Sample - GraphicsLayer with visibilityTimeExtent

visible

inherited Property

Type: boolean

Inherited from: Layer

Indicates if the layer is visible in the View. When false, the layer may still be added to a Map instance that is referenced in a view, but its features will not be visible in the view.

Default value: true

Example

// The layer is no longer visible in the view
layer.visible = false;

// Watch for changes in the layer's visibility
// and set the visibility of another layer when it changes
reactiveUtils.watch(
  () => layer.visible,
  (visible) => {
    if (visible) {
      anotherLayer.visible = true;
    } else {
      anotherLayer.visible = false;
    }
  }
);

Methods

Method	Signature	Class
`fromArcGISServerUrl` inherited static	`fromArcGISServerUrl(params: string \| FromArcGISServerUrlParameters): Promise<Layer>`	Layer
`fromPortalItem` inherited static	`fromPortalItem(params: LayerFromPortalItemParameters): Promise<Layer>`	Layer
`applyEdits`	`applyEdits(edits: Edits, options?: EditOptions): Promise<EditsResult>`
`cancelLoad` inherited	`cancelLoad(): this`	LoadableMixin
`clone` inherited	`clone(): this`	ClonableMixin
`convertMesh`	`convertMesh(files: File[], options?: ConvertMeshOptions): Promise<ConvertMeshResult>`
`createLayerView` inherited	`createLayerView<T extends LayerView = LayerView>(view: View<T>, options?: AbortOptions): Promise<T>`	Layer
`createPopupTemplate`	`createPopupTemplate(options?: CreatePopupTemplateOptions): PopupTemplate \| null \| undefined`
`createQuery`	`createQuery(): Query`
`destroy` inherited	`destroy(): void`	Layer
`emit` inherited	`emit<Type extends EventNames<this>>(type: Type, event?: this["@eventTypes"][Type]): boolean`	EventedMixin
`fetchAttributionData` inherited	`fetchAttributionData(): Promise<any>`	Layer
`getField`	`getField(fieldName: string): Field \| null \| undefined`
`getFieldDomain`	`getFieldDomain(fieldName: string, options?: FieldDomainOptions): DomainUnion \| null \| undefined`
`getFieldUsageInfo`	`getFieldUsageInfo(fieldName: string): object`
`hasEventListener` inherited	`hasEventListener<Type extends EventNames<this>>(type: Type): boolean`	EventedMixin
`isFulfilled` inherited	`isFulfilled(): boolean`	EsriPromiseMixin
`isRejected` inherited	`isRejected(): boolean`	EsriPromiseMixin
`isResolved` inherited	`isResolved(): boolean`	EsriPromiseMixin
`load` inherited	`load(options?: AbortOptions \| null \| undefined): Promise<this>`	LoadableMixin
`on` inherited	`on<Type extends EventNames<this>>(type: Type, listener: EventedCallback<this["@eventTypes"][Type]>): ResourceHandle`	EventedMixin
`queryAttachments`	`queryAttachments(query: AttachmentQueryProperties, options?: RequestOptions): Promise<Record<string, AttachmentInfo[]>>`
`queryCachedStatistics`	`queryCachedStatistics(fieldName: string \| null \| undefined, options?: AbortOptions): Promise<object>`
`queryExtent`	`queryExtent(query?: QueryProperties \| null \| undefined, options?: AbortOptions): Promise<{ count: number; extent: Extent \| null; }>`
`queryFeatureCount`	`queryFeatureCount(query?: QueryProperties \| null \| undefined, options?: AbortOptions): Promise<number>`
`queryFeatures`	`queryFeatures(query?: QueryProperties \| null \| undefined, options?: AbortOptions): Promise<FeatureSet>`
`queryObjectIds`	`queryObjectIds(query?: QueryProperties \| null \| undefined, options?: AbortOptions): Promise<number[]>`
`queryRelatedFeatures`	`queryRelatedFeatures(relationshipQuery: RelationshipQueryProperties, options?: RequestOptions): Promise<Record<string, FeatureSet>>`
`queryRelatedFeaturesCount`	`queryRelatedFeaturesCount(relationshipQuery: RelationshipQueryProperties, options?: RequestOptions): Promise<Record<string, number>>`
`save`	`save(): Promise<PortalItem>`
`saveAs`	`saveAs(portalItem: PortalItem, options?: SaveAsOptions): Promise<PortalItem>`
`when` inherited	`when<TResult1 = this, TResult2 = never>(onFulfilled?: OnFulfilledCallback<this, TResult1> \| null \| undefined, onRejected?: OnRejectedCallback<TResult2> \| null \| undefined): Promise<TResult1 \| TResult2>`	EsriPromiseMixin

fromArcGISServerUrl

inheritedstatic Method

Signature: fromArcGISServerUrl (params: string | FromArcGISServerUrlParameters): Promise<Layer>

Inherited from: Layer

Creates a new layer instance from an ArcGIS Server URL. Depending on the URL, the returned layer type may be a BuildingSceneLayer, CatalogLayer, ElevationLayer, FeatureLayer, GroupLayer, ImageryLayer, ImageryTileLayer, IntegratedMeshLayer, KnowledgeGraphLayer, MapImageLayer, OrientedImageryLayer, PointCloudLayer, SceneLayer, StreamLayer, SubtypeGroupLayer, TileLayer, or VideoLayer.

This is useful when you work with various ArcGIS Server URLs, but you don't necessarily know which layer type(s) they create. This method creates the appropriate layer type for you. In case of a feature service or a scene service, when the URL points to the service and the service has multiple layers, the returned promise will resolve to a GroupLayer.

Beginning with version 4.17, it is possible to load tables from hosted feature services. This only applies to feature layers, and will successfully load if FeatureLayer.isTable returns true.

The following table details what is returned when loading specific URL types.

URL	Returns
Feature service with one layer	FeatureLayer where FeatureLayer.isTable returns `false`.
Feature service with one table	FeatureLayer where FeatureLayer.isTable returns `true`.
Feature service with more than one layer(s)/table(s)	GroupLayer with layers and tables.
Layers with type other than "Feature Layer" are discarded, e.g. Utility Network Layers	N/A

See also

FeatureLayer.isTable

Parameters

Parameter	Type	Description	Required
params	`string \| FromArcGISServerUrlParameters`	Input parameters for creating the layer.

Returns: Promise<Layer>
Returns a promise that resolves to the new Layer instance.

Examples

// This snippet shows how to add a feature layer from an ArcGIS Server URL
// Get an ArcGIS Server URL from a custom function
const arcgisUrl = getLayerUrl();

Layer.fromArcGISServerUrl({
  url: arcgisUrl,
  properties: {
    // set any layer properties here
    popupTemplate: new PopupTemplate()
  }
}).then(function(layer){
  // add the layer to the map
  map.add(layer);
});

// This snippet shows how to add a table from an ArcGIS Server URL
// Get an ArcGIS Server URL from a custom function
const arcgisUrl = getLayerUrl();

Layer.fromArcGISServerUrl({
  url: arcgisUrl
}).then(function(layer){
  // Load the table before it can be used
  layer.load().then(function() {
    // Check that it is the right type
    if (layer.isTable) {
      // Add table to map's tables collection
      map.tables.add(layer);
    }
  });
});

fromPortalItem

inheritedstatic Method

Signature: fromPortalItem (params: LayerFromPortalItemParameters): Promise<Layer>

Inherited from: Layer

Creates a new layer instance of the appropriate layer class from an ArcGIS Online or ArcGIS Enterprise portal item. If the item points to a feature service with multiple layers, then a GroupLayer is created. If the item points to a service with a single layer, then it resolves to a layer of the same type of class as the service.

Note

At version 4.29, MediaLayer can be loaded from portal items.
At version 4.28, GroupLayer and OrientedImageryLayer can be loaded from portal items.
At version 4.25, CSVLayer and GeoJSONLayer can be loaded from CSV and GeoJSON portal items respectively.
At version 4.17, it is possible to load tables from feature service items hosted in ArcGIS Online and ArcGIS Enterprise. This only applies to feature layers, and will successfully load if FeatureLayer.isTable returns true.

The following table details what is returned when loading specific item types.

Item(s)	Returns
Feature service with one layer	FeatureLayer where FeatureLayer.isTable returns `false`.
Feature service with one table	FeatureLayer where FeatureLayer.isTable returns `true`.
Feature service with more than one layer(s)/table(s)	GroupLayer with layers and tables.
Feature collection with one layer	FeatureLayer where FeatureLayer.isTable returns `false`.
Feature collection with one table	FeatureLayer where FeatureLayer.isTable returns `true`.
Feature collection with more than one layer(s)/table(s)	GroupLayer with layers and tables.

Known Limitations

This method does not currently work with OGCFeatureServer portal items.

See also

Parameters

Parameter	Type	Description	Required
params	`LayerFromPortalItemParameters`	The parameters for loading the portal item.

Returns: Promise<Layer>
Returns a promise which resolves to the new layer instance.

Examples

// Create a layer from a specified portal item and add to the map
Layer.fromPortalItem({
  portalItem: {  // autocasts new PortalItem()
    id: "8444e275037549c1acab02d2626daaee"
  }
}).then(function(layer){
  // add the layer to the map
  map.add(layer);
});

// Create a table from a specified portal item and add it to the map's tables collection
Layer.fromPortalItem({
  portalItem: { // autocasts new PortalItem()
    id: "123f4410054b43d7a0bacc1533ceb8dc" // This is a hosted table stored in a feature service
  }
}).then(function(layer) {
  // Necessary to load the table in order for it to be read correctly
  layer.load().then(function() {
    // Confirm this reads as a table
    if (layer.isTable) {
      // Add the new table to the map's table collection
      map.tables.add(layer);
    }
  });
});

applyEdits

Method

Signature: applyEdits (edits: Edits, options?: EditOptions): Promise<EditsResult>

Applies edits to the features in the associated FeatureLayer. The prerequisite for an editable SceneLayer is an associated FeatureLayer with editing and change tracking enabled. Editing capabilities depend on the capabilities of the associated FeatureLayer. Adding, updating and deleting feature geometry is only available with an associated feature layer that has GLB format enabled.

Features with edits are rendered with updated geometry and attributes and deleted features are hidden when displaying the layer in a SceneView unless there are too many edits. In this case the scene layer cache should be updated to contain the latest changes. The following limitations apply:

The number of features with attribute updates needs to be smaller than 50,000
The time it takes to extract what has been edited exceeds 10 seconds

Support for Scene Layer geometry add/update/delete was released at version 4.27. (For an example see SceneLayer upload 3D models and applyEdits) Support for Scene Layer attribute editing was released at version 4.18.

Parameters

Parameter	Type	Description	Required
edits	`Edits`	Object containing features to be updated.
options	`EditOptions`	Additional edit options to specify when editing features.

Returns: Promise<EditsResult>
When resolved, an EditsResult object is returned.

cancelLoad

inherited Method

Signature: cancelLoad (): this

Inherited from: LoadableMixin

Cancels a load() operation if it is already in progress.

Returns: this

clone

inherited Method

Signature: clone (): this

Inherited from: ClonableMixin

Creates a deep clone of this object. Any properties that store values by reference will be assigned copies of the referenced values on the cloned instance.

Returns: this
A deep clone of the class instance that invoked this method.

convertMesh

Method

Signature: convertMesh (files: File[], options?: ConvertMeshOptions): Promise<ConvertMeshResult>

Since: ArcGIS Maps SDK for JavaScript 4.29

Converts a file or list of files to a mesh geometry. These files can be of any file format supported by the layer. The model will be located according to georeferencing information available in the model, or default to [0, 0, 0]. The default origin can be overridden by providing a defaultOrigin in the options. You can also completely override any intrinsic origin the model may have by directly providing an origin in the options. See examples below for use of the various options.

Passing files which represent multiple meshes (e.g. multiple obj files) will result in an error as those cannot to be represented by a single mesh.

The resulting mesh is always in the spatial reference of the layer and has a vertex space appropriate for that spatial reference (local for geographic, georeferenced for projected).

If the model had intrinsic georeferencing information, then this information is returned in the georeferenceInfo property of the result. The origin will be projected to the layer spatial reference if the intrinsic georeference is in a different spatial reference. Note that full model (per vertex) reprojection is not supported which can lead to inaccuracies. You can check the spatial reference of the origin in the returned georeferenceInfo.

Parameters

Parameter	Type	Description	Required
files	`File[]`	The files from which to create the mesh.
options	`ConvertMeshOptions`	Options to configure the conversion.

Returns: Promise<ConvertMeshResult>
A promise that resolves to the conversion result.

Examples

// Convert and automatically place model according to its georeferencing information, with a fallback
// to place it at the center of the current view.
const { mesh: geometry } = await layer.convertMesh([file]. { defaultOrigin: view.center.clone() });
const symbol = { type: "mesh-3d", symbolLayers: [{ type: "fill" }] };

const graphic = new Graphic({ geometry, symbol });

graphicsLayer.add(graphic);
sketchViewModel.update(graphic);
view.goTo(graphic);

// Convert model and either start a sketch update if the model has intrinsic georeferencing information,
// or start an interactive placement if it does not.
const { mesh, georeferenceInfo } = await layer.convertMesh([file]);

if (georeferenceInfo) {
  // Intrinsically georeferenced, frame model and start an update
  const graphic = new Graphic({ geometry: mesh, symbol: meshSymbol });

  graphicsLayer.add(graphic);
  sketchViewModel.update(graphic);
  view.goTo(graphic);

  if (!georeferenceInfo.origin.spatialReference.equals(mesh.spatialReference)) {
    // Inform the user that the model origin was reprojected which may lead to inaccuracies.
    // Alternatively, use this information to completely reject the model conversion
  }
} else {
  // Not intrinsically georeferenced, use interactive place for initial placement
  sketchViewModel.place(mesh);
}

createLayerView

inherited Method

Signature: createLayerView <T extends LayerView = LayerView>(view: View<T>, options?: AbortOptions): Promise<T>

Type parameters: <T extends LayerView = LayerView>

Inherited from: Layer

Called by the views, such as MapView and SceneView, when the layer is added to the Map.layers collection and a layer view must be created for it. This method is used internally and there is no use case for invoking it directly.

See also

Sample - Custom WebGL layer view

Parameters

Parameter	Type	Description	Required
view	`View`	The parent view.
options	`AbortOptions`	An object specifying additional options. See the object specification table below for the required properties of this object.

Returns: Promise
Resolves with a LayerView instance.

createPopupTemplate

Method

Signature: createPopupTemplate (options?: CreatePopupTemplateOptions): PopupTemplate | null | undefined

Since: ArcGIS Maps SDK for JavaScript 4.11

Creates a default popup template for the layer, populated with all the fields of the layer.

Parameters

Parameter	Type	Description	Required
options	`CreatePopupTemplateOptions`	Options for creating the popup template.

Returns: PopupTemplate | null | undefined
The popup template, or null if the layer does not have any fields.

createQuery

Method

Signature: createQuery (): Query

Since: ArcGIS Maps SDK for JavaScript 4.3

Creates a query object that can be used to fetch features that satisfy the layer's current definition expression. The query should only be used on the layer and not on the layer view.

Returns: Query
The query object representing the layer's definition expression.

destroy

inherited Method

Signature: destroy (): void

Inherited from: Layer

Since: ArcGIS Maps SDK for JavaScript 4.17

Destroys the layer and any associated resources (including its portalItem, if it is a property on the layer). The layer can no longer be used once it has been destroyed.

The destroyed layer will be removed from its parent object like Map, WebMap, WebScene, Basemap, Ground, or GroupLayer.

See also

Returns: void

emit

inherited Method

Signature: emit <Type extends EventNames<this>>(type: Type, event?: this["@eventTypes"][Type]): boolean

Type parameters: <Type extends EventNames<this>>

Inherited from: EventedMixin

Since: ArcGIS Maps SDK for JavaScript 4.5

Emits an event on the instance. This method should only be used when creating subclasses of this class.

Parameters

Parameter	Type	Description	Required
type	`Type`	The name of the event.
event	`this["@eventTypes"][Type]`	The event payload.

Returns: boolean
true if a listener was notified

fetchAttributionData

inherited Method

Signature: fetchAttributionData (): Promise<any>

Inherited from: Layer

Fetches custom attribution data for the layer when it becomes available.

Returns: Promise<any>
Resolves to an object containing custom attribution data for the layer.

getField

Method

Signature: getField (fieldName: string): Field | null | undefined

Since: ArcGIS Maps SDK for JavaScript 4.12

Returns the Field instance for a field name (case-insensitive).

See also

fields

Parameters

Parameter	Type	Description	Required
fieldName	`string`	Name of the field.

Returns: Field | null | undefined
the matching field or undefined

getFieldDomain

Method

Signature: getFieldDomain (fieldName: string, options?: FieldDomainOptions): DomainUnion | null | undefined

Since: ArcGIS Maps SDK for JavaScript 4.12

Returns the Domain associated with the given field name. The domain can be either a CodedValueDomain or RangeDomain.

Parameters

Parameter	Type	Description	Required
fieldName	`string`	Name of the field.
options	`FieldDomainOptions`	An object specifying additional options. See the object specification table below for the required properties of this object.

Returns: DomainUnion | null | undefined
The Domain object associated with the given field name for the given feature.

getFieldUsageInfo

Method

Signature: getFieldUsageInfo (fieldName: string): object

Gets field usage information. The usage of a field depends on whether it is stored as part of the scene service cache. The returned object contains the following usage information:

Property	Type	Description
supportsRenderer	boolean	Indicates that a field can be used in a renderer (e.g. in visual variables), see renderer.
supportsLabelingInfo	boolean	Indicates that a field can be used for labeling, see labelingInfo.
supportsPopupTemplate	boolean	Indicates that a field can be used in a popup template, see popupTemplate.
supportsLayerQuery	boolean	Indicates that a field can be used in layer queries, see queryFeatures().

Parameters

Parameter	Type	Description	Required
fieldName	`string`	The name of the field to get usage info for.

Returns: object
the field usage.

hasEventListener

inherited Method

Signature: hasEventListener <Type extends EventNames<this>>(type: Type): boolean

Type parameters: <Type extends EventNames<this>>

Inherited from: EventedMixin

Indicates whether there is an event listener on the instance that matches the provided event name.

Parameters

Parameter	Type	Description	Required
type	`Type`	The name of the event.

Returns: boolean
Returns true if the class supports the input event.

isFulfilled

inherited Method

Signature: isFulfilled (): boolean

Inherited from: EsriPromiseMixin

isFulfilled() may be used to verify if creating an instance of the class is fulfilled (either resolved or rejected). If it is fulfilled, true will be returned.

Returns: boolean
Indicates whether creating an instance of the class has been fulfilled (either resolved or rejected).

isRejected

inherited Method

Signature: isRejected (): boolean

Inherited from: EsriPromiseMixin

isRejected() may be used to verify if creating an instance of the class is rejected. If it is rejected, true will be returned.

Returns: boolean
Indicates whether creating an instance of the class has been rejected.

isResolved

inherited Method

Signature: isResolved (): boolean

Inherited from: EsriPromiseMixin

isResolved() may be used to verify if creating an instance of the class is resolved. If it is resolved, true will be returned.

Returns: boolean
Indicates whether creating an instance of the class has been resolved.

load

inherited Method

Signature: load (options?: AbortOptions | null | undefined): Promise<this>

Inherited from: LoadableMixin

Loads the resources referenced by this class. This method automatically executes for a View and all of the resources it references in Map if the view is constructed with a map instance.

This method must be called by the developer when accessing a resource that will not be loaded in a View.

The load() method only triggers the loading of the resource the first time it is called. The subsequent calls return the same promise.

It's possible to provide a signal to stop being interested into a Loadable instance load status. When the signal is aborted, the instance does not stop its loading process, only cancelLoad() can abort it.

Parameters

Parameter	Type	Description	Required
options	`AbortOptions \| null \| undefined`	Additional options.

Returns: Promise<this>
Resolves when the resources have loaded.

on

inherited Method

Signature: on <Type extends EventNames<this>>(type: Type, listener: EventedCallback<this["@eventTypes"][Type]>): ResourceHandle

Type parameters: <Type extends EventNames<this>>

Inherited from: EventedMixin

Registers an event handler on the instance. Call this method to hook an event with a listener.

Parameters

Parameter	Type	Description	Required
type	`Type`	An event or an array of events to listen for.
listener	`EventedCallback<this["@eventTypes"][Type]>`	The function to call when the event fires.

Returns

ResourceHandle

Returns an event handler with a remove() method that should be called to stop listening for the event(s).

Property	Type	Description
remove	Function	When called, removes the listener from the event.

Example

view.on("click", function(event){
  // event is the event handle returned after the event fires.
  console.log(event.mapPoint);
});

queryAttachments

Method

Signature: queryAttachments (query: AttachmentQueryProperties, options?: RequestOptions): Promise<Record<string, AttachmentInfo[]>>

Since: ArcGIS Maps SDK for JavaScript 4.28

Query information about attachments associated with features. It will return an error if the layer's capabilities.data.supportsAttachment property is false. Attachments for multiple features can be queried if the layer's capabilities.operations.supportsQueryAttachments is true.

Known Limitations

When the layer'scapabilities.operations.supportsQueryAttachments property is false, AttachmentQuery.objectIds property only accepts a single objectId.

See also

Parameters

Parameter	Type	Description	Required
query	`AttachmentQueryProperties`	Specifies the attachment parameters for query.
options	`RequestOptions`	An object with the following properties.

Returns: Promise<Record<string, AttachmentInfo[]>>
When resolved, returns an object containing AttachmentInfos grouped by the source feature objectIds.

queryCachedStatistics

Method

Signature: queryCachedStatistics (fieldName: string | null | undefined, options?: AbortOptions): Promise<object>

Since: ArcGIS Maps SDK for JavaScript 4.13

Queries cached statistics from the service for a given field. Check for the response details the I3S SceneLayer Specification

Parameters

Parameter	Type	Description	Required
fieldName	`string \| null \| undefined`	The name of the field to query statistics for.
options	`AbortOptions`	An object with the following properties.

Returns: Promise<object>
The statistics document.

Example

layer.queryCachedStatistics("FIELDNAME")
 .then(function(statistics) {
   console.log(statistics);
});

queryExtent

Method

Signature: queryExtent (query?: QueryProperties | null | undefined, options?: AbortOptions): Promise<{ count: number; extent: Extent | null; }>

Executes a Query against the associated feature service and returns the 2D Extent of features that satisfy the query. At the moment the 3D Extent can be returned by using SceneLayerView.queryExtent(), but this will return the 3D extent only for features currently in the view. The query succeeds only if the SceneLayer has an associated feature layer. If an associated feature layer is not available, then an error with the name scenelayer:query-not-available is thrown. Read more about queries in the Querying section of the class description above.

See also

FeatureLayer.queryExtent()

Parameters

Parameter	Type	Description	Required
query	`QueryProperties \| null \| undefined`	Specifies the query parameters.
options	`AbortOptions`	An object with the following properties.

Returns

Promise<{ count: number; extent: Extent | null; }>

When resolved, returns the extent and count of the features that satisfy the input query. See the object specification table below for details.

Property	Type	Description
count	Number	The number of features that satisfy the input query.
extent	Extent	The extent of the features that satisfy the query.

queryFeatureCount

Method

Signature: queryFeatureCount (query?: QueryProperties | null | undefined, options?: AbortOptions): Promise<number>

Executes a Query against the associated feature service and returns the number of features that satisfy the query. The query succeeds only if the layer's supportsLayerQuery capability is enabled. Use the getFieldUsageInfo() method to check if the layer supports queries. If querying is not enabled, then an error with the name scenelayer:query-not-available is thrown. Read more about queries in the Querying section of the class description above.

See also

FeatureLayer.queryFeatureCount()

Parameters

Parameter	Type	Description	Required
query	`QueryProperties \| null \| undefined`	Specifies the query parameters.
options	`AbortOptions`	An object with the following properties.

Returns: Promise<number>
Resolves to the count of the features satisfying the query.

queryFeatures

Method

Signature: queryFeatures (query?: QueryProperties | null | undefined, options?: AbortOptions): Promise<FeatureSet>

Executes a Query against the associated feature service and returns a FeatureSet. The query succeeds only if the layer's supportsLayerQuery capability is enabled. Use the getFieldUsageInfo() method to check if the layer supports queries. If querying is not enabled, then an error with the name scenelayer:query-not-available is thrown. Read more about queries in the Querying section of the class description above.

See also

FeatureLayer.queryFeatures()

Parameters

Parameter	Type	Description	Required
query	`QueryProperties \| null \| undefined`	Specifies the query parameters.
options	`AbortOptions`	An object with the following properties.

Returns: Promise<FeatureSet>
Resolves to a FeatureSet which contains the features satisfying the query.

queryObjectIds

Method

Signature: queryObjectIds (query?: QueryProperties | null | undefined, options?: AbortOptions): Promise<number[]>

Executes a Query against the associated feature service and returns an array of ObjectIDs of the features that satisfy the input query. The query succeeds only if the layer's supportsLayerQuery capability is enabled. Use the getFieldUsageInfo() method to check if the layer supports queries. If querying is not enabled, then an error with the name scenelayer:query-not-available is thrown. Read more about queries in the Querying section of the class description above.

See also

FeatureLayer.queryObjectIds()

Parameters

Parameter	Type	Description	Required
query	`QueryProperties \| null \| undefined`	Specifies the query parameters.
options	`AbortOptions`	An object with the following properties.

Returns: Promise<number[]>
Resolves to an array of numbers representing the object IDs of the features satisfying the query.

queryRelatedFeatures

Method

Signature: queryRelatedFeatures (relationshipQuery: RelationshipQueryProperties, options?: RequestOptions): Promise<Record<string, FeatureSet>>

Since: ArcGIS Maps SDK for JavaScript 4.28

Executes a RelationshipQuery against the feature service associated with the scene layer and returns FeatureSets grouped by source layer or table objectIds.

See also

relationships property

Parameters

Parameter	Type	Description	Required
relationshipQuery	`RelationshipQueryProperties`	Specifies relationship parameters for querying related features or records from a layer or a table.
options	`RequestOptions`	An object with the following properties.

Returns: Promise<Record<string, FeatureSet>>
When resolved, returns FeatureSets grouped by source layer/table objectIds. Each FeatureSet contains an array of Graphic features including the values of the fields requested by the user.

Example

const objectIds = [385, 416];

// relationship query parameter
const query = {
  outFields: ["*"],
  relationshipId: relationshipId,
  objectIds: objectIds
}

// query related features for given objectIds
layer.queryRelatedFeatures(query).then(function (result) {
  objectIds.forEach(function (objectId) {
    // print out the attributes of related features if the result
    // is returned for the specified objectId
    if (result[objectId]) {
      console.group("relationship for feature:", objectId)
      result[objectId].features.forEach(function (feature) {
        console.log("attributes", JSON.stringify(feature.attributes));
      });
      console.groupEnd();
    }
  });
}).catch(function (error) {
  console.log("error from queryRelatedFeatures", error);
});

queryRelatedFeaturesCount

Method

Signature: queryRelatedFeaturesCount (relationshipQuery: RelationshipQueryProperties, options?: RequestOptions): Promise<Record<string, number>>

Since: ArcGIS Maps SDK for JavaScript 4.28

Executes a RelationshipQuery against the feature service associated with the scene layer and when resolved, it returns an object containing key value pairs. Key in this case is the objectId of the feature and value is the number of related features associated with the feature.

See also

relationships property

Parameters

Parameter	Type	Description	Required
relationshipQuery	`RelationshipQueryProperties`	Specifies relationship parameters for querying related features or records from a layer or a table.
options	`RequestOptions`	An object with the following properties.

Returns: Promise<Record<string, number>>
When resolved, returns a hashmap containing key value pairs. Key in this case is the objectId of the feature and value is the number of related features.

Example

const objectIds = [385, 416];

// relationship query parameter
const query = {
  outFields: ["*"],
  relationshipId: relationshipId,
  objectIds: objectIds
}

// query related features for given objectIds
layer.queryRelatedFeaturesCount(query).then(function (count) {
  console.log("queryRelatedFeaturesCount", count);
  // this will print out
  // {385: 91, 416: 23}
}).catch(function (error) {
  console.log("error from queryRelatedFeatures", error);
});

save

Method

Signature: save (): Promise<PortalItem>

Since: ArcGIS Maps SDK for JavaScript 4.31

Saves the layer to its existing portal item in the Portal authenticated within the user's current session. If the layer is not saved to a PortalItem, then you should use saveAs().

See also

saveAs()

Returns: Promise<PortalItem>
When resolved, returns the portal item to which the layer is saved.

Example

const portalItem = await layer.save();

saveAs

Method

Signature: saveAs (portalItem: PortalItem, options?: SaveAsOptions): Promise<PortalItem>

Since: ArcGIS Maps SDK for JavaScript 4.31

Saves the layer to a new portal item in the Portal authenticated within the user's current session.

See also

save()

Parameters

Parameter	Type	Description	Required
portalItem	`PortalItem`	The portal item to which the layer will be saved.
options	`SaveAsOptions`	additional save options

Returns: Promise<PortalItem>
When resolved, returns the portal item to which the layer is saved.

Example

const portalItem = new PortalItem();
await layer.saveAs(portalItem);

when

inherited Method

Signature: when <TResult1 = this, TResult2 = never>(onFulfilled?: OnFulfilledCallback<this, TResult1> | null | undefined, onRejected?: OnRejectedCallback<TResult2> | null | undefined): Promise<TResult1 | TResult2>

Type parameters: <TResult1 = this, TResult2 = never>

Inherited from: EsriPromiseMixin

Since: ArcGIS Maps SDK for JavaScript 4.6

when() may be leveraged once an instance of the class is created. This method takes two input parameters: an onFulfilled function and an onRejected function. The onFulfilled executes when the instance of the class loads. The onRejected executes if the instance of the class fails to load.

Parameters

Parameter	Type	Description	Required
onFulfilled	`OnFulfilledCallback<this, TResult1> \| null \| undefined`	The function to call when the promise resolves.
onRejected	`OnRejectedCallback \| null \| undefined`	The function to execute when the promise fails.

Returns: Promise<TResult1 | TResult2>
Returns a new promise for the result of onFulfilled that may be used to chain additional functions.

Example

// Although this example uses MapView, any class instance that is a promise may use when() in the same way
let view = new MapView();
view.when(function(){
  // This function will execute once the promise is resolved
}, function(error){
  // This function will execute if the promise is rejected due to an error
});

Events

Name	Type
`edits` inherited	CustomEvent<EditsResultEvent>
`layerview-create` inherited	CustomEvent<LayerLayerviewCreateEvent>
`layerview-create-error` inherited	CustomEvent<LayerLayerviewCreateErrorEvent>
`layerview-destroy` inherited	CustomEvent<LayerLayerviewDestroyEvent>

edits

inherited Event

edits: CustomEvent<EditsResultEvent>

Inherited from: EditBusLayerEvents

Fires after FeatureLayer.applyEdits() is completed successfully. The event payload includes only successful edits, not the failed edits. applyEdits() will pass in a sessionId during an active edit session.

See also

FeatureLayer.applyEdits()

Example

// This function will fire each time applyEdits() is completed successfully
layer.on("edits", function(event) {

  const extractObjectId = function(result) {
    return result.objectId;
  };

  const adds = event.addedFeatures.map(extractObjectId);
  console.log("addedFeatures: ", adds.length, adds);

  const updates = event.updatedFeatures.map(extractObjectId);
  console.log("updatedFeatures: ", updates.length, updates);

  const deletes = event.deletedFeatures.map(extractObjectId);
  console.log("deletedFeatures: ", deletes.length, deletes);
});

layerview-create

inherited Event

layerview-create: CustomEvent<LayerLayerviewCreateEvent>

Inherited from: LayerEvents

Fires after the layer's LayerView is created and rendered in a view.

See also

View.whenLayerView()

Example

// This function will fire each time a layer view is created for this
// particular view.
layer.on("layerview-create", function(event){
  // The LayerView for the layer that emitted this event
  event.layerView;
});

layerview-create-error

inherited Event

layerview-create-error: CustomEvent<LayerLayerviewCreateErrorEvent>

Inherited from: LayerEvents

Fires when an error emits during the creation of a LayerView after a layer has been added to the map.

See also

View.whenLayerView()

Example

// This function fires when an error occurs during the creation of the layer's layerview
layer.on("layerview-create-error", function(event) {
  console.error("LayerView failed to create for layer with the id: ", layer.id, " in this view: ", event.view);
});

layerview-destroy

inherited Event

layerview-destroy: CustomEvent<LayerLayerviewDestroyEvent>

Inherited from: LayerEvents

Fires after the layer's LayerView is destroyed and no longer renders in a view.

Type definitions

ConvertMeshOptions

Type definition

Options used to configure mesh conversion.

Supertypes: AbortOptions

origin

Property

Type: Point | undefined

The location of the origin of the model. If the location doesn't contain a z-value, z is assumed to be 0. If not provided, the mesh will be placed at its intrinsic georeferenced origin, a specified defaultOrigin or finally default to [0, 0, 0].

defaultOrigin

Property

Type: Point | undefined

The default location of the origin of the model. This location is used as a default if the model does not have an intrinsic georeferenced origin. If not provided, the default location will be [0, 0, 0].

ConvertMeshResult

Type definition

Convert mesh result.

mesh

Property

Type: Mesh

The mesh geometry created from the provided files.

georeferenceInfo

Property

Type: ConvertMeshGeoreferenceInfo | undefined

Georeferencing information extracted from the model during conversion.

ConvertMeshGeoreferenceInfo

Type definition

Georeferencing information extracted during mesh conversion.

origin

Property

Type: Point

The georeferenced origin of the model.
