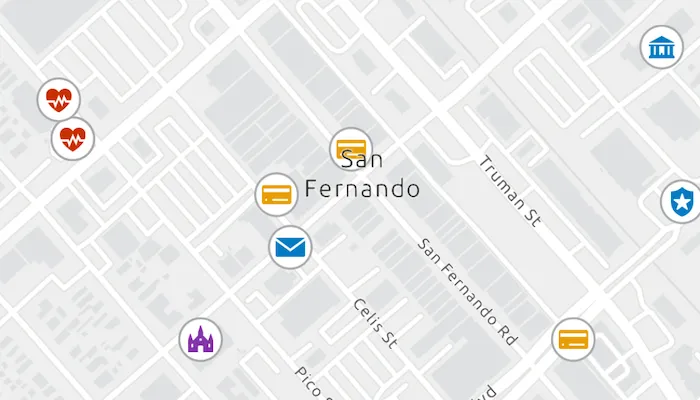

Create symbol styles from web styles

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
/* Copyright 2025 Esri
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *    http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 *
 */

package com.esri.arcgismaps.sample.createsymbolstylesfromwebstyles.components

import android.app.Application
import android.graphics.drawable.BitmapDrawable
import androidx.lifecycle.AndroidViewModel
import androidx.lifecycle.viewModelScope
import com.arcgismaps.data.ServiceFeatureTable
import com.arcgismaps.mapping.ArcGISMap
import com.arcgismaps.mapping.BasemapStyle
import com.arcgismaps.mapping.Viewpoint
import com.arcgismaps.mapping.layers.FeatureLayer
import com.arcgismaps.mapping.symbology.SymbolStyle
import com.arcgismaps.mapping.symbology.UniqueValue
import com.arcgismaps.mapping.symbology.UniqueValueRenderer
import com.esri.arcgismaps.sample.sampleslib.components.MessageDialogViewModel
import kotlinx.coroutines.flow.MutableStateFlow
import kotlinx.coroutines.flow.asStateFlow
import kotlinx.coroutines.launch

class CreateSymbolStylesFromWebStylesViewModel(application: Application) : AndroidViewModel(application) {

    // Create a unique value renderer
    private val uniqueValueRenderer = UniqueValueRenderer().apply {
        // Add the name of a field from the feature layer data that symbols will be mapped to
        fieldNames.add("cat2")
    }

    // Create a feature layer from a service
    private val featureLayer =
        FeatureLayer.createWithFeatureTable(ServiceFeatureTable("http://services.arcgis.com/V6ZHFr6zdgNZuVG0/arcgis/rest/services/LA_County_Points_of_Interest/FeatureServer/0"))
            .apply {
                // Set the unique value renderer on the feature layer
                renderer = uniqueValueRenderer
            }

    // Create a map with the light gray basemap style
    val arcGISMap = ArcGISMap(BasemapStyle.ArcGISLightGray).apply {
        // Set a viewpoint
        initialViewpoint = Viewpoint(34.28301, -118.44186, 7000.0)
        // Set a reference scale on the map for controlling symbol size
        referenceScale = 100000.0
        // Add the feature layer to the map's operational layers
        operationalLayers.add(featureLayer)
    }

    // Create a symbol style from a web style. ArcGIS Online is used as the default portal when null is passed as the
    // portal parameter
    private val symbolStyle =
        SymbolStyle.createWithStyleNameAndPortal(styleName = "Esri2DPointSymbolsStyle", portal = null)

    // Create a list of the required symbol names in the web style
    private val symbolNames = listOf(
        "atm",
        "beach",
        "campground",
        "city-hall",
        "hospital",
        "library",
        "park",
        "place-of-worship",
        "police-station",
        "post-office",
        "school",
        "trail"
    )

    // Create a flow to hold the symbol names and icons
    private val _symbolNamesAndIconsFlow = MutableStateFlow<List<Pair<String, BitmapDrawable>>>(emptyList())
    val symbolNamesAndIconsFlow = _symbolNamesAndIconsFlow.asStateFlow()

    // Create a message dialog view model for handling error messages
    val messageDialogVM = MessageDialogViewModel()

    init {
        // Load the symbols into a list
        viewModelScope.launch {
            arcGISMap.load().onFailure { error ->
                messageDialogVM.showMessageDialog(
                    "Failed to load map", error.message.toString()
                )
            }

            // Once map is loaded, create unique value symbols
            _symbolNamesAndIconsFlow.value = createUniqueValueSymbols()
        }
    }

    /**
     * Only scale symbols if map scale greater than or equal to 80,000
     */
    fun onMapScaleChanged(scale: Double) {
        featureLayer.scaleSymbols = scale >= 80000
    }

    /**
     * Create a series of unique values and add them to the unique value renderer. Also create a list of the symbol
     * names and icons and return them as a list of pairs.
     */
    private suspend fun createUniqueValueSymbols(): MutableList<Pair<String, BitmapDrawable>> {
        // Create a list to hold the symbol names and icons
        val symbolNamesAndIconsList = mutableListOf<Pair<String, BitmapDrawable>>()
        symbolNames.forEach { symbolName ->
            // Search for each symbol in the symbol style
            symbolStyle.getSymbol(listOf(symbolName)).onSuccess { symbol ->
                // Get a list of all categories to be mapped to the symbol
                val categories = mapSymbolNameToField(symbolName)
                categories.forEach { category ->
                    // Add each unique value category to the unique value renderer
                    uniqueValueRenderer.uniqueValues.add(
                        UniqueValue(
                            label = symbolName, symbol = symbol, values = listOf(category)
                        )
                    )
                }
                // Create a swatch from the symbol
                symbol.createSwatch(
                    screenScale = 2.0f, width = 30.0f, height = 30.0f
                ).onSuccess { symbolBitmap ->
                    // Add the symbol name and symbol to the list
                    symbolNamesAndIconsList.add(Pair(symbolName, symbolBitmap))
                }.onFailure {
                    messageDialogVM.showMessageDialog(
                        "Failed to create swatch for: $symbolName", it.message.toString()
                    )
                }
            }
        }
        // Sort the symbol name alphabetically
        symbolNamesAndIconsList.sortBy { it.first }
        // Update the flow with the new list
        return symbolNamesAndIconsList
    }
}

/**
 * Returns a list of categories to be matched to a symbol name.
 */
private fun mapSymbolNameToField(symbolName: String): List<String> {
    return mutableListOf<String>().apply {
        when (symbolName) {
            "atm" -> add("Banking and Finance")
            "beach" -> add("Beaches and Marinas")
            "campground" -> add("Campgrounds")
            "city-hall" -> addAll(listOf("City Halls", "Government Offices"))
            "hospital" -> addAll(
                listOf(
                    "Hospitals and Medical Centers",
                    "Health Screening and Testing",
                    "Health Centers",
                    "Mental Health Centers"
                )
            )

            "library" -> add("Libraries")
            "park" -> add("Parks and Gardens")
            "place-of-worship" -> add("Churches")
            "police-station" -> add("Sheriff and Police Stations")
            "post-office" -> addAll(listOf("DHL Locations", "Federal Express Locations"))
            "school" -> addAll(
                listOf(
                    "Public High Schools", "Public Elementary Schools", "Private and Charter Schools"
                )
            )

            "trail" -> add("Trails")
        }
    }.toList()
}
