Trace utility network

View on GitHub

Sample viewer app

Discover connected features in a utility network using connected, subnetwork, upstream, and downstream traces.

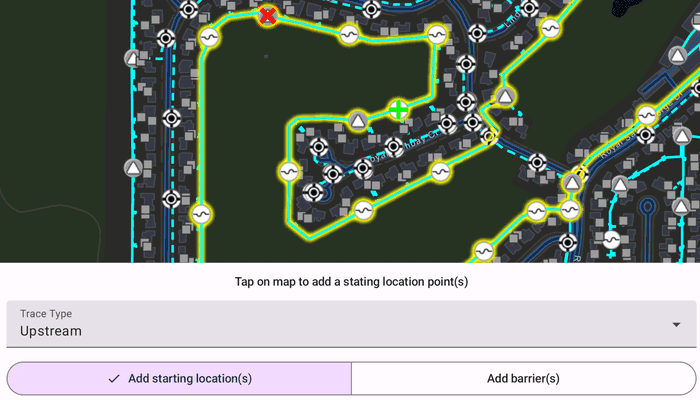

Image of trace utility network

Use case

You can use a trace to visualize and validate the network topology of a utility network for quality assurance. Subnetwork traces are used for validating whether subnetworks, such as circuits or zones, are defined or edited appropriately.

How to use the sample

Tap on one or more features while 'Add starting locations' or 'Add barriers' is selected. When a junction feature is identified, you may be prompted to select a terminal. When an edge feature is identified, the distance from the tapped location to the beginning of the edge feature will be computed. Select the type of trace using the drop down menu. Click 'Trace' to initiate a trace on the network. Click 'Reset' to clear the trace parameters and start over.

How it works

Create a MapView and identify the feature onSingleTap event.
Create and load an ArcGISMap with a web map item URL that contains an UtilityNetwork.
Get and load the first UtilityNetwork from the web map.
Get and load the ServiceGeodatabase from the utility network and fetch the line FeatureLayer from the ServiceGeodatabase's tables.
Add a GraphicsOverlay with symbology that distinguishes starting locations from barriers.
Identify features on the map and add a Graphic that represents its purpose (starting location or barrier) at the tapped location.
Create a UtilityElement for the identified feature.
Determine the type of this element using its UtilityNetworkSourceType property.
If the element is a junction with more than one terminal, display a terminal picker. Then set the junction's UtilityTerminal property with the selected terminal.
If an edge, set its FractionAlongEdge property using GeometryEngine.FractionAlong.
Add this UtilityElement to a collection of starting locations or barriers.
Create UtilityTraceParameters with the selected trace type along with the collected starting locations and barriers (if applicable).
Set the UtilityTraceParameters.TraceConfiguration with the tier's UtilityTier.getDefaultTraceConfiguration() result.
Run a UtilityNetwork.trace() with the specified parameters.
For every FeatureLayer in the map, select the features returned with elements matching their UtilityNetworkSource.FeatureTable with the layer's FeatureTable.

Relevant API

FractionAlong
UtilityAssetType
UtilityDomainNetwork
UtilityElement
UtilityElementTraceResult
UtilityNetwork
UtilityNetworkDefinition
UtilityNetworkSource
UtilityTerminal
UtilityTier
UtilityTraceConfiguration
UtilityTraceParameters
UtilityTraceResult
UtilityTraceType
UtilityTraversability

About the data

The Naperville Electric Map web map contains a utility network used to run the subnetwork-based trace shown in this sample. Authentication is required and handled within the sample code.

Additional information

Using utility network on ArcGIS Enterprise 10.8 requires an ArcGIS Enterprise member account licensed with the Utility Network user type extension. Please refer to the utility network services documentation.

This sample uses the GeoView-Compose Toolkit module to be able to implement a composable MapView. Use the UtilityNetworkTrace tool to help configure, run, and visualize UtilityNetworkTraces on a composable MapView.

Sample Code

TraceUtilityNetworkViewModel.kt

MainActivity.kt

TraceUtilityNetworkScreen.kt

Use dark colors for code blocksCopy
/* Copyright 2025 Esri
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *    http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 *
 */

package com.esri.arcgismaps.sample.traceutilitynetwork.components

import android.app.Application
import android.widget.Toast
import androidx.compose.ui.unit.dp
import androidx.lifecycle.AndroidViewModel
import androidx.lifecycle.viewModelScope
import com.arcgismaps.ArcGISEnvironment
import com.arcgismaps.Color
import com.arcgismaps.data.ArcGISFeature
import com.arcgismaps.data.QueryParameters
import com.arcgismaps.geometry.Geometry
import com.arcgismaps.geometry.GeometryEngine
import com.arcgismaps.geometry.Point
import com.arcgismaps.geometry.Polyline
import com.arcgismaps.httpcore.authentication.ArcGISAuthenticationChallengeHandler
import com.arcgismaps.httpcore.authentication.ArcGISAuthenticationChallengeResponse
import com.arcgismaps.httpcore.authentication.TokenCredential
import com.arcgismaps.mapping.ArcGISMap
import com.arcgismaps.mapping.Viewpoint
import com.arcgismaps.mapping.layers.FeatureLayer
import com.arcgismaps.mapping.layers.SelectionMode
import com.arcgismaps.mapping.symbology.SimpleLineSymbol
import com.arcgismaps.mapping.symbology.SimpleLineSymbolStyle
import com.arcgismaps.mapping.symbology.SimpleMarkerSymbol
import com.arcgismaps.mapping.symbology.SimpleMarkerSymbolStyle
import com.arcgismaps.mapping.symbology.UniqueValue
import com.arcgismaps.mapping.symbology.UniqueValueRenderer
import com.arcgismaps.mapping.view.Graphic
import com.arcgismaps.mapping.view.GraphicsOverlay
import com.arcgismaps.mapping.view.IdentifyLayerResult
import com.arcgismaps.mapping.view.ScreenCoordinate
import com.arcgismaps.toolkit.geoviewcompose.MapViewProxy
import com.arcgismaps.utilitynetworks.UtilityElement
import com.arcgismaps.utilitynetworks.UtilityElementTraceResult
import com.arcgismaps.utilitynetworks.UtilityNetwork
import com.arcgismaps.utilitynetworks.UtilityNetworkSource
import com.arcgismaps.utilitynetworks.UtilityNetworkSourceType
import com.arcgismaps.utilitynetworks.UtilityTerminal
import com.arcgismaps.utilitynetworks.UtilityTier
import com.arcgismaps.utilitynetworks.UtilityTraceParameters
import com.arcgismaps.utilitynetworks.UtilityTraceType
import com.esri.arcgismaps.sample.sampleslib.components.MessageDialogViewModel
import kotlinx.coroutines.flow.MutableStateFlow
import kotlinx.coroutines.flow.asStateFlow
import kotlinx.coroutines.launch
import kotlinx.coroutines.runBlocking
import kotlin.math.roundToLong

class TraceUtilityNetworkViewModel(application: Application) : AndroidViewModel(application) {

    // The textual hint shown to the user
    private val _hint = MutableStateFlow<String?>(null)
    val hint = _hint.asStateFlow()

    // Is trace utility network enabled
    private val _canTrace = MutableStateFlow(false)
    val canTrace = _canTrace.asStateFlow()

    // The trace state used for the sample
    private val _traceState = MutableStateFlow(TraceState.ADD_STARTING_POINT)
    val traceState = _traceState.asStateFlow()

    // Currently selected utility trace type
    private val _selectedTraceType = MutableStateFlow<UtilityTraceType>(UtilityTraceType.Connected)
    val selectedTraceType = _selectedTraceType.asStateFlow()

    // Currently selected point type (start/barrier)
    private val _selectedPointType = MutableStateFlow(PointType.Start)
    val selectedPointType = _selectedPointType.asStateFlow()

    // Terminal configuration options (high/low)
    private val _terminalConfigurationOptions = MutableStateFlow<List<UtilityTerminal>>(listOf())
    val terminalConfigurationOptions = _terminalConfigurationOptions.asStateFlow()

    // Currently selected terminal configuration
    private var _selectedTerminalConfigurationIndex = MutableStateFlow<Int?>(null)

    // ArcGISMap holding the UtilityNetwork and operational layers
    val arcGISMap =
        ArcGISMap("https://sampleserver7.arcgisonline.com/portal/home/item.html?id=be0e4637620a453584118107931f718b")

    // Used to handle map view animations
    val mapViewProxy = MapViewProxy()

    // The utility network used for tracing
    private var utilityNetwork: UtilityNetwork? = null

    // The medium voltage tier used for the electric distribution domain network
    private var mediumVoltageTier: UtilityTier? = null

    // Create lists for starting locations and barriers
    private val utilityElementStartingLocations: MutableList<UtilityElement> = mutableListOf()
    private val utilityElementBarriers: MutableList<UtilityElement> = mutableListOf()

    // Graphics overlay for the starting locations and barrier graphics
    val graphicsOverlay = GraphicsOverlay()

    // Create symbols for the starting point and barriers
    private val startingPointSymbol = SimpleMarkerSymbol(
        style = SimpleMarkerSymbolStyle.Cross,
        color = Color.green,
        size = 25f
    )
    private val barrierPointSymbol = SimpleMarkerSymbol(
        style = SimpleMarkerSymbolStyle.X,
        color = Color.red,
        size = 25f
    )

    // Add custom unique renderer values for the electrical distribution layer
    private val electricalDistributionUniqueValueRenderer = UniqueValueRenderer(
        fieldNames = listOf("ASSETGROUP"),
        uniqueValues = listOf(
            UniqueValue(
                description = "Low voltage",
                label = "",
                symbol = SimpleLineSymbol(
                    style = SimpleLineSymbolStyle.Dash,
                    color = Color.green,
                    width = 3f
                ),
                values = listOf(3)
            ),
            UniqueValue(
                description = "Medium voltage",
                label = "",
                symbol = SimpleLineSymbol(
                    style = SimpleLineSymbolStyle.Solid,
                    color = Color.green,
                    width = 3f
                ),
                values = listOf(5)
            )
        )
    )

    /**
     * Returns a [ArcGISAuthenticationChallengeHandler] to access the utility network URL.
     */
    private fun getAuthenticationChallengeHandler(): ArcGISAuthenticationChallengeHandler {
        return ArcGISAuthenticationChallengeHandler { challenge ->
            val result: Result<TokenCredential> = runBlocking {
                TokenCredential.create(challenge.requestUrl, "viewer01", "I68VGU^nMurF", 0)
            }
            if (result.getOrNull() != null) {
                val credential = result.getOrNull()
                return@ArcGISAuthenticationChallengeHandler ArcGISAuthenticationChallengeResponse.ContinueWithCredential(
                    credential!!
                )
            } else {
                val ex = result.exceptionOrNull()
                return@ArcGISAuthenticationChallengeHandler ArcGISAuthenticationChallengeResponse.ContinueAndFailWithError(
                    ex!!
                )
            }
        }
    }

    /**
     * Initializes view model by adding credentials, loading map and utility network,
     * and electrical device and distribution feature layers.
     */
    suspend fun initializeTraceViewModel() {

        ArcGISEnvironment.authenticationManager.arcGISAuthenticationChallengeHandler =
            getAuthenticationChallengeHandler()

        // Load the map
        arcGISMap.load().onSuccess {

            // The utility network used for tracing
            utilityNetwork = arcGISMap.utilityNetworks.first()
            utilityNetwork?.let { utilityNetwork ->

                // Load the utility network
                utilityNetwork.load().onSuccess {

                    // Get the service geodatabase from the utility network
                    val serviceGeodatabase = utilityNetwork.serviceGeodatabase

                    // Use the ElectricDistribution domain network
                    val electricDistribution = utilityNetwork.definition?.getDomainNetwork("ElectricDistribution")

                    // Use the Medium Voltage Tier
                    mediumVoltageTier = electricDistribution?.getTier("Medium Voltage Radial")

                    (serviceGeodatabase?.getTable(3)?.layer as FeatureLayer).apply {
                        // Customize rendering for the layer
                        renderer = electricalDistributionUniqueValueRenderer
                    }

                    // Update hint values to reflect trace stage changes
                    viewModelScope.launch {
                        _traceState.collect { updateHint(it) }
                    }
                }
            }
        }
    }


    /**
     * Performs an identify operation to obtain the [ArcGISFeature] nearest to the
     * tapped [screenCoordinate]. The selected feature is then used to [identifyUtilityElement].
     */
    fun identifyNearestArcGISFeature(
        mapPoint: Point,
        screenCoordinate: ScreenCoordinate
    ) {
        viewModelScope.launch {
            // Identify the feature on the tapped location
            val identifyResults: List<IdentifyLayerResult> =
                mapViewProxy.identifyLayers(
                    screenCoordinate = screenCoordinate,
                    tolerance = 4.dp,
                    returnPopupsOnly = false,
                    maximumResults = 1
                ).getOrElse {
                    return@launch messageDialogVM.showMessageDialog(
                        title = it.message.toString(),
                        description = it.cause.toString()
                    )
                }
            // If the identify returns a result, retrieve the geoelement as an ArcGISFeature
            identifyResults.firstOrNull()?.geoElements?.firstOrNull()?.let { identifiedFeature ->
                (identifiedFeature as? ArcGISFeature)?.let { arcGISFeature ->
                    // Identify the utility element associated with the selected feature
                    identifyUtilityElement(
                        identifiedFeature = arcGISFeature,
                        mapPoint = mapPoint
                    )
                }
            }
        }
    }

    /**
     * Uses the [mapPoint] to identify any utility elements in the utility network.
     * Based on the [UtilityNetworkSourceType] create an element for a junction or an edge.
     */
    private fun identifyUtilityElement(
        identifiedFeature: ArcGISFeature,
        mapPoint: Point
    ) {
        // Get the network source of the identified feature
        val utilityNetworkSource = utilityNetwork?.definition?.networkSources?.value?.firstOrNull {
            it.featureTable.tableName == identifiedFeature.featureTable?.tableName
        } ?: return handleError("Selected feature does not contain a Utility Network Source.")

        // Check if the network source is a junction or an edge
        when (utilityNetworkSource.sourceType) {
            UtilityNetworkSourceType.Junction -> {
                // Create a junction element with the identified feature
                createJunctionUtilityElement(
                    identifiedFeature = identifiedFeature,
                    utilityNetworkSource = utilityNetworkSource
                )
            }

            UtilityNetworkSourceType.Edge -> {
                // Create an edge element with the identified feature
                createEdgeUtilityElement(
                    identifiedFeature = identifiedFeature,
                    mapPoint = mapPoint
                )
            }
        }
    }

    /**
     * Create a [UtilityElement] of the [identifiedFeature].
     */
    private fun createJunctionUtilityElement(
        identifiedFeature: ArcGISFeature,
        utilityNetworkSource: UtilityNetworkSource
    ) {
        // Find the code matching the asset group name in the feature's attributes
        val assetGroupCode = identifiedFeature.attributes["assetgroup"] as Int
        // Find the network source's asset group with the matching code
        utilityNetworkSource.assetGroups.first { it.code == assetGroupCode }.assetTypes
            // Find the asset group type code matching the feature's asset type code
            .first { it.code == identifiedFeature.attributes["assettype"].toString().toInt() }.let { utilityAssetType ->
                // Get the list of terminals for the feature
                val terminals = utilityAssetType.terminalConfiguration?.terminals
                    ?: return handleError("Error retrieving terminal configuration")

                // If there is only one terminal, use it to create a utility element
                when (terminals.size) {
                    1 -> {
                        // Create a utility element
                        utilityNetwork?.createElementOrNull(
                            arcGISFeature = identifiedFeature, terminal = terminals.first()
                        )?.let { utilityElement ->
                            // Add the utility element to the map
                            addUtilityElementToMap(
                                identifiedFeature = identifiedFeature,
                                mapPoint = identifiedFeature.geometry as Point,
                                utilityElement = utilityElement
                            )
                        }
                    }
                    // If there is more than one terminal, prompt the user to select one
                    else -> {
                        // Reset the index, as the user would need to make a choice
                        _selectedTerminalConfigurationIndex.value = null
                        // Get a list of terminal names from the terminal configuration
                        val terminalConfiguration = utilityAssetType.terminalConfiguration ?: return
                        // Update the list of available terminal options
                        _terminalConfigurationOptions.value = terminalConfiguration.terminals
                        // Show the dialog to choose a terminal configuration
                        _traceState.value = TraceState.TERMINAL_CONFIGURATION_REQUIRED

                        viewModelScope.launch {
                            _selectedTerminalConfigurationIndex.collect { selectedIndex ->
                                if (selectedIndex != null) {
                                    // Create a utility element
                                    val element = utilityNetwork?.createElementOrNull(
                                        arcGISFeature = identifiedFeature, terminal = terminals[selectedIndex]
                                    ) ?: return@collect handleError(
                                        "Error creating utility element"
                                    )
                                    // Add the utility element graphic to the map
                                    addUtilityElementToMap(
                                        identifiedFeature = identifiedFeature,
                                        mapPoint = identifiedFeature.geometry as Point,
                                        utilityElement = element
                                    )
                                    // Dismiss the dialog to choose another point
                                    _traceState.value = TraceState.ADD_STARTING_POINT
                                }
                            }
                        }
                    }
                }
            }
    }

    /**
     * Create a [UtilityElement] of the [identifiedFeature].
     */
    private fun createEdgeUtilityElement(
        identifiedFeature: ArcGISFeature,
        mapPoint: Point
    ) {
        // Create a utility element with the identified feature
        val element = (utilityNetwork?.createElementOrNull(
            arcGISFeature = identifiedFeature, terminal = null
        ) ?: return handleError("Error creating element"))
        // Calculate the fraction along these the map point is located
        element.fractionAlongEdge = GeometryEngine.fractionAlong(
            line = GeometryEngine.createWithZ(
                geometry = identifiedFeature.geometry!!,
                z = null // Remove the z-coordinate value from the identified geometry
            ) as Polyline,
            point = mapPoint,
            tolerance = -1.0
        ).roundToThreeDecimals()

        // Add the utility element graphic to the map
        addUtilityElementToMap(
            identifiedFeature = identifiedFeature,
            mapPoint = mapPoint,
            utilityElement = element
        )
        // Update the hint text
        updateHint("Fraction along the edge: ${element.fractionAlongEdge}")
    }

    /**
     * Add [utilityElement] to either the starting locations or barriers list
     * and add a graphic representing it to the [graphicsOverlay].
     */
    private fun addUtilityElementToMap(
        identifiedFeature: ArcGISFeature,
        mapPoint: Point,
        utilityElement: UtilityElement
    ) {
        graphicsOverlay.graphics.add(
            Graphic(
                geometry = GeometryEngine.nearestCoordinate(
                    geometry = identifiedFeature.geometry!!,
                    point = mapPoint
                )?.coordinate
            ).apply {
                // Add the element to the appropriate list (starting locations or barriers),
                // and add the appropriate symbol to the graphic
                when (_selectedPointType.value) {
                    PointType.Start -> {
                        utilityElementStartingLocations.add(utilityElement)
                        symbol = startingPointSymbol
                        _canTrace.value = true
                    }

                    PointType.Barrier -> {
                        utilityElementBarriers.add(utilityElement)
                        symbol = barrierPointSymbol
                    }
                }
            })
    }

    /**
     * Uses the elements selected as starting locations and (optionally) barriers
     * to perform a connected trace, then selects all connected elements
     * found in the trace to highlight them.
     */
    fun traceUtilityNetwork() {
        // Check that the utility trace parameters are valid
        if (utilityElementStartingLocations.isEmpty()) {
            return handleError("No starting locations provided for trace.")
        }

        val traceType = _selectedTraceType.value

        // Create utility trace parameters for the given trace type
        val traceParameters = UtilityTraceParameters(
            traceType = traceType,
            startingLocations = utilityElementStartingLocations
        ).apply {
            // If any barriers have been created, add them to the parameters
            barriers.addAll(utilityElementBarriers)
            // Set the trace configuration using the tier from the utility domain network
            traceConfiguration = mediumVoltageTier?.getDefaultTraceConfiguration()
        }

        // Run the utility trace and get the results
        viewModelScope.launch {
            // Update the trace state
            _traceState.value = TraceState.RUNNING_TRACE_UTILITY_NETWORK
            // Perform the trace with the above parameters, and obtain the results list
            val traceResults = utilityNetwork?.trace(traceParameters)?.getOrElse {
                return@launch handleError(
                    title = "Error performing trace",
                    description = it.message.toString()
                )
            }

            // Get the utility trace result's first result as a utility element trace result
            (traceResults?.first() as? UtilityElementTraceResult)?.let { utilityElementTraceResult ->
                // Ensure the result is not empty
                if (utilityElementTraceResult.elements.isEmpty()) return@launch handleError("No elements found in the trace result")

                arcGISMap.operationalLayers.filterIsInstance<FeatureLayer>().forEach { featureLayer ->
                    // Clear previous selection
                    featureLayer.clearSelection()
                    val params = QueryParameters().apply {
                        returnGeometry = true // Used to calculate the viewpoint result
                    }
                    // Create query parameters to find features who's network source name matches the layer's feature table name
                    utilityElementTraceResult.elements.filter {
                        it.networkSource.name == featureLayer.featureTable?.tableName
                    }.forEach { utilityElement ->
                        params.objectIds.add(utilityElement.objectId)
                    }

                    // Check if any trace results were added from the above filter
                    if (params.objectIds.isNotEmpty()) {
                        // Select features that match the query
                        val featureQueryResult = featureLayer.selectFeatures(
                            parameters = params, mode = SelectionMode.New
                        ).getOrElse {
                            return@launch handleError(
                                title = it.message.toString(), description = it.cause.toString()
                            )
                        }

                        // Create list of all the feature result geometries
                        val resultGeometryList = mutableListOf<Geometry>()
                        featureQueryResult.iterator().forEach { feature ->
                            feature.geometry?.let {
                                resultGeometryList.add(it)
                            }
                        }

                        // Obtain the union geometry of all the feature geometries
                        GeometryEngine.unionOrNull(resultGeometryList)?.let { unionGeometry ->
                            // Set the map's viewpoint to the union result geometry
                            mapViewProxy.setViewpointAnimated(Viewpoint(boundingGeometry = unionGeometry))
                        }
                    } else {
                        Toast.makeText(
                            getApplication(), "Trace result found 0 elements", Toast.LENGTH_SHORT
                        ).show()
                    }
                }

                // Update the trace state
                _traceState.value = TraceState.TRACE_COMPLETED
            }
        }
    }

    /**
     * Resets the trace, removing graphics and clearing selections.
     */
    fun reset() {
        arcGISMap.operationalLayers.filterIsInstance<FeatureLayer>().forEach { it.clearSelection() }
        utilityElementBarriers.clear()
        utilityElementStartingLocations.clear()
        graphicsOverlay.graphics.clear()
        _traceState.value = TraceState.ADD_STARTING_POINT
        _canTrace.value = false
        _selectedTraceType.value = UtilityTraceType.Connected
        _selectedTerminalConfigurationIndex.value = null
        _selectedPointType.value = PointType.Start
        _terminalConfigurationOptions.value = listOf()
    }

    /**
     * Update the [utilityTraceType] selected by the user
     */
    fun updateTraceType(utilityTraceType: UtilityTraceType) {
        _selectedTraceType.value = utilityTraceType
        _traceState.value = TraceState.ADD_STARTING_POINT
    }

    /**
     * Switch from adding .start points to adding .barrier, or vice versa.
     */
    fun updatePointType(pointType: PointType) {
        _selectedPointType.value = pointType
        when (pointType) {
            PointType.Start -> {
                _traceState.value = TraceState.ADD_STARTING_POINT
            }

            PointType.Barrier -> {
                _traceState.value = TraceState.ADD_BARRIER_POINT
            }
        }
    }

    /**
     * Update the index used to select the [terminalConfigurationOptions]
     */
    fun updateTerminalConfigurationOption(index: Int) {
        _selectedTerminalConfigurationIndex.value = index
    }

    /**
     * Update the hint flow to display new [message].
     */
    private fun updateHint(message: String) {
        _hint.value = message
    }

    // Create a message dialog view model for handling error messages
    val messageDialogVM = MessageDialogViewModel()

    private fun handleError(title: String, description: String = "") {
        reset()
        _traceState.value = TraceState.TRACE_FAILED
        messageDialogVM.showMessageDialog(title, description)
    }

    private fun Double.roundToThreeDecimals(): Double {
        return (this * 1000.0).roundToLong() / 1000.0
    }
}

enum class PointType {
    Start,
    Barrier
}

object TraceState {
    const val ADD_STARTING_POINT = "Tap on map to add a stating location point(s)"
    const val ADD_BARRIER_POINT = "Tap on map to add a barrier point(s)"
    const val TERMINAL_CONFIGURATION_REQUIRED = "Select Terminal Configuration"
    const val RUNNING_TRACE_UTILITY_NETWORK = "Evaluating trace utility network"
    const val TRACE_COMPLETED = "Trace completed"
    const val TRACE_FAILED = "Fail to run trace"
}
