Style a feature layer

Learn how to apply renderers and label definitions to a feature layer based on attribute values.

Applications can display feature layer data with different styles to enhance the visualization. The type of Renderer you choose depends on your application. A SimpleRenderer applies the same symbol to all features, a UniqueValueRenderer applies a different symbol to each unique attribute value, and a ClassBreaksRenderer applies a symbol to a range of numeric values. Renderers are responsible for accessing the data and applying the appropriate symbol to each feature when the layer draws. You can also use a LabelDefinition to show attribute information for features. Visit the Styles and data visualization documentation to learn more about styling layers.

You can also author, style and save web maps, web scenes, and layers as portal items and then add them to the map in your application. Visit the following tutorials to learn more about adding portal items.

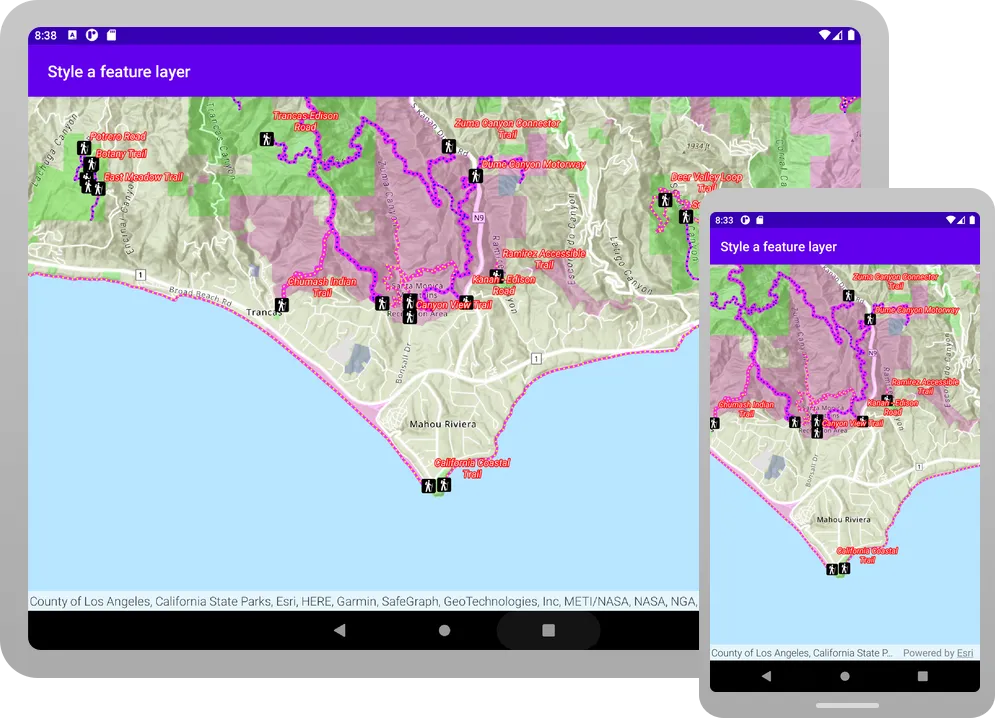

In this tutorial, you will apply different renderers to enhance the visualization of three feature layers with data for the Santa Monica Mountains: Trailheads with a single symbol, Trails based on elevation change and bike use, and Parks and Open Spaces based on the type of park.

Prerequisites

Before starting this tutorial, you need the following:

An ArcGIS Location Platform or ArcGIS Online account.
A development and deployment environment that meets the system requirements.
An IDE for Android development in Kotlin.

Develop or download

You have two options for completing this tutorial:

Option 1: Develop the code or
Option 2: Download the completed solution

Option 1: Develop the code

Open an Android Studio project

Open the project you created by completing the Display a map tutorial.
Continue with the following instructions to apply renderers and label definitions to a feature layer based on attribute values.
Modify the old project for use in this new tutorial.
1. On your file system, delete the .idea folder, if present, at the top level of your project.
2. In the Android view, open app > res > values > strings.xml.

  In the <string name="app_name"> element, change the text content to Style a feature layer.
  strings.xml
  Use dark colors for code blocks
  1 2 3 <resources> <string name="app_name">Style a feature layer</string> </resources>
3. In the Android view, open Gradle Scripts > settings.gradle.kts.

  Change the value of rootProject.name to "Style a feature layer".
  settings.gradle.kts
  Expand
  Use dark colors for code blocks
  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 dependencyResolutionManagement { repositoriesMode.set(RepositoriesMode.FAIL_ON_PROJECT_REPOS) repositories { google() mavenCentral() maven { url = uri("https://esri.jfrog.io/artifactory/arcgis") } } } rootProject.name = "Style a feature layer" include(":app")
4. Click File > Sync Project with Gradle files. Android Studio will recognize your changes and create a new .idea folder.

Add import statements

In the Android view, open app > kotlin+java > com.example.app > MainScreen.kt. Replace the import statements with the imports needed for this tutorial.

MainScreen.kt
Use dark colors for code blocks
@file:OptIn(ExperimentalMaterial3Api::class)

package com.example.app.screens

import androidx.compose.foundation.layout.fillMaxSize
import androidx.compose.foundation.layout.padding
import androidx.compose.material3.ExperimentalMaterial3Api
import androidx.compose.material3.Scaffold
import androidx.compose.material3.Text
import androidx.compose.material3.TopAppBar
import androidx.compose.runtime.Composable
import androidx.compose.runtime.remember
import androidx.compose.ui.Modifier
import androidx.compose.ui.res.stringResource
import com.arcgismaps.Color
import com.arcgismaps.data.ServiceFeatureTable
import com.arcgismaps.mapping.ArcGISMap
import com.arcgismaps.mapping.BasemapStyle
import com.arcgismaps.mapping.Viewpoint
import com.arcgismaps.mapping.labeling.ArcadeLabelExpression
import com.arcgismaps.mapping.labeling.LabelDefinition
import com.arcgismaps.mapping.layers.FeatureLayer
import com.arcgismaps.mapping.symbology.ClassBreak
import com.arcgismaps.mapping.symbology.ClassBreaksRenderer
import com.arcgismaps.mapping.symbology.FontStyle
import com.arcgismaps.mapping.symbology.FontWeight
import com.arcgismaps.mapping.symbology.PictureMarkerSymbol
import com.arcgismaps.mapping.symbology.SimpleFillSymbol
import com.arcgismaps.mapping.symbology.SimpleFillSymbolStyle
import com.arcgismaps.mapping.symbology.SimpleLineSymbol
import com.arcgismaps.mapping.symbology.SimpleLineSymbolStyle
import com.arcgismaps.mapping.symbology.SimpleRenderer
import com.arcgismaps.mapping.symbology.TextSymbol
import com.arcgismaps.mapping.symbology.UniqueValue
import com.arcgismaps.mapping.symbology.UniqueValueRenderer
import com.arcgismaps.toolkit.geoviewcompose.MapView
import com.example.app.R

Create a function to add a feature layer
