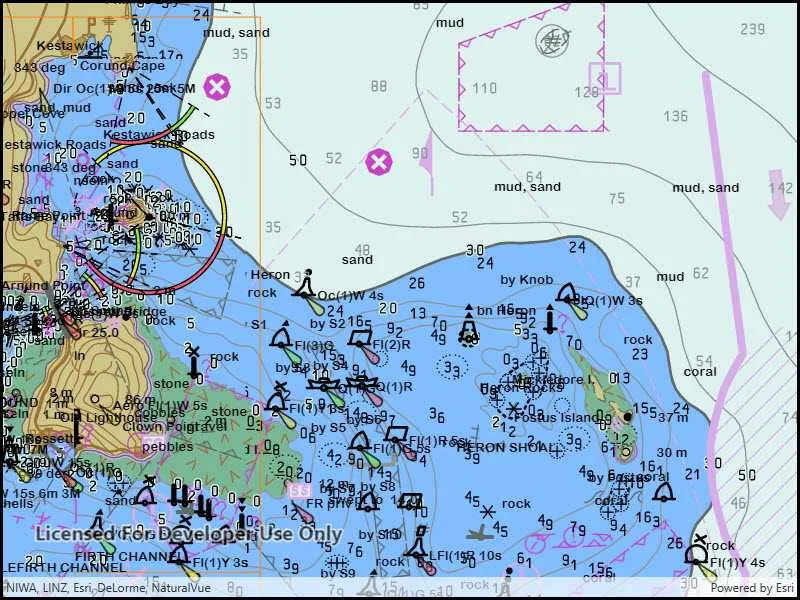

Electronic navigational chart (ENC) datasets are georeferenced vector datasets for the visualization and analysis of hydrographic and maritime information. This SDK supports ENC datasets conforming to the International Hydrographic Organization (IHO) standard S-57 (Transfer Standard for Digital Hydrographic Data) and encrypted ENC datasets conforming to the standard S-63 (IHO Data Protection Scheme).

Use ENCs in your apps to:

Visualize S-57 data in compliance with S-52 standards and specifications for chart content display.
Use S-57 data as an additional data source for situational awareness and decision making.
Combine S-57 datasets with other sources of information for geospatial analysis.
Access ENCs encrypted conforming to the S-63 IHO Data Protection Scheme.

Get started

Before ENC data can be displayed in an application, you must add code to:

Set the path to the resource directory that contains the styles required to render the ENC data. The directory contents is available in the download area.
Set a location for the SENC data. The first time that ENC data is displayed it is processed and placed into the SENC directory. Subsequent displays of the ENC data will be faster because the data is already processed and is read directly from the SENC directory.

Use dark colors for code blocksCopy
    // Set the Enc environemnt settings for the Senc and resource file paths.
    EncEnvironmentSettings::setSencDataPath(sencDataPath);
    EncEnvironmentSettings::setResourcePath(resourcePath);

Understand ENCs

An ENC cell represents a navigational chart of a rectangular geographic area at a particular scale. Cells are bounded by meridians and parallels, though the actual area of coverage contained in the cell may be any shape. All the data in a single cell corresponds to a single navigational use, such as: overview, general, or coastal (a navigational use corresponds to a scale range suitable for a particular use).

Cells are stored in a single base dataset file and zero or more update dataset files. Each dataset file has a unique name. A base dataset file plus its update files (if any) when loaded together comprise the updated geographic data of one cell.

ENC data is distributed in exchange sets, which can contain many cells. On the file system, each exchange set resides in its own folder named ENC_ROOT. Each ENC_ROOT folder contains a collection of dataset files (*.000), update files (.001-.999), a catalog file containing metadata about the exchange set (CATALOG.031), and other optional files with data referenced by the exchange set, such as text and image files.

See S-57 Appendix B for additional details about S-57 ENC exchange sets and their content.

Display an ENC

Access an exchange set on the file system using an EncExchangeSet object. An exchange set can be loaded using the path to the exchange set CATALOG.031 file, and optionally the paths to CATALOG.031 files for other exchange sets (in other directories) that contain additional update dataset files. If one of the datasets specified is an exchange set that contains only updates, then the exchange set with the corresponding base dataset files must be loaded in the same API call. See the Work with updates section for more information.

EncDataset objects represent datasets. Each EncDataset contains the base data for a cell and any updates that were also loaded when the exchange set was loaded, and provides access to metadata about the cell. Retrieve a collection of EncDataset objects contained in an EncExchangeSet using the datasets() method.

ENC cells (individual charts) are represented by EncCell objects. You can construct these objects in two ways:

From a dataset represented by an EncDataset object. This approach will include the base dataset file and all corresponding update dataset files. This is the preferred approach.
From a base dataset file. This approach will only include the base dataset file, and not any corresponding update dataset files. This is not a typical use case.

Display an ENC cell by constructing an EncLayer object from an EncCell object. EncLayer is derived from Layer, so you add an EncLayer to a map like you do other layers.

You can add all the charts in the exchange set by iterating through the exchange set's datasets, creating an EncCell for each, creating an EncLayer for each EncCell, and adding each EncLayer to the map.

Use dark colors for code blocksCopy
    // Create the EncExchangeSet using paths.
    EncExchangeSet* encExchangeSet = new EncExchangeSet(paths, this);

    // Get the list of Enc datasets from the Enc exchange set.
    QList EncDatasets = encExchangeSet->datasets();

    // Display the names of EncDataset.
    for (EncDataset* EncDataset: EncDatasets)
    {
        qDebug() << EncDataset->name();
    }

Work with ENC updates

ENC charts are often distributed as base cells (.000 files) with one or more update cells (.001, .002, etc. files). An exchange set can consist exclusively of update cells; in order to load an update exchange set, the path to the base exchange set must be provided along with the path to the update exchange set.

Use dark colors for code blocksCopy
    // Define the QStringList of paths on the device.
    const QStringList qStringListPaths {QDir::homePath() + "/path-to-update", QDir::homePath() + "/path-to-original"};

    // Create the EncExchangeSet using paths.
    EncExchangeSet* encExchangeSet = new EncExchangeSet(qStringListPaths, this);

When loading an ENC cell, it is important to use the dataset-based constructor. If updates for a cell are part of an exchange set, they will be found only when the dataset-based constructor is used. Loading the cell from a path will not load any associated updates.

Set ENC environment settings

ENC layers are displayed in accordance with the IHO standard S-52 (Specifications for Chart Content and Display Aspects of ECDIS). You can define the display properties of your ENC layers by using the static EncEnvironmentSettings class. These settings apply to all ENC layers in all maps. Settings fall under three categories: mariner settings, text group visibility settings, and viewing group settings. Text group settings control the display of labels for features, mariner settings control the symbolization and presentation of ENC features, and viewing group settings allow for quickly applying settings to logical groups of feature types.

Use dark colors for code blocksCopy
    // Get the Enc text group visibility settings.
    EncTextGroupVisibilitySettings* encTextGroupVisibilitySettings = EncEnvironmentSettings::displaySettings()->textGroupVisibilitySettings();

    // Set the important text and nature of seabed properties.
    encTextGroupVisibilitySettings->setImportantText(false);
    encTextGroupVisibilitySettings->setNatureOfSeabed(false);

ENC content is accessed via compiled SENC (System Electronic Navigational Chart) files. After an ENC cell has been loaded, all future loads of that cell will reference the underlying SENC file directly. You can use the environment settings to find or set the location where SENC files are stored.

Identify and select ENC features

ENC layers support identify through the common geoview feature identification mechanism, which takes a screen point and tolerance in pixels. Identify will return a collection of result objects, one per matching layer. For ENC layers, the results will have a geoElements() method, which provides a collection of EncFeature objects.

Once a feature has been identified, you can call selectFeature() on the layer that contains the feature to select it.

Create a slot for the mouseClicked signal that starts the identify operation. Then, use the identifyLayersAsync method obtain the identify results. After features have been identified, you can access the identified ENC features in the results.

Use dark colors for code blocksCopy
    // Connect to the mouse clicked signal on the MapQuickView.
    connect(m_mapView, &MapQuickView::mouseClicked, this, [this](QMouseEvent& mouseEvent)
    {
        // Define the parameters for the idenitify operation.
        constexpr double tolerance = 5.0;
        constexpr bool returnPopupsOnly = false;
        constexpr int maximumResults = 5;

        // Asynchronously call the identify layers async method on the mapview using the parameters defined.
        m_mapView->identifyLayersAsync(mouseEvent.position(), tolerance, returnPopupsOnly, maximumResults).then(this,
           [](const QList<IdentifyLayerResult*>& identifyResults)
        {
            // Loop thru the identify results.
            for (int i = 0; i < identifyResults.size(); i++)
            {
                // Cast each layer content from the identify results to an Enc layer.
                EncLayer* encLayer = dynamic_cast<EncLayer*>(identifyResults.at(i)->layerContent());

                // Only proceed if we have am Enc Layer (other layer types are skipped).
                if (encLayer)
                {
                    // Display a message that a Enc features have been found for a specific Enc layer.
                    qDebug() << "EncFeatures identified in EncLayer #" << i << ":";

                    // Get the list of geo elements from the identify results.
                    const QList<GeoElement*>objects = identifyResults.at(i)->geoElements();

                    // Loop thru the geo elements.
                    for (int j = 0; j < objects.size(); j++)
                    {
                        // Cast the geo element object to an Enc feature.
                        EncFeature* encFeature = dynamic_cast<EncFeature*>(objects.at(j));

                        // Proceed if we have an Enc feature.
                        if (encFeature)
                        {
                            // Display the description of the Enc feature.
                            qDebug() << "Found EncFeature: " << encFeature->description();

                            // Get the attributes from the Enc feature.
                            QVariantMap map = encFeature->attributes()->attributesMap();

                            // Display the attributes.
                            qDebug() << " - Attributes: " << map;
                        }
                    }
                }
            }
        });
    });

Access encrypted ENCs

You can use encrypted ENC datasets conforming to the S-63 standard (IHO Data Protection Scheme) on all platforms supported by this SDK (see the system requirements). You are responsible for creating applications that are consistent with the S-63 specification and in compliance with the requirements set by the International Hydrographic Organization (IHO).

When working with encrypted ENC datasets:

Your organization must enter an OEM (Original Equipment Manufacturer) agreement with the IHO in order to create an application that displays, processes, and operates on protected ENC datasets and information.
Your organization is responsible for assigning unique hardware IDs to devices that use encrypted ENC datasets.
A cell permit provided by the S-63 data server allows decryption of a specific cell on a specific device. A single file named PERMIT.TXT contains the cell permit. This file may multiple cell permits, one for each cell covered by the exchange set.
The API may raise errors and warnings when operating on encrypted ENC datasets. You are responsible for checking for errors and warnings raised, and for handling the error or displaying to the user if required.

To access and work with encrypted ENC datasets:

Ensure your app is licensed at the appropriate level. See the License levels and capabilities topic for more information about licensing requirements for working with ENC data.
Set the hardware ID for the device.
Set the certificate path.
Ensure the SERIAL.ENC file (provided by the data server) is located in the same directory that contains the ENC_ROOT directory.
Manage cell permits.
Display ENC datasets in the map. See the sample Configure electronic navigational charts.
Handle S-63 errors and warnings.

Set the hardware id

You are responsible for assigning unique hardware identifiers (HW_ID) to devices that will access encrypted ENC datasets. Hardware identifiers are unique values assigned by an OEM to each implementation of their system on a specific device or machine. Use the static S63EnvironmentSettings::setHardwareId() method to apply the hardware identifier, that the API will use to decrypt S-63 ENCs. The hardware identifier must be set before attempting to access S-63 content.

Use dark colors for code blocksCopy
S63EnvironmentSettings::setHardwareId("FFFFF");

Set the certificate path

To authenticate and decrypt encrypted ENC datasets, you need the IHO Scheme Administrator (SA) Certificate. This SA certificate contains the public S-63 encryption key used by data servers to sign their S-63 data. Use the static S63EnvironmentSettings::setCertificatePath() method to define the path that contains the required digital certificate(s). The certificate path must be set before attempting to access S-63 content.

Use dark colors for code blocksCopy
S63EnvironmentSettings::setCertificatePath(QDir::homePath() + "/path-to-certificate/IHO.CRT");

Manage cell permits

Cell permits are required for opening encrypted ENC datasets and are provided by the Data Server in a file called PERMIT.TXT. The API will validate that ENC cells are permitted for use by the specific device (according to the hardware ID set). The PERMIT.TXT file must be placed in the same directory that contains the CATALOG.031 file (typically the ENC_ROOT directory). There is no API provided for setting the location of the PERMIT.TXT file.

When opening encrypted ENC datasets there are permit-related warnings and errors that may be raised. See Handling S-63 warnings and errors for more information.

Handle S-63 errors and warnings

The API will check for various error conditions when opening encrypted ENC datasets. It is your responsibility to check for any errors and warnings and to handle those according to the S-63 specification. You can check for S-63 load warnings after attempting to load a cell or exchange set.

Use dark colors for code blocksCopy
    // Create the EncExchangeSet using the provided paths.
    EncExchangeSet* encExchangeSet = new EncExchangeSet(paths, this);

    // Connect to doneLoading signal of the EncExchangeSet.
    connect(encExchangeSet, &EncExchangeSet::doneLoading, this, [](const Error& e)
    {
        // Test if we have errors loading the S-63 dataset.
        if (!e.isEmpty())
        {
            // Display the error and compare with the table below and handle per the S-63 spec.
            qDebug() << e.message();
        }
    });

    // Load the EncExchangeSet.
    encExchangeSet->load();

The following table lists S-63 errors that may be reported by the API:

Runtime Code	SSE code	Description
11001	SSE01	Self Signed Key is invalid.
11002	SSE02	Format of Self Signed Key file is incorrect.
11003	SSE03	SA Signed Data Server Certificate is invalid.
11004	SSE04	Format of SA Signed DS Certificate is incorrect.
11005	SSE05	SA Digital Certificate (X509) file is not available. A valid certificate can be obtained from the IHO website or your data supplier.
11006	SSE06	The SA Signed Data Server Certificate is invalid. The SA may have issued a new public key or the ENC may originate from another service. A new SA public key can be obtained from the IHO website or from your data supplier.
11007	SSE07	SA signed DS Certificate file is not available. A valid certificate can be obtained from the IHO website or your data supplier.
11008	SSE08	SA Digital Certificate (X509) file incorrect format. A valid certificate can be obtained from the IHO website or your data supplier.
11009	SSE09	ENC Signature is invalid.
11010	SSE10	Permits not available for this Data Server. Contact your data supplier to obtain the correct permits.
11011	SSE11	Cell Permit not found. Load the permit file provided by the data supplier.
11012	SSE12	Cell Permit format is incorrect. Contact your data supplier and obtain a new permit file.
11013	SSE13	Cell Permit is invalid (checksum is incorrect) or the Cell Permit is for a different system. Contact your data supplier and obtain a new or valid permit file.
11014	SSE14	Incorrect system date, check that the computer clock (if accessible) is set correctly or contact your system supplier.
11015	SSE15	Subscription service has expired. Please contact your data supplier to renew the subscription license.
11016	SSE16	ENC CRC value is incorrect. Contact your data supplier as ENC(s) may be corrupted or missing data.
11017	SSE17	Userpermit is invalid (checksum is incorrect). Check that the correct hardware device (dongle) is connected or contact your system supplier to obtain a valid userpermit.
11018	SSE18	HW_ID is incorrect format.
11019	SSE19	Permits are not valid for this system. Contact your data supplier to obtain the correct permits.
11020	SSE20	Subscription service will expire in less than 30 days. Please contact your data supplier to renew the subscription license.
11021	SSE21	Decryption failed no valid cell permit found. Permits may be for another system or new permits may be required, please contact your supplier to obtain a new license.
11022	SSE22	SA Digital Certificate (X509) has expired. A new SA public key can be obtained from the IHO website or from your data supplier.
11023	SSE23	Non sequential update, previous update(s) missing - try reloading from the base media. If the problem persists contact your data supplier.
11024	SSE24	ENC Signature format incorrect, contact your data supplier.
11025	SSE25	The permit for ENC<cell name> has expired. This cell may be out of date and MUST NOT be used for Primary NAVIGATION.
11026	SSE26	This ENC is not authenticated by the IHO acting as the Scheme Administrator.

Performance considerations

ENC content is accesed via internal SENC files. When an ENC cell is loaded, an SENC representation is generated. Subsequent loads only read the generated SENC files. When developing apps for working with ENC content, understand that:

The SENC data path must be set before attempting to read ENC content.
SENC files are device and version specific. These files should not be exposed to users, backed up, or shared between devices. The SENC format is internal and may change between versions of ArcGIS Maps SDK for Qt. Therefore, SENC files created by an app built with one version of the SDK are not guaranteed to work with apps built with another version of the SDK, even on the same device.
- On iOS, consider setting the SENC path to a subdirectory of the documents directory that is excluded from iCloud and iTunes backup. See Apple Technical QA QA1719 for more information about excluding iOS directories from backup.
- See the Android Developers topic for more information about excluding directories from backup on Android.
SENC files take time to generate, this will delay the loading of new ENC cells. It may take a long time to load large ENC exchange sets consisting of many cells (potentially hours). Never block the UI when loading these files.
Because the initial load of an ENC cell (before the SENC files have been generated) can take some time to complete, consider pre-loading them to ensure availability before depending on them for navigation.
Do not attempt to read or manipulate SENC files. Changes to generated SENC files invalidate them. This requires the files to be re-generated the next time the corresponding cells are loaded.
