Display a web scene

Learn how to create and display a scene from a web scene stored in ArcGIS.

display a web scene

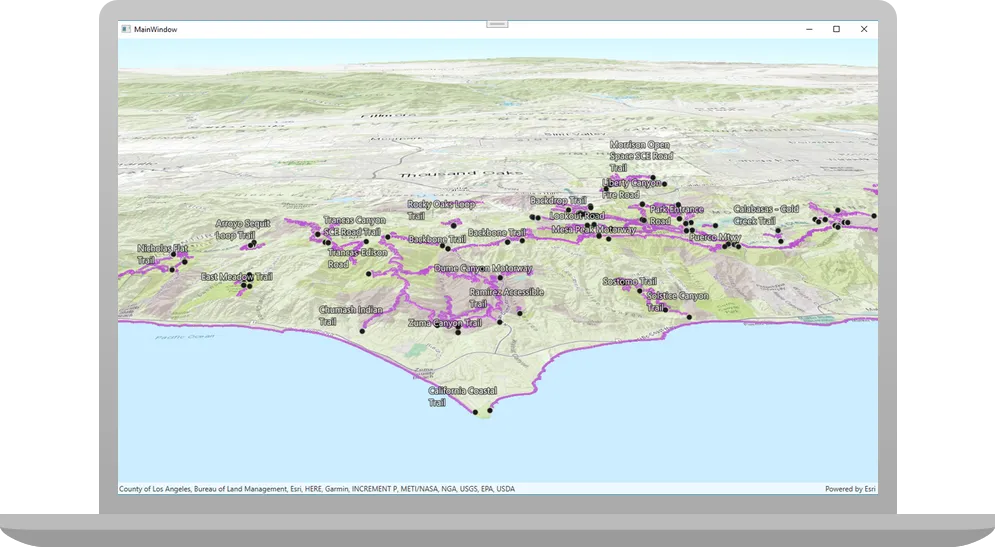

This tutorial shows you how to create and display a scene from a web scene. All web scenes are stored in ArcGIS with a unique item ID. You will access an existing web scene by item ID and display its layers. The web scene contains features layers for the Santa Monica Mountains in California.

Prerequisites

The following are required for this tutorial:

  1. An ArcGIS account to access API keys. If you don't have an account, sign up for free.
  2. Your system meets the system requirements.
  3. The ArcGIS Runtime API for Qt is installed.

Steps

Open the project in Qt Creator

  1. To start this tutorial, complete the Display a scene tutorial or download and unzip the solution.

  2. Open the display_a_scene project in Qt Creator.

  3. If you downloaded the Display a scene solution, set your API key.

    An API Key enables access to services, web maps, and web scenes hosted in ArcGIS Online.

    1. Go to your developer dashboard to get your API key. For these tutorials, use your default API key. It is scoped to include all of the services demonstrated in the tutorials.

    2. In the Projects window, in the Sources folder, open the main.cpp file.

    3. Modify the code to set the API key. Paste the API key, acquired from your dashboard, between the quotes.

      main.cpp
      48 48 48 48 48 48 48 48 48 48 48 48 48 48 48 48 48 48 48 48 48 48 48 48 48 48 48 48 48 48 48 48 48 48 48 48 48 48 48 48 48 48 48 48 48 48 48 48 49 50 51 52 53 53 53 53 53 53 53 53 53 53 53 53 53 53 53 53 53 53 53 53 53 53 53 53 53 53 53 53 53 53 53 53 53 53 53 53 53
      Add line.Add line.Add line.Add line.Add line.
      1
      2
      3
      4
      5
      6
      7
      8
      9
      10
      11
      12
      13
      14
      15
      16
      17
      18
      19
      20
      21
      22
      23
      24
      25
      26
      27
      28
      29
      30
      31
      32
      33
      34
      35
      36
      37
      38
      39
      40
      41
      42
      43
      44
      45
      46
      47
      48
      49
      50
      51
      52
      53
      54
      55
      56
      57
      58
      59
      60
      61
      62
      63
      64
      65
      66
      67
      68
      69
      70
      71
      72
      73
      74
      75
      76
      77
      78
      79
      80
      81
      82
      83
      84
      85
      86
      87
      88
      89
      //   Copyright 2020 Esri
      //   Licensed under the Apache License, Version 2.0 (the "License");
      //   you may not use this file except in compliance with the License.
      //   You may obtain a copy of the License at
      //
      //   https://www.apache.org/licenses/LICENSE-2.0
      //
      //   Unless required by applicable law or agreed to in writing, software
      //   distributed under the License is distributed on an "AS IS" BASIS,
      //   WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
      //   See the License for the specific language governing permissions and
      //   limitations under the License.

      #include "Display_a_scene.h"

      #include "ArcGISRuntimeEnvironment.h"
      #include "SceneQuickView.h"

      #include <QDir>
      #include <QGuiApplication>
      #include <QSurfaceFormat>
      #include <QQmlApplicationEngine>

      //------------------------------------------------------------------------------

      using namespace Esri::ArcGISRuntime;

      int main(int argc, char *argv[])
      {
      #if defined(Q_OS_LINUX) && !defined(Q_OS_ANDROID)
        // Linux requires 3.2 OpenGL Context
        // in order to instance 3D symbols
        QSurfaceFormat fmt = QSurfaceFormat::defaultFormat();
        fmt.setVersion(3, 2);
        QSurfaceFormat::setDefaultFormat(fmt);
      #endif

        QGuiApplication::setAttribute(Qt::AA_EnableHighDpiScaling);
        QGuiApplication app(argc, argv);


        // Use of Esri location services, including basemaps and geocoding, requires
        // either an ArcGIS identity or an API key. For more information see
        // https://links.esri.com/arcgis-runtime-security-auth.

        // 1. ArcGIS identity: An ArcGIS named user account that is a member of an
        // organization in ArcGIS Online or ArcGIS Enterprise.

        // 2. API key: A permanent key that gives your application access to Esri
        // location services. Create a new API key or access existing API keys from
        // your ArcGIS for Developers dashboard (https://links.esri.com/arcgis-api-keys).

        const QString apiKey = QStringLiteral("");

        if (apiKey.isEmpty())
        {
            qWarning() << "Use of Esri location services, including basemaps, requires "
                          "you to authenticate with an ArcGIS identity or set the API Key property.";
        }
        else
        {
            ArcGISRuntimeEnvironment::setApiKey(apiKey);
        }

        // Production deployment of applications built with ArcGIS Runtime requires you to
        // license ArcGIS Runtime functionality. For more information see
        // https://links.esri.com/arcgis-runtime-license-and-deploy.

        //ArcGISRuntimeEnvironment::setLicense("Place license string in here");

        // Register the scene view for QML
        qmlRegisterType<SceneQuickView>("Esri.Display_a_scene", 1, 0, "SceneView");

        // Register the Display_a_scene (QQuickItem) for QML
        qmlRegisterType<Display_a_scene>("Esri.Display_a_scene", 1, 0, "Display_a_scene");

        // Initialize application view
        QQmlApplicationEngine engine;

        // Add the import Path
        engine.addImportPath(QDir(QCoreApplication::applicationDirPath()).filePath("qml"));

        // Set the source
        engine.load(QUrl("qrc:/qml/main.qml"));

        return app.exec();
      }

      //------------------------------------------------------------------------------

Get the web scene item ID

You can use ArcGIS tools to create and view web scenes. Use the Scene Viewer to identify the web scene item ID. This item ID will be used later in the tutorial.

  1. Go to the LA Trails and Parks web scene in the Scene Viewer in ArcGIS Online. This web scene displays trails, trailheads and parks in the Santa Monica Mountains.
  2. Make a note of the item ID at the end of the browser's URL.

    The item ID should be 579f97b2f3b94d4a8e48a5f140a6639b

Display a web scene

You can display a web scene using the web scene's item ID. Create a scene from the web scene portal item, and display it in your app.

  1. In Projects, double-click Sources > Display_a_scene.cpp to open the file.

  2. Remove the following include statement because the Basemap class is not needed.

    Display_a_scene.cpp
    15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 16 17 18 19 19 19 19 19 19 19 19 19 19 19 19 19 19 19 19 19 19 19 19 19 19 19 19 19 19 19 19 19 19 19 19 19 19 19 19 19 19 19 19 19 19 19 19 19 19 19 19 19 19 19 19 19 19 19 19 19 19 19 19 19
    Remove line
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    31
    32
    33
    34
    35
    36
    37
    38
    39
    40
    41
    42
    43
    44
    45
    46
    47
    48
    49
    50
    51
    52
    53
    54
    55
    56
    57
    58
    59
    60
    61
    62
    63
    64
    65
    66
    67
    68
    69
    70
    71
    72
    73
    74
    75
    76
    77
    78
    79
    //   Copyright 2020 Esri
    //   Licensed under the Apache License, Version 2.0 (the "License");
    //   you may not use this file except in compliance with the License.
    //   You may obtain a copy of the License at
    //
    //   https://www.apache.org/licenses/LICENSE-2.0
    //
    //   Unless required by applicable law or agreed to in writing, software
    //   distributed under the License is distributed on an "AS IS" BASIS,
    //   WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
    //   See the License for the specific language governing permissions and
    //   limitations under the License.

    #include "Display_a_scene.h"

    #include "ArcGISRuntimeEnvironment.h"
    #include "ArcGISTiledElevationSource.h"

    #include "Basemap.h"

    #include "Scene.h"
    #include "SceneQuickView.h"

    #include <QUrl>

    using namespace Esri::ArcGISRuntime;

    Display_a_scene::Display_a_scene(QObject* parent /* = nullptr */):
      QObject(parent),
      m_scene(new Scene(Basemap::imagery(this), this))
    {

      setupScene();

    }

    Display_a_scene::~Display_a_scene()
    {
    }

    SceneQuickView* Display_a_scene::sceneView() const
    {
      return m_sceneView;
    }

    // Set the view (created in QML)
    void Display_a_scene::setSceneView(SceneQuickView* sceneView)
    {
      if (!sceneView || sceneView == m_sceneView)
      {
        return;
      }
      m_sceneView = sceneView;
      m_sceneView->setArcGISScene(m_scene);

      constexpr double latitude = 33.909;
      constexpr double longitude = -118.805;
      constexpr double altitude = 5330.0;
      constexpr double heading = 355.0;
      constexpr double pitch = 72.0;
      constexpr double roll = 0.0;
      const Camera sceneCamera(latitude, longitude, altitude, heading, pitch, roll);
      m_sceneView->setViewpointCameraAndWait(sceneCamera);

      emit sceneViewChanged();
    }

    void Display_a_scene::setupScene()
    {

      ArcGISTiledElevationSource* elevationSource = new ArcGISTiledElevationSource(QUrl("https://elevation3d.arcgis.com/arcgis/rest/services/WorldElevation3D/Terrain3D/ImageServer"), this);

      Surface* elevationSurface = new Surface(this);
      elevationSurface->elevationSources()->append(elevationSource);

      elevationSurface->setElevationExaggeration(2.5);
      m_scene->setBaseSurface(elevationSurface);

    }

  3. Delete the following lines to remove the sceneCamera object and all of its arguments.
