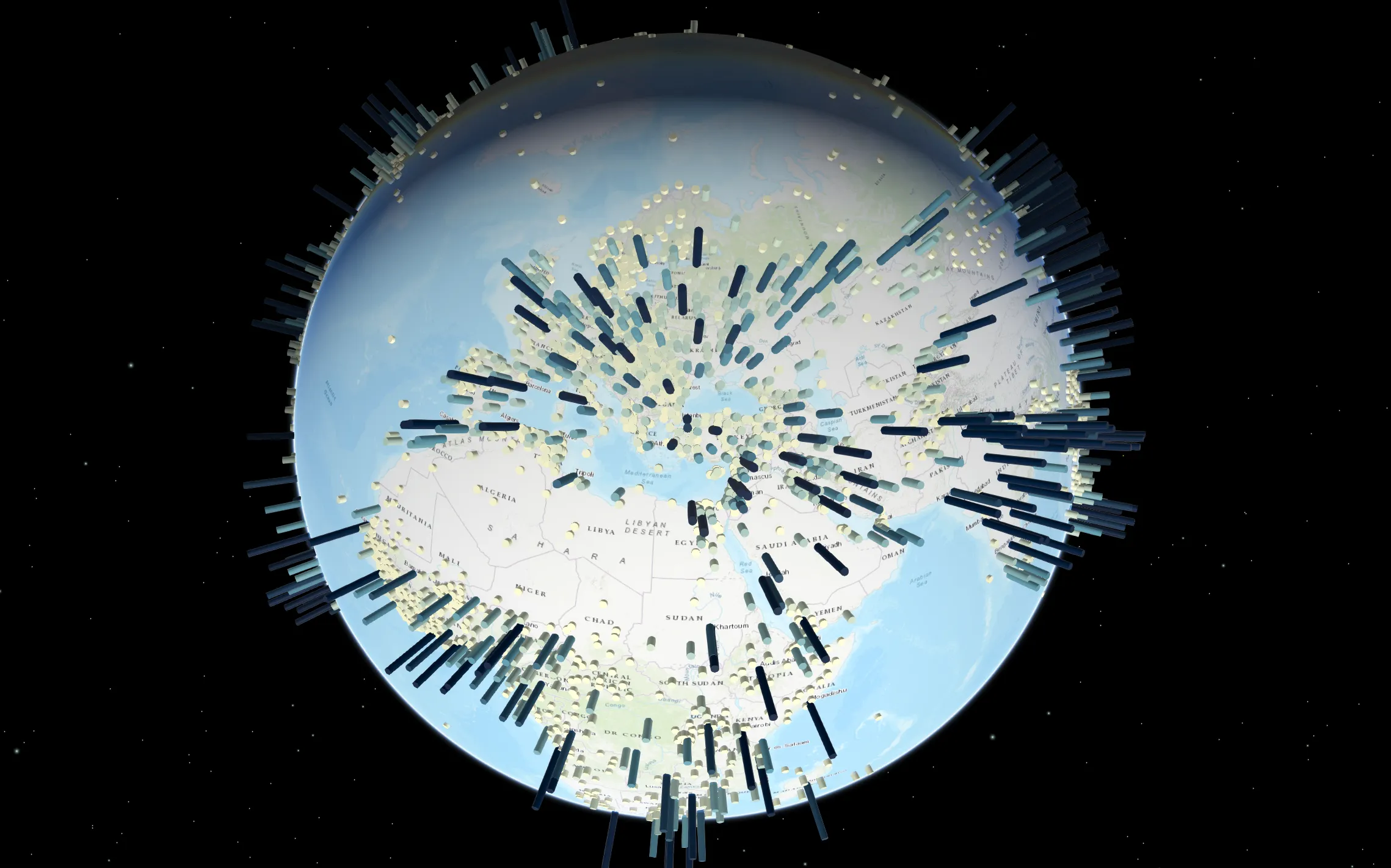

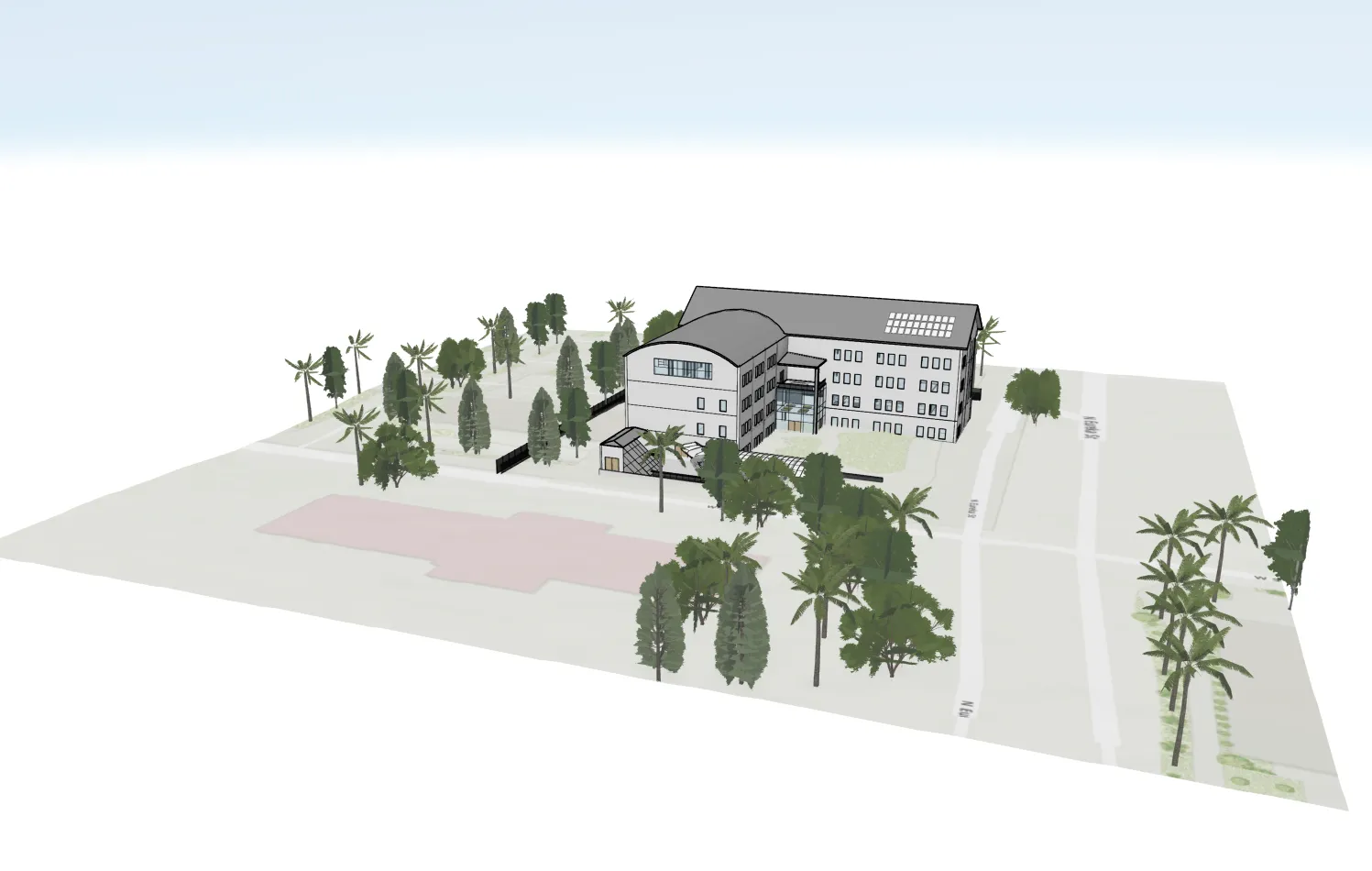

Scenes (3D)

Maps and scenes provide interactive displays of geographic data that enable you to visualize and explore patterns, answer questions, and share insight. They can be opened, edited, and shared across the ArcGIS system and beyond. While the programming patterns are similar and many of the classes you work with are the same, maps are designed for working with geographic data in two dimensions (2D) and scenes in three dimensions (3D). Most applications contain a basemap layer to display geographic data with streets or satellite imagery, but you can also use data layers and graphics to display additional data. See Maps (2D) in this guide for more information about working with maps.

You can use a scene and a scene view to:

  • Display a basemap layer such as streets or satellite imagery.
  • Access and display data layers based on files or services, including data you have authored.
  • Display terrain with an elevation layer.
  • Display real-world objects such as buildings, cars, and trees.
  • Display 3D visualizations of 2D objects.
  • Perform 3D analysis, such as line-of-sight, visibility, and 3D measurements.
  • Provide context for temporary points, lines, polygons, or text displayed as graphics.
  • Measure distance and explore spatial relationships between geometries.
  • Inspect data layers and display information from attributes.

How a scene works

A scene works together with a scene view to display geographic content in three dimensions. A scene contains a collection of layers including multiple data layers from online or local sources, a basemap layer that gives geographic context, and a base surface containing elevation data. A scene can also contain datasets that enable searches for addresses or place names, networks for solving routes, and non-spatial tables.

For offline workflows (when you don't have network connectivity), you can open a scene stored in a mobile scene package. You can create mobile scene packages using ArcGIS Pro, share them using your ArcGIS organization, or distribute directly by copying to a device. See Offline maps, scenes, and data for more information about implementing offline workflows in your app.

Scene

A scene contains a collection of layers. Two dimensional layers are displayed in the order in which they are added, while three dimensional layers are displayed using the layer's elevation information. You can use the scene to change the display order of two dimensional layers as well as to control which layers are visible, and expose this functionality with user interface controls such as lists, check boxes, or switches. Scenes extend the concept of a basemap by introducing a base surface that contains a collection of elevation sources. Layers can be draped on top of the surface, positioned relative to the surface or displayed based on their absolute values.

You can instantiate a new Scene object by creating a new scene and building it entirely with code. With this approach, you typically first add a basemap layer and then one or more data layers.

Use dark colors for code blocksCopy
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
    Scene* scene = new Scene(BasemapStyle::ArcGISImagery, this);
    ArcGISTiledElevationSource* elevationSource = new ArcGISTiledElevationSource(
        QUrl("https://elevation3d.arcgis.com/arcgis/rest/services/WorldElevation3D/Terrain3D/ImageServer"),
        this
        );
    scene->baseSurface()->elevationSources()->append(elevationSource);

You can also instantiate a Scene that's stored in a portal (such as ArcGIS Online) using its item ID or URL.

When the Scene first appears in the SceneView, you can focus the initial display at a specified view point by setting the Scene::initialViewpoint() property. If an initial view point is not defined, the scene will initially display at a global scale.

Layer

Each layer in a scene references geographic data, either from an online service or from a local dataset. There are a variety of layers that can be added to a scene, each designed to display a particular type of data. Some layers display images, such as satellite photos or aerial photography, others are composed of a collection of features to represent real-world entities using point, line, or polygon geometries. In addition to geometry, features have attributes that provide details about the entity it represents.

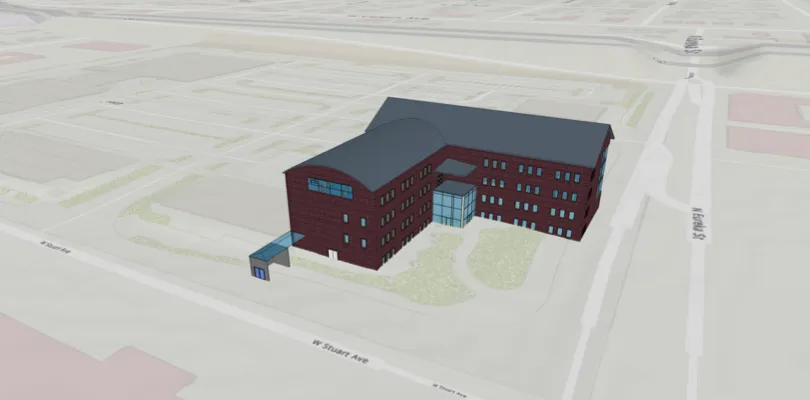

Scenes can also contain scene layers enabling you to create advanced 3D visualizations. Scene layers can contain one of four data types: points, point cloud, 3D objects, or an integrated mesh. To learn more about scene layers, visit What is a scene layer? in the ArcGIS Pro documentation.

The Layer class is the base class for all types of layers used in ArcGIS Maps SDK for Qt. The type of layer you create depends on the type of data you want to display. For example, to display feature data you can create a FeatureLayer that references an online service (such as a feature service) or a supported local dataset. Some layers cannot be displayed in a scene, such as ArcGISVectorTiledLayer and AnnotationLayer. Similarly, 3D layers cannot be displayed in a map, such as ArcGISSceneLayer.

Use dark colors for code blocksCopy
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330
331
332
333
334
335
336
337
338
339
340
341
342
343
344
345
346
347
348
349
350
351
352
353
354
355
356
357
358
359
360
361
362
363
364
365
366
367
368
369
370
371
372
373
374
375
376
377
378
379
380
381
382
383
384
385
386
387
388
389
390
391
392
393
394
395
396
397
398
399
400
401
402
403
404
405
406
407
408
409
410
411
412
413
414
415
416
417
418
419
420
421
422
423
424
425
426
427
428
429
430
431
432
433
434
435
436
437
438
439
440
441
442
443
444
445
446
447
448
449
450
451
452
453
454
455
456
457
458
459
460
461
462
463
464
465
466
467
468
469
470
471
472
473
474
475
476
477
478
479
480
481
482
483
484
485
486
487
488
489
490
491
void Layers::loadSceneLayers()
{
    // Set the access token.
    const QString accessToken = QStringLiteral("YOUR_ACCESS_TOKEN");

    // Set the ArcGIS runtime environment Api Key with your access token.
    ArcGISRuntimeEnvironment::setApiKey(accessToken);

    // Create a new "trail heads" feature layer based on a service feature table (using the Url provided).
    FeatureLayer* trailheadsLayer = new FeatureLayer(
        new ServiceFeatureTable(QUrl("https://services3.arcgis.com/GVgbJbqm8hXASVYi/arcgis/rest/services/Trailheads_Styled/FeatureServer/0"), this),
        this
        );

    // Create a new "trails" feature layer based on a service feature table (using the Url provided).
    FeatureLayer* trailsLayer = new FeatureLayer(
        new ServiceFeatureTable(QUrl("https://services3.arcgis.com/GVgbJbqm8hXASVYi/arcgis/rest/services/Trails_Styled/FeatureServer/0"), this),
        this
        );

    // Create a new "open spaces" feature layer based on a service feature table (using the Url provided).
    FeatureLayer* openSpacesLayer = new FeatureLayer(
        new ServiceFeatureTable(QUrl("https://services3.arcgis.com/GVgbJbqm8hXASVYi/arcgis/rest/services/Parks_and_Open_Space_Styled/FeatureServer/0"), this),
        this
        );

    // Add the three feature layers to the scene's operating layers list model collection.
    m_scene->operationalLayers()->append(trailheadsLayer);
    m_scene->operationalLayers()->append(trailsLayer);
    m_scene->operationalLayers()->append(openSpacesLayer);
}

Camera

Scenes and scene views extend the concept of two dimensional viewpoints with a camera that represents the observer's position and perspective within three dimensions.

The following properties define the camera position:

  • Geographic location on the surface (longitude and latitude)
  • Altitude (height, in meters, above sea level)
  • Heading (angle about the z axis the camera is rotated, in degrees)
  • Pitch (angle the camera is rotated up or down, in degrees)
  • Roll (angle the camera is rotated side-to-side, in degrees)
Use dark colors for code blocksCopy
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
    // Create a camera
    constexpr double latitude = 33.961;
    constexpr double longitude = -118.808;
    constexpr double altitude = 2000;
    constexpr double heading = 0;
    constexpr double pitch = 75;
    constexpr double roll = 0;
    const Camera camera(latitude, longitude, altitude, heading, pitch, roll);

A scene view has an associated controller that manages the camera for the scene. Each type of camera controller is designed to provide a specific user experience for interacting with the scene display. The camera controller and its properties can be changed at run time, enabling you to provide the scene view interaction experience best suited for the current context.

When a camera controller other than the default GlobeCameraController is active, the scene view's viewpoint cannot be assigned. Attempts to do so do not raise an exception, but they are ignored.

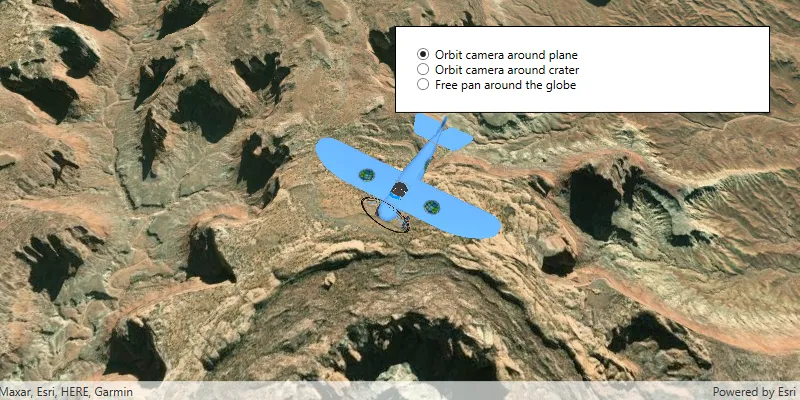

The following camera controllers are provided:

  • GlobeCameraController (default) — Provides the default scene view camera behavior. Allows the user to freely move and focus the camera anywhere in the scene.
  • OrbitGeoElementCameraController — Locks the scene view's camera to maintain focus relative to a (possibly moving) graphic. The camera can only move relative to the target graphic.
  • OrbitLocationCameraController — Locks the scene view's camera to orbit a fixed location (map point). The camera can only move relative to the target map point.
  • TransformationMatrixCameraController — Provides navigation by using a TransformationMatrix to control the camera's location and rotation. You need to pass this object to all TransformationMatrixCameraController functions. This can be used with transformation matrices produced by Augmented Reality APIs like ARKit (iOS) and ARCore (Android).
Use dark colors for code blocksCopy
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
    // Create a camera controller to follow a geoelement in the scene view.
    // Pass a geoelement (graphic) and a distance (meters).
    OrbitGeoElementCameraController* orbitCam = new OrbitGeoElementCameraController(planeGraphic, 50, this);
    orbitCam->setCameraPitchOffset(75);

    // Apply our new orbiting camera to the scene view.
    m_sceneView->setCameraController(orbitCam);

SceneView

A scene view is a user interface control that displays a single scene in your application. It contains built-in functionality that allows the user to explore the scene by zooming in and out, panning and rotating, or getting additional information about elements in the scene. Scene views may also contain graphics in one or more graphics overlays.

After creating a scene view, you typically set the scene and the camera position. Unlike a map, a scene uses a camera to define the viewer's perspective and to determine the visible area. The perspective is defined by setting the camera's position, location, altitude (height), heading, and tilt.

Add a Scene to a SceneView control to display it. Changes you make to the scene, such as adding, removing, or reording layers, will immediately be reflected in the display. The Scene::initialViewpoint() property will determine the area shown when the scene loads.

Use dark colors for code blocksCopy
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
    // Create a scene view and set scene and viewpoint
    SceneQuickView* sceneView = new SceneQuickView(scene);
    sceneView->setArcGISScene(scene);
    sceneView->setViewpointCameraAsync(camera);

A scene view control also allows you to:

  • Adjust light, atmosphere, and space effects.
  • Display image overlays on the scene surface.
  • Lock the camera to a location or geoelement.
  • Add analysis overlays to visualize analysis results.
  • Identify and select features using a mouse or tap location.
  • Export an image of the current display.
  • Apply a time extent to filter the display of features.

Examples

Display a scene with elevation

This example uses a Scene and SceneView to display the topographic basemap layer. The basemap layer is draped on an elevation layer to create a 3D perspective. A Camera is created to define the initial view of the scene.

Steps

  1. Create a Scene and add a basemap layer.
  2. Use an elevation service to define the Scene::baseSurface().
  3. Create a SceneView and set the camera position.
Use dark colors for code blocksCopy
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
Scenes3d::Scenes3d(QObject* parent /* = nullptr */):
    QObject(parent),
    m_scene(new Scene(BasemapStyle::ArcGISImagery, this))
{
    // create a new elevation source from Terrain3D REST service
    ArcGISTiledElevationSource* elevationSource = new ArcGISTiledElevationSource(
        QUrl("https://elevation3d.arcgis.com/arcgis/rest/services/WorldElevation3D/Terrain3D/ImageServer"), this);

    // add the elevation source to the scene to display elevation
    m_scene->baseSurface()->elevationSources()->append(elevationSource);
}

// Set the view (created in QML)
void Scenes3d::setSceneView(SceneQuickView* sceneView)
{
    if (!sceneView || sceneView == m_sceneView)
        return;

    m_sceneView = sceneView;
    m_sceneView->setArcGISScene(m_scene);

    // create a camera
    constexpr double latitude = 33.961;
    constexpr double longitude = -118.808;
    constexpr double altitude = 2000;
    constexpr double heading = 0.0;
    constexpr double pitch = 75.0;
    constexpr double roll = 0.0;
    const Camera camera(latitude, longitude, altitude, heading, pitch, roll);

    m_sceneView->setViewpointCameraAsync(camera);

    emit sceneViewChanged();
}

Display a scene from a mobile scene package

This example displays a scene from a mobile scene package. You can create your own mobile scene packages using ArcGIS Pro or download existing ones from ArcGIS Online. The Philadelphia scene package, for example, shows an area of downtown Philadelphia with textured buildings.

Steps

  1. Create a MobileScenePackage using the path to a local .mspk file.
  2. Call MobileScenePackage::load() to load the package.
  3. When the package loads, get the first scene from the package using the MobileScenePackage::scenes() property.
  4. Display the scene in a SceneView.
Use dark colors for code blocksCopy
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
// Create scene package and connect to signals.
void Scenes3d::createScenePackage(const QString& filePath)
{
    m_scenePackage = new MobileScenePackage(filePath, this);
    connect(m_scenePackage, &MobileScenePackage::doneLoading, this, &Scenes3d::packageLoaded);
    m_scenePackage->load();
}

// Check for errors, acquire first scene in package, set to scene view.
void Scenes3d::packageLoaded(const Error& e)
{
    if (!e.isEmpty())
    {
        qDebug() << QString("Package load error: %1 %2").arg(e.message(), e.additionalMessage());
        return;
    }

    if (m_scenePackage->scenes().isEmpty())
        return;

    m_scene = m_scenePackage->scenes().at(0);
    if (m_scene && m_sceneView)
        m_sceneView->setArcGISScene(m_scene);
}

Tutorials

Samples

Choose camera controller

Change atmosphere effect

Animate images with image overlay

Open mobile scene package

Open a scene portal item

Sync map and scene views

Services

Your browser is no longer supported. Please upgrade your browser for the best experience. See our browser deprecation post for more details.
