Display scenes in augmented reality

Augmented reality (AR) experiences can be implemented with three common patterns: tabletop, flyover, and world-scale.

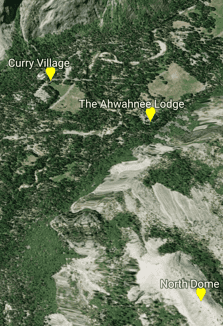

• Flyover – With flyover AR you can explore a scene using your device as a window into the virtual world. A typical flyover AR scenario starts with the scene’s virtual camera positioned over an area of interest. You can walk around and reorient the device to focus on specific content in the scene.

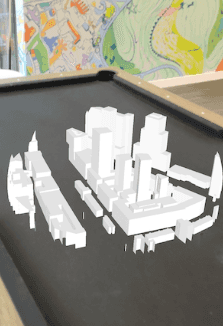

• Tabletop – Tabletop AR provides scene content anchored to a physical surface, as if it were a 3D-printed model. You can walk around the tabletop and view the scene from different angles.
• World-scale – A kind of AR scenario where scene content is rendered exactly where it would be in the physical world. This is used in scenarios ranging from viewing hidden infrastructure to displaying waypoints for navigation. In AR, the real world, rather than a basemap, provides the context for your GIS data.

Flyover	Tabletop	World-scale
On screen, flyover is visually indistinguishable from normal scene rendering.	In tabletop, scene content is anchored to a real-world surface.	In world-scale AR, scene content is integrated with the real world.

Support for augmented reality is provided through tools available in each Toolkit.

Enable your app for AR

1. See the Toolkit repo on GitHub for the latest instructions for installing.
2. Add an AR view to your app.
3. Configure privacy and permissions.
4. Now you're ready to add tabletop AR, add flyover AR, or add world-scale AR to your app.

Add an AR view to your app

ArcGISArView uses an underlying ARKit or ARCore view and a SceneView.

Use the following methods on ArcGISArView to configure AR:

• translationFactor - controls the relationship between physical device position changes and changes in the position of the scene view's camera. This is useful for tabletop and flyover AR.
• originCamera - controls the initial position of the scene view's camera. When position tracking is started, ArcGISArView transforms the scene view camera's position using a transformation matrix provided by ARKit or ARCore. Once the origin camera is set, the manipulation of the scene view's camera is handled automatically.
• setInitialTransformation – takes a point on the screen, finds the surface represented by that point, and applies a transformation such that the origin camera is pinned to the location represented by that point. This is useful for pinning content to a surface, which is needed for tabletop AR.

In addition to the toolkit, you'll need to use the following features provided by the underlying scene view when creating AR experiences:

• Scene view space effect control — Disable rendering the 'starry sky' effect to display scene content on top of a camera feed.
• Scene view atmosphere effect control — Disable rendering the atmosphere effect to avoid obscuring rendered content.
• Surface transparency — Hide the ground when rendering world-scale AR because the camera feed, not the basemap, is providing context for your GIS content. You can use a semitransparent surface to calibrate your position in world-scale AR.
• Scene view navigation constraint — By default, scene views constrain the camera to being above the ground. You should disable this feature to enable users to use world-scale AR underground (for example, while in a basement). The navigation constraint will interfere with tabletop AR if the user attempts to look at the scene from below.

To use ArcGISArView, first add it to the view, then configure the lifecycle methods to start and stop tracking as needed.

1
