Get a server-defined trace configuration for a given tier and modify its traversability scope, add new condition barriers and control what is included in the subnetwork trace result.
Use case
While some traces are built from an ad-hoc group of parameters, many are based on a variation of the trace configuration taken from the subnetwork definition. For example, an electrical trace will be based on the trace configuration of the subnetwork, but may add additional clauses to constrain the trace along a single phase. Similarly, a trace in a gas or electric design application may include features with a status of "In Design" that are normally excluded from trace results.

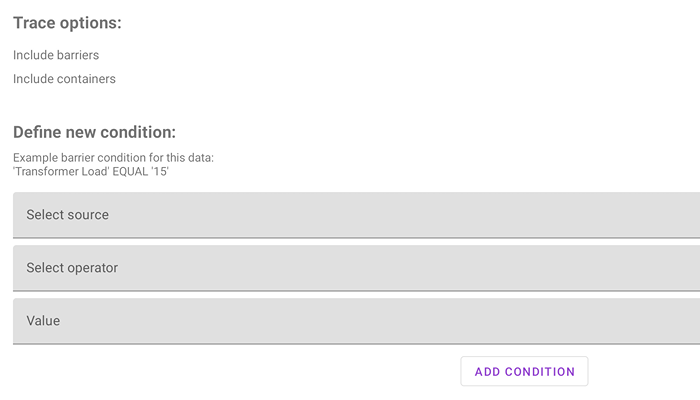

How to use the sample
The sample loads with a server-defined trace configuration from a tier. Check or uncheck which options to include in the trace - such as containers or barriers. Use the selection boxes to define a new condition network attribute comparison, and then use 'Add' to add the it to the trace configuration. Click 'Trace' to run a subnetwork trace with this modified configuration from a default starting location.
Example barrier conditions for the default dataset:
- 'Transformer Load' Equal '15'
- 'Phases Current' DoesNotIncludeTheValues 'A'
- 'Generation KW' LessThan '50'
How it works
- Create and load a
UtilityNetworkwith from aServiceGeodatabase, then get an asset type and a tier by their names. - Populate the choice list for the comparison source with the non-system defined
UtilityNetworkDefinition.networkAttributes. Populate the choice list for the comparison operator with the enum values fromUtilityAttributeComparisonOperator. - Create a
UtilityElementfrom this asset type to use as the starting location for the trace. - Update the selected barrier expression and the checked options in the UI using this tier's
UtilityTraceConfiguration. - When 'Network Attribute' is selected, if its
Domainis aCodedValueDomain, populate the choice list for the comparison value with itsCodedValues. Otherwise, display a free-form textbox for entering an attribute value. - When 'Add Configuration' is clicked, create a new
UtilityNetworkAttributeComparisonusing the selected comparison source, operator, and selected or typed value. Use the selected source'sUtilityNetworkAttributeDataTypeto convert the comparison value to the correct data type. - If the traversability list of
Barriersis not empty, create aUtilityTraceOrConditionwith the existingBarriersand the new comparison from Step 6. - When 'Trace' is clicked, create
UtilityTraceParameterspassing inUtilityTraceType.Subnetworkand the default starting location. Set itsUtilityTraceConfigurationwith the modified options, selections, and expression; then run aUtilityNetwork.trace(...). - When
Resetis clicked, set the trace configurations expression back to its original value. - Display the count of returned
UtilityElementTraceResult.elements.count().
Relevant API
- CodedValueDomain
- UtilityAssetType
- UtilityAttributeComparisonOperator
- UtilityCategory
- UtilityCategoryComparison
- UtilityCategoryComparisonOperator
- UtilityDomainNetwork
- UtilityElement
- UtilityElementTraceResult
- UtilityNetwork
- UtilityNetworkAttribute
- UtilityNetworkAttributeComparison
- UtilityNetworkDefinition
- UtilityTerminal
- UtilityTier
- UtilityTraceAndCondition
- UtilityTraceConfiguration
- UtilityTraceOrCondition
- UtilityTraceParameters
- UtilityTraceResult
- UtilityTraceType
- UtilityTraversability
About the data
The Naperville electrical network feature service, hosted on ArcGIS Online, contains a utility network used to run the subnetwork-based trace shown in this sample.
Additional information
Using utility network on ArcGIS Enterprise 10.8 requires an ArcGIS Enterprise member account licensed with the Utility Network user type extension. Please refer to the utility network services documentation.
Tags
category comparison, condition barriers, network analysis, network attribute comparison, subnetwork trace, trace configuration, traversability, utility network, validate consistency
Sample Code
MainActivity.kt
/* Copyright 2023 Esri
*
* Licensed under the Apache License, Version 2.0 (the "License");
* you may not use this file except in compliance with the License.
* You may obtain a copy of the License at
*
* http://www.apache.org/licenses/LICENSE-2.0
*
* Unless required by applicable law or agreed to in writing, software
* distributed under the License is distributed on an "AS IS" BASIS,
* WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
* See the License for the specific language governing permissions and
* limitations under the License.
*
*/
package com.esri.arcgismaps.sample.analyzenetworkwithsubnetworktrace
import android.os.Bundle
import android.text.InputType
import android.util.Log
import android.view.View
import android.widget.AdapterView
import android.widget.ArrayAdapter
import android.widget.AutoCompleteTextView
import android.widget.CheckBox
import android.widget.RelativeLayout
import android.widget.TextView
import android.widget.ToggleButton
import androidx.appcompat.app.AlertDialog
import androidx.databinding.DataBindingUtil
import androidx.lifecycle.lifecycleScope
import com.arcgismaps.ArcGISEnvironment
import com.arcgismaps.Guid
import com.arcgismaps.LoadStatus
import com.arcgismaps.data.CodedValue
import com.arcgismaps.data.CodedValueDomain
import com.arcgismaps.data.ServiceGeodatabase
import com.arcgismaps.httpcore.authentication.ArcGISAuthenticationChallengeHandler
import com.arcgismaps.httpcore.authentication.ArcGISAuthenticationChallengeResponse
import com.arcgismaps.httpcore.authentication.TokenCredential
import com.arcgismaps.utilitynetworks.UtilityAttributeComparisonOperator
import com.arcgismaps.utilitynetworks.UtilityCategoryComparison
import com.arcgismaps.utilitynetworks.UtilityElement
import com.arcgismaps.utilitynetworks.UtilityElementTraceResult
import com.arcgismaps.utilitynetworks.UtilityNetwork
import com.arcgismaps.utilitynetworks.UtilityNetworkAttribute
import com.arcgismaps.utilitynetworks.UtilityNetworkAttributeComparison
import com.arcgismaps.utilitynetworks.UtilityNetworkAttributeDataType
import com.arcgismaps.utilitynetworks.UtilityTier
import com.arcgismaps.utilitynetworks.UtilityTraceAndCondition
import com.arcgismaps.utilitynetworks.UtilityTraceConditionalExpression
import com.arcgismaps.utilitynetworks.UtilityTraceConfiguration
import com.arcgismaps.utilitynetworks.UtilityTraceOrCondition
import com.arcgismaps.utilitynetworks.UtilityTraceParameters
import com.arcgismaps.utilitynetworks.UtilityTraceType
import com.arcgismaps.utilitynetworks.UtilityTraversability
import com.esri.arcgismaps.sample.analyzenetworkwithsubnetworktrace.databinding.AnalyzeNetworkWithSubnetworkTraceActivityMainBinding
import com.esri.arcgismaps.sample.analyzenetworkwithsubnetworktrace.databinding.LoadingOptionsDialogBinding
import com.esri.arcgismaps.sample.sampleslib.EdgeToEdgeCompatActivity
import com.google.android.material.button.MaterialButton
import com.google.android.material.dialog.MaterialAlertDialogBuilder
import com.google.android.material.snackbar.Snackbar
import com.google.android.material.textfield.TextInputEditText
import kotlinx.coroutines.launch
import kotlinx.coroutines.runBlocking
class MainActivity : EdgeToEdgeCompatActivity() {
// set up data binding for the activity
private val activityMainBinding: AnalyzeNetworkWithSubnetworkTraceActivityMainBinding by lazy {
DataBindingUtil.setContentView(this, R.layout.analyze_network_with_subnetwork_trace_activity_main)
}
private val sourceDropdown: AutoCompleteTextView by lazy {
activityMainBinding.sourceDropdown
}
private val operatorDropdown: AutoCompleteTextView by lazy {
activityMainBinding.operatorDropdown
}
private val expressionTextView: TextView by lazy {
activityMainBinding.expressionTextView
}
private val valuesDropdown: AutoCompleteTextView by lazy {
activityMainBinding.valuesDropdown
}
private val valuesBackgroundView: RelativeLayout by lazy {
activityMainBinding.valuesBackgroundView
}
private val valueBooleanButton: ToggleButton by lazy {
activityMainBinding.valueBooleanButton
}
private val valuesEditText: TextInputEditText by lazy {
activityMainBinding.valuesEditText
}
private val barriersCheckbox: CheckBox by lazy {
activityMainBinding.barriersCheckBox
}
private val containersCheckbox: CheckBox by lazy {
activityMainBinding.containersCheckbox
}
private val traceButton: MaterialButton by lazy {
activityMainBinding.traceButton
}
private val utilityNetwork by lazy {
UtilityNetwork(ServiceGeodatabase(getString(R.string.utility_network_url)))
}
private var initialExpression: UtilityTraceConditionalExpression? = null
private var sourceTier: UtilityTier? = null
private var utilityTraceConfiguration: UtilityTraceConfiguration? = null
private var sourcesList: List<UtilityNetworkAttribute>? = null
private var operatorsList: Array<UtilityAttributeComparisonOperator>? = null
private var startingLocation: UtilityElement? = null
private var codedValuesList: List<CodedValue>? = null
private var sourcePosition: Int = 0
private var operatorPosition: Int = 0
private var valuePosition: Int = 0
private var dialog: AlertDialog? = null
override fun onCreate(savedInstanceState: Bundle?) {
super.onCreate(savedInstanceState)
ArcGISEnvironment.applicationContext = this
ArcGISEnvironment.authenticationManager.arcGISAuthenticationChallengeHandler =
getAuthenticationChallengeHandler()
// create and display the loading dialog
showLoadingDialog(true)
// load the utility network
lifecycleScope.launch {
utilityNetwork.load().getOrElse {
dialog?.dismiss()
traceButton.isEnabled = false
return@launch showError("Error loading utility network: ${it.message}")
}
// create a list of utility network attributes whose system is not defined
sourcesList =
utilityNetwork.definition?.networkAttributes?.filter { !it.isSystemDefined }
sourceDropdown.apply {
// add the list of sources to the drop down view
setAdapter(sourcesList?.let { utilityNetworkAttributes ->
ArrayAdapter(
applicationContext,
com.esri.arcgismaps.sample.sampleslib.R.layout.custom_dropdown_item,
utilityNetworkAttributes.map { it.name })
})
// add an on item selected listener which calls on comparison source changed
onItemClickListener = AdapterView.OnItemClickListener { _, _, position, _ ->
sourcePosition = position
sourcesList?.get(position)?.let { onComparisonSourceChanged(it) }
}
}
// create a list of utility attribute comparison operators
operatorsList =
UtilityAttributeComparisonOperator::class.sealedSubclasses.mapNotNull { it.objectInstance }
.toTypedArray()
operatorDropdown.apply {
// add the list of sources to the drop down view
setAdapter(operatorsList?.let { utilityAttributeComparisonOperator ->
ArrayAdapter(applicationContext,
com.esri.arcgismaps.sample.sampleslib.R.layout.custom_dropdown_item,
utilityAttributeComparisonOperator.map { it::class.simpleName })
})
// add an on item selected listener which calls on comparison source changed
onItemClickListener = AdapterView.OnItemClickListener { _, _, position, _ ->
operatorPosition = position
}
}
// create a default starting location
val networkSource = utilityNetwork.definition?.getNetworkSource("Electric Distribution Device")
val assetGroup = networkSource?.getAssetGroup("Circuit Breaker")
val assetType = assetGroup?.getAssetType("Three Phase")
val globalId = Guid("1CAF7740-0BF4-4113-8DB2-654E18800028")
if (assetType == null) return@launch
val terminal = assetType.terminalConfiguration?.terminals?.first { it.name == "Load" }
// utility element to start the trace from
startingLocation = utilityNetwork.createElementOrNull(assetType, globalId, terminal)
// get a default trace configuration from a tier to update the UI
val domainNetwork = utilityNetwork.definition?.getDomainNetwork(
"ElectricDistribution"
)
// set source utility tier from the utility domain network
sourceTier = domainNetwork?.getTier("Medium Voltage Radial")?.apply {
utilityTraceConfiguration = getDefaultTraceConfiguration()
}
// set initial barrier condition
val defaultConditionalExpression = sourceTier.let {
utilityTraceConfiguration?.traversability?.barriers as UtilityTraceConditionalExpression
}
// set the text view
expressionTextView.text = expressionToString(defaultConditionalExpression)
// use the initial expression when resetting trace
initialExpression = defaultConditionalExpression
showLoadingDialog(false)
}
}
/**
* Returns a [ArcGISAuthenticationChallengeHandler] to access the utility network URL.
*/
private fun getAuthenticationChallengeHandler(): ArcGISAuthenticationChallengeHandler {
return ArcGISAuthenticationChallengeHandler { challenge ->
val result: Result<TokenCredential> = runBlocking {
TokenCredential.create(challenge.requestUrl, "viewer01", "I68VGU^nMurF", 0)
}
if (result.getOrNull() != null) {
val credential = result.getOrNull()
return@ArcGISAuthenticationChallengeHandler ArcGISAuthenticationChallengeResponse
.ContinueWithCredential(credential!!)
} else {
val ex = result.exceptionOrNull()
return@ArcGISAuthenticationChallengeHandler ArcGISAuthenticationChallengeResponse
.ContinueAndFailWithError(ex!!)
}
}
}
/**
* When a comparison source [attribute] is chosen check if it's a coded value domain and, if it is,
* present a dropdown of coded value domains. If not, show the correct UI view for the utility
* network attribute data type.
*/
private fun onComparisonSourceChanged(attribute: UtilityNetworkAttribute) {
// if the domain is a coded value domain
if (attribute.domain is CodedValueDomain) {
(attribute.domain as CodedValueDomain).let { codedValueDomain ->
// update the list of coded values
codedValuesList = codedValueDomain.codedValues
// show the values dropdown
setVisible(valuesBackgroundView.id)
// update the values dropdown adapter
valuesDropdown.setAdapter(ArrayAdapter(applicationContext,
com.esri.arcgismaps.sample.sampleslib.R.layout.custom_dropdown_item,
// add the coded values from the coded value domain to the values dropdown
codedValueDomain.codedValues.map { it.name }))
// add an on item selected listener which calls on comparison source changed
valuesDropdown.onItemClickListener =
AdapterView.OnItemClickListener { _, _, position, _ ->
valuePosition = position
}
}
} // if the domain is not a coded value domain
else {
when (attribute.dataType) {
UtilityNetworkAttributeDataType.Boolean -> {
// show true/false toggle button
setVisible(valueBooleanButton.id)
}
UtilityNetworkAttributeDataType.Double, UtilityNetworkAttributeDataType.Float -> {
// show the edit text and only allow numbers (decimals allowed)
valuesEditText.inputType =
InputType.TYPE_CLASS_NUMBER or InputType.TYPE_NUMBER_FLAG_DECIMAL
setVisible(valuesEditText.id)
}
UtilityNetworkAttributeDataType.Integer -> {
// show the edit text only allowing for integer input
valuesEditText.inputType = InputType.TYPE_CLASS_NUMBER
setVisible(valuesEditText.id)
}
else -> {
showError("Unexpected utility network attribute data type.")
}
}
}
}
/**
* Add a new barrier condition to the trace options when [addConditionButton] is tapped.
*/
fun addBarrierCondition(addConditionButton: View) {
// if source tier doesn't contain a trace configuration, create one
val traceConfiguration = utilityTraceConfiguration ?: UtilityTraceConfiguration().apply {
// if the trace configuration doesn't contain traversability, create one
traversability ?: UtilityTraversability()
}
// get the currently selected attribute
sourcesList?.get(sourcePosition)?.let { sourceAttribute ->
// if the other value is a coded value domain
val otherValue = if (sourceAttribute.domain is CodedValueDomain) {
codedValuesList?.get(valuePosition)?.code?.let {
convertToDataType(it, sourceAttribute.dataType)
}
} else {
convertToDataType(valuesEditText.text.toString(), sourceAttribute.dataType)
}
if (otherValue.toString().contains("Error") || otherValue == null) {
return showError(otherValue.toString())
}
// get the currently selected attribute operator>
operatorsList?.get(operatorPosition)?.let { comparisonOperator ->
// NOTE: You may also create a UtilityNetworkAttributeComparison
// with another NetworkAttribute
var expression: UtilityTraceConditionalExpression =
UtilityNetworkAttributeComparison(
sourceAttribute,
comparisonOperator,
otherValue
)
(traceConfiguration.traversability?.barriers as? UtilityTraceConditionalExpression)?.let { otherExpression ->
// NOTE: You may also combine expressions with UtilityTraceAndCondition
expression = UtilityTraceOrCondition(otherExpression, expression)
}
traceConfiguration.traversability?.barriers = expression
expressionTextView.text = expressionToString(expression)
}
}
}
/**
* Show the UI of the given [id] and hide the others which share the same space.
*/
private fun setVisible(id: Int) {
when (id) {
valuesBackgroundView.id -> {
valuesBackgroundView.visibility = View.VISIBLE
valueBooleanButton.visibility = View.GONE
valuesEditText.visibility = View.GONE
}
valuesEditText.id -> {
valuesEditText.visibility = View.VISIBLE
valueBooleanButton.visibility = View.GONE
valuesBackgroundView.visibility = View.GONE
}
valueBooleanButton.id -> {
valueBooleanButton.visibility = View.VISIBLE
valuesBackgroundView.visibility = View.GONE
valuesEditText.visibility = View.GONE
}
}
}
/**
* Run the network trace with the parameters and display the result in an alert dialog
* when the [traceButton] is clicked.
*/
fun trace(traceButton: View) {
if (utilityNetwork.loadStatus.value != LoadStatus.Loaded) {
return showError("Utility network is not loaded")
}
// set the utility trace parameters
val parameters = UtilityTraceParameters(
UtilityTraceType.Subnetwork,
listOf(startingLocation).requireNoNulls()
).apply {
// set the utility trace configuration options to include
traceConfiguration = utilityTraceConfiguration?.apply {
includeBarriers = barriersCheckbox.isChecked
includeContainers = containersCheckbox.isChecked
}
}
// launch trace in a coroutine scope
lifecycleScope.launch {
showLoadingDialog(true)
val utilityTraceResults = utilityNetwork.trace(parameters).getOrElse {
return@launch showError(it.message + getString(R.string.example_condition))
}
// get the UtilityElementTraceResult
val elementTraceResult = utilityTraceResults.first() as UtilityElementTraceResult
showLoadingDialog(false)
MaterialAlertDialogBuilder(this@MainActivity).apply {
// set the result dialog title
setTitle("Trace result")
// show the element result count
setMessage(elementTraceResult.elements.count().toString() + " elements found.")
}.show()
}
}
/**
* Convert the given [expression] into a string.
*/
private fun expressionToString(expression: UtilityTraceConditionalExpression): String? {
when (expression) {
// when the expression is a category comparison expression
is UtilityCategoryComparison -> {
return expression.category.name + " " + expression.comparisonOperator
}
// when the expression is an utility trace AND condition
is UtilityTraceAndCondition -> {
return expressionToString(expression.leftExpression) + " AND\n" + expressionToString(
expression.rightExpression
)
}
// when the expression is an utility trace OR condition
is UtilityTraceOrCondition -> {
return expressionToString(expression.leftExpression) + " OR\n" + expressionToString(
expression.rightExpression
)
}
// when the expression is an attribute comparison expression
is UtilityNetworkAttributeComparison -> {
// the name and comparison operator of the expression
val networkAttributeNameAndOperator = expression.networkAttribute.name + " " +
expression.comparisonOperator::class.simpleName + " "
// check whether the network attribute has a coded value domain
val codedValueDomain = expression.networkAttribute.domain as? CodedValueDomain
return if (codedValueDomain != null) {
networkAttributeNameAndOperator +
getCodedValueFromExpression(codedValueDomain, expression)?.name
} else {
// if there's no coded value domain
networkAttributeNameAndOperator +
(expression.otherNetworkAttribute?.name ?: expression.value)
}
}
else -> {
return null
}
}
}
/**
* Convert the given value into the correct Kotlin data type by using the attribute's data type.
*
* @param otherValue which will be converted
* @param dataType to be converted to
*/
private fun convertToDataType(
otherValue: Any,
dataType: UtilityNetworkAttributeDataType,
): Any {
return try {
if (dataType::class.isInstance(UtilityNetworkAttributeDataType.Boolean)) {
otherValue.toString().toBoolean()
} else if (dataType::class.isInstance(UtilityNetworkAttributeDataType.Double)) {
otherValue.toString().toDouble()
} else if (dataType::class.isInstance(UtilityNetworkAttributeDataType.Float)) {
otherValue.toString().toFloat()
} else if (dataType::class.isInstance(UtilityNetworkAttributeDataType.Integer)) {
otherValue.toString().toInt()
} else {
}
} catch (e: Exception) {
return ("Error converting value to a datatype")
}
}
/**
* Returns a [CodedValue] found in the [expression] using the
* list of coded values in the [codedValueDomain].
*/
private fun getCodedValueFromExpression(
codedValueDomain: CodedValueDomain,
expression: UtilityNetworkAttributeComparison,
): CodedValue? {
// if there's a coded value domain name
return codedValueDomain.codedValues.first { codedValue ->
val code = codedValue.code
val value = expression.value
if (code != null && value != null) {
return@first (convertToDataType(code,
expression.networkAttribute.dataType) == convertToDataType(value,
expression.networkAttribute.dataType))
} else
return null
}
}
/**
* Reset the current barrier condition to the initial expression
* "Operational Device Status EQUAL Open" and resets the UI.
*/
fun reset(view: View) {
initialExpression?.let {
utilityTraceConfiguration = sourceTier?.getDefaultTraceConfiguration()?.apply {
traversability?.barriers = it
}
expressionTextView.text = expressionToString(it)
}
}
private fun showLoadingDialog(isVisible: Boolean) {
if (isVisible) {
dialog = MaterialAlertDialogBuilder(this).apply {
setCancelable(false)
setView(LoadingOptionsDialogBinding.inflate(layoutInflater).root)
}.show()
} else {
dialog?.dismiss()
}
}
private fun showError(message: String) {
Log.e(localClassName, message)
Snackbar.make(activityMainBinding.root, message, Snackbar.LENGTH_SHORT).show()
}
}
