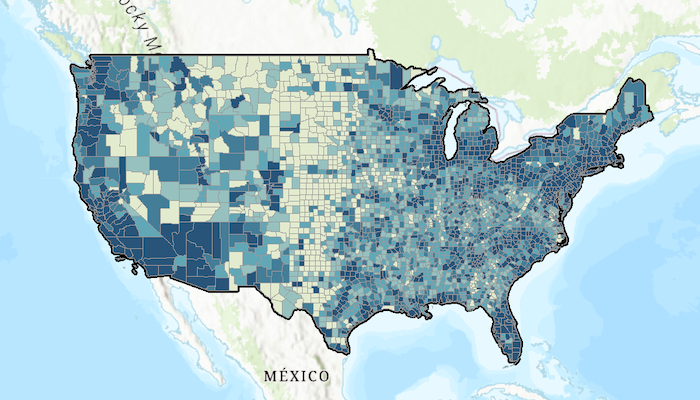

Apply class breaks renderer to sublayer

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
/* Copyright 2025 Esri
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *    http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 *
 */

package com.esri.arcgismaps.sample.applyclassbreaksrenderertosublayer.components

import android.app.Application
import androidx.compose.runtime.getValue
import androidx.compose.runtime.mutableStateOf
import androidx.compose.runtime.setValue
import androidx.lifecycle.AndroidViewModel
import androidx.lifecycle.viewModelScope
import com.arcgismaps.Color
import com.arcgismaps.geometry.Envelope
import com.arcgismaps.geometry.SpatialReference
import com.arcgismaps.mapping.ArcGISMap
import com.arcgismaps.mapping.BasemapStyle
import com.arcgismaps.mapping.Viewpoint
import com.arcgismaps.mapping.layers.ArcGISMapImageLayer
import com.arcgismaps.mapping.layers.ArcGISMapImageSublayer
import com.arcgismaps.mapping.symbology.ClassBreak
import com.arcgismaps.mapping.symbology.ClassBreaksRenderer
import com.arcgismaps.mapping.symbology.Renderer
import com.arcgismaps.mapping.symbology.SimpleFillSymbol
import com.arcgismaps.mapping.symbology.SimpleFillSymbolStyle
import com.arcgismaps.mapping.symbology.SimpleLineSymbol
import com.arcgismaps.mapping.symbology.SimpleLineSymbolStyle
import com.esri.arcgismaps.sample.sampleslib.components.MessageDialogViewModel
import kotlinx.coroutines.launch

class ApplyClassBreaksRendererToSublayerViewModel(app: Application) : AndroidViewModel(app) {

    // The map image layer
    private val mapImageLayer =
        ArcGISMapImageLayer("https://sampleserver6.arcgisonline.com/arcgis/rest/services/Census/MapServer")

    var arcGISMap = ArcGISMap(BasemapStyle.ArcGISTopographic).apply {
        initialViewpoint = Viewpoint(
            Envelope(
                xMin = -13934661.666904,
                yMin = 331181.323482,
                xMax = -7355704.998713,
                yMax = 9118038.075882,
                spatialReference = SpatialReference.webMercator()
            )
        )
        // Add the map image layer to the map
        operationalLayers.add(mapImageLayer)
    }

    // The counties sublayer
    private var countiesSublayer: ArcGISMapImageSublayer? = null

    // The original renderer of the counties sublayer
    private var originalRenderer: Renderer? = null

    private var classBreaksRenderer = ClassBreaksRenderer(
        fieldName = "POP2007",
        classBreaks = classBreaks
    )

    // Whether the class breaks renderer is currently applied
    var classBreaksRendererIsApplied by mutableStateOf(false)
        private set

    // Whether the sublayer is loaded and ready
    var isSublayerReady by mutableStateOf(false)
        private set

    // Message dialog view model for error handling
    val messageDialogVM = MessageDialogViewModel()

    init {
        viewModelScope.launch {

            // Load the map image layer
            mapImageLayer.load().onSuccess {
                // Get the sublayers
                val sublayers = mapImageLayer.mapImageSublayers
                if (sublayers.size > 2) {
                    val sublayer = sublayers[2]
                    sublayer.load().onSuccess {
                        countiesSublayer = sublayer
                        originalRenderer = sublayer.renderer
                        isSublayerReady = true
                    }.onFailure { messageDialogVM.showMessageDialog(it) }
                } else {
                    messageDialogVM.showMessageDialog("Counties sublayer not found.")
                }
            }.onFailure { messageDialogVM.showMessageDialog(it) }
        }
    }

    /**
     * Toggle the renderer on the counties sublayer between the original and the class breaks renderer.
     */
    fun toggleClassBreaksRenderer() {
        val sublayer = countiesSublayer ?: return
        classBreaksRendererIsApplied = !classBreaksRendererIsApplied
        sublayer.renderer = if (classBreaksRendererIsApplied) {
            classBreaksRenderer
        } else {
            originalRenderer
        }
    }

    /**
     * Companion object to hold the class breaks and symbols.
     */
    companion object {
        private val outline = SimpleLineSymbol(
            style = SimpleLineSymbolStyle.Solid,
            color = Color.fromRgba(153, 153, 153, 255), // gray
            width = 0.5f
        )

        private val symbol1 = SimpleFillSymbol(
            style = SimpleFillSymbolStyle.Solid,
            color = Color.fromRgba(227, 235, 207, 255), // light green
            outline = outline
        )
        private val symbol2 = SimpleFillSymbol(
            style = SimpleFillSymbolStyle.Solid,
            color = Color.fromRgba(150, 193, 191, 255), // teal
            outline = outline
        )
        private val symbol3 = SimpleFillSymbol(
            style = SimpleFillSymbolStyle.Solid,
            color = Color.fromRgba(98, 167, 182, 255), // blue-green
            outline = outline
        )
        private val symbol4 = SimpleFillSymbol(
            style = SimpleFillSymbolStyle.Solid,
            color = Color.fromRgba(68, 125, 151, 255), // darker blue
            outline = outline
        )
        private val symbol5 = SimpleFillSymbol(
            style = SimpleFillSymbolStyle.Solid,
            color = Color.fromRgba(41, 84, 121, 255), // navy
            outline = outline
        )

        private val classBreaks = listOf(
            ClassBreak(
                description = "-99 to 8,560",
                label = "-99 to 8,560",
                minValue = -99.0,
                maxValue = 8560.0,
                symbol = symbol1
            ),
            ClassBreak(
                description = "> 8,560 to 18,109",
                label = "> 8,560 to 18,109",
                minValue = 8561.0,
                maxValue = 18109.0,
                symbol = symbol2
            ),
            ClassBreak(
                description = "> 18,109 to 35,501",
                label = "> 18,109 to 35,501",
                minValue = 18110.0,
                maxValue = 35501.0,
                symbol = symbol3
            ),
            ClassBreak(
                description = "> 35,501 to 86,100",
                label = "> 35,501 to 86,100",
                minValue = 35502.0,
                maxValue = 86100.0,
                symbol = symbol4
            ),
            ClassBreak(
                description = "> 86,100 to 10,110,975",
                label = "> 86,100 to 10,110,975",
                minValue = 86101.0,
                maxValue = 10110975.0,
                symbol = symbol5
            )
        )
    }
}
