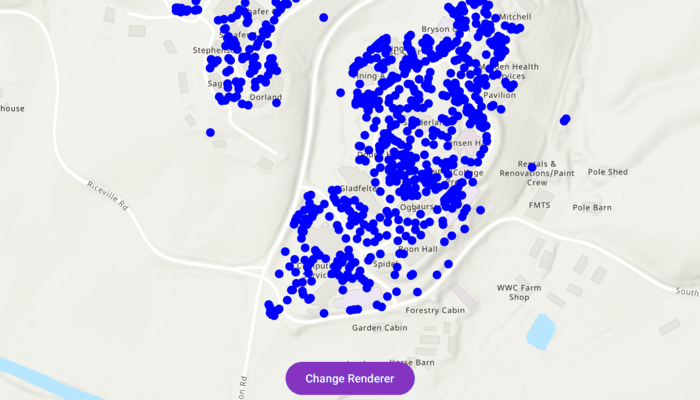

Apply simple renderer to feature layer

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
/* Copyright 2025 Esri
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *    http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 *
 */

package com.esri.arcgismaps.sample.applysimplerenderertofeaturelayer.components

import android.app.Application
import androidx.lifecycle.AndroidViewModel
import androidx.lifecycle.viewModelScope
import com.arcgismaps.Color
import com.arcgismaps.mapping.ArcGISMap
import com.arcgismaps.mapping.BasemapStyle
import com.arcgismaps.mapping.PortalItem
import com.arcgismaps.mapping.Viewpoint
import com.arcgismaps.mapping.layers.FeatureLayer
import com.arcgismaps.mapping.symbology.SimpleMarkerSymbol
import com.arcgismaps.mapping.symbology.SimpleMarkerSymbolStyle
import com.arcgismaps.mapping.symbology.SimpleRenderer
import com.arcgismaps.portal.Portal
import com.esri.arcgismaps.sample.sampleslib.components.MessageDialogViewModel
import kotlinx.coroutines.launch
import kotlin.random.Random

class ApplySimpleRendererToFeatureLayerViewModel(app: Application) : AndroidViewModel(app) {

    // The feature layer from the portal item to which we will apply the renderer
    var featureLayer: FeatureLayer = FeatureLayer.createWithItem(
        PortalItem(
            portal = Portal.arcGISOnline(connection = Portal.Connection.Anonymous),
            itemId = "6d41340931544829acc8f68c27e69dec"
        )
    )

    // The ArcGISMap instance with the basemap and initial viewpoint
    var arcGISMap =
        ArcGISMap(BasemapStyle.ArcGISTopographic).apply {
            initialViewpoint = Viewpoint(latitude = 35.61, longitude = -82.44, scale = 1e4)
            operationalLayers.add(featureLayer)
        }

    // Create a message dialog view model for handling error messages
    val messageDialogVM = MessageDialogViewModel()

    init {
        viewModelScope.launch {
            arcGISMap.load().onFailure { messageDialogVM.showMessageDialog(it) }
        }
    }

    /**
     * Applies a simple renderer with a random color to the feature layer.
     */
    fun applyRandomSimpleRenderer() {
        // Pick a random color from the list
        val colorList = listOf(Color.red, Color.yellow, Color.blue, Color.green)
        val randomColor = colorList[Random.nextInt(colorList.size)]
        // Create a simple marker symbol
        val symbol = SimpleMarkerSymbol(
            style = SimpleMarkerSymbolStyle.Circle,
            color = randomColor,
            size = 10f
        )
        // Create and apply the simple renderer
        val renderer = SimpleRenderer(symbol)
        featureLayer.renderer = renderer
    }
}

// Extension property to provide blue color for ArcGISMaps Color class
val Color.Companion.blue: Color
    get() = fromRgba(0, 0, 255, 255)
