Use the Geometry Editor to create new point, multipoint, polyline, or polygon geometries or to edit existing geometries by interacting with a map view.
Use case
A field worker can mark features of interest on a map using an appropriate geometry. Features such as sample or observation locations, fences or pipelines, and building footprints can be digitized using point, multipoint, polyline, and polygon geometry types. Polyline and polygon geometries can be created and edited using a vertex-based creation and editing tool (i.e. vertex locations specified explicitly via tapping), or using a freehand tool.
How to use the sample
To create a new geometry, press the button appropriate for the geometry type you want to create (i.e. points, multipoints, polyline, or polygon) and interactively tap and drag on the map view to create the geometry.
To edit an existing geometry, tap the geometry to be edited in the map and then perform edits by tapping and dragging its elements.
When the whole geometry is selected, you can use the control handles to scale and rotate the geometry.
If creating or editing polyline or polygon geometries, choose the desired creation/editing tool (i.e. VertexTool, ReticleVertexTool, FreehandTool, or one of the available ShapeTools).
When using the ReticleVertexTool, you can move the map position of the reticle by dragging and zooming the map. Insert a vertex under the reticle by tapping on the map. Move a vertex by tapping when the reticle is located over a vertex, drag the map to move the position of the reticle, then tap a second time to place the vertex.
Use the control panel to undo or redo changes made to the geometry, delete a selected element, save the geometry, stop the editing session and discard any edits, and remove all geometries from the map.
How it works
- Create a
MapViewProxyfor interacting with the composableMapView. - Create a
GeometryEditorfor creating and editingGeometrys. - Create
VertexTool,ReticleVertexTool,FreehandTool, orShapeToolobjects to define how the user interacts with the view to create or edit geometries, and set the geometry editor tool using thegeometryEditor.toolproperty. - Edit a tool's
InteractionConfigurationto set theGeometryEditorScaleModeto allow either uniform or stretch scale mode. - Create a
MapViewwith MapView usingMapView(mapViewProxy = MapViewProxy, geometryEditor = GeometryEditor, ...). - Start the
GeometryEditorusingGeometryEditor.start(GeometryType)to create a new geometry orGeometryEditor.start(Geometry)to edit an existing geometry.- If using the Geometry Editor to edit an existing geometry, the geometry must be retrieved from the graphics overlay being used to visualize the geometry prior to calling the start method. To do this:
- Use
MapViewProxy.identifyGraphicsOverlays(...)to identify graphics at the location of a tap. - Find the desired
IdentifyGraphicsOverlayResultin the list returned byMapViewProxy.identifyGraphicsOverlays(...). - Find the desired graphic in the
IdentifyGraphicsOverlayResult.graphicslist. - Access the geometry associated with the
GraphicusingGraphic.geometry- this will be used in theGeometryEditor.start(Geometry)method.
- Use
- If using the Geometry Editor to edit an existing geometry, the geometry must be retrieved from the graphics overlay being used to visualize the geometry prior to calling the start method. To do this:
- Check to see if undo and redo are possible during an editing session using
GeometryEditor.canUndoandGeometryEditor.canRedo. If it's possible, useGeometryEditor.undo()andGeometryEditor.redo(). - Check whether the currently selected
GeometryEditorElementcan be deleted (GeometryEditor.selectedElement.canDelete). If the element can be deleted, delete usingGeometryEditor.deleteSelectedElement. - Call
GeometryEditor.stop()to finish the editing session. TheGeometryEditordoes not automatically handle the visualization of a geometry output from an editing session. This must be done manually by propagating the geometry returned byGeometryEditor.stop()into aGraphicadded to aGraphicsOverlay.- To create a new
Graphicin theGraphicsOverlay:- Using
Graphic(Geometry), create a new Graphic with the geometry returned by theGeometryEditor.stop()method. - Add the
Graphicto theGraphicsOverlay's list ofGraphics (i.e.GraphicsOverlay.graphics.add(Graphic)).
- Using
- To update the geometry underlying an existing
Graphicin theGraphicsOverlay:- Replace the existing
Graphic'sGeometryproperty with the geometry returned by theGeometryEditor.stop().
- Replace the existing
- To create a new
Relevant API
- Geometry
- GeometryEditor
- Graphic
- GraphicsOverlay
- MapView
Additional information

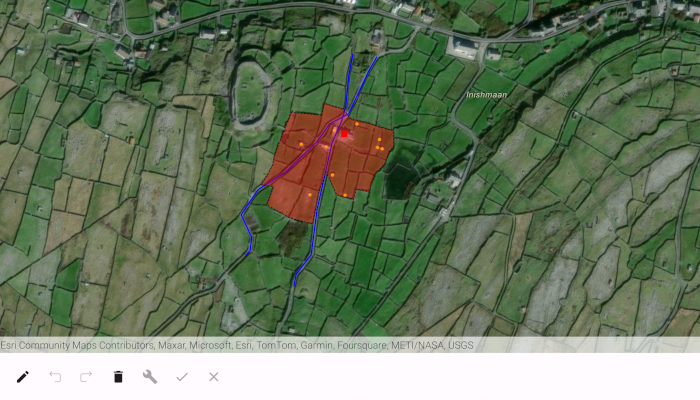

The sample opens with the ArcGIS Imagery basemap centered on the island of Inis Meáin (Aran Islands) in Ireland. Inis Meáin comprises a landscape of interlinked stone walls, roads, buildings, archaeological sites, and geological features, producing complex geometrical relationships.
This sample uses the GeoView-Compose Toolkit module to be able to implement a composable MapView.
Tags
draw, edit, freehand, geometry editor, geoview-compose, sketch, toolkit, vertex
Sample Code
/* Copyright 2025 Esri
*
* Licensed under the Apache License, Version 2.0 (the "License");
* you may not use this file except in compliance with the License.
* You may obtain a copy of the License at
*
* http://www.apache.org/licenses/LICENSE-2.0
*
* Unless required by applicable law or agreed to in writing, software
* distributed under the License is distributed on an "AS IS" BASIS,
* WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
* See the License for the specific language governing permissions and
* limitations under the License.
*
*/
package com.esri.arcgismaps.sample.createandeditgeometries.components
import android.app.Application
import androidx.compose.runtime.getValue
import androidx.compose.runtime.mutableStateOf
import androidx.compose.ui.unit.dp
import androidx.lifecycle.AndroidViewModel
import androidx.lifecycle.viewModelScope
import com.arcgismaps.Color
import com.arcgismaps.geometry.Envelope
import com.arcgismaps.geometry.Geometry
import com.arcgismaps.geometry.GeometryType
import com.arcgismaps.geometry.Multipoint
import com.arcgismaps.geometry.Point
import com.arcgismaps.geometry.Polygon
import com.arcgismaps.geometry.Polyline
import com.arcgismaps.mapping.ArcGISMap
import com.arcgismaps.mapping.BasemapStyle
import com.arcgismaps.mapping.Viewpoint
import com.arcgismaps.mapping.symbology.SimpleFillSymbol
import com.arcgismaps.mapping.symbology.SimpleFillSymbolStyle
import com.arcgismaps.mapping.symbology.SimpleLineSymbol
import com.arcgismaps.mapping.symbology.SimpleLineSymbolStyle
import com.arcgismaps.mapping.symbology.SimpleMarkerSymbol
import com.arcgismaps.mapping.symbology.SimpleMarkerSymbolStyle
import com.arcgismaps.mapping.view.Graphic
import com.arcgismaps.mapping.view.GraphicsOverlay
import com.arcgismaps.mapping.view.SingleTapConfirmedEvent
import com.arcgismaps.mapping.view.geometryeditor.FreehandTool
import com.arcgismaps.mapping.view.geometryeditor.GeometryEditor
import com.arcgismaps.mapping.view.geometryeditor.GeometryEditorScaleMode
import com.arcgismaps.mapping.view.geometryeditor.ReticleVertexTool
import com.arcgismaps.mapping.view.geometryeditor.ShapeTool
import com.arcgismaps.mapping.view.geometryeditor.ShapeToolType
import com.arcgismaps.mapping.view.geometryeditor.VertexTool
import com.arcgismaps.toolkit.geoviewcompose.MapViewProxy
import com.esri.arcgismaps.sample.sampleslib.components.MessageDialogViewModel
import kotlinx.coroutines.flow.MutableStateFlow
import kotlinx.coroutines.flow.asStateFlow
import kotlinx.coroutines.launch
class CreateAndEditGeometriesViewModel(application: Application) : AndroidViewModel(application) {
// create a map with the imagery basemap style
val arcGISMap by mutableStateOf(
ArcGISMap(BasemapStyle.ArcGISImagery).apply {
// a viewpoint centered at the island of Inis Meáin (Aran Islands) in Ireland
initialViewpoint = Viewpoint(
latitude = 53.08275,
longitude = -9.5933,
scale = 5000.0
)
}
)
// create a message dialog view model for handling error messages
val messageDialogVM = MessageDialogViewModel()
// create a MapViewProxy that will be used to identify features in the MapView and set the viewpoint
val mapViewProxy = MapViewProxy()
// create a graphic to hold graphics identified on tap
private var identifiedGraphic = Graphic()
// create a graphics overlay
val graphicsOverlay = GraphicsOverlay()
// create a geometry editor
val geometryEditor = GeometryEditor()
/**
* Enum of GeometryEditorTool types.
*/
enum class ToolType {
Vertex,
ReticleVertex,
Freehand,
Arrow,
Ellipse,
Rectangle,
Triangle
}
/**
* Enum of GeometryEditorScaleMode types.
*/
enum class ScaleOption {
Stretch,
Uniform
}
private val vertexTool = VertexTool()
private val reticleVertexTool = ReticleVertexTool()
private val freehandTool = FreehandTool()
private val arrowTool = ShapeTool(ShapeToolType.Arrow)
private val ellipseTool = ShapeTool(ShapeToolType.Ellipse)
private val rectangleTool = ShapeTool(ShapeToolType.Rectangle)
private val triangleTool = ShapeTool(ShapeToolType.Triangle)
private val _selectedTool = MutableStateFlow(ToolType.Vertex)
val selectedTool = _selectedTool.asStateFlow()
private val _currentGeometryType = MutableStateFlow<GeometryType>(GeometryType.Unknown)
val currentGeometryType = _currentGeometryType.asStateFlow()
private val _currentScaleOption = MutableStateFlow(ScaleOption.Stretch)
val currentScaleOption = _currentScaleOption.asStateFlow()
// create symbols for displaying new geometries
private val pointSymbol = SimpleMarkerSymbol(
style = SimpleMarkerSymbolStyle.Square,
color = Color.red,
size = 10f
)
private val multiPointSymbol = SimpleMarkerSymbol(
style = SimpleMarkerSymbolStyle.Circle,
color = Color.yellow,
size = 5f
)
private val polylineSymbol = SimpleLineSymbol(
style = SimpleLineSymbolStyle.Solid,
color = Color.blue,
width = 2f
)
private val polygonLineSymbol = SimpleLineSymbol(
style = SimpleLineSymbolStyle.Dash,
color = Color.black,
width = 1f
)
private val polygonSymbol = SimpleFillSymbol(
style = SimpleFillSymbolStyle.Solid,
color = Color.fromRgba(r = 255, g = 0, b = 0, a = 100),
outline = polygonLineSymbol
)
init {
viewModelScope.launch {
// load the map
arcGISMap.load().onFailure { error ->
messageDialogVM.showMessageDialog(
title = "Failed to load map",
description = error.message.toString()
)
}.onSuccess {
// create graphics for the initial geometries and add them to the graphics overlay
graphicsOverlay.graphics.addAll(
listOf(
Graphic(
geometry = Geometry.fromJsonOrNull(houseCoordinatesJson),
symbol = pointSymbol
),
Graphic(
geometry = Geometry.fromJsonOrNull(outbuildingCoordinatesJson),
symbol = multiPointSymbol
),
Graphic(
geometry = Geometry.fromJsonOrNull(road1CoordinatesJson),
symbol = polylineSymbol
),
Graphic(
geometry = Geometry.fromJsonOrNull(road2CoordinatesJson),
symbol = polylineSymbol
),
Graphic(
geometry = Geometry.fromJsonOrNull(boundaryCoordinatesJson),
symbol = polygonSymbol
)
)
)
}
}
}
/**
* Starts the GeometryEditor using the selected [GeometryType].
*/
fun startEditor(selectedGeometry: GeometryType) {
if (!geometryEditor.isStarted.value) {
geometryEditor.start(selectedGeometry)
_currentGeometryType.value = selectedGeometry
if (selectedGeometry == GeometryType.Point || selectedGeometry == GeometryType.Multipoint) {
// default to vertex tool for point or multipoint
changeTool(ToolType.Vertex)
}
}
}
/**
* Stops the GeometryEditor and updates the identified graphic or calls [createGraphic].
*/
fun stopEditor() {
// check if there was a previously identified graphic
if (identifiedGraphic.geometry != null) {
// update the identified graphic
identifiedGraphic.geometry = geometryEditor.stop()
// deselect the identified graphic
identifiedGraphic.isSelected = false
} else if (geometryEditor.isStarted.value) {
// create a graphic from the geometry that was being edited
createGraphic()
}
_currentGeometryType.value = GeometryType.Unknown
}
/**
* Undoes all edits made using the GeometryEditor then calls [stopEditor].
*/
fun discardEdits() {
while (geometryEditor.canUndo.value) {
geometryEditor.undo()
}
stopEditor()
}
/**
* Deletes the selected element.
*/
fun deleteSelectedElement() {
if (geometryEditor.selectedElement.value != null) {
geometryEditor.deleteSelectedElement()
}
}
/**
* Deletes all the geometries on the map.
*/
fun deleteAllGeometries() {
graphicsOverlay.graphics.clear()
}
/**
* Undoes the last event on the geometry editor if possible.
*/
fun undoEdit() {
if (geometryEditor.canUndo.value) {
geometryEditor.undo()
}
}
/**
* Redoes the last event on the geometry editor if possible.
*/
fun redoEdit() {
if (geometryEditor.canRedo.value) {
geometryEditor.redo()
}
}
/**
* Changes the tool type of the geometry editor to the specified tool.
*/
fun changeTool(toolType: ToolType) {
when (toolType) {
ToolType.Vertex -> geometryEditor.tool = vertexTool
ToolType.ReticleVertex -> geometryEditor.tool = reticleVertexTool
ToolType.Freehand -> geometryEditor.tool = freehandTool
ToolType.Arrow -> geometryEditor.tool = arrowTool
ToolType.Ellipse -> geometryEditor.tool = ellipseTool
ToolType.Rectangle -> geometryEditor.tool = rectangleTool
ToolType.Triangle -> geometryEditor.tool = triangleTool
}
// enable snapping and haptic feedback on snapping for reticle tool only
val enableSnappingAndHaptics = (toolType == ToolType.ReticleVertex)
geometryEditor.snapSettings.isEnabled = enableSnappingAndHaptics
geometryEditor.snapSettings.isHapticFeedbackEnabled = enableSnappingAndHaptics
geometryEditor.snapSettings.sourceSettings.forEach {
it.isEnabled = enableSnappingAndHaptics
}
_selectedTool.value = toolType
}
/**
* Changes the scale option of the current geometry editor tool to the specified scale option.
*/
fun changeScaleOption(scaleOption: ScaleOption) {
val newScaleOption =
when (scaleOption) {
ScaleOption.Stretch -> GeometryEditorScaleMode.Stretch
ScaleOption.Uniform -> GeometryEditorScaleMode.Uniform
}
// update the scale option setting in the configurations of the tools that support it
vertexTool.configuration.scaleMode = newScaleOption
freehandTool.configuration.scaleMode = newScaleOption
arrowTool.configuration.scaleMode = newScaleOption
ellipseTool.configuration.scaleMode = newScaleOption
rectangleTool.configuration.scaleMode = newScaleOption
triangleTool.configuration.scaleMode = newScaleOption
_currentScaleOption.value = scaleOption
}
/**
* Creates a graphic from the geometry and adds it to the GraphicsOverlay.
*/
private fun createGraphic() {
// stop the geometry editor and get its final geometry state
val geometry = geometryEditor.stop()
?: return messageDialogVM.showMessageDialog(
title = "Error!",
description = "Error stopping editing session"
)
// create a graphic to represent the new geometry
val graphic = Graphic(geometry)
// give the graphic an appropriate fill based on the geometry type
when (geometry) {
is Point -> graphic.symbol = pointSymbol
is Multipoint -> graphic.symbol = multiPointSymbol
is Polyline -> graphic.symbol = polylineSymbol
is Polygon -> graphic.symbol = polygonSymbol
else -> {}
}
// add the graphic to the graphics overlay
graphicsOverlay.graphics.add(graphic)
// deselect the graphic
graphic.isSelected = false
}
/**
* Identifies the graphic at the tapped screen coordinate in the provided [singleTapConfirmedEvent]
* and starts the GeometryEditor using the identified graphic's geometry. Hide the BottomSheet on
* [singleTapConfirmedEvent].
*/
fun identify(singleTapConfirmedEvent: SingleTapConfirmedEvent) {
viewModelScope.launch {
// attempt to identify a graphic at the location the user tapped
val graphicsResult = mapViewProxy.identifyGraphicsOverlays(
screenCoordinate = singleTapConfirmedEvent.screenCoordinate,
tolerance = 10.0.dp,
returnPopupsOnly = false
).getOrNull()
if (!geometryEditor.isStarted.value) {
if (graphicsResult != null) {
if (graphicsResult.isNotEmpty()) {
// get the tapped graphic
identifiedGraphic = graphicsResult.first().graphics.first()
// select the graphic
identifiedGraphic.isSelected = true
// start the geometry editor with the identified graphic
identifiedGraphic.geometry?.let {
geometryEditor.start(it)
when (it) {
is Envelope -> _currentGeometryType.value = GeometryType.Envelope
is Polygon -> _currentGeometryType.value = GeometryType.Polygon
is Polyline -> _currentGeometryType.value = GeometryType.Polyline
is Multipoint -> _currentGeometryType.value = GeometryType.Multipoint
is Point -> _currentGeometryType.value = GeometryType.Point
}
}
}
}
// reset the identified graphic back to null
identifiedGraphic.geometry = null
}
}
}
// json formatted strings for initial geometries
private val houseCoordinatesJson = """{"x": -1067898.59, "y": 6998366.62,
"spatialReference": {"latestWkid":3857, "wkid":102100}}"""
private val outbuildingCoordinatesJson = """{"points":[[-1067984.26,6998346.28],[-1067966.80,6998244.84],
[-1067921.88,6998284.65],[-1067934.36,6998340.74],
[-1067917.93,6998373.97],[-1067828.30,6998355.28],
[-1067832.25,6998339.70],[-1067823.10,6998336.93],
[-1067873.22,6998386.78],[-1067896.72,6998244.49]],
"spatialReference":{"latestWkid":3857,"wkid":102100}}"""
private val road1CoordinatesJson = """{"paths":[[[-1068095.40,6998123.52],[-1068086.16,6998134.60],
[-1068083.20,6998160.44],[-1068104.27,6998205.37],
[-1068070.63,6998255.22],[-1068014.44,6998291.54],
[-1067952.33,6998351.85],[-1067927.93,6998386.93],
[-1067907.97,6998396.78],[-1067889.86,6998406.63],
[-1067848.08,6998495.26],[-1067832.92,6998521.11]]],
"spatialReference":{"latestWkid":3857,"wkid":102100}}"""
private val road2CoordinatesJson = """{"paths":[[[-1067999.28,6998061.97],[-1067994.48,6998086.59],
[-1067964.53,6998125.37],[-1067952.70,6998215.84],
[-1067923.13,6998347.54],[-1067903.90,6998391.86],
[-1067895.40,6998422.02],[-1067891.70,6998460.18],
[-1067889.49,6998483.56],[-1067880.98,6998527.26]]],
"spatialReference":{"latestWkid":3857,"wkid":102100}}"""
private val boundaryCoordinatesJson = """{ "rings": [[[-1067943.67,6998403.86],[-1067938.17,6998427.60],
[-1067898.77,6998415.86],[-1067888.26,6998398.80],
[-1067800.85,6998372.93],[-1067799.61,6998342.81],
[-1067809.38,6998330.00],[-1067817.07,6998307.85],
[-1067838.07,6998285.34],[-1067849.10,6998250.38],
[-1067874.02,6998256.00],[-1067879.87,6998235.95],
[-1067913.41,6998245.03],[-1067934.84,6998291.34],
[-1067948.41,6998251.90],[-1067961.18,6998186.68],
[-1068008.59,6998199.49],[-1068052.89,6998225.45],
[-1068039.37,6998261.11],[-1068064.12,6998265.26],
[-1068043.32,6998299.88],[-1068036.25,6998327.93],
[-1068004.43,6998409.28],[-1067943.67,6998403.86]]],
"spatialReference":{"latestWkid":3857,"wkid":102100}}"""
/**
* Define a blue color for polylines.
*/
private val Color.Companion.blue: Color
get() {
return fromRgba(0, 0, 255, 255)
}
}
