Display coordinate system grids including Latitude/Longitude, MGRS, UTM and USNG on a map view. Also, toggle label visibility and change the color of grid lines and grid labels.
Use case
Grids are often used on printed maps, but can also be helpful on digital maps, to identify locations on a map.
How to use the sample

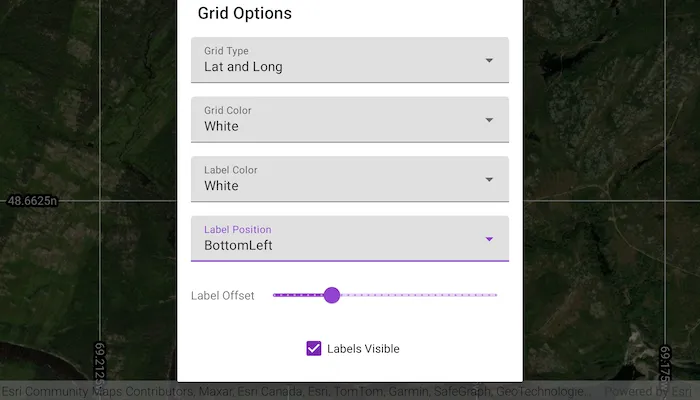

Tap on the Grid options button in the toolbar to open a settings view. You can select type of grid from Grid Type (LatLong, MGRS, UTM and USNG) and modify its properties like label visibility, grid line color, and grid label color.
How it works
- Create an instance of one of the
Gridtypes. - Grid lines and labels can be styled per grid level with
setLineSymbol(gridLevel, lineSymbol)andsetTextSymbol(gridLevel, textSymbol)methods on the grid. - The label position can be set with
grid.labelPositionmethod on the grid. - For the
LatitudeLongitudeGridtype, you can specify a label format ofDecimalDegreesorDegreesMinutesSeconds. - To set the grid, use the
MapView.grid(myGrid)method on the map view.
Relevant API
- Grid
- LatitudeLongitudeGrid
- MapView
- MgrsGrid
- SimpleLineSymbol
- TextSymbol
- UsngGrid
- UtmGrid
Tags
coordinates, degrees, graticule, grid, latitude, longitude, mgrs, minutes, seconds, usng, utm
Sample Code
MainActivity.kt
/* Copyright 2023 Esri
*
* Licensed under the Apache License, Version 2.0 (the "License");
* you may not use this file except in compliance with the License.
* You may obtain a copy of the License at
*
* http://www.apache.org/licenses/LICENSE-2.0
*
* Unless required by applicable law or agreed to in writing, software
* distributed under the License is distributed on an "AS IS" BASIS,
* WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
* See the License for the specific language governing permissions and
* limitations under the License.
*
*/
package com.esri.arcgismaps.sample.showgrid
import android.os.Bundle
import android.util.Log
import android.widget.AdapterView
import android.widget.ArrayAdapter
import androidx.appcompat.app.AppCompatActivity
import androidx.databinding.DataBindingUtil
import com.arcgismaps.ApiKey
import com.arcgismaps.ArcGISEnvironment
import com.arcgismaps.Color
import com.arcgismaps.geometry.Point
import com.arcgismaps.geometry.SpatialReference
import com.arcgismaps.mapping.ArcGISMap
import com.arcgismaps.mapping.BasemapStyle
import com.arcgismaps.mapping.Viewpoint
import com.arcgismaps.mapping.symbology.HorizontalAlignment
import com.arcgismaps.mapping.symbology.LineSymbol
import com.arcgismaps.mapping.symbology.SimpleLineSymbol
import com.arcgismaps.mapping.symbology.SimpleLineSymbolStyle
import com.arcgismaps.mapping.symbology.TextSymbol
import com.arcgismaps.mapping.symbology.VerticalAlignment
import com.arcgismaps.mapping.view.GridLabelPosition
import com.arcgismaps.mapping.view.LatitudeLongitudeGrid
import com.arcgismaps.mapping.view.LatitudeLongitudeGridLabelFormat
import com.arcgismaps.mapping.view.MgrsGrid
import com.arcgismaps.mapping.view.UsngGrid
import com.arcgismaps.mapping.view.UtmGrid
import com.esri.arcgismaps.sample.showgrid.databinding.ShowGridActivityMainBinding
import com.esri.arcgismaps.sample.showgrid.databinding.PopupDialogBinding
import com.google.android.material.button.MaterialButton
import com.google.android.material.dialog.MaterialAlertDialogBuilder
import com.google.android.material.snackbar.Snackbar
class MainActivity : AppCompatActivity() {
// set up data binding for the activity
private val activityMainBinding: ShowGridActivityMainBinding by lazy {
DataBindingUtil.setContentView(this, R.layout.show_grid_activity_main)
}
private val mapView by lazy {
activityMainBinding.mapView
}
private val menuButton: MaterialButton by lazy {
activityMainBinding.menuButton
}
// create a point to focus the map on in Quebec province
private val center: Point = Point(
-7702852.905619, 6217972.345771, SpatialReference(3857)
)
// the selected line color of the grid
private var lineColor: Color = Color.white
// the selected label color of the grid
private var labelColor: Color = Color.white
// the selected label position of the grid
private var labelPosition: GridLabelPosition = GridLabelPosition.AllSides
// boolean set if the layer is visible
private var isLabelVisible = true
// create a popup dialog to manage grid settings
private val popUpDialogBinding by lazy {
PopupDialogBinding.inflate(layoutInflater)
}
override fun onCreate(savedInstanceState: Bundle?) {
super.onCreate(savedInstanceState)
// authentication with an API key or named user is
// required to access basemaps and other location services
ArcGISEnvironment.apiKey = ApiKey.create(BuildConfig.ACCESS_TOKEN)
lifecycle.addObserver(mapView)
mapView.apply {
// create a map with imagery basemap
map = ArcGISMap(BasemapStyle.ArcGISImagery)
// set the initial viewpoint of the map
setViewpoint(Viewpoint(center, 23227.0))
// set defaults on grid
grid = LatitudeLongitudeGrid()
}
val dialog = MaterialAlertDialogBuilder(this@MainActivity).apply {
setView(popUpDialogBinding.root)
setTitle(getString(R.string.change_grid_button))
}.create()
// set up options in popup menu
// create drop-down list of different layer types
setupLayerDropdown(popUpDialogBinding)
// create drop-down list of different line colors
setupLineColorDropdown(popUpDialogBinding)
// create drop-down list of different label colors
setupLabelColorDropdown(popUpDialogBinding)
// create drop-down list of different label positions
setupLabelPositionDropdown(popUpDialogBinding)
// setup the checkbox to change the visibility of the labels
setupLabelsCheckbox(popUpDialogBinding)
// display pop-up box when button is clicked
menuButton.setOnClickListener {
dialog.show()
}
}
/**
* Sets up the [popupDialogBinding] for selecting a grid type
* and handles behavior for when a new grid type is selected.
*/
private fun setupLayerDropdown(popupDialogBinding: PopupDialogBinding) {
popupDialogBinding.gridTypeDropdown.apply {
// set the grid type adapter
setAdapter(ArrayAdapter(
applicationContext,
com.esri.arcgismaps.sample.sampleslib.R.layout.custom_dropdown_item,
resources.getStringArray(R.array.layers_array))
)
// set the grid type click listener
onItemClickListener = AdapterView.OnItemClickListener { _, _, position, _ ->
when (position) {
0 -> {
// LatitudeLongitudeGrid can have a label format of DecimalDegrees or DegreesMinutesSeconds
mapView.grid = LatitudeLongitudeGrid().apply {
labelFormat = LatitudeLongitudeGridLabelFormat.DecimalDegrees
}
mapView.setViewpoint(Viewpoint(center, 23227.0))
}
1 -> {
mapView.grid = MgrsGrid()
mapView.setViewpoint(Viewpoint(center, 23227.0))
}
2 -> {
mapView.grid = UtmGrid()
mapView.setViewpoint(Viewpoint(center, 10000000.0))
}
3 -> {
mapView.grid = UsngGrid()
mapView.setViewpoint(Viewpoint(center, 23227.0))
}
else -> return@OnItemClickListener showError("Unsupported option")
}
// make sure settings persist on grid type change
setLabelVisibility(isLabelVisible)
changeGridColor(lineColor)
changeLabelColor(labelColor)
}
}
}
/**
* Sets up the [popupDialogBinding] for selecting a grid color and
* handles behavior for when a new line color is selected.
*/
private fun setupLineColorDropdown(popupDialogBinding: PopupDialogBinding) {
popupDialogBinding.gridColorDropdown.apply {
// set the grid color adapter
setAdapter(ArrayAdapter(
applicationContext,
com.esri.arcgismaps.sample.sampleslib.R.layout.custom_dropdown_item,
resources.getStringArray(R.array.colors_array))
)
// set the grid color click listener
onItemClickListener = AdapterView.OnItemClickListener { _, _, position, _ ->
lineColor = when (position) {
0 -> Color.red
1 -> Color.white
2 -> Color.blue
else -> return@OnItemClickListener showError("Unsupported option")
}
changeGridColor(lineColor)
}
}
}
/**
* Sets up the [popupDialogBinding] for selecting a label color
* and handles behavior for when a new label color is selected.
*/
private fun setupLabelColorDropdown(popupDialogBinding: PopupDialogBinding) {
popupDialogBinding.labelColorDropdown.apply {
setAdapter(ArrayAdapter(
applicationContext,
com.esri.arcgismaps.sample.sampleslib.R.layout.custom_dropdown_item,
resources.getStringArray(R.array.colors_array))
)
onItemClickListener = AdapterView.OnItemClickListener { _, _, position, _ ->
// change grid labels color
labelColor = when (position) {
0 -> Color.red
1 -> Color.white
2 -> Color.blue
else -> return@OnItemClickListener showError("Unsupported option")
}
changeLabelColor(labelColor)
}
}
}
/**
* Sets up the [popupDialogBinding] for selecting a label position relative to the grid
* and handles behavior for when a label position is selected.
*/
private fun setupLabelPositionDropdown(popupDialogBinding: PopupDialogBinding) {
popupDialogBinding.labelPositionDropdown.apply {
setAdapter(ArrayAdapter(
applicationContext,
com.esri.arcgismaps.sample.sampleslib.R.layout.custom_dropdown_item,
resources.getStringArray(R.array.positions_array))
)
onItemClickListener = AdapterView.OnItemClickListener { _, _, position, _ ->
// set the label position
labelPosition = when (position) {
0 -> GridLabelPosition.AllSides
1 -> GridLabelPosition.BottomLeft
2 -> GridLabelPosition.BottomRight
3 -> GridLabelPosition.Center
4 -> GridLabelPosition.Geographic
5 -> GridLabelPosition.TopLeft
6 -> GridLabelPosition.TopRight
else -> return@OnItemClickListener showError("Unsupported option")
}
changeLabelPosition(labelPosition)
}
}
}
/**
* Sets up the [popupDialogBinding] for the checkbox making labels visible or invisible.
*/
private fun setupLabelsCheckbox(popupDialogBinding: PopupDialogBinding) {
popupDialogBinding.labelsCheckBox.apply {
isChecked = true
// hide and show label visibility when the checkbox is clicked
setOnClickListener {
isLabelVisible = isChecked
setLabelVisibility(isLabelVisible)
}
}
}
/**
* Sets the labels visibility based on [isVisible].
*/
private fun setLabelVisibility(isVisible: Boolean) {
val grid = mapView.grid ?: return
grid.labelVisibility = isVisible
}
/**
* Sets the [color] of the grid lines.
*/
private fun changeGridColor(color: Color) {
val grid = mapView.grid ?: return
val gridLevels = grid.levelCount
for (gridLevel in 0 until gridLevels) {
val lineSymbol: LineSymbol =
SimpleLineSymbol(SimpleLineSymbolStyle.Solid, color, (gridLevel + 1).toFloat())
grid.setLineSymbol(gridLevel, lineSymbol)
}
}
/**
* Sets the [labelColor] of the labels on the grid.
*/
private fun changeLabelColor(labelColor: Color) {
val grid = mapView.grid ?: return
val gridLevels = grid.levelCount
for (gridLevel in 0 until gridLevels) {
val textSymbol = TextSymbol().apply {
color = labelColor
size = 14f
horizontalAlignment = HorizontalAlignment.Left
verticalAlignment = VerticalAlignment.Bottom
haloColor = Color.black
haloWidth = 5f
}
grid.setTextSymbol(gridLevel, textSymbol)
}
}
/**
* Sets the [labelPosition] of the labels on the grid.
*/
private fun changeLabelPosition(labelPosition: GridLabelPosition) {
val grid = mapView.grid ?: return
grid.labelPosition = labelPosition
}
private fun showError(message: String) {
Log.e(localClassName, message)
Snackbar.make(mapView, message, Snackbar.LENGTH_SHORT).show()
}
}
private val Color.Companion.blue: Color
get() {
return fromRgba(0, 0, 255, 255)
}
