Apply map algebra to an elevation raster to floor, mask, and categorize the elevation values into discrete integer-based categories.

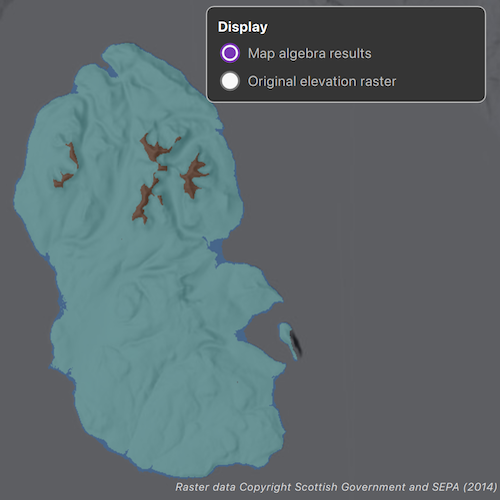

screenshot

Use case

Categorizing raster data, such as elevation values, into distinct categories is a common spatial analysis workflow. This often involves applying threshold‑based logic or algebraic expressions to transform continuous numeric fields into discrete, integer‑based categories suitable for downstream analytical or computational operations. These operations can be specified and applied using map algebra.

How to use the sample

When the sample opens, it displays the source elevation raster. Select the Categorize button to generate a raster with three distinct ice age related geomorphological categories (raised shore line areas in blue, ice free high ground in brown and areas covered by ice in teal). After processing completes, use the radio buttons to switch between the map algebra results raster and the original elevation raster.

How it works

Create a ContinuousField from a raster file.
Create a ContinuousFieldFunction from the continuous field and mask values below sea level.
Round elevation values down to the lowest 10-meter interval with map algebra operators ((continuousFieldFunction / 10).floor() * 10), and then convert the result to a DiscreteFieldFunction with .toDiscreteFieldFunction.
Create BooleanFieldFunctions for each category by defining a range with map algebra operators such as isGreaterThanOrEqualTo, logicalAnd, and isLessThan.
Create a new DiscreteField by chaining replaceIf operations into discrete category values and evaluating the the result with evaluate.
Export the discrete field to files with exportToFiles and create a Raster with the result. Use it to create a RasterLayer.
Apply a ColormapRenderer to the raster and display it in the map view.

Relevant API

BooleanFieldFunction
Colormap
ColormapRenderer
ColorRamp
ContinuousField
ContinuousFieldFunction
DiscreteField
DiscreteFieldFunction
Raster
RasterLayer
StretchRenderer

About the data

The sample uses a 10m resolution digital terrain elevation raster of the Isle of Arran, Scotland (Data Copyright Scottish Government and SEPA (2014)).

Sample Code

ApplyMapAlgebra.cpp

ApplyMapAlgebra.h

ApplyMapAlgebra.qml

Use dark colors for code blocksCopy
// [WriteFile Name=ApplyMapAlgebra, Category=Layers]
// [Legal]
// Copyright 2026 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

#ifdef PCH_BUILD
#include "pch.hpp"
#endif // PCH_BUILD

// sample headers
#include "ApplyMapAlgebra.h"

// ArcGIS Maps SDK headers
#include "BooleanFieldFunction.h"
#include "ColorRamp.h"
#include "Colormap.h"
#include "ColormapRenderer.h"
#include "ContinuousField.h"
#include "ContinuousFieldFunction.h"
#include "DiscreteField.h"
#include "DiscreteFieldFunction.h"
#include "LayerListModel.h"
#include "Map.h"
#include "MapQuickView.h"
#include "MapTypes.h"
#include "MinMaxStretchParameters.h"
#include "Raster.h"
#include "RasterLayer.h"
#include "SpatialReference.h"
#include "StretchRenderer.h"
#include "Viewpoint.h"

// Qt headers
#include <QDir>
#include <QStandardPaths>

using namespace Esri::ArcGISRuntime;

namespace
{
  QString defaultDataPath()
  {
    QString dataPath;

#ifdef Q_OS_IOS
    dataPath = QStandardPaths::writableLocation(QStandardPaths::DocumentsLocation);
#else
    dataPath = QStandardPaths::writableLocation(QStandardPaths::HomeLocation);
#endif

    return dataPath + "/ArcGIS/Runtime/Data/raster";
  }
} // namespace

ApplyMapAlgebra::ApplyMapAlgebra(QQuickItem* parent /* = nullptr */) :
  QQuickItem(parent),
  m_dataPath(defaultDataPath())
{
  connect(&m_createElevationFieldWatcher, &QFutureWatcher<ContinuousField*>::finished, this, [this]()
  {
    m_elevationField = m_createElevationFieldWatcher.result();
    if (!m_elevationField)
    {
      setBusy(false);
      setErrorMessage(QStringLiteral("Failed to create a continuous field from the elevation raster."));
      return;
    }

    setDataAvailable(true);
    setErrorMessage(QString());
    setBusy(false);
  });

  connect(&m_createGeomorphicFieldWatcher, &QFutureWatcher<DiscreteField*>::finished, this, [this]()
  {
    m_geomorphicField = m_createGeomorphicFieldWatcher.result();
    if (!m_geomorphicField)
    {
      setBusy(false);
      setErrorMessage(QStringLiteral("Failed to evaluate the geomorphic map algebra field."));
      return;
    }

    exportGeomorphicField();
  });

  connect(&m_exportGeomorphicFieldWatcher, &QFutureWatcher<QStringList>::finished, this, [this]()
  {
    const QStringList exportedFiles = m_exportGeomorphicFieldWatcher.result();
    if (exportedFiles.isEmpty())
    {
      setBusy(false);
      setErrorMessage(QStringLiteral("The geomorphic results could not be exported to a raster file."));
      return;
    }

    const QString& rasterFilePath = exportedFiles.constFirst();
    if (!QFileInfo::exists(rasterFilePath))
    {
      setBusy(false);
      setErrorMessage(QStringLiteral("The exported geomorphic raster file was not found."));
      return;
    }

    displayGeomorphicRaster(rasterFilePath);
    setResultsAvailable(true);
    setShowGeomorphicResults(true);
    setErrorMessage(QString());
    setBusy(false);
  });
}

ApplyMapAlgebra::~ApplyMapAlgebra() = default;

void ApplyMapAlgebra::init()
{
  // Register the map view for QML
  qmlRegisterType<MapQuickView>("Esri.Samples", 1, 0, "MapView");
  qmlRegisterType<ApplyMapAlgebra>("Esri.Samples", 1, 0, "ApplyMapAlgebraSample");
}

void ApplyMapAlgebra::componentComplete()
{
  QQuickItem::componentComplete();

  m_mapView = findChild<MapQuickView*>("mapView");
  if (!m_mapView)
  {
    setErrorMessage(QStringLiteral("MapView was not found in the QML component tree."));
    return;
  }

  setupMap();
}

void ApplyMapAlgebra::categorize()
{
  if (m_busy || !m_elevationField)
  {
    return;
  }

  setBusy(true);
  setErrorMessage(QString());
  createGeomorphicField();
}

bool ApplyMapAlgebra::busy() const
{
  return m_busy;
}

bool ApplyMapAlgebra::dataAvailable() const
{
  return m_dataAvailable;
}

bool ApplyMapAlgebra::resultsAvailable() const
{
  return m_resultsAvailable;
}

bool ApplyMapAlgebra::showGeomorphicResults() const
{
  return m_showGeomorphicResults;
}

QString ApplyMapAlgebra::errorMessage() const
{
  return m_errorMessage;
}

// Sample workflow
void ApplyMapAlgebra::setupMap()
{
  m_map = new Map(BasemapStyle::ArcGISHillshadeDark, this);
  m_map->setInitialViewpoint(Viewpoint(55.584612, -5.234218, 300000));
  m_mapView->setMap(m_map);

  displayElevationRaster();
  createElevationField();
}

void ApplyMapAlgebra::createElevationField()
{
  const QString rasterPath = elevationRasterPath();
  if (!QFileInfo::exists(rasterPath))
  {
    setErrorMessage(QStringLiteral("The sample data was not found at %1.").arg(rasterPath));
    return;
  }

  setBusy(true);
  setErrorMessage(QString());
  m_createElevationFieldWatcher.setFuture(ContinuousField::createFromFilesAsync({rasterPath}, 0, SpatialReference::wgs84(), this));
}

void ApplyMapAlgebra::createGeomorphicField()
{
  ContinuousFieldFunction* continuousFieldFunction = ContinuousFieldFunction::create(m_elevationField, this);
  ContinuousFieldFunction* elevationFieldFunction = continuousFieldFunction->mask(continuousFieldFunction->isGreaterThanOrEqualTo(0.0));

  DiscreteFieldFunction* tenMeterBinField = elevationFieldFunction->divide(10)->floor()->multiply(10)->toDiscreteFieldFunction();

  BooleanFieldFunction* isRaisedShoreline = tenMeterBinField->isGreaterThanOrEqualTo(0)->logicalAnd(tenMeterBinField->isLessThan(10));

  BooleanFieldFunction* isIceCovered = tenMeterBinField->isGreaterThanOrEqualTo(10)->logicalAnd(tenMeterBinField->isLessThan(600));

  BooleanFieldFunction* isIceFreeHighGround = tenMeterBinField->isGreaterThanOrEqualTo(600);

  DiscreteFieldFunction* geomorphicFieldFunction =
    tenMeterBinField->replaceIf(isRaisedShoreline, 1)->replaceIf(isIceCovered, 2)->replaceIf(isIceFreeHighGround, 3);

  m_createGeomorphicFieldWatcher.setFuture(geomorphicFieldFunction->evaluateAsync(this));
}

void ApplyMapAlgebra::exportGeomorphicField()
{
  // Raster layers display files, so the evaluated field is written to a temporary raster first.
  const QString outputDirectory = tempOutputDirectory();
  clearPreviousExportedFiles(outputDirectory);
  m_exportGeomorphicFieldWatcher.setFuture(m_geomorphicField->exportToFilesAsync(outputDirectory, QStringLiteral("geomorphicCategorization")));
}

// Display helpers
void ApplyMapAlgebra::displayElevationRaster()
{
  const QString rasterPath = elevationRasterPath();
  if (!QFileInfo::exists(rasterPath))
  {
    setErrorMessage(QStringLiteral("The sample data was not found at %1.").arg(rasterPath));
    return;
  }

  Raster* raster = new Raster(rasterPath, this);
  m_elevationRasterLayer = new RasterLayer(raster, this);

  const MinMaxStretchParameters stretchParameters({0.0}, {874.0});
  StretchRenderer* stretchRenderer =
    new StretchRenderer(stretchParameters, {1.0}, false, ColorRamp::create(PresetColorRampType::Surface, 256, this), this);

  m_elevationRasterLayer->setRenderer(stretchRenderer);
  m_elevationRasterLayer->setOpacity(0.5);
  m_map->operationalLayers()->append(m_elevationRasterLayer);
}

void ApplyMapAlgebra::displayGeomorphicRaster(const QString& rasterFilePath)
{
  if (m_geomorphicRasterLayer)
  {
    m_map->operationalLayers()->removeOne(m_geomorphicRasterLayer);
    m_geomorphicRasterLayer->deleteLater();
    m_geomorphicRasterLayer = nullptr;
  }

  Raster* raster = new Raster(rasterFilePath, this);
  m_geomorphicRasterLayer = new RasterLayer(raster, this);

  const QMap<int, QColor> colors{
    {1, QColor(QStringLiteral("#2f6db3"))},
    {2, QColor(QStringLiteral("#73c7c7"))},
    {3, QColor(QStringLiteral("#7d4a2d"))},
  };

  ColormapRenderer* colormapRenderer = new ColormapRenderer(Colormap::create(colors, this), this);
  m_geomorphicRasterLayer->setRenderer(colormapRenderer);
  m_geomorphicRasterLayer->setOpacity(0.5);
  m_map->operationalLayers()->append(m_geomorphicRasterLayer);
  updateVisibleRasterLayer();
}

void ApplyMapAlgebra::updateVisibleRasterLayer()
{
  if (m_elevationRasterLayer)
  {
    m_elevationRasterLayer->setVisible(!m_showGeomorphicResults);
  }

  if (m_geomorphicRasterLayer)
  {
    m_geomorphicRasterLayer->setVisible(m_showGeomorphicResults);
  }
}

// File system helpers
QString ApplyMapAlgebra::elevationRasterPath() const
{
  return m_dataPath + QStringLiteral("/arran.tif");
}

QString ApplyMapAlgebra::tempOutputDirectory() const
{
  const QString basePath = QStandardPaths::writableLocation(QStandardPaths::TempLocation);
  QDir outputDirectory(basePath + QStringLiteral("/ApplyMapAlgebra"));
  outputDirectory.mkpath(QStringLiteral("."));
  return outputDirectory.path();
}

void ApplyMapAlgebra::clearPreviousExportedFiles(const QString& outputDirectory) const
{
  QDir directory(outputDirectory);
  const QStringList existingFiles = directory.entryList({QStringLiteral("geomorphicCategorization*")}, QDir::Files);
  for (const QString& fileName : existingFiles)
  {
    directory.remove(fileName);
  }
}

// Internal state
void ApplyMapAlgebra::setBusy(bool busy)
{
  if (m_busy == busy)
  {
    return;
  }

  m_busy = busy;
  emit busyChanged();
}

void ApplyMapAlgebra::setDataAvailable(bool dataAvailable)
{
  if (m_dataAvailable == dataAvailable)
  {
    return;
  }

  m_dataAvailable = dataAvailable;
  emit dataAvailableChanged();
}

void ApplyMapAlgebra::setResultsAvailable(bool resultsAvailable)
{
  if (m_resultsAvailable == resultsAvailable)
  {
    return;
  }

  m_resultsAvailable = resultsAvailable;
  emit resultsAvailableChanged();
}

void ApplyMapAlgebra::setShowGeomorphicResults(bool showGeomorphicResults)
{
  if (m_showGeomorphicResults == showGeomorphicResults)
  {
    return;
  }

  m_showGeomorphicResults = showGeomorphicResults;
  updateVisibleRasterLayer();
  emit showGeomorphicResultsChanged();
}

void ApplyMapAlgebra::setErrorMessage(const QString& errorMessage)
{
  if (m_errorMessage == errorMessage)
  {
    return;
  }

  m_errorMessage = errorMessage;
  emit errorMessageChanged();
}
