Configure electronic navigational charts | ArcGIS Maps SDK for Qt

View on GitHub

Sample viewer app

Display and configure electronic navigational charts per ENC specification.

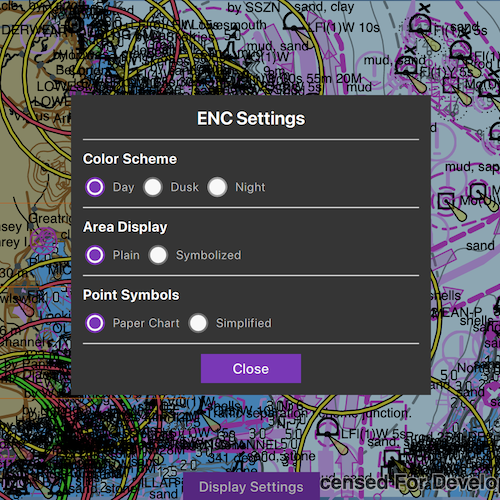

screenshot

Use case

The ENC specification describes how hydrographic data should be displayed digitally.

An ENC exchange set is a catalog of data files which can be loaded as cells. The cells contain information on how symbols should be displayed in relation to one another, so as to represent information such as depth and obstacles accurately.

How to use the sample

When opened, the sample displays an electronic navigational chart. Tap on the map to select Enc features and view the feature's acronyms and descriptions shown in a callout. Tap "Display Settings" and use the options to adjust some of the Enc mariner display settings, such as the colors and symbology.

How it works

To display Enc content:
1. Create an EncExchangeSet using a path to the local ENC exchange set files and load it.
2. For each dataset returned by EncExchangeSet::datasets(), create an EncCell, then create an EncLayer from that cell.
3. Append each layer to the map with map->operationalLayers()->append(encLayer) and display it in a MapQuickView.
To select Enc features:
1. Handle the MapQuickView::mouseClicked signal and call your slot (e.g. onGeoViewTapped) to get the screen position.
2. Call identifyLayersAsync() on the map view with the screen point.
3. From each resulting IdentifyLayerResult, get the EncLayer via layerContent() and ENC features via geoElements().
4. Use EncLayer::selectFeature() to select the ENC feature(s).
To set Enc display settings:
1. Get the EncDisplaySettings instance via EncEnvironmentSettings::displaySettings().
2. Access marinerSettings(), textGroupVisibilitySettings(), and viewingGroupSettings() to set their properties (e.g. color scheme, symbolization).
3. Reset settings using resetToDefaults() on each settings object.

Relevant API

EncCell
EncDataset
EncDisplaySettings
EncEnvironmentSettings
EncExchangeSet
EncLayer
EncMarinerSettings
EncTextGroupVisibilitySettings
EncViewingGroupSettings
IdentifyLayerResult

Offline data

This sample downloads the ENC Exchange Set without updates item from ArcGIS Online automatically.

The latest Hydrography Data can be downloaded from the Esri Developer downloads. The S57DataDictionary.xml file is contained there.

Link	Local Location
Exchange Set	`<userhome>`/ArcGIS/Runtime/Data/ENC/ExchangeSetwithoutUpdates
Hydrography	`<userhome>`/ArcGIS/Runtime/Data/ENC/hydrography

Sample Code

ConfigureElectronicNavigationalCharts.cpp

ConfigureElectronicNavigationalCharts.h

SettingsPopup.qml

ConfigureElectronicNavigationalCharts.qml

Use dark colors for code blocksCopy
// [WriteFile Name=ConfigureElectronicNavigationalCharts, Category=Layers]
// [Legal]
// Copyright 2025 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

#ifdef PCH_BUILD
#include "pch.hpp"
#endif // PCH_BUILD

// sample headers
#include "ConfigureElectronicNavigationalCharts.h"

// ArcGIS Maps SDK headers
#include "CalloutData.h"
#include "EncCell.h"
#include "EncDataset.h"
#include "EncDisplaySettings.h"
#include "EncEnvironmentSettings.h"
#include "EncExchangeSet.h"
#include "EncFeature.h"
#include "EncLayer.h"
#include "EncMarinerSettings.h"
#include "EncTextGroupVisibilitySettings.h"
#include "EncViewingGroupSettings.h"
#include "Envelope.h"
#include "Error.h"
#include "ErrorException.h"
#include "GeometryEngine.h"
#include "IdentifyLayerResult.h"
#include "LayerListModel.h"
#include "Map.h"
#include "MapQuickView.h"
#include "MapTypes.h"
#include "Point.h"
#include "Viewpoint.h"

// Qt headers
#include <QDebug>
#include <QFuture>
#include <QMouseEvent>
#include <QStandardPaths>
#include <QtGlobal>

using namespace Esri::ArcGISRuntime;

// helper method to get cross platform data path
namespace
{
  QString defaultDataPath()
  {
    QString dataPath;

#ifdef Q_OS_IOS
    dataPath = QStandardPaths::writableLocation(QStandardPaths::DocumentsLocation);
#else
    dataPath = QStandardPaths::writableLocation(QStandardPaths::HomeLocation);
#endif

    return dataPath;
  }
} // namespace

ConfigureElectronicNavigationalCharts::ConfigureElectronicNavigationalCharts(QObject* parent /* = nullptr */) :
  QObject(parent),
  m_map(new Map(BasemapStyle::ArcGISOceans, this))
{
  // Set resource path
  EncEnvironmentSettings::setResourcePath(defaultDataPath() + "/ArcGIS/Runtime/Data/ENC/hydrography");

  // Apply initial display settings
  updateDisplaySettings();

  // Create ENC Exchange Set
  const QStringList encPaths = {defaultDataPath() + "/ArcGIS/Runtime/Data/ENC/ExchangeSetwithoutUpdates/ENC_ROOT/CATALOG.031"};
  m_encExchangeSet = new EncExchangeSet(encPaths, this);
}

ConfigureElectronicNavigationalCharts::~ConfigureElectronicNavigationalCharts()
{
  // Reset settings to avoid affecting other samples.
  EncDisplaySettings* globalDisplaySettings = EncEnvironmentSettings::displaySettings();
  globalDisplaySettings->marinerSettings()->resetToDefaults();
  globalDisplaySettings->viewingGroupSettings()->resetToDefaults();
  globalDisplaySettings->textGroupVisibilitySettings()->resetToDefaults();
}

void ConfigureElectronicNavigationalCharts::init()
{
  // Register the map view for QML
  qmlRegisterType<MapQuickView>("Esri.Samples", 1, 0, "MapView");
  qmlRegisterType<ConfigureElectronicNavigationalCharts>("Esri.Samples", 1, 0, "ConfigureElectronicNavigationalChartsSample");
}

MapQuickView* ConfigureElectronicNavigationalCharts::mapView() const
{
  return m_mapView;
}

// Set the view (created in QML)
void ConfigureElectronicNavigationalCharts::setMapView(MapQuickView* mapView)
{
  if (!mapView || mapView == m_mapView)
  {
    return;
  }

  m_mapView = mapView;
  m_mapView->setMap(m_map);

  // Initialize callout data (following ShowCallout pattern)
  m_mapView->calloutData()->setVisible(false);
  m_mapView->calloutData()->setTitle("ENC Feature");

  // Connect to mouse clicked events for feature identification
  connect(m_mapView, &MapQuickView::mouseClicked, this, &ConfigureElectronicNavigationalCharts::onGeoViewTapped);

  // Connect to doneLoading signal of EncExchangeSet
  connect(m_encExchangeSet, &EncExchangeSet::doneLoading, this, [this](const Error& error)
  {
    if (!error.isEmpty())
    {
      return;
    }

    // Loop through datasets
    const QList<EncDataset*> datasets = m_encExchangeSet->datasets();
    for (EncDataset* dataset : datasets)
    {
      // Create an EncCell from each dataset
      EncCell* cell = new EncCell(dataset, this);

      // Create an EncLayer from each cell
      EncLayer* encLayer = new EncLayer(cell, this);

      // Connect to the doneLoading signal of the layer
      connect(encLayer, &EncLayer::doneLoading, this, [this, encLayer](const Error& error)
      {
        if (!error.isEmpty())
        {
          return;
        }

        m_extents << encLayer->fullExtent();

        if (m_extents.length() != m_encExchangeSet->datasets().length())
        {
          return;
        }

        // Combine the extents
        Envelope fullExtent = GeometryEngine::combineExtents(m_extents);
        m_mapView->setViewpointAsync(Viewpoint{fullExtent});
      });

      // Add the layer to the map
      m_map->operationalLayers()->append(encLayer);
    }
  });

  // Load the EncExchangeSet
  m_encExchangeSet->load();

  emit mapViewChanged();
}

EncColorScheme ConfigureElectronicNavigationalCharts::colorScheme() const
{
  return m_colorScheme;
}

void ConfigureElectronicNavigationalCharts::setColorScheme(EncColorScheme colorScheme)
{
  if (m_colorScheme == colorScheme)
  {
    return;
  }
  m_colorScheme = colorScheme;
  updateDisplaySettings();
  emit colorSchemeChanged();
}

EncAreaSymbolizationType ConfigureElectronicNavigationalCharts::areaSymbolizationType() const
{
  return m_areaSymbolizationType;
}

void ConfigureElectronicNavigationalCharts::setAreaSymbolizationType(EncAreaSymbolizationType areaSymbolizationType)
{
  if (m_areaSymbolizationType == areaSymbolizationType)
  {
    return;
  }
  m_areaSymbolizationType = areaSymbolizationType;
  updateDisplaySettings();
  emit areaSymbolizationTypeChanged();
}

EncPointSymbolizationType ConfigureElectronicNavigationalCharts::pointSymbolizationType() const
{
  return m_pointSymbolizationType;
}

void ConfigureElectronicNavigationalCharts::setPointSymbolizationType(EncPointSymbolizationType pointSymbolizationType)
{
  if (m_pointSymbolizationType == pointSymbolizationType)
  {
    return;
  }
  m_pointSymbolizationType = pointSymbolizationType;
  updateDisplaySettings();
  emit pointSymbolizationTypeChanged();
}

void ConfigureElectronicNavigationalCharts::updateDisplaySettings()
{
  // Hold a reference to the application-wide ENC Display Settings
  EncDisplaySettings* globalDisplaySettings = EncEnvironmentSettings::displaySettings();

  // Hold a reference to the application-wide ENC Mariner Settings (part of display settings)
  EncMarinerSettings* globalMarinerSettings = globalDisplaySettings->marinerSettings();

  // Directly apply stored enum values
  globalMarinerSettings->setColorScheme(m_colorScheme);
  globalMarinerSettings->setAreaSymbolizationType(m_areaSymbolizationType);
  globalMarinerSettings->setPointSymbolizationType(m_pointSymbolizationType);
}

void ConfigureElectronicNavigationalCharts::clearAllSelections()
{
  if (!m_mapView)
  {
    return;
  }

  // For each layer in the operational layers that is an ENC layer
  LayerListModel* operationalLayers = m_map->operationalLayers();
  for (QObject* obj : *operationalLayers)
  {
    if (EncLayer* encLayer = qobject_cast<EncLayer*>(obj); encLayer)
    {
      encLayer->clearSelection();
    }
  }

  // Hide the callout
  m_mapView->calloutData()->setVisible(false);
}

void ConfigureElectronicNavigationalCharts::onGeoViewTapped(QMouseEvent& mouseEvent)
{
  if (!m_mapView)
  {
    return;
  }

  // Set callout position for new location
  const Point mapPoint = m_mapView->screenToLocation(mouseEvent.position().x(), mouseEvent.position().y());
  m_mapView->calloutData()->setLocation(mapPoint);

  // Clear existing selections
  clearAllSelections();

  // Perform the identify operation on ENC layers specifically
  constexpr double tolerance = 12.0;
  constexpr bool returnPopupsOnly = false;

  m_mapView->identifyLayersAsync(mouseEvent.position(), tolerance, returnPopupsOnly)
    .then(this,
          [this](const QList<IdentifyLayerResult*>& results)
  {
    processIdentifyResults_(results);
  })
    .onFailed(this, [this](const ErrorException& error)
  {
    // If identify fails, hide callout
    m_mapView->calloutData()->setVisible(false);
  });
}

void ConfigureElectronicNavigationalCharts::processIdentifyResults_(const QList<IdentifyLayerResult*>& results)
{
  // Filter to get only ENC layer results
  QList<IdentifyLayerResult*> encResults;
  for (IdentifyLayerResult* result : results)
  {
    if (qobject_cast<EncLayer*>(result->layerContent()))
    {
      encResults.append(result);
    }
  }

  // Return early if no ENC results
  if (encResults.isEmpty())
  {
    m_mapView->calloutData()->setVisible(false);
    return;
  }

  // Get the first ENC result
  IdentifyLayerResult* firstResult = encResults.first();
  EncLayer* containingLayer = qobject_cast<EncLayer*>(firstResult->layerContent());

  // Get the first ENC feature from the result
  const QList<GeoElement*> geoElements = firstResult->geoElements();
  if (geoElements.isEmpty())
  {
    m_mapView->calloutData()->setVisible(false);
    return;
  }

  if (EncFeature* encFeature = dynamic_cast<EncFeature*>(geoElements.first()); encFeature)
  {
    // Select the feature
    if (containingLayer)
    {
      containingLayer->selectFeature(encFeature);
    }

    // Create callout content
    const QString title = encFeature->acronym().isEmpty() ? "ENC Feature" : encFeature->acronym();
    const QString detail = encFeature->description().isEmpty() ? "ENC Chart Feature" : encFeature->description();

    // Show callout
    m_mapView->calloutData()->setTitle(title);
    m_mapView->calloutData()->setDetail(detail);
    m_mapView->calloutData()->setVisible(true);
  }
  else
  {
    m_mapView->calloutData()->setVisible(false);
  }
}
