Style a feature layer

Learn how to apply renderers and label definitions to a feature layer based on attribute values.

style a feature layer

Applications can display feature layer data with different styles to enhance the visualization. The type of Renderer you choose depends on your application. A SimpleRenderer applies the same symbol to all features, a UniqueValueRenderer applies a different symbol to each unique attribute value, and a ClassBreaksRenderer applies a symbol to a range of numeric values. Renderers are responsible for accessing the data and applying the appropriate symbol to each feature when the layer draws. You can also use a LabelDefinition to show attribute information for features. Visit the Styles and data visualization documentation to learn more about styling layers.

You can also author, style and save web maps, web scenes, and layers as portal items and then add them to the map in your application. Visit the following tutorials to learn more about adding portal items.

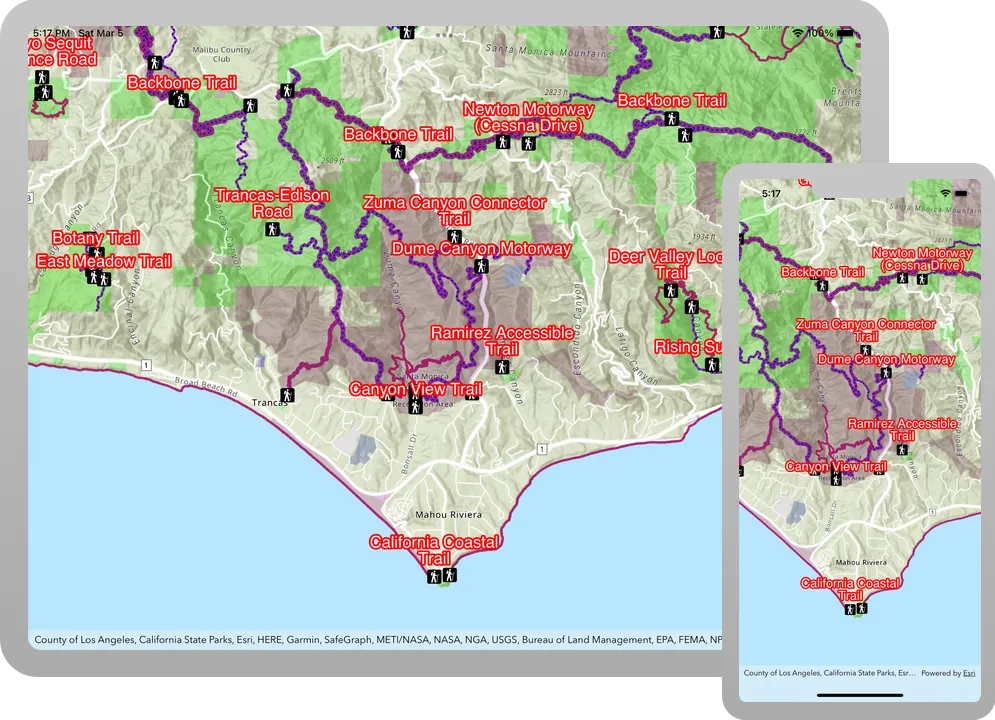

In this tutorial, you will apply different renderers to enhance the visualization of three feature layers with data for the Santa Monica Mountains: Trailheads with a single symbol, Trails based on elevation change and bike use, and Parks and Open Spaces based on the type of park.

Prerequisites

Before starting this tutorial:

  1. You need an ArcGIS Location Platform or ArcGIS Online account.

  2. Your system meets the system requirements.

Steps

Open the Xcode project

  1. To start the tutorial, complete the Display a map tutorial or download and unzip the solution.

  2. Open the .xcodeproj file in Xcode.

  3. If you downloaded the solution, get an access token and set the API key.
