Release notes for 4.12

June 2019


We increased our capabilities to visualize temporal data in both 2D MapViews and 3D SceneViews. We added the TimeInterval class to describe a length of time in different temporal units, which is referenced by time-aware layers and the TimeSlider widget.

The beta version of the TimeSlider widget simplifies time manipulation in your application, and can be configured to update the View's timeExtent, which means all time aware layers will update their contents to conform to this change. You can also use TimeSlider widget to visualize temporal data on the client-side by setting filters or effects on FeatureLayerView, CSVLayerView, and GeoJSONLayerView.

We will continue to add more support for time-awareness. This includes, but is not limited to, adding timeExtent properties on layers that store temporal data, allowing layers to follow their own timeline without having to follow View.timeExtent, and continued improvements and enhancements to the TimeSlider widget.

See the TimeSlider widget sample and the Filter features with TimeSlider sample for examples.

Performance improvements

Vector tile layers now load 50% faster due to improved vector tile fetching including more parallelization of requests, and tile processing optimizations. Feature layer rendering improved due to optimizations related to triangulation of geometries. Triangulation processing improved without reducing quality. Load time of 2D maps has been reduced thanks to revamped tessellators. This improves the speed, accuracy and memory profile of the core algorithms. We also added adaptive switching strategies to select the most appropriate for a given situation.

Drawing improvements include faster processing of data values in visualizations so they can be updated more rapidly, providing a better user experience and improved performance. FeatureLayer updates are faster when changing the variable driving the visualization.

Scene layer performance continues to improve: 3D objects SceneLayer and IntegratedMeshLayer load and display on average twice as fast using the new I3S specification version 1.7. In addition, a new client-side caching helps reduce areas without data when exploring a 3D scene. To experience this increased performance you can convert your existing SLPKs with the I3S Converter tool. For more details read the Working with scene layers guide topic.

API Modernization

We made several updates to modernize the API. These updates allow us to take more advantage of APIs available natively in modern web browsers.

  • 93% of the codebase is written in TypeScript.
  • esri/request now uses the Fetch API internally to request resources. When not available (e.g. with IE11), we use a fetch polyfill instead.
  • Most asynchronous methods in the API now support an optional signal parameter of type AbortSignal. See Asynchronous Method Cancellation for more information.
  • A new has flag is available to enable native JavaScript promises. Currently, promises returned from any asynchronous function return a Dojo promise. With this flag, those same functions can now return a JavaScript promise. More details about this functionality will be available in an upcoming blog post.
Use dark colors for code blocksCopy
  var dojoConfig = {
    has: {
      "esri-native-promise": true

Client-side queries in 3D

The SceneLayerView and FeatureLayerView now support pure client-side queries that don't require a round trip to the server. Interactively select features and display statistics using spatial- and attribute-based expressions. A new sample shows how you can query a SceneLayerView for statistics on the features that match the query.

Client-side queries

Water rendering

Add animated water visualizations to your 3D scenes using the new WaterSymbol3DLayer. Whether looking at an ocean from far away or a lake close-up, the new water polygon style allows you to create realistic views, such as sunlight reflections off the water.

2D WebStyleSymbols

We added support for 2D WebStyleSymbols. This adds over 100 high quality symbols that are available to use in 2D MapViews. See Esri Web Style Symbol (2D) guide page for supported symbols hosted by Esri. These symbols are based on CIM (Cartographic Information Model). The CIMSymbol class allows users to create symbols that are composed of multiple SymbolLayers with many customizable visualization options available to the user. See the WebStyleSymbol (2D) sample and the Intro to CIMSymbol sample for examples.

New 3D WebStyleSymbols

New 3D models in the Esri Web Style Symbol (3D), such as bicycles and fire hydrants, allow you to further customize your scenes. Additionally, Infrastructure and Recreation web styles were added to the gallery. We also added an automatic level of detail to Schematic Trees to maintain strong performance in scenes with a large number of trees.

Smart Mapping updates

The Smart Mapping visualization APIs reached full parity with the 3.x series, and added additional functionality. This includes: scale-dependent visualizations, support for dot density renderers, 3D support for lines and polygons, and slider widgets.

Scale-dependent visualizations

The following scale enhancements only apply to renderers in 2D MapViews.

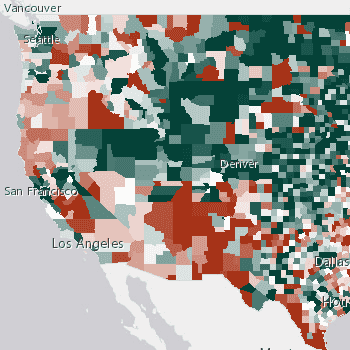

Outline size by scale - The outlineOptimizationEnabled parameter was added to all renderer creator methods for polygon layers. When set to true, the generated renderer will include symbol outlines that dynamically their change width by view scale.

outlines not visiblevisible, not prominentprominent
scale-counties scale-us scale-us

Size range by scale - The sizeOptimizationEnabled parameter was added to the following renderer creator methods for polygon layers. When set to true, the sizes of generated icons will dynamically change based on the view scale. Internally, this option uses the new sizeRange function to determine the appropriate size range by scale. This only applies to data-driven visualizations involving size visual variables.

Suggested layer visibility by scale - The scaleRange function was added as a convenience for suggesting the min and max scale ranges for any layer in a given view.

Dot density

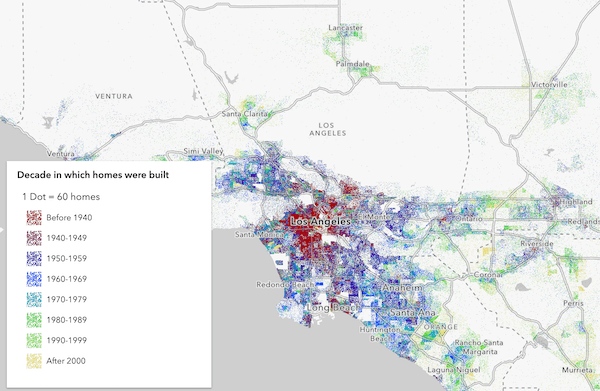

The dotDensityRendererCreator.createRenderer() method was added to the new dotDensity smart mapping module. This is a helper method for generating a DotDensityRenderer with a suggested dotValue appropriate for the scale of the view where the renderer will be displayed. This is intended exclusively for visualization authoring apps and data exploration applications.


3D support for lines and polygons

All renderer creator methods in the following modules now support polyline and polygon layers in 3D SceneViews:

  • esri/renderers/smartMapping/creators/color
  • esri/renderers/smartMapping/creators/location
  • esri/renderers/smartMapping/creators/opacity
  • esri/renderers/smartMapping/creators/relationship
  • esri/renderers/smartMapping/creators/type

Slider widgets

The following are new slider widgets intended for helping users explore, update, and author renderers.


The following widgets are removed from the JS API at version 4.12 in favor of their counterparts above:

  • esri/widgets/ColorSlider
  • esri/widgets/SizeSlider
  • esri/widgets/UnivariateColorSizeSlider

Color scheme updates

We added tags and names to all smart mapping color schemes and provided methods for querying schemes by tags and names. This makes it easier to work with color ramps available via the smart mapping APIs for renderer authoring applications. All symbology modules now have getSchemeByName(), getSchemesByTag(), and getThemes() methods.

New 3D Line Symbols

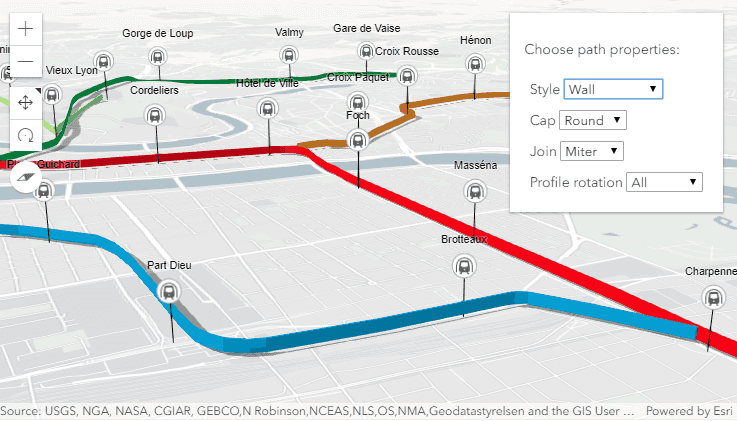

The new square profile on PathSymbol3DLayer, allows you to visualize 3D lines with square, strips and walls styles. As with other symbols this new profile also supports attribute driven size or color using VisualVariables.

Combine the path profiles with the new configuration options for cap, join and profileRotation to enhance the visualization style for line features such as streets or geographical boundaries. You can try out these new properties in the Path visualization in 3D sample.

3D Line Symbols

Filters on BuildingSceneLayer

The BuildingSceneLayer allows you to render detailed 3D building models. With this release we added support for filters, so that you can create applications that isolate floors, highlight building materials or visualize construction phases. Define a BuildingFilter on the filters property of the BuildingSceneLayer and it automatically applies to allsublayers.

BuildingSceneLayer filter

Asynchronous Method Cancellation

Most asynchronous methods in the API now support an optional signal parameter of type AbortSignal. This allows for cancellable requests. If aborted, the promise is rejected with an error named AbortError. See also AbortController. To know if an asynchronous method supports signal, look at the methods parameters in the API reference.

Here is an example where we pass the controller's signal to the queryFeatures method. If the request returns an error with the name AbortError, then we print a useful error message in the console.

Use dark colors for code blocksCopy
const controller = new AbortController();
const signal = controller.signal;

layer.queryFeatures({ where: "CITYNAME = 'Redlands'" }, {
  function (result){
    console.log("Features:", result.features);
  function (error){
    if ( === "AbortError") {
      console.error("query timed out");

Geodetic computations

We added a new class, esri/geometry/support/geodesicUtils, that performs geodetic computations for Earth and non-Earth spheroids. This class has some methods that are similar to geometryEngine methods. Reference the table below to compare the functionality available in each class.

Coordinate SystemsWeb Mercator, WGS84WGS84, 75 non-Earth geographic coordinate systems
geodesicArea(s)single polygonmultiple polygons
geodesicLength(s)single geometrymultiple geometries

Labeling updates

We added support for CSS names for property values for FeatureLayer, CSVLayer, and StreamLayer in 2D MapViews. For example, we now recommend using Old Standard TT instead of old-standard-tt. However, the old naming convention will still work. For more information and examples, please refer to Fonts for FeatureLayer, CSVLayer, and StreamLayer.

For both 2D MapViews and 3D SceneViews, we enhanced the labelClass.where property to accept more advanced SQL statements, and we added a default symbol to labelClass.symbol. Lastly, in 3D SceneViews, we improved the label placement around extruded polygons.

Date and number formatting updates

Multiple updates were made to streamline date and number formatting functionality. Date formatting is now better at recognizing regional differences. Prior to this version, the order of date components always followed US English (en-US) rules, e.g. Monday, June 24, 2019, 2:28 PM (Day of the week, Month Day, Year, time in 12 hours cycle). In addition, a new esri/intl class was added which provides helper methods used for formatting dates, numbers, and template strings.

With these updates, there comes a couple notable breaking changes. These changes pertain to out-of-the-box function formatters, i.e. DateString, DateFormat, and NumberFormat, as they are no longer supported with the PopupTemplate.content. Instead, set it via the FieldInfo's fieldInfoFormat. Another change is that the PopupTemplate's content can no longer be set using a wildcard, e.g. *. Instead, set the Popup's defaultPopupTemplateEnabled property to true.

Use dark colors for code blocksCopy
var popupTemplate = new PopupTemplate({
  title: "Population in {NAME}",
  content: "As of 2010, the population in this area was <b>{POP2010:NumberFormat}</b>." +
           "As of 2013, the population here was <b>{POP2013:NumberFormat}</b>." +
           "Percent change is {POP2013:populationChange}"

populationChange = function (value, key, data) {
  // calculate the population percent change from 2010 to 2013.


New widgets

The following widgets are new at version 4.12:

esri/widgets/Slider - A generic slider that can be used for gathering any kind of user input involving numbers or a range of values.


esri/widgets/TimeSlider - A slider that can be used to manipulate time visualization in your application.

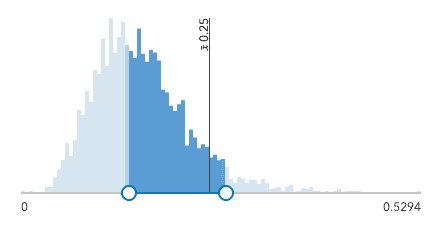

esri/widgets/HistogramRangeSlider - A slider that renders a histogram along the range for gathering user input involving a range of data values.

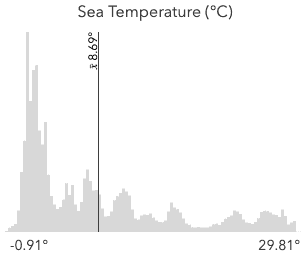

esri/widgets/Histogram - Renders a histogram that can be customized with styles and interactions for exploring data.


New Smart mapping widgets

We also added the following smart mapping widgets:

Updates to Popup widget

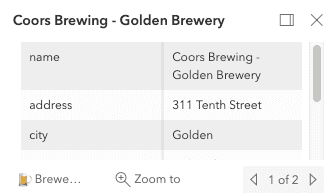

The Popup widget UI has been redesigned. Beginning with 4.12, actions defined on the PopupTemplate appear before those defined on the Popup widget. The actionsMenuEnabled property was removed from Popup widget as it was no longer needed with the updates made to the UI.

Popup UI - 4.11Popup UI - 4.12
popup-ui-411 popup-ui-412

API updates and enhancements

Breaking changes

Please refer to the Breaking Changes guide topic for a complete list of breaking changes across all releases of the 4x API.

Bug fixes and enhancements

  • BUG-000117500: Fixed an issue where setting ImageryLayer.definitionExpression only worked after panning or zooming the map.
  • BUG-000117587: Circle.clone() now works as expected.
  • BUG-000117981: LocatorSearchSource.popupTemplate now works as expected.
  • BUG-000118992: Fixed an issue where using the mouse to zoom into the MapView did not work correctly if created using constraints.
  • BUG-000119163: Fixed an issue when adding a feature layer with a HeatmapRenderer multiple times returned inconsistent symbols.
  • BUG-000119175: Updated the documentation of PictureMarkerSymbol to clearly indicate the maximum allowed height and width of picture marker symbols.
  • BUG-000119179: The Popup widget's action button now displays properly while in IE 11.
  • BUG-000119321: Fixed an issue where a PictureMarkerSymbol was unable to clear if a map was navigated while graphics were drawing.
  • BUG-000119461: Web Map Service (WMS) used as basemap layers now display as expected when brought in as a WebMap.
  • BUG-000119699: Fixed an issue with the Directions widget UI when working with Internet Explorer 11.
  • BUG-000119708: Fixed an issue with printing sublayers contained in a group layer of MapImageLayer when the Allow per request modification of layer order and symbology capability is enabled on ArcGIS Server.
  • BUG-000120221: Fixed an issue where some WMTSLayers sent incorrect requests and failed to display as expected.
  • BUG-000120806: Fixed an issue where layers would disappear from the view when using the Locate widget in Internet Explorer 11 or Edge.
  • BUG-000121020: Fixed an issue where zooming in on specific basemap layers failed to zoom as expected.
  • BUG-000121089: Fixed an issue when using an integer field in the LayerSearchSource of the Search widget.
  • BUG-000121150: Fixed Attribution widget to update directly after reordering of layers (without having to pan/zoom first).
  • BUG-000121232: Fixed an issue with the Search widget not providing accurate results when using a FeatureLayer in a geographic coordinate system.
  • BUG-000121323: Fixed an issue where symbolizing a point hosted feature service by symbology in ArcGIS Online using Arcade does not symbolize correctly in Map Viewer.
  • BUG-000122064: Fixed an issue where some WMTSLayers were rendered with reduced quality on lower DPI screens.
  • BUG-000122084: Fixed VectorTileLayer dark basemap displaying a lower LOD than expected in a SceneView.
  • BUG-000122246: Fixed some inconsistent behavior with the MapView.updating property.
  • BUG-000122340: Fixed an issue where using the ESC (escape) key while editing via the Editor widget would not allow subsequent edits while editing a single layer.
  • BUG-000122342: Fixed an issue where a WMTSLayer would not redraw all tiles when zooming out if the source was an OGC WMTS layer with multiple layers.
  • BUG-000122380 & BUG-000122674: Fixed an issue with the zoom extent of a VectorTileLayer when not added as a basemap.
  • BUG-000119175: Updated documentation for PictureMarkerSymbol height and width limitations.
  • GEONET-231275: Fixed an issue in the FeatureForm widget where updating input and then clicking to another entry would force the cursor focus out of existing input box.
  • GEONET-234851: Fixed an issue where the ImageryLayer.redraw() method didn't update the canvas with the newly filtered data.
  • ENH-000119326: Added the parameter ignorePadding to the MapView.takeScreenshot() and SceneView.takeScreenshot() methods to allow padded areas to be included in the screenshot.
  • Fixed an issue where the Scalebar widget would display incorrectly when zooming out and the view is larger than the width of the world.
  • Fixed an issue where the Track widget would not allow cancelling while waiting for the user to allow location access on their browser.
  • Fixed an issue where white lines would sometimes display between tiles on iOS devices.
  • Fixed an issue with KMLLayerView properties not getting populated when the updating property is set to false.
  • Fixed an issue with MapImageLayer where popups displayed for grouped sublayers that have a non-visible parent.
  • Fixed an issue with VectorTileLayer lines display at very large scales near tile boundaries.
  • Fixed an issue with the initialization process of the Directions widget becoming out of sync.

Additional packages

Version 4.12 of the ArcGIS Maps SDK for JavaScript uses ArcGIS Arcade 1.7 (since 4.12), Dojo 1.14.2 (since 4.11), dgrid version 1.2.1 (since 4.5), and dstore version 1.1.2 (since 4.5). From Dojo 5 we use @dojo/framework version 5.0.4 (since 4.12).

How to access the SDK

  • The API library is available on both CDN and npm, Read more at Install and set up.
  • For supported versions, you can also download both the documentation and the API library. These downloads are typically available 3-4 weeks after release.
