Release notes for 4.28

October 2023

Maps SDK components (beta)

With this release, we are introducing a brand-new web component library for building web mapping apps with minimal code. The component library currently consists of the 3 packages listed below, but will expand over time with more pre-built ArcGIS experiences (encapsulated into web components) that can be easily brought into your own app.

Map components

The @arcgis/map-components package contains the map, scene, and all the JavaScript Maps SDK widgets wrapped as web components. While these components don’t offer new capabilities, they are an alternative option for quickly building mapping apps including when integrating with frameworks.

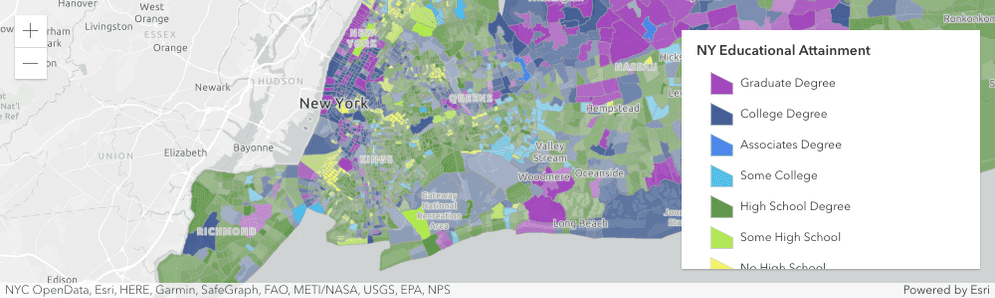

In the example below, a web map with a legend is created using the arcgis-map and arcgis-legend components.

1
2
3
<arcgis-map item-id="05e015c5f0314db9a487a9b46cb37eca">
  <arcgis-legend position="bottom-right" />
</arcgis-map>

Coding components

The @arcgis/coding-components package will eventually contain a wide range of tools, resources, code editors and utilities that support coding. Currently, only the Arcade editor component is supported, which allows the end user to create Arcade expressions that drive aspects of your map or app within your solution. They will have the same experience editing their Arcade expressions as they do in Map Viewer and the Arcade playground.

Common components

The @arcgis/common-components package can be used alongside the other JavaScript Maps SDK component packages to provide additional functionality. For example, the arcgis-api-key and arcgis-identity components may be used alongside packages that can leverage an API key or identity, such as @arcgis/map-components.

Resources

To learn more about the ArcGIS Maps SDK components, check out the following resources:

Improved experience for date and time

This release introduces new ways to work with time enabled data, including new field types to better represent dates with different levels of information, and time zone support for 2D MapView and widgets.

New date field types (beta)

Three new date-focused field types were added this release — date-only, time-only, and timestamp-offset — to represent different levels of information when working with date and time values. See the table below for more information about each field type and when to use them.

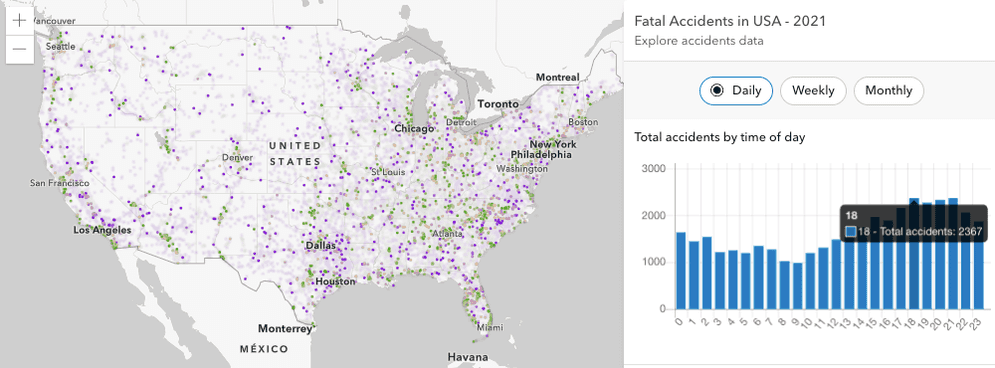

With the new timestamp-offset fields, we can compare data across time zones, as shown in the example below where we query for all incidents that occurred at 6:00 pm in their respective time zones.

Time zone support in MapView

This release introduces time zone support on 2D MapView, providing control over how dates and times are represented to users within the view. In previous versions, the date and time values were always displayed in the time zone of the device. Setting the time zone can be useful for displaying events like weather alerts or emergency incidents that are best conveyed in the local time zone of the incident for coordination and response purposes.

TimeZoneLabel widget

The newly added TimeZoneLabel widget can be used to display the MapView time zone.

Time zone support in widgets

Date values, including values from the date and timestamp-offset field types, will be displayed in the view's time zone by default in widgets that display dates. For widgets that can be used without a view, such as TimeSlider, FeatureTable, and FeatureForm, we added a timeZone property to allow users to set the time zone on the widget directly.

Time zone support in layers

• Date fields can be configured with a specified time zone on feature or map services in ArcGIS Enterprise. In ArcGIS Online, date fields will always be in UTC. To get the time zone from a date field, use the new FieldsIndex.getTimeZone() method. This can be useful when constructing date or time SQL where clauses when performing queries.
• Date fields will be displayed in the time zone of the Map View by default, though some layers have additional considerations to take into account when working with date fields and time zones. See more below.

Oriented imagery

OrientedImageryLayer provides users the ability to manage oriented (non-nadir) images and visualize them using the OrientedImageryViewer widget. This layer is composed of discrete point features (or camera locations), each of which has a geometry that allows it to be rendered in a 2D MapView as a graphic with spatial context. These features also contain data attributes that provide additional information about the real-world feature they represent.

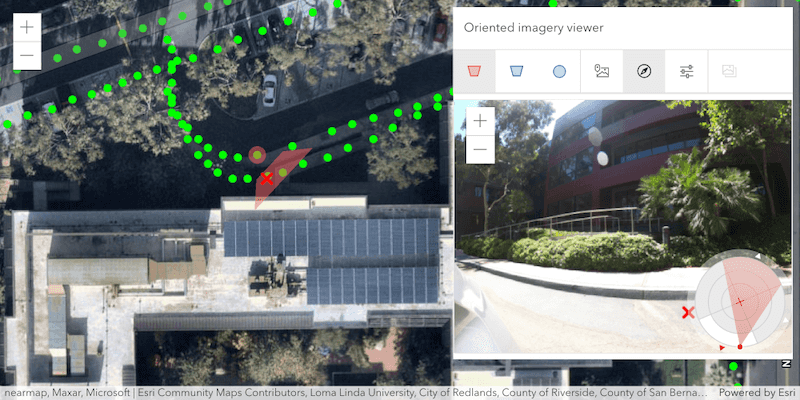

The OrientedImageryViewer widget allows users to explore and adjust their oriented images from the oriented imagery layers. Users can click on a map to view the best image in their collection that depicts that location. Users then can view assets from multiple directions, and enhance contrast, brightness and sharpening to better see these images.

New basemap styles

This release brings support for new basemap styles with localized place labels from the basemap styles service (v2). These basemaps can be created from a string in the form of {provider}/{style}, where provider is "arcgis" or "osm". See ArcGIS basemap styles and OSM basemap styles for the full list of available styles.

The new Basemap.style property allows you to specify both the basemap ID and the language. If no language is specified, the app's current locale will be used to determine the language of the place labels.

Check out the new basemap styles in action in these tutorials: Change the basemap style and Change the basemap language.

Feature-to-feature relationship editing

The Editor widget now has the ability to edit feature-to-feature relationship data. Prior to this release, editing was solely supported on data related via feature to table. Similar in experience, a relationship element must be configured within the FormTemplate for the Editor to support editing related data. If the form's template is not set or is not configured to contain relationship elements, the Editor will not display the option to edit the relationship data. For additional information on editing related records, please refer to the Editor widget documentation.

Enhanced polygon label placement

We enhanced label placement for polygon features of non-MapImageLayer layers in 2D MapViews. Polygon labels are now better placed inside their features. This is especially apparent for irregular shapes, such as the states of Florida and Louisiana. Compare the difference in the images below.

4.27	4.28

Color theming for interactive tools

With View.theme, it is possible to customize the color of interactive tools in both 2D MapViews and 3D SceneViews. A custom theme can complement a web site’s branding, or improve contrast and legibility when tailored to the map design.

This new property allows for the creation of customized apps that are more user-friendly and meaningful. The theming influences sketching, snapping, as well as all analysis tools: measuring, dimensioning, slicing, line of sight, and the elevation profile.

See the new sample below to explore how custom theme colors can better fit your application's style.

3D updates

• With the support of zip files, it is now possible to upload models with additional texture files to editable scene layers.
• Improved memory estimations to allow rendering more features on higher-end devices while improving performance and stability on mobile and tablets.
• 3D basemaps can now be referenced through a unique basemap id. Explore the available options in Map.basemap for loading by id.

Show background color while terrain loads

When loading a VectorTileLayer with a background color set, this color will now be displayed instead of the default grid. This offers a smoother transition when navigating between different parts of a map that haven't loaded yet. This new behavior can now be observed with many of our official basemaps. Using the ArcGIS Vector Tile Style Editor, you can also add a background color to your own vector tile layers to benefit from this change.

Layer updates

Saving layers as a portal item

StreamLayer, SubtypeGroupLayer, ImageryLayer, ImageryTileLayer and GroupLayer can be saved to a portal item in ArcGIS Online and ArcGIS Enterprise with the save and saveAs methods on respective layers. This allows you to define a renderer with 2D symbology and popupTemplate etc. on your layer and then save it to a PortalItem. Saving many related layers into a GroupLayer portal item provides a new and powerful way to share thematic content without a map.

MediaLayer animated GIF/PNG support

The MediaLayer now supports animated GIF and APNG images. AnimationOptions are used to control the animation of the image (such as duration, repeatType, etc.). See it in action in the new MediaLayer with animated GIF sample.

VectorTileLayer initial extent

The new initialExtent property on VectorTileLayer allows you to easily zoom to the bounds of the tiles when the source of the layer's style references a TileJSON resource.

Watch for updating data on feature layer views

The new dataUpdating property on FeatureLayerView, CSVLayerView, GeoJSONLayerView, OGCFeatureLayerView and WFSLayerView indicates if the layer view is updating its data and new features are being fetched. Watch this property along with the updating property to know when to re-execute client-side queries after an update cycle. This property is currently only supported in 2D MapView. See it in action in the updated Query statistics client-side sample.

Raster function utility methods

The rasterFunctionUtils module offers over 100 functions that create RasterFunctions for imagery processing. Utility methods in this module make raster function generation easier when applying raster functions to ImageryLayer and ImageryTileLayer.

Widget updates

Custom chart colors

At this release, chart colors can be customized using the new colors property on the ChartMediaInfoValue class. These colors are respected when displaying charts in the Popup, Features, and Feature widgets. Customizing chart colors is as simple as creating an array of color objects that is equal to the length of the fields property.

1
2
3
4
5
const chartMediaInfoValue = new ChartMediaInfoValue({
  colors: [new Color("red"), new Color("yellow"), new Color("green"), new Color("blue")],
  // colors will be applied to each field in their respective order
  fields: ["field1", "field2", "field3", "field4"]
});

The default colors used in charts were updated to meet the WCAG contrast ratio accessibility standards for both light and dark theme. Symbology can be set with these colors by using the new "Olympic Sunset" color ramp.

Popup design updates

Refactor to use Calcite Design System

The Popup widget has been refactored to utilize Calcite Design System components. This update results in the action bar being anchored below the Popup header and the pagination buttons being moved to the opposite side of the Popup from the feature menu button.

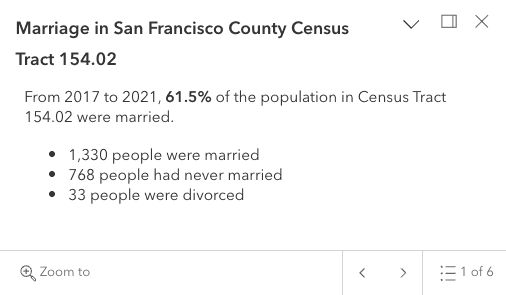

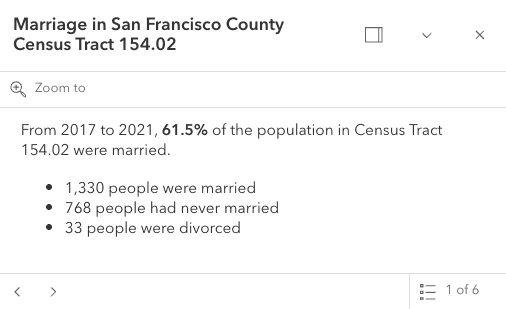

4.27	4.28

Feature menu layer grouping

The feature menu for viewing a list of features selected in the Popup or Features widget now groups the features by layer. Now you can easily distinguish which layer the feature resides in with the list view. This change is also applied when browsing clustered features.

4.27	4.28

2D performance in non-GPU environments

GPUs are important for basic performance in virtualized environments. When no hardware acceleration is detected, the API library automatically attempts to improve map interaction and user experience for some Virtual Desktop Infrastructure (VDI) desktop environments and Remote Desktop Session Host (formerly called Terminal Server) sessions. This is accomplished by switching to a degraded 2D rendering mode.

SimpleMarkerSymbol outline styles

We've added support for outline styles on SimpleMarkerSymbol in a 2D MapView. All of the styles supported on SimpleLineSymbol (dash, dot, etc.) can now be used in the outline of your SimpleMarkerSymbol.

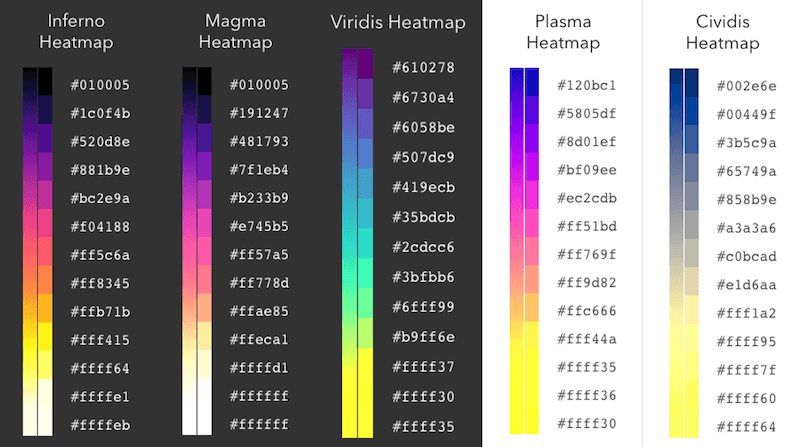

New color ramps

We added the following scientific color ramps to the high-to-low continuous color theme and the heatmap smart mapping APIs.

• Magma
• Inferno
• Plasma
• Viridis
• Cividis

These color ramps are great options for visualizing data along a continuous color ramp, and are especially friendly for people with color vision deficiencies.

Big integer support (beta)

The big-integer data type is a 64-bit signed integer that can store very large whole number integer values with the range of -9007199254740991 and 9007199254740991. Numbers that fall outside of this range may be rounded resulting in graphical or performance issues. Web applications can only edit whole numbers between -9007199254740991 and 9007199254740991. Any attempts to edit a number value higher or lower than these thresholds will not work and those edits will not be saved.

The API throws warning about big integer fields in the console about its known limitations. Please use the following the following flag to disable the warnings.

1
2
3
4
5
6
7
<script>
  var esriConfig = {
    has: {
      "big-integer-warning-enabled": false
    }
  }
</script>

Printing updates

We laid the foundation for printing charts and reports with an ArcGIS Enterprise 11.2 print service. This is currently available when working with print and PrintViewModel. Similar updates are planned for the Print widget.

Charts are stored inside an operational layer definition, and can be printed using PrintTemplate.includeCharts. Typically, a report will be printed with a map in a multi-page pdf file. Reports require templates, similar to layouts, which can be defined using the PrintTemplate.report or PrintTemplate.reportItem property. Lastly, the PrintTemplate.reportOptions property will link the various report elements to their data source.

We also added TemplateOptions.includeTables to add more options for printing tables. Note that PrintTemplate.includeTables was added at version 4.26.

FeatureService and VersionManagementService

A new FeatureService class was added to represent the feature service, which contains all its FeatureLayers and non-spatial tables. The FeatureService contains URLs to the version management service or utility network service if the feature service was published with a utility network or with versioning enabled. The FeatureService class can be used to make edits across multiple layers and tables that belong to the feature service in a single applyEdits() call. Take a look at Perform Edits using the Feature Service to learn more about editing using the new FeatureService class.

A new VersionManagementService class was added to represent the version management service, and expose the service capabilities. The VersionManagementService can be constructed from either a URL to a version management service, or also by using the FeatureService.versionManagementServiceUrl when working with a FeatureService. The VersionManagementService provides support for branch versioning workflows with the following capabilities:

• Create a new version.
• Delete an existing version.
• Alter a version. This means you can re-assign the version owner, update the description, and version name.
• Switch to a different version.
• Reconcile and post a version.
• Manage editing sessions with the ability to start and stop editing sessions.

Utility network updates

Utility network rule based snapping support

The Editor widget now supports utility network rules. The Editor will detect if there is a loaded utility network on the map, and if there is, then it will apply the rules defined by the utility network. The image below shows an example of creating a Circuit Breaker from the Electric Distribution Device layer. As the cursor hovers over the features on the map, one will notice that the Circuit Breaker cannot snap to the Transformer or Pole features. However, the Circuit Breaker feature can snap to the Medium Voltage line endpoint from the Electric Distribution Line layer. This behavior is defined by the network rules, and thus it is now respected by Editor’s snapping workflows.

UtilityNetworkAssociations widget settings

This release introduces a new settings section in the UtilityNetworkAssociations widget to configure the line symbology for connectivity and structural attachment associations. These settings can be enabled from the widget's visible elements property.

Added classes, properties, methods, events

Deprecated classes, properties, methods, events

• For local builds, using Webpack versions prior to 5.84.0 has been deprecated since 4.27. This is related to bug fixes in Webpack.

Breaking changes

Removal of watchUtils

The watchUtils class has been deprecated since version 4.24 and has been removed from the API at this release. This is a breaking change and applications will need to use reactiveUtils instead, which provides significantly improved utilities and convenience functions for watching properties inherited from Accessor. Check out the Why you should be using reactiveUtils instead of watchUtils blog for more details on how to migrate from watchUtils to reactiveUtils.

TypeScript breaking changes

• The @types/arcgis-js-api package was deprecated in NPM at 4.28. This package was used in AMD-based applications. Download the latest definition files from the jsapi-resources archive, or NPM install arcgis-js-api. These changes do not affect applications using ES modules with @arcgis/core.

• IPromise TypeScript definition was removed at 4.28. Use native Promise instead.

• All instances of *Constructor TypeScript definitions were removed at 4.28. Update usage of __esri.ClassConstructor to typeof __esri.Class, or import the module from typings and change the type assignment to typeof Class, for example:

  Use dark colors for code blocksCopy

  1
  2
  3
  4
  5
  6
  7
  8
  9
  10
  11
  // Type definitions at 4.27 and earlier
  type IEsriDeps = [
    __esri.MapConstructor,
    __esri.MapViewConstructor
  ];

  // Type definitions at 4.28 and later
  type IEsriDeps = [
    typeof __esri.Map,
    typeof __esri.MapView
  ];

Additional breaking changes

• Authenticated users that are layer owners, administrators or users with full editing privileges will have their elevated user privileges applied in regards to editing behavior and data access. This mimic the behavior available in Map Viewer. To opt out, set esriConfig.userPrivilegesApplied to false.
• Date fields in CSVLayer are now stored in the UTC time zone by default instead of the local time zone of the device. See more in the time zone support in layers section of the release notes.
• Legacy basemaps: The legacy national-geographic named basemap was removed at 4.28. Four of the other legacy basemaps have been redefined to their vector equivalents because they were based on outdated services that are in Mature Support: topo, streets, gray and dark-gray.
• The auto and authorization-code values for OAuthInfo.flowType no longer check if the popup property is set to true or false. This change affects applications that use the auto flowType and set the popup property to true. The callback page being used needs to be updated to support two-factor authentication. To aid in this, the default oauth-callback.html has been updated to allow for the two-step approach and will still work if using the one-step flow.
• The default format for date fields is now short-date-short-time rather than long-month-day-year in the Popup, Features, or Feature widgets. For example, a date that may have previously appeared as December 30, 1997 will now appear as 12/30/1997 6:00 PM.
• The default value of VoxelLayer.popupEnabled changed from true to false.
• The MapView.goTo and MapView.toScreen default behavior has been changed to automatically be normalized based on the center of the view. Set pickClosestTarget in the GoToOptions2D or the ToScreenOptions2D to false to disable this behavior.
• The maxInlineActions property on the Popup widget has been removed due to the widget being refactored to utilize Calcite components.
• Setting the Editor widget's allowedWorkflows property to only allow updates will result in displaying the Create features header. If this is not needed, set its visibility by setting the Editor's visibleElements createFeaturesSection property to false. Note that if this is set, it removes the heading completely, regardless if there are some layers within the map that do have permissions to create new features. Additional work is planned in an upcoming release to make this experience more intuitive.

The following classes, methods, properties and events have been deprecated for at least 2 releases and have now been removed from the API:

Please refer to the Breaking changes guide topic for a complete list of breaking changes across all releases of the 4.x API.

Bug fixes and enhancements

• BUG-000112015: Fixed an issue where labels didn't show up correctly in SceneView.
• BUG-000143361, Esri Community - 1242050, Esri Community - 1229424: Fixed an issue where vertical polygons were missing fill symbology in SceneView.
• BUG-000143869, BUG-000160666: Fixed an issue where WFSLayer was not fetching data in its native spatial reference.
• BUG-000145275: Fixed an issue where some SimpleMarkerSymbols created from an SVG path were only partially rendered.
• BUG-000147177: Fixed an issue where multi-ring polygons didn't show up correctly in SceneView.
• BUG-000150022: Added support for preferredTimeZone on FeatureLayer and MapImageLayer.
• BUG-000156019: Fixed an issue where the minScale and maxScale values of labels were not being honored consistently.
• BUG-000156080: Fixed an issue where requests for features not visible or displayed would still fire when snapping using the Editor.
• BUG-000156352: Fixed an issue where the FormTemplate.preserveFieldValuesWhenHidden property was not being honored.
• BUG-000157389: Fixed an issue where small polyline and polygon features disappear when zooming in and out.
• BUG-000157916: Fixed an issue where the TextSymbol.lineWidth property did not have any effect in non-labeling workflows.
• BUG-000158549: Fixed an issue with Ground.opacity when a GroupLayer is present in SceneView.
• BUG-000158754: Fixed an issue where the Popup widget was displaying features in reverse order with MapImageLayer sublayers.
• BUG-000159707: Fixed an issue where domain descriptions and subtype names were not properly returned from Arcade expressions in UniqueValueRenderer.
• BUG-000159808: The Editor widget no longer expands upwards when working with numerous values within a ComboBoxInput.
• BUG-000160035: Fixed an accessibility issue where tabbing options within the FeatureTable widget did not work as expected.
• BUG-000160088: Increased the default printing timeout duration, and added a printTimeout property to modify the timeout duration.
• BUG-000160198: Updated the documentation for the curbApproach property of the PointBarrier class.
• BUG-000160735: Fixed an issue where feature layer in local viewing mode didn't fully show up in SceneView.
• BUG-000160794: Fixed an issue where zooming to a polygon that crossed the date line would zoom to the entire world extent.
• BUG-000160823: Fixed an issue where popups on hosted TileLayer only work if the layer ID of the TileLayer and FeatureLayer match.
• BUG-000161208: Esri Community - 1323058: Fixed an accessibility issue in the LayerList where the button to open the ListItemPanel was missing a tabindex.
• BUG-000161613: Fixed an issue where resizing a browser window can change layer visibility.
• BUG-000161617: Fixed an issue where the Editor would not load when a table in the view failed to load.
• Esri Community - 1043965: Fixed an issue where the GeoJSONLayer.queryFeatures() not returning results when geometry's extent is used for query.
• Esri Community - 1074484: Fixed an issue where removeUniqueValueInfo() method would fail with a parameter of type Number.
• Esri Community - 1237167: Fixed an issue where an ImageryTileLayer created from a COG was displayed incorrectly in SceneView because of the layer's tileInfo.lods were inversely ordered.
• Esri Community - 1307834: Fixed an issue where the Attachments widget throws an error saying cannot set properties of null even though graphic valid.
• Esri Community - 1308220: Fixed an issue with displaying an error message in the browser console when creating a FeatureLayer on-the-fly to use as a LayerSearchSource with the Search widget.
• Fixed an accessibility issue in the Legend widget to avoid placing inactive elements in the focus order.
• Fixed an accessibility issue in the MapView where arrow key map navigation was broken when JAWS or VoiceOver screen readers were active.
• Fixed an issue in SketchViewModel where shift+click would not deselect while using the 2d transform tool.
• Fixed an issue in UtilityNetworkTrace where staring points and barriers could be placed on features not participating in the utility network or layers that could not participate in the trace.
• Fixed an issue in UtilityNetworkTrace where the defined buffer distance value is not displayed in the numerical input box when the trace completes the result area is shown.
• Fixed an issue in UtilityNetworkTrace where the list of selected records results could not be loaded due to filters being applied on the utility network layers.
• Fixed an issue in UtilityNetworkTrace where traces would fail after 60 seconds and extended the timeout to 10 minutes to align with the ArcGIS Pro behavior.
• Fixed an issue when printing maps with a background color would sometimes display the background through the basemap in the printout.
• Fixed an issue where setting the featureMenuOpen option to true in Features.open() and Popup.open() was not opening a list of selected features.
• Fixed an issue where setting the heading VisibleElement on the Features widget to false was not hiding the heading in the UI.
• Fixed an issue where some special characters were not displayed correctly in the Legend widget.
• Fixed an issue where the FeatureForm did not work correctly when using date inputs with a coded value domain.
• Fixed an issue where the Legend was not properly honoring CIMSymbol minScale and maxScale.
• Fixed an issue where the ScaleRangeSlider was mirrored incorrectly when dir="rtl".
• Fixed an issue with inconsistent labeling of features without symbols.
• Fixed an issue with the barrierType documentation for PointBarrier, PolygonBarrier, and PolylineBarrier.
• Fixed three issues related to certain multi-layer feature collections created from GPX or shape files in Classic Map Viewer not loading or not displaying correctly.
• ENH-000137147: Added the ability to customize Popup, Feature, and Features chart colors with the new ChartMediaInfoValue.colors property.
• ENH-000139761: Enhanced label placement for polygon features of non-MapImageLayer layers in 2D MapViews.
• ENH-000160782: Added support for style on SimpleMarkerSymbol.outline in a 2D MapView.
• ArcGIS Ideas - 1310879 - Enhanced MediaContent to only show pagination when there are multiple media elements added to the mediaInfos array.
• Esri Community - 1221477: Enhanced MediaHit to include the sourcePoint, an object representing a point on the element. The origin (0, 0) corresponds to the top-left corner of the element.
• A User Type Extension is no longer required for tracing utility network services published with Enterprise 11.2 and above.
• Enhanced FeatureForm to display a dropdown of subtype names for the subtypeField of a FeatureLayer.
• Enhanced FeatureLayer by adding the subtypeField and subtypes properties.
• Enhanced snapping in Sketch and Editor to support layer view filters set on FeatureLayers.
• Enhanced SpatialReference class with a new wkt2 property representing the WKT as per latest ISO/OGC standard.
• Enhanced SubtypeGroupLayer to support save() and saveAs() to new or existing PortalItems.
• Enhanced the BasemapGallery and BasemapToggle widgets by providing a better default title and thumbnail for basemaps coming from a portal item.
• Enhanced the Directions widget to not display an arrival time when Time Unspecified is selected.
• Enhanced the Editor to add support for table layer templates in related records editing workflows.
• Enhanced the Editor to disable FeatureTemplates of layers when the layer is hidden because it is beyond its visibility scale range on the Map.
• Enhanced the Editor to respect zDefault values set on editable FeatureLayers during geometry creation and update workflows.
• Enhanced the FeatureForm to display an asterisk * next to the field names for required fields.
• Enhanced the FeatureForm validation UX for date fields with a range.
• Enhanced the FeatureForm to support template literal syntax in field labels and descriptions.
• Enhanced the ParameterValue by adding a new paramName property.
• Enhanced the Popup to always be expanded by default regardless of the view's size.
• Enhanced the ScaleRangeSlider with a UI indicating unavailable scale ranges when used with MapImageLayer.
• Enhanced the styling of empty GroupLayers in the LayerList by adding a dashed outline and the text "There are currently no items to display."
• Enhanced the UtilityNetworkTrace widget by adding support for custom colors for graphic and result areas.
• Enhanced the UtilityNetworkTrace widget by adding the add-result-area and remove-result-area events.
• Enhanced the UtilityNetworkTrace widget to show non-spatial objects in the selected records list.

Additional packages

Version 4.28 of the ArcGIS Maps SDK for JavaScript uses ArcGIS Arcade 1.24 (since 4.28).

Version 4.28 of the ArcGIS Maps SDK for JavaScript uses Calcite Design System, version 1.9.2.

How to access the SDK

• The API library is available on both CDN and npm, Read more at Install and set up.
• For supported versions, you can also download both the documentation and the API library. These downloads are typically available 3-4 weeks after release.

Previous releases
