import { accelerateGeometry, execute, supportsCurves } from "@arcgis/core/geometry/operators/crossesOperator.js";

Since: ArcGIS Maps SDK for JavaScript 4.31

Performs a relational operation to determine if one 2D geometry crosses another 2D geometry.

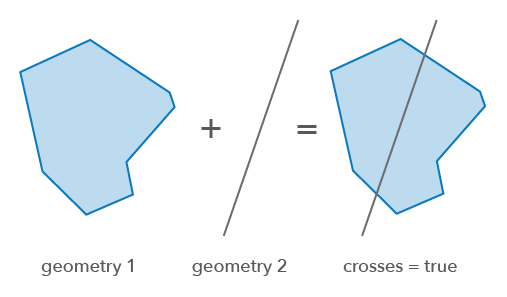

Crosses operator

Functions

Name	Return Type	Object
`accelerateGeometry`	`boolean`
`execute`	`boolean`
`supportsCurves`

accelerateGeometry

Function

Accelerate a geometry. This method prepares the geometry for faster crosses operations when the same geometry is tested multiple times (e.g. in a loop with hundreds of iterations). See the Acceleration guide topic for more information.

Signature: accelerateGeometry (geometry: GeometryUnion): boolean

Parameters

Parameter	Type	Description	Required
geometry	`GeometryUnion`	The geometry to accelerate.

Returns: boolean
Returns true if the geometry was successfully accelerated.

execute

Function

Perform the crosses operation on two geometries. This relation is true when geometries have some but not all interior points in common. The interiors must intersect and produce a geometry of smaller dimension than the maximum dimension of the two geometries. This relation may return true only between polygon and polyline, polygon and point, polyline and polyline, and polyline and point.

Signature: execute (geometry1: GeometryUnion, geometry2: GeometryUnion): boolean

Parameters

Parameter	Type	Description	Required
geometry1	`GeometryUnion`	The geometry to cross.
geometry2	`GeometryUnion`	The geometry being crossed.

Returns: boolean
Returns true if geometry1 crosses geometry2.

Example

// Returns true if a geometry crosses another geometry
const isCrossed = crossesOperator.execute(polygon, polyline);

Variables

supportsCurves

Variable

Indicates if the operator supports input geometries that contain curves. The value will always be true.

Type: boolean
