densifyOperator | References | ArcGIS Maps SDK for JavaScript

import { execute, executeMany, supportsCurves } from "@arcgis/core/geometry/operators/densifyOperator.js";

Since: ArcGIS Maps SDK for JavaScript 4.31

Densifies 2D geometries by length, deviation and/or angle in a 2D plane. The result geometry contains segments less than or equal to maxSegementLength, and it will not contain curves. The piecewise approximation of curves will be within the specified deviation from the original curve, and the angle between tangent segments does not exceed the specified value.

If maxAngleInDegrees is not zero, vertices are added at points along the curve where the angle between tangent segments reaches this value. These vertices are then connected by straight-line segments.

If maxSegmentLength is zero, only curves are affected and other geometries remain unchanged. The process always starts from the highest point on a segment, so equal segments will be densified in the same way.

When the maxSegmentLength, maxDeviation, and maxAngleInDegrees parameters are all set to 0, curves are replaced with the line segments connecting the curve endpoints.

Suggestion: to limit the number of segments that are produced, if you have an area of interest such as a visible extent, clip the input geometries before densifying.

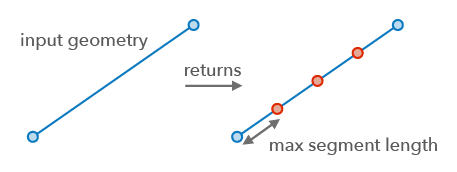

Densify operator

Type definitions

Options

Type definition

maxAngleInDegrees

Property

Type: number | undefined

The maximum angle allowed for densification by angle. The number must be greater than or equal to zero and is only applicable on curves. The default value of 0 disables densification by angle. The value will be capped at 90 degrees (π/2). This specifies the maximum angle that a new vertex can deviate from the original geometry.

Default value: 0

maxDeviation

Property

Type: number | undefined

The maximum distance a newly placed vertex on a densified polyline can deviate from the original location on the curve. The number must be greater than or equal to zero. Applicable only on curves. The default of passing 0 disables densification by deviation. Unless the unit option is set, the default is the geometry's spatial reference unit.

Default value: 0

unit

Property

Type: LengthUnit | undefined

The length unit of maxSegmentLength and maxDeviation. The default is the input geometry's spatial reference unit. An error will be thrown if this is set for Geographic Coordinate Systems.

Functions

Name	Return Type	Object
`Options`
`execute`	`GeometryWithoutMeshUnion`
`executeMany`	`GeometryWithoutMeshUnion[]`
`supportsCurves`

execute

Function

Performs the densify operation on the geometry.

Signature: execute (geometry: GeometryUnion, maxSegmentLength: number, options?: Options): GeometryWithoutMeshUnion

Parameters

Parameter	Type	Description
geometry	`GeometryUnion`	The geometry to be densified.
maxSegmentLength	`number`	The maximum distance between vertices when the input geometry is densified. The number must be greater than or equal to zero. When the parameter is set to `0`, this operation only applies to curves and disables densification by length. Curves are densified to straight segments using the given length. And, curves are split into shorter subcurves such that the length of subcurves is shorter than `maxSegmentLength`. After that the curves are replaced with straight segments. Unless the `unit` option is set, the default is the spatial reference unit of `geometry`.
options	`Options`	Additional options.

Returns: GeometryWithoutMeshUnion
Returns the densified geometry that does not contain any curves.

Examples

// Returns a densified polyline.
const densified = densifyOperator.execute(polyline, 100);

// Returns a polyline where all curve segments have been densified.
if (polyline.curvePaths) {
  const densified = densifyOperator.execute(polyline, 0, { maxAngleInDegrees: 1 });
}

executeMany

Function

Performs the Densify operation on the geometry set.

Signature: executeMany (geometries: GeometryUnion[], maxSegmentLength: number, options?: Options): GeometryWithoutMeshUnion[]

Parameters

Parameter	Type	Description
geometries	`GeometryUnion[]`	The set of geometries to be densified. All the geometries must have the same spatial reference.
maxSegmentLength	`number`	The maximum segment length allowed. The number must be greater than or equal to zero. When the parameter is set to `0`, this operation only applies to curves and disables densification by length. Curves are densified to straight segments using the given length. And, curves are split into shorter subcurves such that the length of subcurves is shorter than `maxSegmentLength`. After that the curves are replaced with straight segments. Unless the `unit` option is set, the default is the geometries spatial reference unit.
options	`Options`	Additional options.

Returns: GeometryWithoutMeshUnion[]
Returns the densified geometries that do not contain any curves.

Variables

supportsCurves

Variable

Indicates if the operator supports input geometries that contain curves. The value will always be true. This will produce densified output geometries.

Type: boolean
