geodeticUtilsOperator | References | ArcGIS Maps SDK for JavaScript

import { isLoaded, load, calculateDistanceAndAzimuth, pointFromDistance } from "@arcgis/core/geometry/operators/geodeticUtilsOperator.js";

Since: ArcGIS Maps SDK for JavaScript 4.34

A set of utilities for working with geodetic calculations.

Notes

Verify that isLoaded() returns true before using this module. Use load() to load this module's dependencies.

Type definitions

Options

Type definition

curveType

Property

Type: Exclude<GeodeticCurveType, "shape-preserving"> | undefined

The type of geodetic curve along which distance will be measured. The default curveType of geodesic returns the shortest distance between point1 and point2.

Default value: "geodesic"

unit

Property

Type: LengthUnit | undefined

The length unit of the distance.

Default value: "meters"

CalculateDistanceAndAzimuthResult

Type definition

Object returned by the calculateDistanceAndAzimuth() method. Azimuths are in positive degrees from 0 to 360, measured clockwise from due north.

distance

Property

Type: number

The geodetic distance between point1 and point2.

azimuth12

Property

Type: number

The azimuth in degrees from point1 to point2.

azimuth21

Property

Type: number

The azimuth in degrees from point2 to point1.

For example, Berlin is almost due north of Rome. The azimuth from Rome to Berlin is 3°; close to due north (0°) but a little east. The azimuth from Berlin to Rome is 183°; close to due south (180°) but a little west.

For another example, Shanghai is almost due east of Wuhan. The azimuth from Wuhan to Shanghai is 82°; close to due east (90°) but a little north. The azimuth from Shanghai to Wuhan is 266°; close to due west (270°) but a little south.

Functions

Name	Return Type	Object
`Options`
`CalculateDistanceAndAzimuthResult`
`isLoaded`	`boolean`
`load`	`Promise<void>`
`calculateDistanceAndAzimuth`	`CalculateDistanceAndAzimuthResult`
`pointFromDistance`	`Point \| null \| undefined`

isLoaded

Function

Indicates if all dependencies of this module have been loaded.

Signature: isLoaded (): boolean

Returns: boolean
Returns true if this module's dependencies have been loaded.

load

Function

Loads this module's dependencies. This method must be called first if isLoaded returns false.

See also

isLoaded()

Signature: load (): Promise<void>

Returns: Promise<void>
Resolves when the dependencies have been loaded.

calculateDistanceAndAzimuth

Function

Geodetically calculates the distance and direction between two points. Unless the unit option is set, the default is meters.

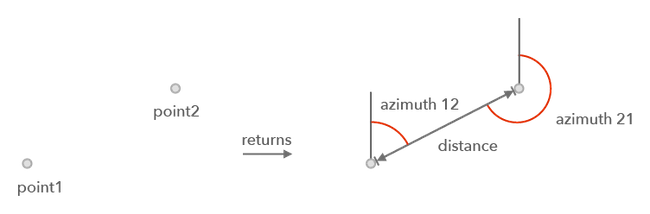

Calculate Distance and Azimuth operator

Signature: calculateDistanceAndAzimuth (point1: Point, point2: Point, options?: Options): CalculateDistanceAndAzimuthResult

Parameters

Parameter	Type	Description
point1	`Point`	The starting point.
point2	`Point`	The ending point.
options	`Options`	Additional options.

Returns: CalculateDistanceAndAzimuthResult
Returns an object containing the distance and azimuths between the two points.

Example

if (!geodeticUtilsOperator.isLoaded()) {
  await geodeticUtilsOperator.load();
}

const distanceAndAzimuthResult = geodeticUtilsOperator.calculateDistanceAndAzimuth(
  new Point({ x: -118.805, y: 34.027, spatialReference: { wkid: 4326 } }),
  new Point({ x: -118.802, y: 34.029, spatialReference: { wkid: 4326 } })
);

pointFromDistance

Function

Geodetically calculates a point location at a defined distance and direction from a known point. Unless the unit option is set, the default is meters.

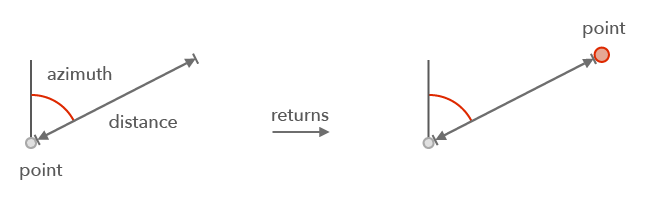

Point From Distance operator

Signature: pointFromDistance (point: Point, distance: number, azimuth: number, options?: Options): Point | null | undefined

Parameters

Parameter	Type	Description
point	`Point`	Origin location.
distance	`number`	Distance from the origin point.
azimuth	`number`	Direction in degrees (0 +/- 360) from the origin point, where both 0 and 360 degrees represent due north. A positive azimuth is measured clockwise from north. A negative azimuth is measured counter-clockwise from north.
options	`Options`	Additional options.

Returns: Point | null | undefined
Returns the new point or null if the point cannot be represented in the spatial reference.

Example

if (!geodeticUtilsOperator.isLoaded()) {
  await geodeticUtilsOperator.load();
}

const point = geodeticUtilsOperator.pointFromDistance(
  new Point({ x: -118.805, y: 34.027, spatialReference: { wkid: 4326 } }),
  350,
  45
);
