import { accelerateGeometry, execute, supportsCurves } from "@arcgis/core/geometry/operators/withinOperator.js";

Since: ArcGIS Maps SDK for JavaScript 4.31

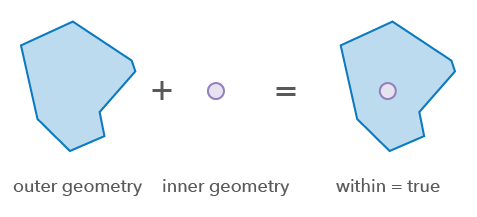

Perform a relational operation to determine if one 2D geometry is within another 2D geometry. Geometry A is within geometry B, when A is the intersection of A and B.

Geometry A can be non-simple geometry.

Within operator

Functions

Name	Return Type	Object
`accelerateGeometry`	`boolean`
`execute`	`boolean`
`supportsCurves`

accelerateGeometry

Function

Accelerate a geometry. This method prepares the geometry for faster within operations when the same geometry is tested multiple times (e.g. in a loop with hundreds of iterations). See the Acceleration guide topic for more information.

Signature: accelerateGeometry (geometry: GeometryUnion): boolean

Parameters

Parameter	Type	Description	Required
geometry	`GeometryUnion`	The geometry to accelerate.

Returns: boolean
Returns true if the geometry was successfully accelerated.

execute

Function

Perform a within operation on two geometries.

Signature: execute (inner: GeometryUnion, outer: GeometryUnion): boolean

Parameters

Parameter	Type	Description	Required
inner	`GeometryUnion`	The base geometry that is tested for the "within" relationship with `outer`.
outer	`GeometryUnion`	The comparison geometry that is tested for the "contains" relationship with `inner`.

Returns: boolean
Returns true if inner is within outer.

Example

Returns true if a geometry is completely within another
const isWithin = withinOperator.execute(polygon1, polygon2);

Variables

supportsCurves

Variable

Indicates if the operator supports input geometries that contain curves. The value will always be true.

Type: boolean
