Add custom dynamic entity data source

// [WriteFile Name=AddCustomDynamicEntityDataSource, Category=Layers]
// [Legal]
// Copyright 2023 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

#ifdef PCH_BUILD
#include "pch.hpp"
#endif // PCH_BUILD

// sample headers
#include "AddCustomDynamicEntityDataSource.h"
#include "CustomDataSource.h"

// ArcGIS Maps SDK headers
#include "ArcGISMapImageLayer.h"
#include "AttributeListModel.h"
#include "Basemap.h"
#include "CalloutData.h"
#include "DynamicEntity.h"
#include "DynamicEntityChangedInfo.h"
#include "DynamicEntityDataSource.h"
#include "DynamicEntityDataSourcePurgeOptions.h"
#include "DynamicEntityLayer.h"
#include "DynamicEntityObservation.h"
#include "IdentifyLayerResult.h"
#include "LabelDefinition.h"
#include "LabelDefinitionListModel.h"
#include "LayerListModel.h"
#include "Map.h"
#include "MapQuickView.h"
#include "MapTypes.h"
#include "ServiceTypes.h"
#include "SimpleLabelExpression.h"
#include "TextSymbol.h"
#include "TrackDisplayProperties.h"
#include "Viewpoint.h"

// Qt headers
#include <QFuture>
#include <QtConcurrent/QtConcurrent>

using namespace Esri::ArcGISRuntime;

AddCustomDynamicEntityDataSource::AddCustomDynamicEntityDataSource(QObject* parent /* = nullptr */):
  QObject(parent),
  m_map(new Map(BasemapStyle::ArcGISOceans, this))
{
  // This is a custom class that inherits from DynamicEntityDataSource. It was written specifically for this sample.
  CustomDataSource* dataSource = new CustomDataSource(":/Samples/Layers/AddCustomDynamicEntityDataSource/AIS_MarineCadastre_SelectedVessels_CustomDataSource.json", "MMSI", 10, this);
  m_dynamicEntityLayer = new DynamicEntityLayer(dataSource, this);

  m_map->operationalLayers()->append(m_dynamicEntityLayer);

  // Set previous observation properties
  m_dynamicEntityLayer->trackDisplayProperties()->setShowPreviousObservations(true);
  m_dynamicEntityLayer->trackDisplayProperties()->setShowTrackLine(true);
  m_dynamicEntityLayer->trackDisplayProperties()->setMaximumObservations(20);

  // Even when not displayed, previous observations are stored until purged
  m_dynamicEntityLayer->dataSource()->purgeOptions()->setMaximumObservationsPerTrack(20);

  // Show the vessel names as labels above the observation points
  SimpleLabelExpression* simpleLabelExpression = new SimpleLabelExpression("[VesselName]", this);
  TextSymbol* labelSymbol = new TextSymbol(this);
  labelSymbol->setColor(Qt::red);
  labelSymbol->setSize(12);
  LabelDefinition* labelDef = new LabelDefinition(simpleLabelExpression, labelSymbol, this);
  labelDef->setPlacement(LabelingPlacement::PointAboveCenter);
  m_dynamicEntityLayer->labelDefinitions()->append(labelDef);
  m_dynamicEntityLayer->setLabelsEnabled(true);
}

AddCustomDynamicEntityDataSource::~AddCustomDynamicEntityDataSource() = default;

void AddCustomDynamicEntityDataSource::init()
{
  // Register the map view for QML
  qmlRegisterType<MapQuickView>("Esri.Samples", 1, 0, "MapView");
  qmlRegisterType<AddCustomDynamicEntityDataSource>("Esri.Samples", 1, 0, "AddCustomDynamicEntityDataSourceSample");
}

MapQuickView* AddCustomDynamicEntityDataSource::mapView() const
{
  return m_mapView;
}

// Set the view (created in QML)
void AddCustomDynamicEntityDataSource::setMapView(MapQuickView* mapView)
{
  if (!mapView || mapView == m_mapView)
    return;

  m_mapView = mapView;
  m_mapView->setMap(m_map);

  m_mapView->setViewpointAsync(Viewpoint(47.984, -123.657, 3e6));

  // Create a slot to listen for mouse clicks
  connect(m_mapView, &MapQuickView::mouseClicked, this, &AddCustomDynamicEntityDataSource::identifyLayerAtMouseClick);

  emit mapViewChanged();
}

void AddCustomDynamicEntityDataSource::identifyLayerAtMouseClick(const QMouseEvent &e)
{
  // Hide the callout (if it is already hidden this will do nothing)
  m_mapView->calloutData()->setVisible(false);

  // Reseting m_tempParent gives it a new parent and cleans up any previously owned children like IdentifyLayerResult and DynamicEntity objects
  m_tempParent.reset(new QObject(this));

  m_mapView->identifyLayerAsync(m_map->operationalLayers()->first(), e.position(), 10, false, m_tempParent.get())
      .then(this, [this](IdentifyLayerResult* result)
  {
    if (!result || result->geoElements().empty())
      return;

    if (DynamicEntityObservation* observation = dynamic_cast<DynamicEntityObservation*>(result->geoElements().constFirst()))
    {
      DynamicEntity* dynamicEntity = observation->dynamicEntity();

      if (!dynamicEntity)
        return;

      // Get updated info about the dynamic entity every time it updates
      connect(dynamicEntity, &DynamicEntity::dynamicEntityChanged, this, [this](DynamicEntityChangedInfo* changedInfo)
      {
        // changedInfo will be cleaned up when m_tempParent is reset, but they will persist until then
        // a new DynamicEntityChangedInfo object will be created every time the dynamic entity updates
        // we can call deleteLater() to delete the object sooner when we leave this event loop
        changedInfo->deleteLater();

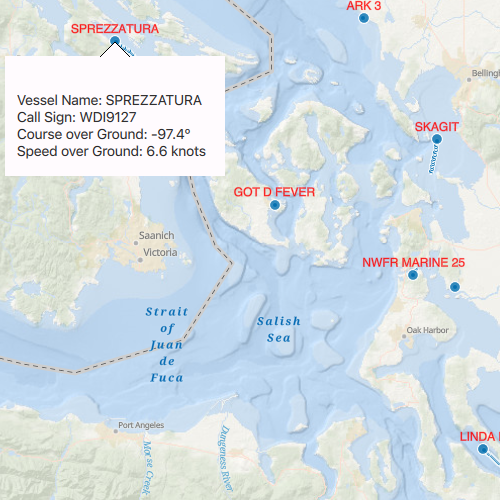

        // Get the current/most recent observation and populate a popup with its information
        DynamicEntityObservation* currentObservation = changedInfo->receivedObservation();
        QString calloutText =
        {
          "Vessel Name: " + currentObservation->attributes()->attributeValue("VesselName").toString() + "\n" +
          "Call Sign: " + currentObservation->attributes()->attributeValue("CallSign").toString() + "\n" +
          "Course over Ground: " + currentObservation->attributes()->attributeValue("COG").toString() + "º\n" +
          "Speed over Ground: " + currentObservation->attributes()->attributeValue("SOG").toString() + " knots"
        };
        m_mapView->calloutData()->setDetail(calloutText);
        m_mapView->calloutData()->setGeoElement(currentObservation);
        m_mapView->calloutData()->setVisible(true);
      });
    }
  });
}

// [WriteFile Name=AddCustomDynamicEntityDataSource, Category=Layers]
// [Legal]
// Copyright 2023 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

#ifndef ADDCUSTOMDYNAMICENTITYDATASOURCE_H
#define ADDCUSTOMDYNAMICENTITYDATASOURCE_H

// Qt headers
#include <QMouseEvent>
#include <QObject>

namespace Esri::ArcGISRuntime
{
class DynamicEntity;
class DynamicEntityLayer;
class Map;
class MapQuickView;
}

Q_MOC_INCLUDE("MapQuickView.h");

class AddCustomDynamicEntityDataSource : public QObject
{
  Q_OBJECT

  Q_PROPERTY(Esri::ArcGISRuntime::MapQuickView* mapView READ mapView WRITE setMapView NOTIFY mapViewChanged)

public:
  explicit AddCustomDynamicEntityDataSource(QObject* parent = nullptr);
  ~AddCustomDynamicEntityDataSource() override;

  static void init();

signals:
  void mapViewChanged();

private:
  Esri::ArcGISRuntime::MapQuickView* mapView() const;
  void setMapView(Esri::ArcGISRuntime::MapQuickView* mapView);

  void identifyLayerAtMouseClick(const QMouseEvent& e);

  Esri::ArcGISRuntime::Map* m_map = nullptr;
  Esri::ArcGISRuntime::MapQuickView* m_mapView = nullptr;

  Esri::ArcGISRuntime::DynamicEntityLayer* m_dynamicEntityLayer = nullptr;
  QScopedPointer<QObject> m_tempParent;
};

#endif // ADDCUSTOMDYNAMICENTITYDATASOURCE_H

// [WriteFile Name=AddCustomDynamicEntityDataSource, Category=Layers]
// [Legal]
// Copyright 2023 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

import QtQuick
import QtQuick.Controls
import Esri.Samples
import Esri.ArcGISRuntime.Toolkit

Item {

    // add a mapView component
    MapView {
        id: view
        anchors.fill: parent

        Component.onCompleted: {
            // Set and keep the focus on MapView to enable keyboard navigation
            forceActiveFocus();
        }
    }

    // Declare the C++ instance which creates the map etc. and supply the view
    AddCustomDynamicEntityDataSourceSample {
        id: model
        mapView: view
    }

    Callout {
        id: callout
        height: 120
        calloutData: view.calloutData
        accessoryButtonVisible: false
    }
}

// [Legal]
// Copyright 2024 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

// sample headers
#include "CustomDataSource.h"

// ArcGIS Maps SDK headers
#include "Domain.h"
#include "DynamicEntityDataSource.h"
#include "DynamicEntityDataSourceInfo.h"
#include "Field.h"
#include "Point.h"
#include "ServiceTypes.h"
#include "SpatialReference.h"

// Qt headers
#include <QFile>
#include <QFuture>
#include <QTextStream>
#include <QtConcurrent/QtConcurrent>

using namespace Esri::ArcGISRuntime;

CustomDataSource::CustomDataSource(QObject* parent) : DynamicEntityDataSource(parent)
{
}

CustomDataSource::CustomDataSource(const QString& fileName, const QString& entityIdField, const int msDelay, QObject* parent) :
  DynamicEntityDataSource(parent), m_fileName(fileName), m_entityIdField(entityIdField), m_msDelay(msDelay)
{
}

CustomDataSource::~CustomDataSource()
{
  // The app will crash upon destruction if the asynchronous method is still running upon destruction
  m_watcher.cancel();
  m_watcher.waitForFinished();
}

// Override the virtual onLoadAsync method to define what the DynamicEntityDataSource will do upon load
QFuture<DynamicEntityDataSourceInfo*> CustomDataSource::onLoadAsync()
{
  m_fields = getSchema();

  m_file.setFileName(m_fileName);

  if (m_file.open(QIODevice::ReadOnly | QIODevice::Text))
    m_textStream.setDevice(&m_file);

  // Create a DynamicEntityDataSourceInfo object to return
  DynamicEntityDataSourceInfo* dynamicEntityDataSourceInfo = new DynamicEntityDataSourceInfo(m_entityIdField, m_fields, this);

  // Your data may not display correctly if you do not have a spatial reference set
  dynamicEntityDataSourceInfo->setSpatialReference(SpatialReference::wgs84());

  // Return the QFuture<DynamicEntityDataSourceInfo*>
  return QtFuture::makeReadyValueFuture(dynamicEntityDataSourceInfo);
}

// Override the virtual onConnectAsync method to define what the DynamicEntityDataSource will do when the data source is connected
QFuture<void> CustomDataSource::onConnectAsync()
{
  m_watcher.setFuture(QtConcurrent::run([this](){observationProcessLoopAsync();}));
  return QtFuture::makeReadyVoidFuture();
}

// Override the virtual onDisconnectAsync method to define what the DynamicEntityDataSource will do when the data source is disconnected
QFuture<void> CustomDataSource::onDisconnectAsync()
{
  m_watcher.cancel();
  m_watcher.waitForFinished();
  return QtFuture::makeReadyVoidFuture();
}

// This method runs asynchronously to step through the accompanying .json file and call addObservation(geometry, attributes) with each line
void CustomDataSource::observationProcessLoopAsync()
{
  while (!m_textStream.atEnd() && !m_watcher.isCanceled())
  {
    const QString line = m_textStream.readLine();
    const QJsonObject jsonObject = QJsonDocument::fromJson(line.toUtf8()).object();

    // Get the observation geometry from the line
    const QJsonObject geometryObject = jsonObject.value("geometry").toObject();
    const Point point(geometryObject.value("x").toDouble(),
                      geometryObject.value("y").toDouble(),
                      SpatialReference::wgs84());

    // Get the observation attributes from the line
    const QVariantMap attributes = jsonObject.value("attributes").toObject().toVariantMap();

    addObservation(point, attributes);

    QThread::msleep(m_msDelay);

    if (m_textStream.atEnd())
      m_textStream.seek(0);
  }
}

// Schema fields that are hardcoded to match the accompanying .json data
QList<Field> CustomDataSource::getSchema()
{
  return QList<Field>
  {
    Field(FieldType::Text, "MMSI", "", 256, Domain(), false, false),
    Field(FieldType::Float64, "BaseDateTime", "", 8, Domain(), false, false),
    Field(FieldType::Float64, "LAT", "", 8, Domain(), false, false),
    Field(FieldType::Float64, "LONG", "", 8, Domain(), false, false),
    Field(FieldType::Float64, "SOG", "", 8, Domain(), false, false),
    Field(FieldType::Float64, "COG", "", 8, Domain(), false, false),
    Field(FieldType::Float64, "Heading", "", 8, Domain(), false, false),
    Field(FieldType::Text, "VesselName", "", 256, Domain(), false, false),
    Field(FieldType::Text, "IMO", "", 256, Domain(), false, false),
    Field(FieldType::Text, "CallSign", "", 256, Domain(), false, false),
    Field(FieldType::Text, "VesselType", "", 256, Domain(), false, false),
    Field(FieldType::Text, "Status", "", 256, Domain(), false, false),
    Field(FieldType::Float64, "Length", "", 8, Domain(), false, false),
    Field(FieldType::Float64, "Width", "", 8, Domain(), false, false),
    Field(FieldType::Text, "Cargo", "", 256, Domain(), false, false),
    Field(FieldType::Text, "globalid", "", 256, Domain(), false, false)
  };
}

// [Legal]
// Copyright 2024 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

#ifndef CUSTOMDATASOURCE_H
#define CUSTOMDATASOURCE_H

// ArcGIS Maps SDK headers
#include "DynamicEntityDataSource.h"
#include "Field.h"

// Qt headers
#include <QFile>
#include <QFuture>
#include <QFutureWatcher>
#include <QJsonObject>
#include <QObject>
#include <QString>
#include <QTextStream>
#include <QUrl>
#include <QVariantMap>

namespace Esri::ArcGISRuntime {

class DynamicEntityDataSource;
class DynamicEntityDataSourceInfo;

class CustomDataSource : public DynamicEntityDataSource
{
  Q_OBJECT

public:
  CustomDataSource(QObject* parent = nullptr);
  CustomDataSource(const QString& fileName, const QString& entityIdField, const int msDelay, QObject* parent = nullptr);
  ~CustomDataSource() override;

  QFuture<DynamicEntityDataSourceInfo*> onLoadAsync() override;
  QFuture<void> onConnectAsync() override;
  QFuture<void> onDisconnectAsync() override;

private:
  void observationProcessLoopAsync();
  QList<Field> getSchema();

  QString m_fileName;
  QFile m_file;
  QTextStream m_textStream;
  QString m_entityIdField;
  int m_msDelay;
  QList<Field> m_fields;
  QFutureWatcher<void> m_watcher;
};

} // namespace Esri::ArcGISRuntime

#endif // CUSTOMDATASOURCE_H

// [Legal]
// Copyright 2023 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

// sample headers
#include "AddCustomDynamicEntityDataSource.h"

// ArcGIS Maps SDK headers
#include "ArcGISRuntimeEnvironment.h"

// Qt headers
#include <QCommandLineParser>
#include <QDir>
#include <QGuiApplication>
#include <QQmlApplicationEngine>

// Other headers
#include "Esri/ArcGISRuntime/Toolkit/register.h"

// Platform specific headers
#ifdef Q_OS_WIN
#include <Windows.h>
#endif

int main(int argc, char *argv[])
{
  Esri::ArcGISRuntime::ArcGISRuntimeEnvironment::setUseLegacyAuthentication(false);
  QGuiApplication app(argc, argv);
  app.setApplicationName(QString("AddCustomDynamicEntityDataSource"));

  // Use of ArcGIS location services, such as basemap styles, geocoding, and routing services,
  // requires an access token. For more information see
  // https://links.esri.com/arcgis-runtime-security-auth.

  // The following methods grant an access token:

  // 1. User authentication: Grants a temporary access token associated with a user's ArcGIS account.
  // To generate a token, a user logs in to the app with an ArcGIS account that is part of an
  // organization in ArcGIS Online or ArcGIS Enterprise.

  // 2. API key authentication: Get a long-lived access token that gives your application access to
  // ArcGIS location services. Go to the tutorial at https://links.esri.com/create-an-api-key.
  // Copy the API Key access token.

  const QString accessToken = QString("");

  if (accessToken.isEmpty())
  {
      qWarning() << "Use of ArcGIS location services, such as the basemap styles service, requires" <<
                    "you to authenticate with an ArcGIS account or set the API Key property.";
  }
  else
  {
      Esri::ArcGISRuntime::ArcGISRuntimeEnvironment::setApiKey(accessToken);
  }

  // Initialize the sample
  AddCustomDynamicEntityDataSource::init();

  // Initialize application view
  QQmlApplicationEngine engine;
  Esri::ArcGISRuntime::Toolkit::registerComponents(engine);

  // Add the import Path
  engine.addImportPath(QDir(QCoreApplication::applicationDirPath()).filePath("qml"));

#ifdef ARCGIS_RUNTIME_IMPORT_PATH_2
  engine.addImportPath(ARCGIS_RUNTIME_IMPORT_PATH_2);
#endif

  // Set the source
  engine.load(QUrl("qrc:/Samples/Layers/AddCustomDynamicEntityDataSource/main.qml"));

  return app.exec();
}

// Copyright 2023 Esri.

// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0

// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.

import QtQuick.Controls
import Esri.Samples

ApplicationWindow {
    visible: true
    width: 800
    height: 600

    AddCustomDynamicEntityDataSource {
        anchors.fill: parent
    }
}
